มีทั้งหมด 7 รุ่น คือ
- Dust-tight / Water-jet-proof (IP65 Equivalent/IP67 Equivalent) Battery-less Absolute Encoder Type Electric Actuator / Rod Type LEY-X8
- Electric Actuator / Rod Type Dust-tight / Water-jet-proof (IP65 Equivalent / IP67 Equivalent) LEY-X7
- Electric Actuator/Rod Type Dust-tight/Water-jet-proof (IP65 Equivalent) LEY-X5

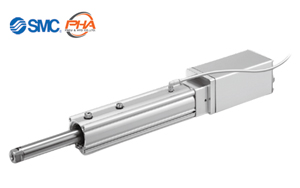

1) Dust-tight / Water-jet-proof (IP65 Equivalent/IP67 Equivalent) Battery-less Absolute Encoder Type Electric Actuator / Rod Type LEY-X8
Features | Dust-tight / Water-jet-proof (IP65 Equivalent/IP67 Equivalent) Battery-less Absolute Encoder Type Electric Actuator / Rod Type LEY-X8
- Enclosure: IP65* equivalent
- *Testing of IP65 has also been carried out.
- Battery-less absolute encoder compatible
Specifications | Dust-tight / Water-jet-proof (IP65 Equivalent / IP67 Equivalent) Battery-less Absolute Encoder Type Electric Actuator / Rod Type LEY-X8
| Specification | Model | Stroke (mm) | Pushing force (N) | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Battery-less absolute (Step motor / 24 VDC) |
LEY25-X8 | 30 to 400 | Max. 452 | Max. 500 | 3, 6, 12 |
| Battery-less absolute (Step motor / 24 VDC) |
LEY32-X8 | 30 to 500 | Max. 707 | Max. 500 | 4, 8, 16 |
| Battery-less absolute (Step motor / 24 VDC) |
LEY40-X8 | 30 to 500 | Max. 1058 | Max. 500 | 4, 8, 16 |

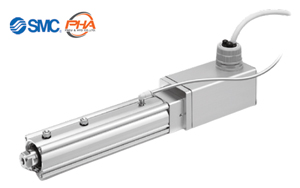

2) Electric Actuator / Rod Type Dust-tight / Water-jet-proof (IP65 Equivalent / IP67 Equivalent) LEY-X7
Features | Electric Actuator / Rod Type Dust-tight / Water-jet-proof (IP65 Equivalent / IP67 Equivalent) LEY-X7
- Enclosure: IP65 equivalent/IP67 equivalent
- Max. stroke: 500 mm*
- * For sizes 32 and 40
Specifications | Electric Actuator / Rod Type Dust-tight / Water-jet-proof (IP65 Equivalent / IP67 Equivalent) LEY-X7
| Specification | Model | Stroke (mm) | Pushing force (N) | Speed (mm / s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Step motor (Servo / 24 VDC) |
LEY25-X7 | 30 to 400 | Max. 452 | Max. 300 | 3, 6, 12 |
| Step motor (Servo / 24 VDC) |
LEY32-X7 | 30 to 500 | Max. 707 | Max. 300 | 4, 8, 16 |
| Step motor (Servo / 24 VDC) |
LEY40-X7 | 30 to 500 | Max. 1058 | Max. 300 | 4, 8, 16 |
| Servo motor (24 VDC) |
LEY25A-X7 | 30 to 400 | Max. 130 | Max. 300 | 3, 6, 12 |

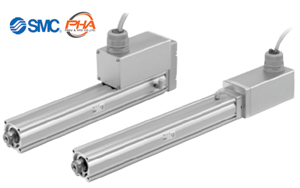

3) Electric Actuator/Rod Type Dust-tight/Water-jet-proof (IP65 Equivalent) LEY-X5
Features | Electric Actuator/Rod Type Dust-tight/Water-jet-proof (IP65 Equivalent) LEY-X5
- Enclosure: IP65 equivalent
- Max. stroke: 500 mm
Specifications | Electric Actuator/Rod Type Dust-tight/Water-jet-proof (IP65 Equivalent) LEY-X5
| Spec. | Model | Stroke (mm) | Pushing force (N) | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) |
LEY25-X5 | 30 to 400 | MAX.452 | MAX.400 | 3, 6, 12 |
| Step motor (Servo / 24 VDC) |
LEY32-X5 | 30 to 500 | MAX.707 | MAX.400 | 4, 8, 16 |
| Servo motor (24 VDC) |
LEY25A-X5 | 30 to 400 | MAX.130 | MAX.400 | 3, 6, 12 |
| AC Servo motor | LEY25S-X5 | 30 to 400 | MAX.485 | MAX.900 | 3, 6, 12 |
| AC Servo motor | LEY32S-X5 | 30 to 500 | MAX.588 | MAX.1200 | 5, 10, 20 |
| AC Servo motor | LEY63□□-□P | 100 to 800 | MAX.1910 | MAX.1000 | 5, 10, 20 |
| AC servo motor (In-line motor type) |
LEY25DS-X5 | 30 to 400 | MAX.485 | MAX.900 | 3, 6, 12 |
| AC servo motor (In-line motor type) |
LEY32DS-X5 | 30 to 500 | MAX.736 | MAX.1000 | 4, 8, 16 |
| AC servo motor (In-line motor type) |
LEY63D□□-□P | 100 to 800 | MAX.1910 | MAX.1000 | 5, 10, 20 |

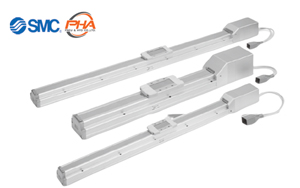

4) Electric Actuator / Slider Type, Ball Screw Drive 11-LEFS
Features | Electric Actuator / Slider Type, Ball Screw Drive 11-LEFS
- LEFS Series Step Motor (Servo / 24 VDC), Servo Motor (24 VDC)
- Max. work load: 60 kg
- Positioning repeatability: ±0.02 mm
- LEFS Series AC Servo Motor
- High output motor (100 / 200 / 400 W)
- Improved high speed transfer ability
- High acceleration/deceleration (20000 mm/s2)
- Pulse input type
- With internal absolute encoder
- Positioning repeatability: ±0.02 mm
Specifications | Electric Actuator / Slider Type, Ball Screw Drive 11-LEFS
| Spec. | Model | Stroke (mm) | Work load (kg) Horizontal | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) |
11-LEFS16 | 50 to 500 | MAX.14 | MAX.500 | 5, 10 |
| Step motor (Servo/24 VDC) |
11-LEFS25 | 50 to 600 | MAX.25 | MAX.500 | 6, 12 |
| Step motor (Servo/24 VDC) |
11-LEFS32 | 50 to 800 | MAX.45 | MAX.500 | 8, 16 |
| Step motor (Servo/24 VDC) |
11-LEFS40 | 150 to 1000 | MAX.55 | MAX.500 | 10, 20 |
| Servo motor (24 VDC) |
11-LEFS16A | 50 to 500 | MAX.10 | MAX.500 | 5, 10 |
| Servo motor (24 VDC) |
11-LEFS25A | 50 to 600 | MAX.18 | MAX.500 | 6, 12 |
| AC servo motor (100/200/400 W) |
11-LEFS25S | 50 to 600 | MAX.20 | MAX.900 | 6, 12 |
| AC servo motor (100/200/400 W) |
11-LEFS32S | 50 to 800 | MAX.45 | MAX.1000 | 8, 16 |
| AC servo motor (100/200/400 W) |
11-LEFS40S | 150 to 1000 | MAX.60 | MAX.1000 | 10, 20 |

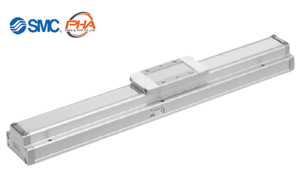

5) Electric Actuator / LEF Series Support Guide 11-LEFG
Features | Electric Actuator / LEF Series Support Guide 11-LEFG
- A support guide that is designed to support work pieces with significant overhang
- Easy installation with the same outer dimensions as the LEF series body, Contributes to the reduction of design and assembly labor
- The standardly equipped sealing band prevents the scattering of grease and the entry of foreign matter from outside.
Specifications | Electric Actuator / LEF Series Support Guide 11-LEFG
| Description | Type | Stroke (mm) |
|---|---|---|
| Ball screw drive / S | 11-LEFG16-S | 50 to 500 |
| Ball screw drive / S | 11-LEFG25-S | 50 to 600 |
| Ball screw drive / S | 11-LEFG32-S | 50 to 800 |
| Ball screw drive / S | 11-LEFG40-S | 150 to 1000 |
6) Electric Actuator / High Rigidity Slider Type Ball Screw Drive 11-LEJS
Features | Electric Actuator / High Rigidity Slider Type Ball Screw Drive 11-LEJS
- Low profile / Low center of gravity: Height reduced by approx. 36% (Reduced by 32 mm)
- Max. work load: 85 kg
- Positioning repeatability: ±0.02 mm
- Max. acceleration / deceleration: 20000 mm/s2
- Clean room specification
Specifications | Electric Actuator / High Rigidity Slider Type Ball Screw Drive 11-LEJS
| Spec. | Model | Stroke (mm) | Work load (kg) Horizontal | Speed (mm/s) | Screw lead (mm) |
|---|---|---|---|---|---|
| AC servo motor | 11-LEJS40 | 200 to 1200 | MAX. 55 |
MAX. 1200 |
8, 16 |
| AC servo motor | 11-LEJS63 | 300 to 1500 | MAX. 85 |
MAX. 1200 |
10, 20 |

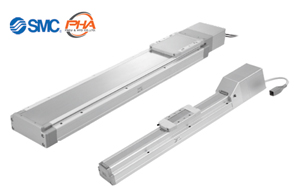

7) Electric Actuator 25A
Features | Electric Actuator 25A
- VCopper (Cu) and zinc (Zn) free*1
- *1 Excludes motors, cables, controllers/drivers
- VCompatible with dew points as low as −70°C
- Uses grease compatible with low dew points
Specifications | Electric Actuator 25A
| Series | Model | Specification |
|---|---|---|
| Electric Actuator | 25A-LEFS | Slider type / Step motor, Servo motor: Applicable to the LEC□ |
| Electric Actuator | 25A-LEFS | Slider type / Step motor: Applicable to the JXC□ |
| Electric Actuator | 25A-LEFS | Slider type / AC servo motor: Applicable to the LECS□ |
| Electric Actuator | 25A-LEFS | Slider type / AC servo motor: Applicable to the LECY□ |
| Electric Actuator | 25A-LEJS | High rigidity slider type / AC servo motor: Applicable to the LECS□ |
| Electric Actuator | 25A-LEJS | High rigidity slider type / AC servo motor: Applicable to the LECY□ |
| Electric Actuator | 25A-LEY | Rod type / Step motor, Servo motor: Applicable to the LEC□ |
| Electric Actuator | 25A-LEY | Rod type / Step motor: Applicable to the JXC□ |
| Electric Actuator | 25A-LEY | Rod type / AC servo motor: Applicable to the LECS□ |
| Electric Actuator | 25A-LEY | Rod type / AC servo motor: Applicable to the LECY□ |
