SMC - Lubrication Equipment
Lubrication Equipment
มีทั้งหมด 8 รุ่น คือ
1) Large Flow Lubricator AL
Specifications | Large Flow Lubricator AL
| Series | Port size | Bowl capacity (cm3) |
|---|---|---|
| AL800/900 | 1 1/4, 1 1/2, 2 | 440, 1000 |
2) Auto Feed Lube, Auto Feed Tank ALF / ALT
Features | Auto Feed Lube, Auto Feed Tank ALF / ALT
Reduces maintenance labor with an auto-lubrication function
ดาวน์โหลดไฟล์ PDFSpecifications | Auto Feed Lube, Auto Feed Tank ALF / ALT
| Series | Type | Port size | Bowl capacity (cm3) |
|---|---|---|---|
| ALF400 to 900 | - | 1/4, 3/8, 1/2, 3/4, 1 1 1/4, 1 1/2, 2 |
5000, 9000 |
| ALT | Tank | Air: 1/4 Oil: 3/8 |
5000, 9000 |
| VA, VB | Oil distributor | φ6 | Number of distribution ports: 4, 6, 8, 10, 16 |
3) D.P. Lube ALD
Features | D.P. Lube ALD
- Centralized control of multi-point lubrication
- Less lubricant consumption
- Simplified oil feeding volume setting in which only the pressure differential is adjusted
- Oil can be replenished by merely opening and closing the oil filler plug without stopping the air line.
- Micromist generation can be checked from the oil filler port.
Specifications | D.P. Lube ALD
| Series | Type | Port size | Bowl capacity (cm3) |
|---|---|---|---|
| ALD 600/900 | Single product | 3/4, 1, 1 1/4, 1 1/2, 2 | 2000, 5000 |
| ALDU 600/900 | Unit | 3/4, 1, 1 1/4, 1 1/2, 2 | 2000, 5000 |

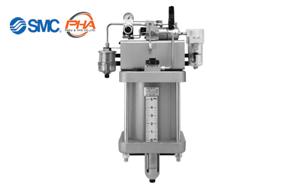

4) Booster Lube ALB
Features | Booster Lube ALB
- Centralized control of multi-point lubrication
- Stable oil feeding with a micromist
- Through the use of a booster, a pressure that is higher than that of the main air passage can be supplied. This difference is used as the mist generating pressure differential. Thus, the pressure drop in the main air passage can be minimized.
- Micromist can be constantly supplied by merely adjusting the mist generating pressure differential.
- Oil can be replenished by merely opening and closing the oil filler plug without stopping the air line.
- Micromist generation can be checked from the oil filler port.
Specifications | Booster Lube ALB
| Series | Type | Port size | Bowl capacity (cm3) |
|---|---|---|---|
| ALB900 | Booster lube | 1, 2, 3 | 5000 |
| ALBA90 | Bypass lubrication adapter | 1/4, 1/2 | - |
5) Mist Spray Unit LMU
Features | Mist Spray Unit LMU
Intermittent spray to cutting and press gear chains, etc.
ดาวน์โหลดไฟล์ PDFSpecifications | Mist Spray Unit LMU
| Series | Type |
|---|---|
| LMU | Mist spray unit |
| LMV | Mixing valve |
| LMH | Magnet holder |
| LMD | Branch pipe |
6) Impulse Lubricator ALIP
Features | Impulse Lubricator ALIP
Supplies a set volume of oil just before the supply point. It is possible to supply a constant volume of lubricating oil to circuits that are difficult for oil to reach, or to places with little air consumption
ดาวน์โหลดไฟล์ PDFSpecifications | Impulse Lubricator ALIP
| Series | Type | Port size | Feeding volume / cycle (cm3) |
|---|---|---|---|
| ALIP | Pressure type | 1/8 | 0 to 0.04 |
| ALT10 | Oil tank | Air: 1/8 Oil: 1/4 |
Tank capacity: 160 cm3 |
| ALT20 | Oil tank | Air: 1/8 Oil: 1/4 |
Tank capacity: 1000 cm3 |
7) Liquid Collector / Exhaust Pressure Type AEP100
Features | Liquid Collector / Exhaust Pressure Type AEP100
- Collect and reuse the leaked lubricating oil or hydraulic fluid using exhaust pressure.
- Collect the liquids using only the exhausted air released from the switching valve, Realizes energy saving
- Efficient operation that eliminates the need for collection and wiping by hand.
8) Liquid Collector / Ejector Type HEP500
Features | Liquid Collector / Ejector Type HEP500
- Collects the leakage of expensive cutting and grinding oil
- Eliminates the need to collect the leaked liquids by hand
- It is possible to use the equipped pump. A special driving force is not required.
