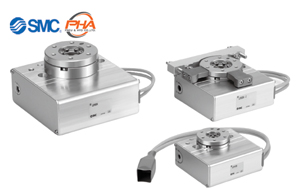

SMC - Rotary Tables

Rotation angle: 360º, 320º (310º), 180º, 90º
( ) The value indicated in brackets shows the value for the LER10.
Low profile: Height 42 mm (LER10)
Space saving: Built-in step motor
Shock-less/high speed actuation
- Max. speed: 420°/sec (7.33 rad/sec)
- Max. acceleration / deceleration: 3000º / sec² (52.36 rad/sec²)
It is possible to set the speed, acceleration/deceleration, and position. Max. 64 points
Energy saving: Automatic 40% power reduction after the table has stopped
Easy setting: Data can be set with only 2 items, position and speed. The controller is already set with the data of the actuator. (The actuator and controller are provided as a set.)
*Value when an external stopper is mounted

Specifications | Electric Rotary Table LER

Model	Rotating torque [N·m] Basic	Rotating torque [N·m] High torque	Max. speed [º/s] Basic	Max. speed [º/s] High torque	Positioning repeatability [º] Basic	Positioning repeatability [º] High torque
LER10	0.22	0.32	420	280	±0.05 (At the end: ±0.01)*	±0.05 (At the end: ±0.01)*
LER30	0.8	1.2	420	280	±0.05 (At the end: ±0.01)*	±0.05 (At the end: ±0.01)*
LER50	6.6	10	420	280	±0.05 (At the end: ±0.01)*	±0.05 (At the end: ±0.01)*
