SMC - Miniature
SMC - Miniature
มีทั้งหมด 2 รุ่น คือ

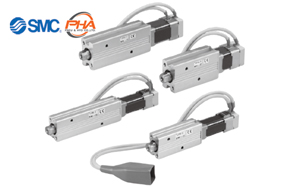

1) Electric Actuator / Miniature Rod Type LEPY
Features | Electric Actuator / Miniature Rod Type LEPY
- Compact and lightweight
- W x H x L = 20.5 x 30 x 125.6 mm
- Weight 240 g
- Max. pushing force: 50 N
- Positioning repeatability: ±0.05 mm
- It is possible to set the position, speed, and force. (64 points)
- Max. speed (Horizontal): 350 mm/s
Specifications | Electric Actuator / Miniature Rod Type LEPY
| Spec. | Series | Stroke (mm) | Pushing force [N] Basic | Pushing force [N] Compact | Max. work load [kg] (Horizontal) Basic | Max. work load [kg] (Horizontal) Compact | Screw lead |
|---|---|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) |
LEPY6 | 25, 50, 75 | MAX.20 | - | MAX.2.0 | - | 4.8 |
| Step motor (Servo/24 VDC) |
LEPY10 | 25, 50, 75 | MAX.50 | MAX.40 | MAX.6.0 | MAX.4.0 | 5, 10 |

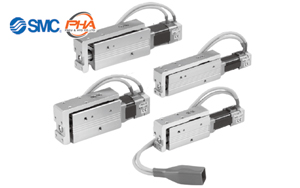

2) Electric Actuator / Miniature Slide Table Type LEPS
Features | Electric Actuator / Miniature Slide Table Type LEPS
- Compact and lightweight
- W x H x L = 21 x 41 x 138.6 mm
- Weight 290 g
- Max. pushing force: 50 N
- Positioning repeatability: ±0.05 mm
- It is possible to set the position, speed, and force. (64 points)
- Max. speed (Horizontal): 350 mm/s
Specifications | Electric Actuator / Miniature Slide Table Type LEPS
| Spec. | Series | Stroke (mm) | Pushing force [N] Basic | Pushing force [N] Compact | Max. work load [kg] (Horizontal) Basic | Max. work load [kg] (Horizontal) Compact | Screw lead |
|---|---|---|---|---|---|---|---|
| Step motor (Servo/24 VDC) |
LEPS6 | 25, 50 | MAX.20 | - | MAX.1.0 | - | 4.8 |
| Step motor (Servo/24 VDC) |
LEPS10 | 25, 50 | MAX.50 | MAX.40 | MAX.2.0 | MAX.2.0 | 5, 10 |
