SMC - Guide Cylinders (MG series)

Features | Miniature Guide Rod Cylinder MGJ

• Overall length: 23 + Stroke mm / Width: 29 mm / Height: 14.5 mm (MGJ6)
• 2 auto switches can be mounted even for 5 strokes.
• Integral wiring/piping to one direction
• Non-rotating accuracy: ±0.1°

Features | Compact Guide Cylinder JMGP

• Compact: Overall length shortened by 30.5 mm, Height shortened by 16 mm
• Weight: Max. 69% lighter (0.32 kg → 0.1 kg)
• 3 mounting options: Top mounting, Bottom mounting, Rear mounting
• Piping is possible in 4 directions.
• The solid state auto switch D-M9□ is mountable.
• Suitable for pushing, lifting, or clamping in a transport line.

Features | Compact Guide Cylinder MGP

• Weight reduced by up to 24% with a shorter guide rod and thinner plate.
• The space required between the bottom of the cylinder body and your equipment is reduced because of the shortening of the guide rod by a max. of 22 mm.
• Round type and magnetic field resistant auto switches can be mounted directly without a spacer.
• With flange: MGP□F

Features | Compact Guide Cylinder MGPK

• Volume: Max. 28% reduction (538 cm³ → 390 cm³)
• Weight: Max. 41% reduction (0.32 kg → 0.19 kg)
• High rigidity: Optimized configuration achieved compact body with high rigidity Plate thickness increased by up to 20%. Higher rigidity
• Lube-retainer is added to the guide rod.

Features | Compact Guide Cylinder/Rectangular Piston Type MGPM-X3159

• Now more lightweight and compact due to the adoption of a rectangular piston
  • Width: 21% reduction (48 mm→38 mm)
  • Weight: 37% reduction (3.29 kg→2.07 kg)
  • Overall length: 7% reduction (100 mm→93 mm)
• The allowable lateral load and the allowable kinetic energy are the same as those of the existing MGP series model.
• The allowable rotational torque of the plate and the non-rotating accuracy are the same as those of the existing MGP series model.

Features | Compact Guide Cylinder / Wide Type MGPW

• The guide pitch has been doubled.
• The allowable rotational torque of the plate has been improved. The non-rotating accuracy of the plate has been improved.
• Equivalent weight to the basic type

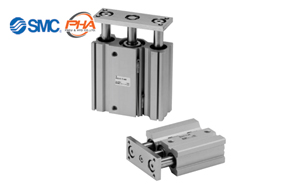

Features | Compact Guide Cylinder MGQ

• Air cylinder with an integrated guide that achieves lateral load resistance and high non-rotating accuracy
• Suitable for stoppers and lifters in the conveyor line

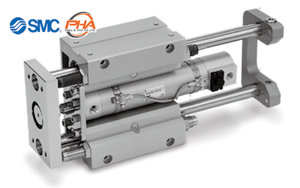

Features | Compact Guide Cylinder MGG

• Basic cylinder with integrated guide rods in a compact configuration
• A linear transfer unit that achieves lateral load resistance and high non-rotating accuracy

Features | Guide Cylinder / Compact Type MGC

• Linear transfer unit with compact guide body and front plate
• Compact, lightweight, and space saving

Features | Guide Table MGF

• Low-profile compact cylinder
• Cylinder with a large concentric guiding sleeve that provides excellent eccentric load resistance

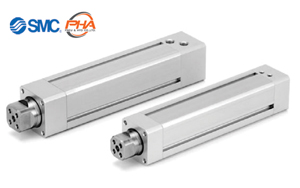

Features | Non-rotating Double Power Cylinder/Double Power Cylinder MGZ / MGZR

Doubles the output in the extending direction with its unique structure A built-in non-rotating mechanism using slide keys allows for loads to be mounted directly.

Features | Cylinder with Turntable MGT

• Integrated compact guide cylinder (MGP series) and manual turntable
• High-precision bearings for smooth turning return movement
• The table unit has positioning mechanisms for each 90° and 180° of rotation.
