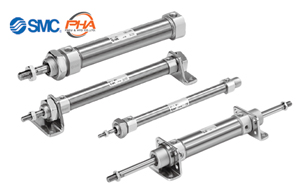

Features | ISO Cylinder C85 / Air Cylinder C75

• Compliant with ISO Standards (6432) (C85)
• Part numbers for actuators with mounting brackets, rod end brackets, and auto switches are now available. As it is no longer necessary to order the bracket and the applicable cylinder separately, ordering time can be reduced.
• Easy fine adjustment of auto switch position
• Transparent switch bracket improves visibility of indicator LED.
• With auto switch C85 Series: CD85, CD85W, CD85K, CD85R C75 Series: CD75, CD75W, CD75K, CD75R

Features | ISO Cylinder/Air Cylinder Non-adjustable Air Cushion Type C85-X3242 / C75-X3242

• Smooth stopping with less impact compared to the type that only has a rubber bumper
• Reduced impact noise
• No need to adjust the cushion needle
• Shorter cycle time The air cushion + rubber bumper construction enables the cycle time to be shortened, compared to the type that only has an air cushion.

Features | ISO Cylinder CP96 / CP96SD

• Compliant with ISO Standards (15552)
• Lightweight: Max. 15% reduction
• Cycle time shortened by adopting a new cushion method (Air cushion + Bumper cushion)
• The bumper cushion reduces the metal noise that occurs when the piston stops.

Features | ISO Standard Air Cylinder CP96 / CP96SD

• Compliant with ISO Standards (15552)
• Cushion valve can easily be adjusted.
• CNOMO, D-M9□, and A9□ grooves located on 4 surfaces
• With auto switch (CP96SD series: CP96SD, CP96KD)
• The CP96 series (ø32 to ø100) has been remodeled. Please select the new CP96 series.

Features | ISO Standard Air Cylinder CP96 / CP96SD

• Compliant with ISO Standards (15552)
• Lightweight: Max. 17% reduction
• Cycle time shortened by adopting a new cushion method (Air cushion + Bumper cushion)
• The bumper cushion reduces the metal noise that occurs when the piston stops.

Features | ISO Standard Air Cylinder CP96 / CP96SD

• Compliant with ISO Standards (15552)
• Cushion valve can easily be adjusted.
• With auto switch (C96SD series: C96SD, C96KD, C96YD)
• ∗ The C96 series (ø32 to ø100) has been remodeled. Please select the new C96 series.

Features | Air Cylinder C76

• Easy-accurate Mounting
• High Speed Actuation
• Replaceable Rod Seal
• Minimized Side Clearance
• Strong, Corrosion-proof Barrel

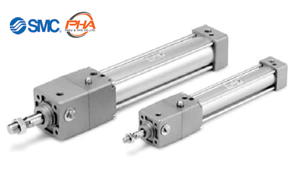

Note | ISO/VDMA Cylinder C95N

Load limits exist depending upon piston speed when locked, mounting direction and operating pressure.

Features | ISO/VDMA Cylinder Large Bore Size Type C95

*Series C95 standard type single rod φ125 has been remodeled. When selecting this model, please consider the new C96 series.

Features | ISO Standard Compact Cylinder C55 / CD55

• Compliant with ISO Standards (21287)
• It is possible to mount small auto switches on 4 surfaces.
• With auto switch (CD55 series: CD55)

Features | Hygienic Design Cylinder/ISO Standard Type HYC

• Compliant with ISO Standards (VDMA)
• Easily washable configuration, Improved water resistant air cylinder
• 5 times the lifespan of the improved water resistant cylinder (SMC comparison)
• With auto switch (HYDC series: HYDC

Features | Cylinder with Lock CP96N / C96N

• Lock can be manually operated with a hexagon wrench. Can be easily mounted onto equipment
• Improved ease of maintenance The lock unit and the cylinder can be separated.
• Holding force improved by 15%
• Stopping accuracy within ±1 mm
• Overall length reduced by 27.5 mm max.
• With lock status indication (-X3030□)
