SMC - Magnetically Coupled Rodless Cylinders

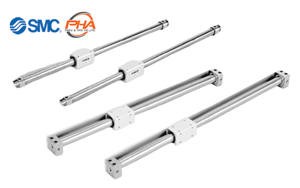

Features | Magnetically Coupled Rodless Cylinder CY3

• Further improvements have been made on the CY1 series.
• The mounting dimensions are the same as those of the CY1 series. Upgraded bearing performance and reduced sliding resistance
• NPT thread and G thread are available as standard.

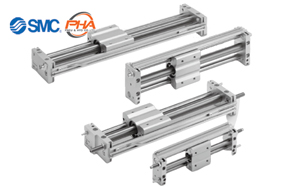

Features | Magnetically Coupled Rodless Cylinder CY1S

• Weight: Max. 15% reduction (0.96 kg: Existing model 1.13 kg)
• Overall length: Max. 15 mm shorter (240 mm: Existing model 255 mm)
• Improved durability: Lube-retainers are mounted on the internal and external surfaces of the cylinder tube to maintain lubrication.
• The adjustment bolt improves stroke accuracy/repeatability.

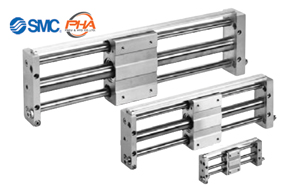

Features | Magnetically Coupled Rodless Cylinder CY1

This magnetically coupled, space-saving cylinder permits a wide range of applications.

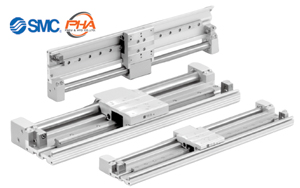

Features | Magnetically Coupled Rodless Cylinder/Low Profile Guide CY1F/

• Low profile, short body, loightweight
• The cylinder and guide are integrated.

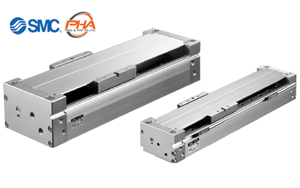

Features | Clean Rodless Cylinder CYP

Low particle generation transfer in clean environments
