Feature | Stage Single Axis Customization - SLD

• Vertical Applications.
• Integrate adjustable pneumatic counterweight module.
• Equipped with ironless motor.
• In line with the smaller space requirements.
• High-speed, lightweight design.

---

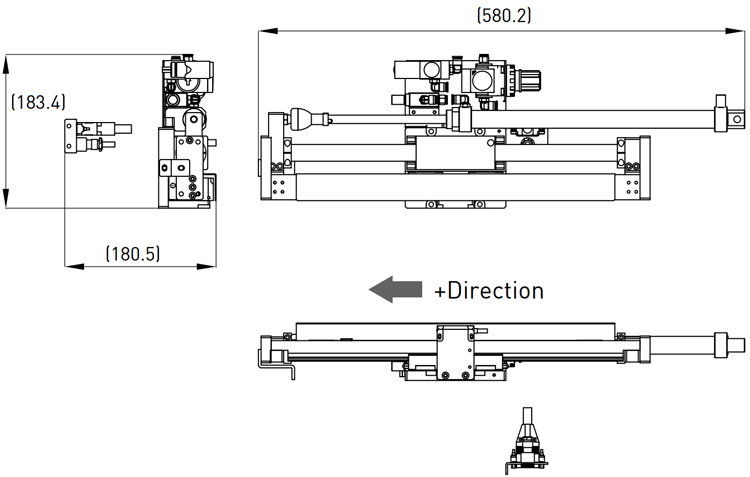

Dimensions | Stage Single Axis Customization - SLD

---

Specifications | Stage Single Axis Customization - SLD

Stage type	LMX1C-TA2-1-260
Motor Type	Ironless motor
Stroke (mm)	260
Peak Force(N)/Continuous Force(N)	108/27
Repeatability (µm)	±2 (with HIWIN solution)
Accuracy (µm)	±6 (after error mapping)
Max. Acceleration (m/s2)	10(with payload)
Max. Velocity (m/s)	1 (with payload)
Payload (kg)	0.5
Stage orientation	Vertical

Note : All specifications can be designed according to customer demand.
