Feature | Stage Single Axis Customization - SLA

• Max. velocity 5 m/s (no load).
• Max. stroke up to 6,000 mm or more.
• High stiffness structure.
• Suitable for point-to-point motion.
• Can be equipped with ironcore motor.
• With a special chain design, it can be installed upside down.

---

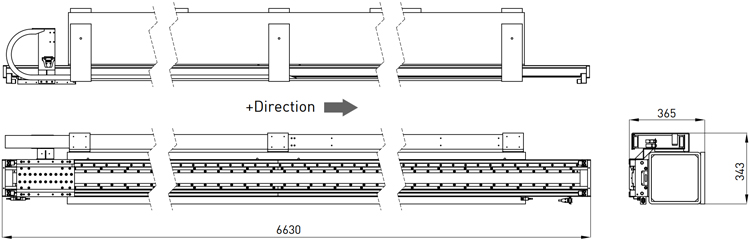

Dimensions | Stage Single Axis Customization - SLA

---

Specifications | Stage Single Axis Customization - SLA

Stage Type	LMX1L-S27-6200-X202
Motor specifications	Ironcore motor (can select ironless motor)
Stroke (mm)	6200
Max. force (N) / Continuous force (N)	1017/382
Repeatability (µm)	±15 (apply HIWIN measurements)
Max. acceleration (m/s2)	10 (with Payload)
Max. speed (m/s)	2 (with Payload)
Payload (kg)	5
Stage orientation	Upside down

Note : All specifications can be designed according to customer demand.
