Feature | Stage Single Axis Customization - SLC

• Uses dust-proof design
• Uses granite base, high stiffness.
• Not easily influenced by environmental temperature.
• Can be equipped with ironless or ironcore motor.
• Horiznotal straightness and vertical straight ness up to ± 3 µm/m.
• Design with hidden cable chain.

---

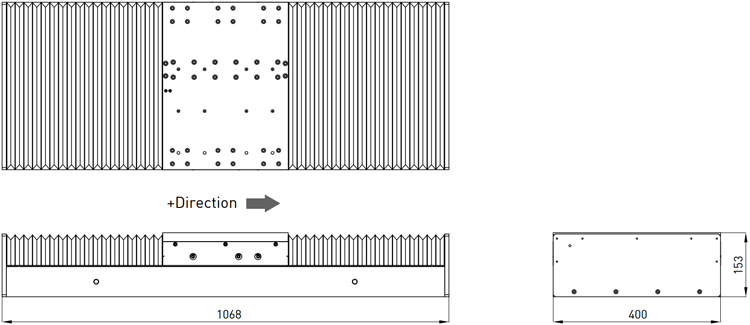

Dimensions | Stage Single Axis Customization - SLC

---

Specifications | Stage Single Axis Customization - SLC

Stage type	LMX1C-S27-1-460
Motor Type	Ironcore (/Ironless) motor
Stroke (mm)	460
Peak Force (N)/Continuous Force (N)	1017/382
Repeatability (µm)	±1 (with HIWIN solution)
Accuracy (µm)	±3 (after error mapping)
Max. Acceleration (m/s2)	5 (with payload)
Max. Velocity (m/s)	1 (with payload)
Horizontal Straightness (µm)	±3
Vertical Straightness (µm)	±3
Payload (kg)	30
Stage orientation	Horizontal

All specifications can be designed accoding to customer demand.
