Feature | Stage Single Axis Customization - SLB

• High stiffness design of base.
• Milt-forcer design.

---

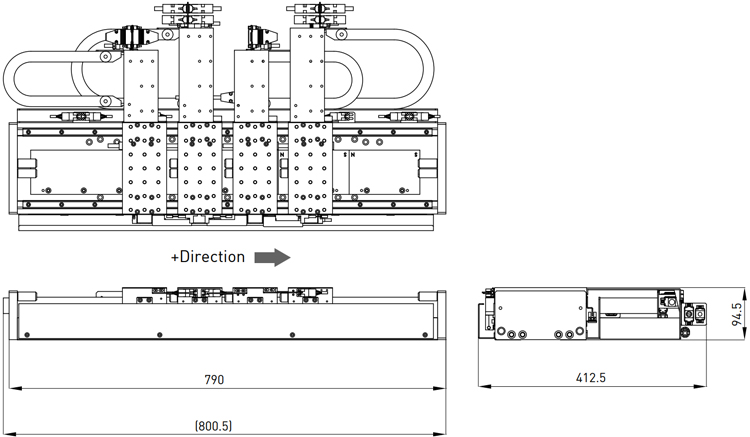

Dimensions | Stage Single Axis Customization - SLB

---

Specifications | Stage Single Axis Customization - SLB

Stage type	LMX1C-CB2-4-290
Motor Type	Ironless(/Ironcore) motor
Stroke (mm)	290
Peak Force (N) / Continuous Force (N)	144/36
Repeatability (µm)	±1 (with HIWIN solution)
Accuracy (µm)	±3 (after error mapping)
Max. Acceleration (m/s2)	0.05 (with payload)
Max. Velocity (m/s)	0.05 (with payload)
Payload (kg)	25
Stage orientation	Side-Mount

Note: All specifications can be designed according to customer demand.
