Hiwin Dual Axis Standard - LMCB5-CB8

Stage Dual Axis standard - LMCB5-CB8

Hiwin Dual Axis Standard - LMCB5-CB8 Different and function of dual axes stages consist of variou standard single axes. This will shortens the develop ment and mass production lead time. It can be applied in machine tool and semiconductor industry.

ดาวน์โหลดไฟล์ PDF

Feature | Stage Dual Axis Standard - LMCB5-CB8

High speed
No cogging
High precision
Easy to assemble
Ooptical detection application
High rigid aluminum struture
Ironless linear motor

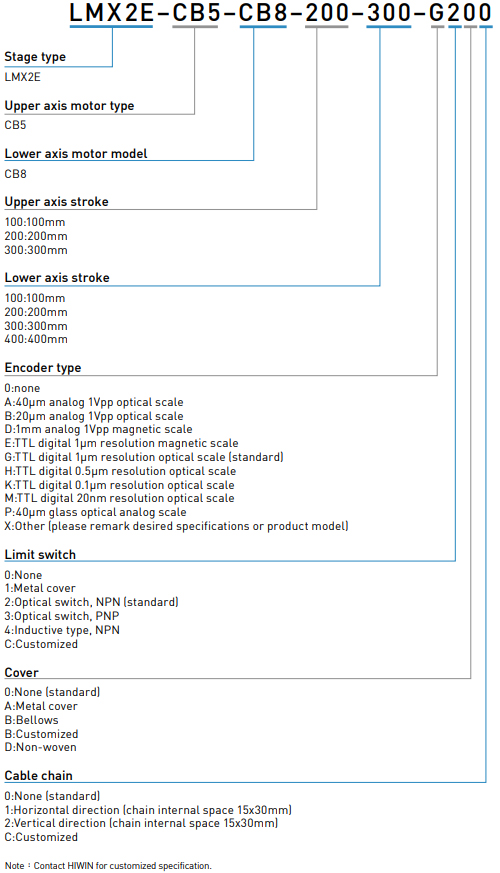

Code | Stage Dual Axis Standard - LMCB5-CB8

Hiwin Dual Axis Standard - LMCB5-CB8

Specifications | Dual Axis Standard - LMCB5-CB8

X-Stroke (mm)	Y-Stroke (mm)	LX (mm)	LY (mm)	L1 (mm)	L2 (mm)	N	Absolute accuracy (µm)	Resolution (µm)	Reoeatability (µm)	Orthogoality (arc-sec)	X moving unit mass (kg)	Y moving unit mass (kg)	Mass (kg)
100	100	400	500	85	111	1*	±3	1	±1	±5	3	21	46
100	200	400	600	60	111	3	±3		±1	±5	3	21	48
200	200	500	600	60	161	4	±3		±1	±5	3	23	50
100	300	400	700	35	111	5	±3		±1	±5	3	21	50
200	300	500	700	35	161	5	±3		±1	±5	3	23	52
300	300	600	700	35	211	6	±3		±1	±5	3	25	54
100	400	400	800	85	111	7	±3		±1	±5	3	21	50
200	400	500	800	85	161	7	±3		±1	±5	3	23	54
300	400	600	800	85	211	8	±3		±1	±5	3	25	56
