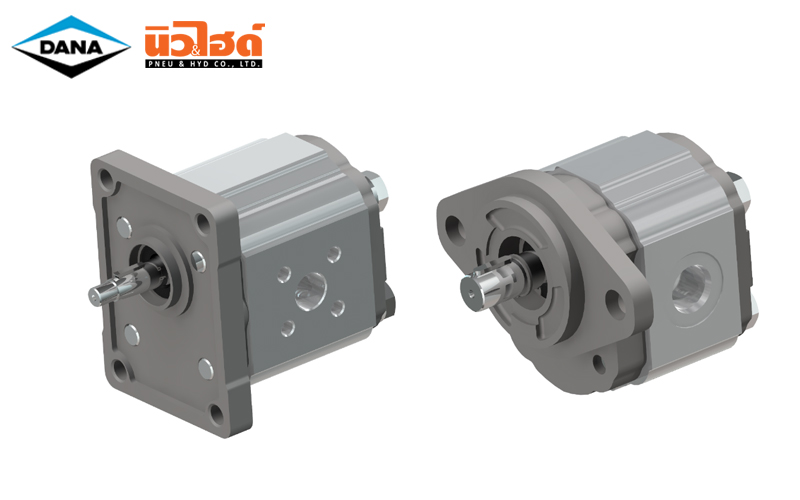

DANA Gear Motor - OT100
The gear motors construction include a gear housing from extruded in aluminium alloy and mounting flanges and covers made in cast iron material.
DANA Gear Motor - OT100
Feature | DANA Gear Motor OT100
DANA Gear motor OT100 : European Standard : Thanks to this construction the OT gear motors can be used in heavy working conditions and allow the transmission of high hydraulic powers. Also they offer very good mechanical and volumetric efficiencies, a low noise level and limited weight in comparison with the transmittable power. Suction and pressures ports can be GAS threated or flanged type. Displacements from 1,5 to 7,6 cc/rev and working pressures up to 260 bar. For any information about working conditions, limit performances or dimensions, please see the pdf technical sheet. For other types of motors ( with front bearing, with maximum pressure relief valve ), please refer to our technical catalogue. Catalogue - OT100 Gear Pumps Series
DANA Gear Motor OT100 : SAE “AA” standard – two holes : Thanks to this construction the OT gear motors can be used in heavy working conditions and allow the transmission of high hydraulic powers. Also they offer very good mechanical and volumetric efficiencies, a low noise level and limited weight in comparison with the transmittable power. Displacements from 1,5 to 7,6 cc/rev and working pressures up to 260 bar. For any information e about working conditions or dimensions please refer to the pdf technical sheet. For other types of motors ( with front bearing, with maximum pressure relief valve ), please refer to our technical catalogue.
