SMC - Gripper Unit for Collaborative Robots
SMC - Gripper Unit for Collaborative Robots
มีทั้งหมด 10 รุ่น คือ
1) Vacuum Gripper Unit for Collaborative Robots ZXP7□21-X1 for the FANUC CORPORATION CRX Series
Features | Vacuum Gripper Unit for Collaborative Robots ZXP7□21-X1 for the FANUC CORPORATION CRX Series
- Plug and Play configuration for immediate use
- FANUC CRX plug-in software
- Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
- Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
- Standards: Conforming to ISO 9409-1-50-4-M6
Specifications | Vacuum Gripper Unit for Collaborative Robots ZXP7□21-X1 for the FANUC CORPORATION CRX Series
| Series | Cup form | Cup diameter | Suction flow rate [L/min(ANR)] | Air consumption [L/min(ANR)] |
|---|---|---|---|---|
| ZXP7□21-X1 | Flat Flat with rib Bellows Thin flat Multistage bellows 2.5-stage bellows 5.5-stage bellows |
φ8 to φ32 | 17 | 57 |

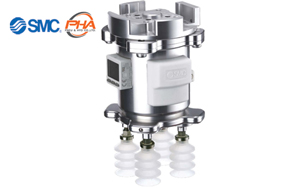

2) Vacuum Gripper Unit for Collaborative Robots ZXP7□-X1□-ASSISTA for Mitsubishi Electric Corporation MELFA ASSISTA
Features | Vacuum Gripper Unit for Collaborative Robots ZXP7□21-X1 for the FANUC CORPORATION CRX Series
- Operate by simply connecting 1 compressed air supply tube and an electrical wiring M12 connector.
- Integrated vacuum ejector, air supply valve, pressure switch, and cups
- Features a rounded appearance without corners
- A wide variety of cup variations are available to support a wide range of workpieces.
Specifications | Vacuum Gripper Unit for Collaborative Robots ZXP7□-X1□-ASSISTA for Mitsubishi Electric Corporation MELFA ASSISTA
| Series | Cup form | Cup diameter | Suction flow rate [L/min(ANR)] | Air consumption [L/min(ANR)] |
|---|---|---|---|---|
| ZXP7□-X1□-ASSISTA | Flat Flat with rib Bellows Thin flat Multistage bellows 2.5-stage bellows 5.5-stage bellows |
φ8 to φ32 | 17 | 57 |

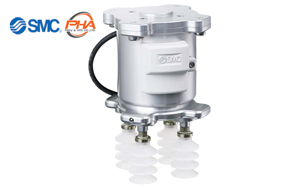

3) Vacuum Gripper Unit for Collaborative Robots ZXP7□41-X1 for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
Features | Vacuum Gripper Unit for Collaborative Robots ZXP7□41-X1 for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
- Plug and Play configuration for immediate use TMComponent: Easy programming
- Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.
- Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
- Standards: Conforming to ISO 9409-1-50-4-M6
Specifications | Vacuum Gripper Unit for Collaborative Robots ZXP7□41-X1 for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
| Series | Cup form | Cup diameter | Suction flow rate [L/min(ANR)] | Air consumption [L/min(ANR)] |
|---|---|---|---|---|
| ZXP7□41-X1 | Flat Flat with rib Bellows Thin flat Multistage bellows 2.5-stage bellows 5.5-stage bellows |
φ8 to φ32 | 17 | 57 |

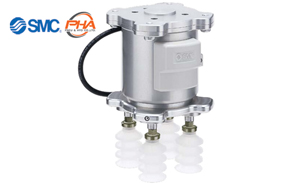

4) Vacuum Gripper Unit for Collaborative Robots ZXP7□01-X1 for Universal Robots
Features | Vacuum Gripper Unit for Collaborative Robots ZXP7□01-X1 for Universal Robots
- Plug and Play configuration for immediate use URCaps compatible Easy programming
- Operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector.
- Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
- Standards: Conforming to ISO9409-1-50-4-M6
Specifications | Vacuum Gripper Unit for Collaborative Robots ZXP7□01-X1 for Universal Robots
| Series | Cup form | Cup diameter | Suction flow rate [L/min(ANR)] | Air consumption [L/min(ANR)] |
|---|---|---|---|---|
| ZXP7□01-X1 | Flat Flat with rib Bellows Thin flat Multistage bellows 2.5-stage bellows 5.5-stage bellows |
φ8 to φ32 | 17 | 57 |
5) Vacuum Gripper Unit for Collaborative Robots ZXP7□11-X1□ for YASKAWA Electric Corporation collaborative robot MOTOMAN-HC10DT
Features | Vacuum Gripper Unit for Collaborative Robots ZXP7□11-X1□ for YASKAWA Electric Corporation collaborative robot MOTOMAN-HC10DT
- Can be operated simply by connecting 1 compressed air supply tube and the built-in cable for electric wiring
- Integrated vacuum ejector, air supply/release valve, pressure switch, and cups
- As the air piping and electric wiring built into the robot are used, no external wiring or piping is required. No interference with workpieces or workers
- Features a rounded appearance without corners
- A wide variety of cup variations are available to support a wide range of workpieces.
Specifications | Vacuum Gripper Unit for Collaborative Robots ZXP7□11-X1□ for YASKAWA Electric Corporation collaborative robot MOTOMAN-HC10DT
| Series | Cup form | Cup diameter | Suction flow rate [L/min(ANR)] | Air consumption [L/min(ANR)] |
|---|---|---|---|---|
| ZXP7□11-X1□ | Flat Flat with rib Bellows Thin flat Multistage bellows 2.5-stage bellows 5.5-stage bellows |
φ8 to φ32 | 17 | 57 |
6) Magnet Gripper for Collaborative Robots MHM-X7400A-CRX for the FANUC CORPORATION CRX Series
Features | Magnet Gripper for Collaborative Robots MHM-X7400A-CRX for the FANUC CORPORATION CRX Series
- Plug and Play configuration for immediate use
- FANUC CRX plug-in software
- Attracts and holds heavy objects with a magnet
- Supports workpieces with holes and uneven surfaces
- Compact with high holding force Holding force: Max. 200 N (ø25, Workpiece thickness 6 mm)
- Continues to hold workpieces even when the air is shut off
- Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.
- Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Specifications | Magnet Gripper for Collaborative Robots MHM-X7400A-CRX for the FANUC CORPORATION CRX Series
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-CRX | 160 (2) 200 (6) |
7) Magnet Gripper for Collaborative Robots MHM-X7400A-ASSISTA for the Mitsubishi Electric Corporation MELFA ASSISTA Series
Features | Magnet Gripper for Collaborative Robots MHM-X7400A-ASSISTA for the Mitsubishi Electric Corporation MELFA ASSISTA Series
- Attracts and holds heavy objects with a magnet
- Supports workpieces with holes and uneven surfaces
- Compact with high holding force Holding force: Max. 200 N (ø25, Workpiece thickness 6 mm)
- Continues to hold workpieces even when the air is shut off
- Operate by simply connecting 1 air supply tube and an electrical wiring M12 connector.
- Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Specifications | Magnet Gripper for Collaborative Robots MHM-X7400A-ASSISTA for the Mitsubishi Electric Corporation MELFA ASSISTA Series
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-ASSISTA | 160 (2) 200 (6) |
8) Magnet Gripper for Collaborative Robots MHM-X7400A-TM for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
Features | Magnet Gripper for Collaborative Robots MHM-X7400A-TM for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
- Plug and Play configuration for immediate use
- TMComponent: Easy programming
- Attracts and holds heavy objects with a magnet
- Supports workpieces with holes and uneven surfaces
- Compact with high holding force Holding force: Max. 200 N (ø25, Workpiece thickness 6 mm)
- Continues to hold workpieces even when the air is shut off
- Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.
- Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Specifications | Magnet Gripper for Collaborative Robots MHM-X7400A-TM for the OMRON Corporation and TECHMAN ROBOT Inc. TM Series
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-TM | 160 (2) 200 (6) |
9) Magnet Gripper for Collaborative Robots MHM-X7400A for Universal Robots
Features | Magnet Gripper for Collaborative Robots MHM-X7400A for Universal Robots
- Plug and Play configuration for immediate use
- URCap: Easy programming
- Attracts and holds heavy objects with a magnet
- Supports workpieces with holes and uneven surfaces
- Compact with high holding force Holding force: Max. 200 N (ø25, Workpiece thickness 6 mm)
- Continues to hold workpieces even when the air is shut off
- Operate by simply connecting 1 air supply tube and an electrical wiring M8 connector.
- Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Specifications | Magnet Gripper for Collaborative Robots MHM-X7400A for Universal Robots
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A | 160 (2) 200 (6) |
10) Magnet Gripper for Collaborative Robots MHM-X7400A-HC10 / HC10DT for the YASKAWA Electric Corporation MOTOMAN-HC
Features | Magnet Gripper for Collaborative Robots MHM-X7400A-HC10 / HC10DT for the YASKAWA Electric Corporation MOTOMAN-HC
- Attracts and holds heavy objects with a magnet
- Supports workpieces with holes and uneven surfaces
- Compact with high holding force Holding force: Max. 200 N (ø25, Workpiece thickness 6 mm)
- Continues to hold workpieces even when the air is shut off
- Operate by simply connecting 1 air supply tube and an electrical wiring connector.
- Integrated solenoid valve, auto switch, and piston speed adjustment mechanism
Specifications | Magnet Gripper for Collaborative Robots MHM-X7400A-HC10 / HC10DT for the YASKAWA Electric Corporation MOTOMAN-HC
| Series | Max. holding force N (Workpiece thickness mm) |
|---|---|
| MHM-X7400A-HC10 MHM-X7400A-HC10DT |
160 (2) 200 (6) |
