SMC - Vacuum Release Valve Units
SMC - Vacuum Release Valve Units
มีทั้งหมด 3 รุ่น คือ
- Vacuum / Release Unit VQD1000-V
- Vacuum Release Valve with Restrictor SJ3A6
- Vacuum Release Valve with Restrictor SY3A□R SY5A□R

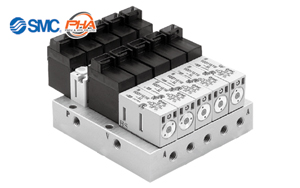

1) Vacuum / Release Unit VQD1000-V
Features | Vacuum / Release Unit VQD1000-V
- Applicable to 0603 chips
- Response speed: 13 msec (at the time of 500 mm*) /18.5 msec (at the time of 1000 mm*)
- Smooth workpiece removal with no overshoot
- There is no need for timing adjustment of switchback between vacuum and positive pressure.
- A throttle circuit is not required for release air.
- Suction filter: ZFC050 (Made to order)
- * Distance from the unit to the work area

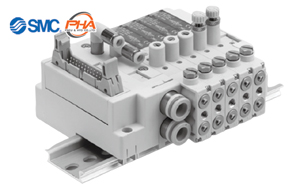

2) Vacuum Release Valve with Restrictor SJ3A6
Features | Vacuum Release Valve with Restrictor SJ3A6
- 2 built-in spool valves
- It is possible to control vacuum adsorption and release with a single valve unit.
- Width 10 mm (Same size as the SJ3000 series)
- With a restrictor that can adjust the flow rate of the release air
- Built-in replacement filter on both vacuum and release sides
- Can be combined with the 4 port solenoid valve SJ2000/3000 (Made to order)

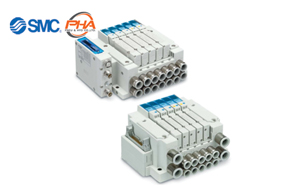

3) Vacuum Release Valve with Restrictor SY3A□R SY5A□R
Features | Vacuum Release Valve with Restrictor SY3A□R SY5A□R
- Vacuum suction and release can be controlled with a single valve.
- With a restrictor that can adjust the flow rate of the release air
- Can be mounted on the same manifold as the standard valve
- * When the individual EXH spacer is used
Specifications | Vacuum Release Valve with Restrictor SY3A□R SY5A□R
| Series |
|---|
| SY3A□R |
| SY5A□R |
