SMC - Compact 2/3 Port Solenoid Valves

2/3 port solenoid valves/Air operated valves

มีทั้งหมด 13 รุ่น คือ

  1. Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW
  2. Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW
  3. Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF
  4. High Speed 2 Port Valve (2 Way Valve) SX10
  5. Low Profile 2/3-Port Solenoid Valve SX90/090
  6. Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ
  1. Impact Blow Valve IBV1☐-X5/X7(-Q)
  2. Pulse Blow Valve AXTS040☐-☐☐-X2
  3. Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM
  4. Direct Operated 2/3 Port Isolated Valve LVMK20/200
  5. Pinch Valve LPV22-X1
  6. Diaphragm Valve for Ultra High Purity AZ
  7. Normal Close High Vacuum Solenoid Valve XSA

1) Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW

SMC - Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW
SMC - Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW

Features | Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW

  • For air, medium vacuum, water
  • Body material: Aluminum, Resin (PPS), Brass, Stainless steel
  • With One-touch fittings (resin body)
  • IP65
ดาวน์โหลดไฟล์ PDF

Specifications | Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW

SeriesValve typePort sizeOrifice diameter
VDW10/20 N.C. φ3.2, φ4, φ6, M5, 1/8 φ1 to φ3.2

2) Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW

SMC - Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW
SMC - Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW

Features | Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW

  • * The production of the VDW10/20 series was discontinued in December 2012. Please select the new VDW10/20 series.
  • * Excludes the VDW10/20 series manifold
  • * The production of the VDW30 series was discontinued in July 2015. Please select the VX21 series.
  • * The production of the 3-port solenoid valve VDW200/300 series is continued.
ดาวน์โหลดไฟล์ PDF

Specifications | Compact Direct Operated 3 Port Solenoid Valve (3 Way Valve) for Water and Air VDW

SeriesValve typePort sizeOrifice diameter (mmø)
VDW200/300 C.O. M5 to 1/4 (8A) 1 to 4

3) Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF

SMC - Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF
SMC - Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF

Features | Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF

  • Compact, lightweight resin body (PPS)
  • IP65
  • Power consumption: 3 W (Standard), 0.5 W (With power-saving circuit)
ดาวน์โหลดไฟล์ PDF

Specifications | Compact/Lightweight 2 Port Solenoid Valve (2 Way Valve) for Water and Air VDW-XF

SeriesValve typePort sizeOrifice diameter (mmø)
VDW30/40-XF N.C. P7, P8 (Quick fastener) ø4, ø6, ø8, ø10 1 to 6

4) High Speed 2 Port Valve (2 Way Valve) SX10

SMC - High Speed 2 Port Valve (2 Way Valve) SX10
SMC - High Speed 2 Port Valve (2 Way Valve) SX10

Features | High Speed 2 Port Valve (2 Way Valve) SX10

  • High-speed response ON: 0.45 ms, OFF: 0.4 ms (±0.05 ms)
  • Long service life: 5 billion cycles or more
  • High frequency: 1200 Hz
  • Width: 9 mm
  • Low power consumption: 4 W
ดาวน์โหลดไฟล์ PDF

Specifications | High Speed 2 Port Valve (2 Way Valve) SX10

SeriesFlow rate (L/min)Power consumption (W)Max. operating frequency (Hz)
SX10 50 80
40
10
4		 1200
1000
550
350
SX10 100 80
40
10
4		 650
550
300
200
SX10 150 80
40
10
4		 600
500
250
150

5) Low Profile 2/3-Port Solenoid Valve SX90/090

SMC - Low Profile 2/3-Port Solenoid Valve SX90/090
SMC - Low Profile 2/3-Port Solenoid Valve SX90/090

Features | Low Profile 2/3-Port Solenoid Valve SX90/090

  • Compact
    Overall length: Approx. 38 mm (2-port), 54 mm (3-port)
    Valve width/height: 10 mm
    Weight: 10 g (2-port), 20 g (3-port)
  • Large flow rate
    C [dm3/(s·bar)]: 0.25 (2-port), 0.5 (3-port)
    Flow rate [L/min (ANR)]: 45 (2-port), 90 (3-port) (At 0.2 MPa)
ดาวน์โหลดไฟล์ PDF

Specifications | Low Profile 2/3-Port Solenoid Valve SX90/090

SeriesValve constructionC[dm3/(s•bar)]Flow rate [L/min (ANR)] at 0.2 MPaType of actuation
SX91 2-port
direct operated poppet valve		 0.25 45 Normally closed
SX92 2-port
direct operated poppet valve		 0.12 22 Universal
SX090 3-port
direct operated poppet valve		 0.5 90 Universal

6) Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ

SMC - Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ
SMC - Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ

Features | Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ

  • High-frequency operation is possible: High-speed response 7 ms or less (VQ20), 20 ms or less (VQ30)
  • Easy piping with One-touch fittings
  • The dust-tight, water-jet-proof enclosure (IP65) is compatible with the DIN terminal type.
  • Applications: Air-blow, Blow-off of workpieces, etc.
  • Manifold type no.: VV2Q22, VV2Q32
ดาวน์โหลดไฟล์ PDF

Specifications | Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for Dry Air VQ

SeriesValve typePort sizeOrifice diameter (mmø)
VQ20 N.C. φ6 to φ12 3.4
VQ30 N.C. φ6 to φ12 4.8

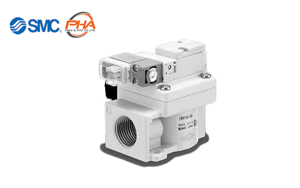

7) Impact Blow Valve IBV1☐-X5/X7(-Q)

SMC - Impact Blow Valve IBV1□-X5/X7(-Q)
SMC - Impact Blow Valve IBV1☐-X5/X7(-Q)

Features | Impact Blow Valve IBV1☐-X5/X7(-Q)

  • Increased impact force due to higher peak pressure
  • Drastic reduction in air consumption and labor time
  • High peak pressure: 3 times or more (Compared with the existing model)
  • Air consumption: 93% reduction
  • Compact design allows for installation in narrow spaces.
ดาวน์โหลดไฟล์ PDF

Specifications | Impact Blow Valve IBV1□-X5/X7(-Q)

SeriesPort sizeEnclosure
IBV1☐-X5
L plug connector specifications		 IN port: Rc3/8
OUT port: Rc1/4		 Dustproof
IBV1☐-X7
M8 connector specifications		 IN port: Rc3/8
OUT port: Rc1/4		 IP65

8) Pulse Blow Valve AXTS040☐-☐☐-X2

SMC - Pulse Blow Valve AXTS040□-□□-X2
SMC - Pulse Blow Valve AXTS040☐-☐☐-X2

Features | Pulse Blow Valve AXTS040☐-☐☐-X2

  • The peak pressure of repeatedly colliding air permits efficient blowing.
  • Air consumption: Reduced by 50% or more
  • Control for pulse generation is not required. Pulse blow can be used by simply supplying air.
ดาวน์โหลดไฟล์ PDF

Specifications | Pulse Blow Valve AXTS040☐-☐☐-X2

SeriesValve constructionType of actuationFrequency adjustment range
AXTS040☐-2☐-X2 Metal seal Internal pilot 1 to 5Hz
AXTS040☐-3☐-X2 Metal seal External pilot 1 to 8Hz

9) Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM

SMC - Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM
SMC - Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM

Features | Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM

  • Low particle generation, Oil-free, Metal-free * Fluid contact parts
  • Isolated structure The solenoid drive body is separated from the fluid area by a diaphragm.
  • Power consumption: 1.0 W or less (With power saving circuit)
  • Change in volume (Pumping volume): 0.01 µL or less
ดาวน์โหลดไฟล์ PDF

Specifications | Compact Direct Operated 2/3-Port Solenoid Valve for Chemical Liquids LVM

SeriesValve constructionValve typeOperating pressure rangeOrifice diameter (mmø)
LVM07
Base mounted		 Direct operated rocker type N.C. -75 kPa to 0.1 MPa 0.8
LVM09
Body ported
Base mounted		 Direct operated rocker type N.C.
N.O.
Universal		 -75 kPa to 0.2 MPa 1 (Body ported)
1.1 (Base mounted)
LVM10
Body ported
Base mounted		 Direct operated rocker type N.C.
N.O.
Universal		 -75 kPa to 0.25 MPa 1.4
LVM15
Body ported
Base mounted		 Direct operated rocker type N.C.
N.O.
Universal		 -75 kPa to 0.25 MPa
(Max. 0.6 MPa)		 1.6
1 (High-pressure type)
LVM20
Body ported
Base mounted		 Direct operated rocker type N.C.
N.O.
Universal		 -75 kPa to 0.3 MPa
(Body ported: 0.25 MPa)		 2
LVM1□
Body ported
Base mounted		 Direct operated poppet type N.C. 0 to 0.25 MPa 1.5

10) Direct Operated 2/3 Port Isolated Valve LVMK20/200

SMC - Direct Operated 2/3 Port Isolated Valve LVMK20/200
SMC - Direct Operated 2/3 Port Isolated Valve LVMK20/200

Features | Direct Operated 2/3 Port Isolated Valve LVMK20/200

  • Low particle generation, Oil-free, Metal-free
  • Fluids: Air, Water, Deionized water, Diluent, Cleaning fluid
  • Isolated structure: The solenoid drive body is separated from the fluid area by a block seal.
  • Easy piping
  • Minimal dead space
  • Flow adjustment is not required.
ดาวน์โหลดไฟล์ PDF

Specifications | Direct Operated 2/3 Port Isolated Valve LVMK20/200

SeriesValve typePiping directionFluid contact material
LVMK N.C.
Universal		 Bottom ported
Side ported		 Body: PPS
Seal: EPDM, FKM

11) Pinch Valve LPV22-X1

SMC - Pinch Valve LPV22-X1
SMC - Pinch Valve LPV22-X1

Features | Pinch Valve LPV22-X1

  • The fluid does not come into contact with the moving parts of the valve, so there is no inflow of contaminants. By discarding a tube after use, the need for a washing process is eliminated, thus ensuring good hygiene.
  • Compact Valve width: 20 mm
  • Power consumption : 1.5 W (Built-in power saving circuit)
  • Improved tubing life Less damage to the tube due to an arc shape of the tube clamp
  • Easy tubing replacement
ดาวน์โหลดไฟล์ PDF

Specifications | Pinch Valve LPV22-X1

SeriesValve typePiping directionFluid contact material
LPV Direct operated solenoid N.O. Silicone
O.D.: ø4, I.D.: ø2
O.D.: ø5/32", I.D.: ø1/32"

12) Diaphragm Valve for Ultra High Purity AZ

SMC - Diaphragm Valve for Ultra High Purity AZ
SMC - Diaphragm Valve for Ultra High Purity AZ

Features | Diaphragm Valve for Ultra High Purity AZ

  • Cleaned for high purity semiconductor applications and clean room assembled
  • Helium leak tested
  • SEMI Standards compliant
  • User-friendly forged body
ดาวน์โหลดไฟล์ PDF

Specifications | Diaphragm Valve for Ultra High Purity AZ

SeriesTypeBody materialConnection typeConnection size
AZ Air operated type 316L SS Face seal
Tube weld		 1/4"
3/8"
1/2
AZ Manually operated 316L SS Face seal
Tube weld		 1/4"
3/8"
1/2

13) Normal Close High Vacuum Solenoid Valve XSA

SMC - Normal Close High Vacuum Solenoid Valve XSA
SMC - Normal Close High Vacuum Solenoid Valve XSA

Features | Normal Close High Vacuum Solenoid Valve XSA

  • Minimum operating pressure: 1 × 10-6 Pa (abs)
  • Leakage: Internal 1.3 × 10-9 Pa•m3/s, External 1.3 × 10-11 Pa•m3/s
  • 2 types of fittings and female threads are available.
  • Power consumption: Max. 25% reduction
  • Weight: Max. 18% lighter (0.5 kg → 0.41 kg)
ดาวน์โหลดไฟล์ PDF

Specifications | Normal Close High Vacuum Solenoid Valve XSA

SeriesValve typeFluidPipingPort size
XSA Normally closed Air
Inert gas		 Face seal fitting
Compression fitting		 1/4, 3/8
XSA Normally closed Air
Inert gas		 Rc, NPT female thread 1/8, 1/4, 3/8
