SMC - 5.0 MPa 2/3 Port Solenoid Valves
5.0 MPa 2/3 Port Solenoid Valves
มีทั้งหมด 3 รุ่น คือ

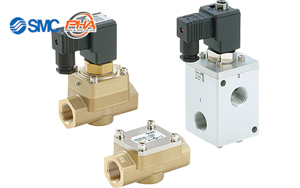

1) 5.0 MPa Pilot Operated 2/3-Port Solenoid Valve & Check Valve VCH/VCHC
Features | 5.0 MPa Pilot Operated 2/3-Port Solenoid Valve & Check Valve VCH/VCHC
- Service life: 10 million cycles
- Uses a polyurethane elastomer poppet for valve parts
- Improves durability at high pressures
Specifications | 5.0 MPa Pilot Operated 2/3-Port Solenoid Valve & Check Valve VCH / VCHC
| Series | Type | Port size | Orifice diameter (mmø) |
|---|---|---|---|
| VCH41 | 2-port valve, N.C. | G3/4, 1 | φ16 |
| VCH42 | 2-port valve, N.O | G3/4, 1 | φ17.5 |
| VCH410 | 3-port valve | G1/2 to 1 | φ18 |
| VCHC40 | Check valve | G3/4, 1 | φ16 |

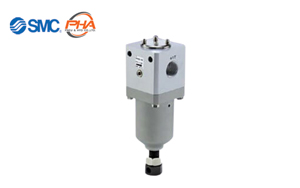

2) Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
Features | Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
- Service life: 10 million cycles Improved durability in high-pressure environments through the use of a polyurethane elastomer poppet
- Uses NSF-H1 approved grease on guide rings (Sliding parts)
- Improved durability through the use of a metal seal type relief valve
- Uses a special fluororesin seal for sliding parts Stable unattached response, Not easily affected by pressure
Specifications | Direct Operated Regulator for 6.0 MPa (Relieving Type) VCHR
| Series | Model | Type | Port size | Set pressure (MPa) |
|---|---|---|---|---|
| VCHR | VCHR30/40 | Direct operated regulator (Relieving type) |
G3/4, 1, 1 1/2 | 0.5 to 5.0 (Max. operating pressure 6.0) |
3) 5.0 MPa Silencer VCHN
Features | 5.0 MPa Silencer VCHN
- Reduces clogging with its double-layer structure
- Noise reduction: 35 dB (A)
