SMC - Mechanical Valves / Transmitters
SMC - Air Operated Valves
มีทั้งหมด 4 รุ่น คือ
1) 2/3-Port Mechanical Valve with One-touch Fitting VM100F
Features | 2/3-Port Mechanical Valve with One-touch Fitting VM100F
- Built-in One-touch fitting reduced installation space and less piping work
- Space saving Approx. 35% reduction (25.8 mm shorter) due to the built-in One-touch fitting
- Lightweight 80% reduction (48 g lighter) due to the resin body material
- Less man-hours replacing the actuator Mounting using a clip makes replacement easier.
Specifications | 2/3-Port Mechanical Valve with One-touch Fitting VM100F
| Description | Series | Number of ports |
|---|---|---|
| Mechanical valve | VM100F | 2/3-ports |

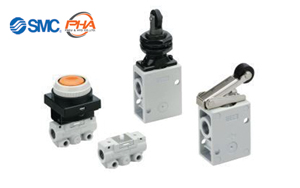

2) Mechanical Valve VM / VZM / VFM
Features | Mechanical Valve VM / VZM / VFM
- A wide variety of valves are available for all types of air systems.
- Small mounting space with a compact body
Specifications | Mechanical Valve VM / VZM / VFM
| Description | Series | Number of ports |
|---|---|---|
| Mechanical valve | VM1000 | 2/3 ports |
| Mechanical valve | VM100, VM200 | 2/3 ports |
| Mechanical valve | VM400 | 3 ports |
| Mechanical valve | VZM500, VZM400 | 5 ports |
| Mechanical valve | VFM300, VFM200 | 5 ports |
| Mechanical valve | VM800 | 3 ports |

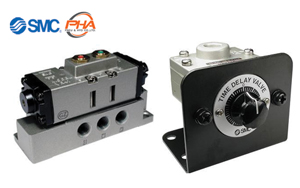

3) Transmitters VR
Specifications | Transmitters VR
| Description | Series |
|---|---|
| Relay valve | VR4151, 4152 |
| Shuttle valve | VR1210, 1220 VR1210F, VR1220F |
| AND valve | VR1211F |
| Time delay valve | VR2110 |
| Pneumatic Indicator | VR3100, 3110 |
| Pneumatic-electric relay | VR3200, 3201 |

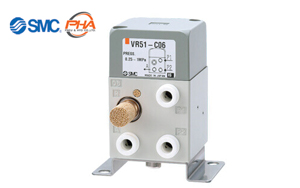

4) Two Hand Control Valve VR51
Features | Two Hand Control Valve VR51
- Equipment featuring a safety circuit
- When starting an operation, accidents, such as fingers being caught, can be prevented by requiring both hands to start push button operated valves.
- An output requires synchronized two-handed operation. (within 0.5 s)
Specifications | Two Hand Control Valve VR51
| Series | Sonic conductance：C | Port size Metric size | Port size Inch size | Applicable tubing material |
|---|---|---|---|---|
| VR51 | 0.3 dm3/(s・bar) | φ6 | φ1/4 | Nylon Soft nylon Polyurethane FR soft nylon FR double layer FR double layer polyurethane |
