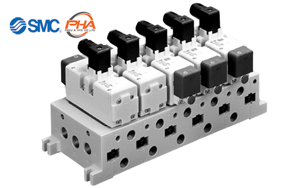

1) 5-Port Solenoid Valve/ISO Standard VQ 7-6 / 7-8

SMC - 5-Port Solenoid Valve/ISO Standard VQ7-6/7-8
SMC - 5-Port Solenoid Valve/ISO Standard VQ7-6/7-8

Features | 5-Port Solenoid Valve / ISO Standard VQ 7-6 / 7-8

  • Compliant with ISO Standards
  • Manifold type no.: VV71, VV72
ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Solenoid Valve/ISO Standard VQ 7-6 / 7-8

SeriesFlow rate characteristics
4/2→5/3(A/B→EA/EB)
C[dm3/(s・bar)]		Flow rate characteristics
4/2→5/3(A/B→EA/EB)
b		Flow rate characteristics
4/2→5/3(A/B→EA/EB)
Cv		Applicable
cylinder size		Power consumption
(W)
VQ7-6 6.0 0.11 1.4 φ100 1.0
VQ7-8 13 0.27 3.3 φ140 1.0

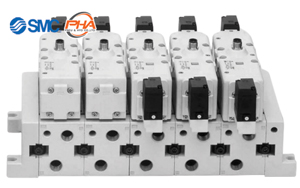

2) Solenoid Valve (with M12 Connector) / ISO Standard EVS 7-6 / 7-8 / 7-10

SMC - Solenoid Valve (with M12 Connector) / ISO Standard EVS 7-6 / 7-8 / 7-10
SMC - Solenoid Valve (with M12 Connector) / ISO Standard EVS 7-6 / 7-8 / 7-10

Features | Solenoid Valve (with M12 Connector) / ISO Standard EVS 7-6 / 7-8 / 7-10

  • Lightweight
  • Interface conforms to ISO standard
  • Accommodates enclosure IP65
  • Reduced installation space
  • Wide variety of manifold option
ดาวน์โหลดไฟล์ PDF

Specifications | Solenoid Valve (with M12 Connector) / ISO Standard EVS 7-6 / 7-8 / 7-10

ModelFlow rateApplicable
cylinder size		Power
consumption (W)
EVS7-6 1200 L/min (ANR) φ100 1.8
EVS7-8 3000 L/min (ANR) φ160 1.8
EVS7-10 5500 L/min (ANR) φ200 1.8

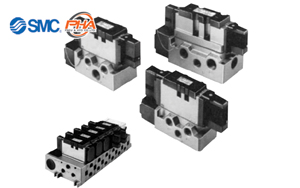

3) ISO Interface Solenoid Valve/ISO5599/II VSR8/VSS8

SMC - ISO Interface Solenoid Valve/ISO5599/II VSR8/VSS8
SMC - ISO Interface Solenoid Valve/ISO5599/II VSR8/VSS8

Features | ISO Interface Solenoid Valve/ISO5599/II VSR8/VSS8

*With port size 1/2 for VSR/VSS8-6, 3/4 for VSR/VSS8-8, 1 for VSR/VSS8-10.

ดาวน์โหลดไฟล์ PDF

Specifications | ISO Interface Solenoid Valve/ISO5599/II VSR8/VSS8

ModelSealEffective area (Cv)*Power
consumption (W)
VSR8-6 Rubber 36 (2.0) 1.8
VSS8-6 Metal 32 (1.8) 1.8
VSR8-8 Rubber 72 (4.0) 1.8
VSS8-8 Metal 65 (3.6) 1.8
VSR8-10 Rubber 97 (5.4) 1.8
VSS8-10 Metal 90 (5.0) 1.8

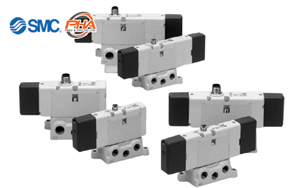

4) Solenoid Valve (with M Connector) / ISO Standard EVS 1-01 / 1-02

SMC - Solenoid Valve (with M Connector) /ISO Standard EVS1-01/1-02
SMC - Solenoid Valve (with M Connector) / ISO Standard EVS 1-01 / 1-02

Features | Solenoid Valve (with M Connector) / ISO Standard EVS 1-01 / 1-02

  • Large capacity
  • Lightweight
  • ISO 15407-1 Interface
  • Accommodates enclosure IP65
ดาวน์โหลดไฟล์ PDF

Specifications | Solenoid Valve (with M Connector) / ISO Standard EVS 1-01 / 1-02

ModelFlow rateApplicable
cylinder size		Power
consumption (W)
EVS1-01 1000 L/min (ANR) φ100 1.0
EVS1-02 400 L/min (ANR) φ80 1.0

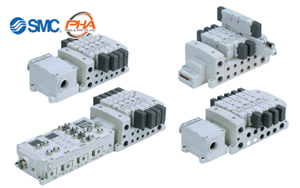

5) 5 Port Solenoid Valve/ISO15407-2 Standard VSS/VSR 8-2, VSS/VSR 8-4

SMC - 5 Port Solenoid Valve/ISO15407-2 Standard VSS/VSR8-2, VSS/VSR8-4
SMC - 5 Port Solenoid Valve/ISO15407-2 Standard VSS/VSR8-2, VSS/VSR8-4

Features | 5 Port Solenoid Valve/ISO15407-2 Standard VSS/VSR8-2, VSS/VSR8-4

Note) Values for CYL.→EXH. (2, 4→3, 5)

ดาวน์โหลดไฟล์ PDF

Specifications | 5 Port Solenoid Valve/ISO15407-2 Standard VSS/VSR8-2, VSS/VSR8-4

ModelManifold
pitch (mm)		Flow-rate characteristics
C		Flow-rate characteristics
b		Flow-rate characteristics
Cv		Applicable cylinder
bore size (mm)
VSS8-2 19 1.70 0.10 0.30 Up to φ80
VSR8-2 19 2.20 0.10 0.50 Up to φ80
VSS8-4 27 3.40 0.10 0.70 Up to φ100
VSR8-4 27 4.20 0.20 1.00 Up to φ100
