Power Supplies - S8VS

Download PDF

Model Numbers

Specifications

Dimensions

Features

Model Numbers | Power Supplies - S8VS

Note: For details on normal stock models, contact your nearest OMRON representative.

Models without Indication Monitor (Standard Models)

Power ratings	Input voltage	Output voltage (VDC)	Output current	UL Class 2 Output standards	Model number (screw terminal block)	Model number (screwless terminal block)
15 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *3)	5 V	2.0 A	Yes	*S8VS-01505 1**	---
		12 V	1.2 A	Yes	S8VS-01512
		24 V	0.65 A	Yes	S8VS-01524
30 W		5 V	4.0 A	Yes	*S8VS-03005 2**
		12 V	2.5 A	Yes	S8VS-03012
		24 V	1.3 A	Yes	S8VS-03024
60 W		24 V	2.5 A	Yes	S8VS-06024	S8VS-06024-F
90 W			3.75 A	---	S8VS-09024	S8VS-09024-F
90 W			3.75 A	Yes	S8VS-09024S	S8VS-09024S-F
120 W			5 A	---	S8VS-12024	S8VS-12024-F
180 W			7.5 A	---	S8VS-18024	S8VS-18024-F
240 W			10 A	---	S8VS-24024	S8VS-24024-F
480 W	100 to 240 VAC		20 A Peak current 30 A (200 VAC)	---	S8VS-48024	S8VS-48024-F

*1. The output capacity of the S8VS-01505 is 10 W.
*2. The output capacity of the S8VS-03005 is 20 W.
*3. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Models with Indication Monitor (Maintenance Forecast Monitor)

Power ratings	Input voltage	Output voltage (VDC)	Output current	Alarm output *2	UL Class 2 Output standards	Model number (screw terminal lock)	Model number (screwless terminal block)
60 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *1)	24 V	2.5 A	---	Yes	S8VS-06024A	S8VS-06024A-F
90 W			3.75 A	Sinking	---	S8VS-09024A	S8VS-09024A-F
				Sinking	Yes	S8VS-09024AS	S8VS-09024AS-F
				Sourcing	---	S8VS-09024AP	S8VS-09024AP-F
				Sourcing	Yes	S8VS-09024APS	S8VS-09024APS-F
120 W			5 A	Sinking	---	S8VS-12024A	S8VS-12024A-F
120 W			5 A	Sourcing	---	S8VS-12024AP	S8VS-12024AP-F
180 W			7.5 A	Sinking	---	S8VS-18024A	S8VS-18024A-F
180 W			7.5 A	Sourcing	---	S8VS-18024AP	S8VS-18024AP-F
240 W			10 A	Sinking	---	S8VS-24024A	S8VS-24024A-F
240 W			10 A	Sourcing	---	S8VS-24024AP	S8VS-24024AP-F
480 W	100 to 240 VAC		20 A Peak current 30 A (200 VAC)	Sinking/ sourcing	---	S8VS-48024A	S8VS-48024A-F

*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column,"sinking" indicates an emitter COM and "sourcing" indicates a collector COM.

Models with Indication Monitor (Total Run Time Monitor)

Power ratings	Input voltage	Output voltage (VDC)	Output current	Alarm output *2	UL Class 2 Output standards	Model number (screw terminal block)	Model number (screwless terminal block)
60 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC) *1	24 V	2.5 A	---	Yes	S8VS-06024B	S8VS-06024B-F
90 W			3.75 A	---	---	S8VS-09024BE	S8VS-09024BE-F
				---	Yes	S8VS-09024BES	S8VS-09024BES-F
				Sinking	---	S8VS-09024B	S8VS-09024B-F
				Sinking	Yes	S8VS-09024BS	S8VS-09024BS-F
				Sourcing	---	S8VS-09024BP	S8VS-09024BP-F
				Sourcing	Yes	S8VS-09024BPS	S8VS-09024BPS-F
120 W			5 A	---	---	S8VS-12024BE	S8VS-12024BE-F
				Sinking	---	S8VS-12024B	S8VS-12024B-F
				Sourcing	---	S8VS-12024BP	S8VS-12024BP-F
180 W			7.5 A	---	---	S8VS-18024BE	S8VS-18024BE-F
				Sinking	---	S8VS-18024B	S8VS-18024B-F
				Sourcing	---	S8VS-18024BP	S8VS-18024BP-F
240 W			10 A	---	---	S8VS-24024BE	S8VS-24024BE-F
				Sinking	---	S8VS-24024B	S8VS-24024B-F
				Sourcing	---	S8VS-24024BP	S8VS-24024BP-F
480 W	100 to 240 VAC		20 A Peak current 30 A (200 VAC)	Sinking/ sourcing	---	S8VS-48024B	S8VS-48024B-F

*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column, "sinking" indicates an emitter COM and "sourcing" indicates a collector COM.
Note: Refer to Data Sheet for the options that available.

Terminal Block Cover (Order Separately)

S8VS	Input side	Output side
15W	S82Y-VS-C2P-S
30W	S82Y-VS-C2P-S
60W	S82Y-VS-C3P	S82Y-VS-C2P-M
90W	S82Y-VS-C3P	S82Y-VS-C2P-M
120W	S82Y-VS-C3P	S82Y-VS-C2P-M
180W	S82Y-VS-C3P	S82Y-VS-C4P
240W	S82Y-VS-C3P	S82Y-VS-C4P
480W	S82Y-VS-C3P

Note: Terminal block cover attaches to the body. Please order from the loss time.

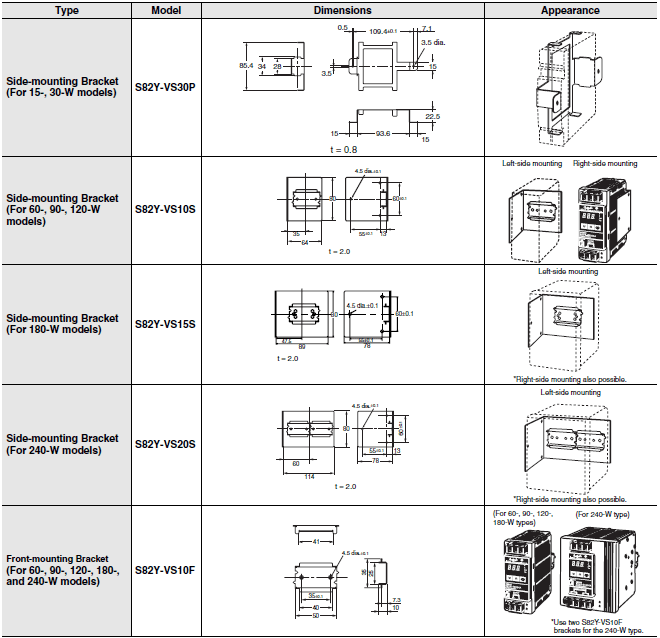

Mounting Brackets

Name	Model
Side-mounting Bracket (for 15- and 30-W models)	S82Y-VS30P
Side-mounting Bracket (for 60-, 90-, and 120-W models)	S82Y-VS10S
Side-mounting Bracket (for 180-W models)	S82Y-VS15S
Side-mounting Bracket (for 240-W models)	S82Y-VS20S
Front-mounting Bracket (for 60-, 90-, 120-, 180-, and 240-W models) *	S82Y-VS10F

Note: Brackets cannot be used for 480-W models.
* Two required to mount a 240-W model.

Recommended Noise Filter

Noise filter
S8V-NF

For more information, refer to S8V-NF Noise Filter Data Sheet (Cat. No. T212-E1).

Specifications | Power Supplies - S8VS

Ratings/Characteristics

Power ratings			15 W			30 W
Output voltage (VDC)			5 V	12 V	24 V	5 V	12 V	24 V
Efficiency		With 100-VAC input	74% typical	79% typical	83% typical	74% typical	81% typical	85% typical
Efficiency		With 200-VAC input	73% typical	78% typical	80% typical	74% typical	80% typical	86% typical
Input	*Voltage 1**		100 to 240 VAC (allowable range: 85 to 264 VAC, 80 to 370 VDC *5)
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	Current	With 100-VAC input	0.45 A max., 0.34 A typical			0.9 A max., 0.66 A typical
	Current	With 200-VAC input	0.25 A max., 0.22 A typical			0.6 A max., 0.4 A typical
	Power factor		---
	Harmonic current regulation		Conforms to EN61000-3-2
	Leakage current	With 100-VAC input	0.5 mA max.
	Leakage current	With 200-VAC input	1.0 mA max.
	Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
	Inrush current *2	With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**		- 10% to 15% (with V.ADJ)
	Ripple noise voltage (at rated I/O)		60 mV max.	70 mV max.	60 mV max.	60 mV max.	90 mV max.	150 mV max.
	Input variation influence		0.5% max. (at 85- to 264-VAC input, 100% load)
	Load variation influence (rated input voltage)		2.0% max. (5 V), 1.5% max. (12 V, 24 V), (with rated input, 0 to 100% load)
	Temperature variation influence		0.05%/°C max.
	Startup time (at rated I/O) *2	With 100-VAC input	580 ms typical	530 ms typical	600 ms typical	500 ms typical	560 ms typical	560 ms typical
	Startup time (at rated I/O) *2	With 200-VAC input	340 ms typical	360 ms typical	400 ms typical	360 ms typical	380 ms typical	400 ms typical
	Output hold time (at rated I/O) *2	With 100-VAC input	39 ms typical	27 ms typical	28 ms typical	31 ms typical	22 ms typical	31 ms typical
	Output hold time (at rated I/O) *2	With 200-VAC input	187 ms typical	134 ms typical	134 ms typical	174 ms typical	123 ms typical	140 ms typical
Additional functions	*Overload protection 2**		The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
	*Overvoltage protection 2**		Yes *4
	Output voltage indication		No
	Output current indication		No
	Peak-hold current indication		No
	Maintenance forecast monitor indication		No
	Maintenance forecast monitor output		No
	Total run time monitor indication		No
	Total run time monitor output		No
	Undervoltage alarm indication		Yes (color: red)
	Undervoltage alarm output		No
	Parallel operation		No (However, backup operation is possible. An external diode is required.)
	Series operation		Models with 24-V output: Possible for up to 2 Power Supplies (with external diode) Models with 5- or 12-V output: Not possible
Other	Operating ambient temperature		Refer to the derating curve in Engineering Data. (with no icing or condensation)
	Storage temperature		- 25 to 65°C
	Operating ambient humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
	Output indicator		Yes (color: green)
	EMI	Conducted Emissions	Conforms to EN55011 Group1 Class B and based on FCC Class A
	EMI	Radiated Emissions	Conforms to EN55011 Group1 Class B
	EMS		Conforms to EN61204-3 high severity levels
	Approved standards		UL 508 (Listing, Class2 Output: Per 1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark
	SEMI		F47-0706 (With 200-VAC input)
	Weight		160 g max.			180 g max.

Power ratings			60 W
Type			Standard	Maintenance forecast monitor	Total run time monitor
Efficiency		With 100-VAC input	84% typical	83% typical
Efficiency		With 200-VAC input	83% typical	85% typical
Input	*Voltage 1**		100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	Current	With 100-VAC input	1.7 A max., 1.3 A typical	1.7 A max., 1.3 A typical
	Current	With 200-VAC input	1.0 A max., 0.68 A typical	1.0 A max., 0.78 A typical
	Power factor		---
	Harmonic current regulation		Conforms to EN61000-3-2
	Leakage current	With 100-VAC input	0.5 mA max.
	Leakage current	With 200-VAC input	1.0 mA max.
	*Inrush current 2**	With 100-VAC input	17.5 A max., 14 A typical
	*Inrush current 2**	With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**		-10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
	Ripple noise voltage (at rated I/O)		70 mV max.	90 mV max.
	Input variation influence		0.5% max. (at 85- to 264-VAC input, 100% load)
	Load variation influence (rated input voltage)		1.5% max. (with rated input, 0 to 100% load)
	Temperature variation influence		0.05%/°C max.
	Startup time (at rated I/O) *2	With 100-VAC input	620 ms typical	460 ms typical
	Startup time (at rated I/O) *2	With 200-VAC input	400 ms typical	290 ms typical
	Output hold time (at rated I/O) *2	With 100-VAC input	34 ms typical	33 ms typical
	Output hold time (at rated I/O) *2	With 200-VAC input	158 ms typical	154 ms typical
Additional functions	*Overload protection 2**		105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset
	*Overvoltage protection 2, 4*		Yes
	*Output voltage indication 5**		No	Yes (selectable) *6
	*Output current indication 5**		No	Yes (selectable) *7
	*Peak-hold current indication 5**		No	Yes (selectable) *8
	*Maintenance forecast monitor indication 5**		No	Yes (selectable)	No
	Maintenance forecast monitor output		No
	*Total run time monitor indication 5**		No		Yes (selectable)
	*Total run time monitor output 5**		No
	*Undervoltage alarm indication 5**		No	Yes (selectable)
	Undervoltage alarm output terminals		No
	Parallel operation		No (However, backup operation is possible. An external diode is required.)
	Series operation		Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature		Refer to the derating curve in . (with no icing or condensation)
	Storage temperature		-25 to 65°C
	Operating ambient humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, and ±Z directions
	Output indicator		Yes (color: green)
	EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
	EMI	Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
	EMS		Conforms to EN61204-3 high severity levels
	*Approved standards 11**		Standard model: UL 508 (Listing; Class 2 Output: Per UL1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark With indication monitor: UL 508 (Listing, Class2 Output: Per 1310) CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10
	*SEMI 11**		F47-0706 (With 200-VAC input)
	Weight		330 g max.

*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Power ratings			90 W
Type			Standard	Maintenance forecast monitor	Total run time monitor
Efficiency		With 100-VAC input	83% typical	83% typical
Efficiency		With 200-VAC input	84% typical	85% typical
Input	*Voltage 1**		100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	Current	With 100-VAC input	2.3 A max., 1.9 A typical	2.3 A max., 1.9 A typical
	Current	With 200-VAC input	1.4 A max., 1.0 A typical	1.4 A max., 1.2 A typical
	Power factor		---
	Harmonic current regulation		Conforms to EN61000-3-2
	Leakage current	With 100-VAC input	0.5 mA max.
	Leakage current	With 200-VAC input	1.0 mA max.
	*Inrush current 2**	With 100-VAC input	17.5 A max., 14 A typical
	*Inrush current 2**	With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**		-10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].)
	Ripple noise voltage (at rated I/O)		250 mV max.	150 mV max.
	Input variation influence		0.5% max. (at 85- to 264-VAC input, 100% load)
	Load variation influence (rated input voltage)		1.5% max. (with rated input, 0 to 100% load)
	Temperature variation influence		0.05%/°C max.
	Startup time (at rated I/O) *2	With 100-VAC input	460 ms typical	660 ms typical
	Startup time (at rated I/O) *2	With 200-VAC input	300 ms typical	420 ms typical
	Output hold time (at rated I/O) *2	With 100-VAC input	28 ms typical	28 ms typical
	Output hold time (at rated I/O) *2	With 200-VAC input	132 ms typical	136 ms typical
Additional functions	*Overload protection 2**		105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset
	*Overvoltage protection 2, 4*		Yes
	*Output voltage indication 5**		No	Yes (selectable) *6
	*Output current indication 5**		No	Yes (selectable) *7
	*Peak-hold current indication 5**		No	Yes (selectable) *8
	*Maintenance forecast monitor indication 5**		No	Yes (selectable)	No
	Maintenance forecast monitor output		No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No
	*Total run time monitor indication 5**		No		Yes (selectable)
	*Total run time monitor output 5**		No		Yes (transistor output), 30 VDC max., 50 mA max. *9
	*Undervoltage alarm indication 5**		No	Yes (selectable)
	Undervoltage alarm output terminals		No	Yes (transistor output), 30 VDC max., 50 mA max. *9
	Parallel operation		No (However, backup operation is possible. An external diode is required.)
	Series operation		Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature		Refer to the derating curve in . (with no icing or condensation)
	Storage temperature		-25 to 65°C
	Operating ambient humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, and ±Z directions
	Output indicator		Yes (color: green)
	EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A
	EMI	Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
	EMS		Conforms to EN61204-3 high severity levels
	*Approved standards 11**		Standard model: UL 508 (Listing) (S8VS-09024S-[] only): UL 508 (Listing, Class2 Output: Per 1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (S8VS-09024S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark With indication monitor: UL 508 (Listing) (S8VS-09024[][]S-[] only): UL 508 (Listing, Class2 Output: Per 1310) CSA C22.2 No.107.1 (S8VS-09024[][]S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10
	*SEMI 11**		F47-0706 (With 200-VAC input)
	Weight		490 g max.

Power ratings			120 W			180 W
Type			Standard	Maintenance forecast monitor	Total run time monitor	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency		With 100-VAC input	84% typical	83% typical		85% typical	85% typical
Efficiency		With 200-VAC input	87% typical	85% typical		88% typical	87% typical
Input	*Voltage 1**		100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)
	*Frequency 1**		50/60 Hz (47 to 63 Hz)
	Current	With 100-VAC input	1.9 A max., 1.5 A typical			2.9 A max., 2.2 A typical
	Current	With 200-VAC input	1.1 A max., 0.71 A typical	1.1 A max., 0.72 A typical		1.6 A max., 1.1 A typical
	Power factor		0.9 min.
	Harmonic current regulation		Conforms to EN61000-3-2
	Leakage current	With 100-VAC input	0.5 mA max.
	Leakage current	With 200-VAC input	1.0 mA max.
	Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
	Inrush current *2	With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**		- 10% to 15% (with V.ADJ)
	Ripple noise voltage (at rated I/O)		60 mV max.	130 mV max.		50 mV max.	180 mV max.
	Input variation influence		0.5% max. (at 85- to 264-VAC input, 100% load)
	Load variation influence (rated input voltage)		1.5% max. (with rated input, 0 to 100% load)
	Temperature variation influence		0.05%/°C max.
	Startup time (at rated I/O) *2	With 100-VAC input	550 ms typical	650 ms typical		570 ms typical	580 ms typical
	Startup time (at rated I/O) *2	With 200-VAC input	400 ms typical	520 ms typical		470 ms typical	490 ms typical
	Output hold time (at rated I/O) *2	With 100-VAC input	52 ms typical	56 ms typical		58 ms typical	70 ms typical
	Output hold time (at rated I/O) *2	With 200-VAC input	54 ms typical	56 ms typical		62 ms typical	70 ms typical
Additional functions	*Overload protection 2**		105% to 160% of rated load current, inverted L voltage drop, automatic reset
	*Overvoltage protection 2, 4*		Yes
	*Output voltage indication 5**		No	Yes (selectable) *6		No	Yes (selectable) *6
	*Output current indication 5**		No	Yes (selectable) *7		No	Yes (selectable) *7
	*Peak-hold current indication 5**		No	Yes (selectable) *8		No	Yes (selectable) *8
	*Maintenance forecast monitor indication 5**		No	Yes (selectable)	No	No	Yes (selectable)	No
	Maintenance forecast monitor output		No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No	No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No
	*Total run time monitor indication 5**		No		Yes (selectable)	No		Yes (selectable)
	*Total run time monitor output 5**		No		Yes (transistor output), 30 VDC max., 50 mA max. *9	No		Yes (transistor output), 30 VDC max., 50 mA max. *9
	*Undervoltage alarm indication 5**		No	Yes (selectable)		No	Yes (selectable)
	Undervoltage alarm output terminals		No	Yes (transistor output), 30 VDC max., 50 mA max. *9		No	Yes (transistor output), 30 VDC max., 50 mA max. *9
	Parallel operation		No (However, backup operation is possible. An external diode is required.)
	Series operation		Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature		Refer to the derating curve in Engineering Data. (with no icing or condensation)
	Storage temperature		- 25 to 65°C
	Operating ambient humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions
	Shock resistance		150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
	Output indicator		Yes (color: green)
	EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A
	EMI	Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B
	EMS		Conforms to EN61204-3 high severity levels
	*Approved standards 11**		UL 508 (Listing) CSA C22.2 No. 107.1 (cUL) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10
	*SEMI 11**		F47-0706 (200-VAC input)
	Weight		550 g max.			850 g max.

Power ratings			240 W			480 W
Item Type			Standard	Maintenance forecast monitor	Total run time monitor	Standard	Maintenance forecast monitor	Total run time monitor
Efficiency		With 100-VAC input	85% typical			89% typical
Efficiency		With 200-VAC input	88% typical			93% typical
Input	*Voltage 1**		100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11)			100 to 240 VAC (allowable range: 85 to 264 VAC)
	*Frequency 1**		50/60 Hz (47 to 63 Hz)
	Current	With 100-VAC input	3.8 A max., 2.9 A typical			7.4 A max., 5.8 A typical
	Current	With 200-VAC input	2.0 A max., 1.5 A typical			3.9 A max., 2.8 A typical
	Power factor		0.9 min.			0.95 min.
	Harmonic current regulation		Conforms to EN61000-3-2
	Leakage current	With 100-VAC input	0.5 mA max.
	Leakage current	With 200-VAC input	1.0 mA max.
	Inrush current *2	With 100-VAC input	17.5 A max., 14 A typical
	Inrush current *2	With 200-VAC input	35 A max., 28 A typical
Output	*Voltage adjustment range 3**		- 10% to 15% (with V.ADJ)			-10% to 15% (with V.ADJ)
	Ripple noise voltage (at rated I/O)		140 mV max.	160 mV max.		310 mV max.
	Input variation influence		0.5% max. (at 85- to 264-VAC input, 100% load)
	Load variation influence (rated input voltage)		1.5% max. (with rated input, 0 to 100% load)
	Temperature variation influence		0.05%/°C max.
	Startup time (at rated I/O) *2	With 100-VAC input	540 ms typical	510 ms typical		550 ms typical
	Startup time (at rated I/O) *2	With 200-VAC input	230 ms typical	510 ms typical		550 ms typical
	Output hold time (at rated I/O) *2	With 100-VAC input	64 ms typical	46 ms typical		37 ms typical
	Output hold time (at rated I/O) *2	With 200-VAC input	64 ms typical	46 ms typical		41 ms typical
Additional functions	*Overload protection 2**		105% to 160% of rated load current, inverted L voltage drop, automatic reset			151% to 165% of rated load current, inverted L voltage drop, intermittent, automatic reset
	*Overvoltage protection 2, 4*		Yes
	*Output voltage indication 5**		No	Yes (selectable) *6		No	Yes (selectable) *6
	*Output current indication 5**		No	Yes (selectable) *7		No	Yes (selectable) *7
	*Peak-hold current indication 5**		No	Yes (selectable) *8		No	Yes (selectable) *8
	*Maintenance forecast monitor indication 5**		No	Yes (selectable)	No		Yes (selectable)	No
	Maintenance forecast monitor output		No	Yes (transistor output), 30 VDC max., 50 mA max. *9	No		Yes (transistor output), 30 VDC max., 50 mA max.	No
	*Total run time monitor indication 5**		No		Yes (selectable)	No		Yes (selectable)
	*Total run time monitor output 5**		No		Yes (transistor output), 30 VDC max., 50 mA max. *9	No		Yes (transistor output), 30 VDC max., 50 mA max. *9
	*Undervoltage alarm indication 5**		No	Yes (selectable)		No	Yes (selectable)
	Undervoltage alarm output terminals		No	Yes (transistor output), 30 VDC max., 50 mA max. *9		No	Yes (transistor output), 30 VDC max., 50 mA max. *9
	Parallel operation		No (However, backup operation is possible. An external diode is required.)
	Series operation		Yes for up to 2 Power Supplies (with external diode)
Other	Operating ambient temperature		Refer to the derating curve in Engineering Data. (with no icing or condensation)
	Storage temperature		- 25 to 65°C
	Operating ambient humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard 240-W and 480-W models: 30 mA, detection current for 240-W models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions: 240 W 10 to 150 Hz, 0.35-mm single amplitude (3 G max.) for 80 min each in X, Y, and Z directions: 480 W
	Shock resistance		150 m/s² , 3 times each in ±X, ±Y, and ±Z directions
	Output indicator		Yes (color: green)
	EMI	Conducted Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A			Conforms to EN55011 Group1 Class A and based on FCC Class A Conforms to EN55011 Group1 Class B *11
	EMI	Radiated Emissions	Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B			Conforms to EN55011 Group1 Class A Conforms to EN55011 Group1 Class B *11
	EMS		Conforms to EN61204-3 high severity levels
	*Approved standards 11**		UL 508 (Listing) CSA C22.2 No.107.1 (cUL) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10			UL 508 (Listing) UL 62368-1 (Recognition) CSA C22.2 No.107.1 (cUL) CSA C22.2 No. 62368-1 (cUR) EN 50178 (=VDE 0160), EN 62368-1 EAC mark, RCM mark
	*SEMI 11**		F47-0706 (200-VAC input)
	Weight		1,150 g max.			1,700 g max.

Dimensions | Power Supplies - S8VS

(Unit: mm)

Power Supplies with Screw Terminal Blocks

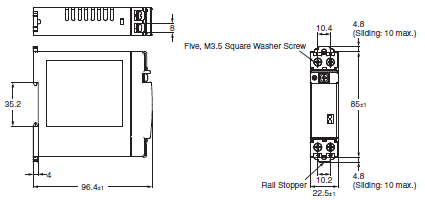

S8VS-015[][] (15 W)
S8VS-030[][] (30 W)

S8VS-06024 (60 W)
S8VS-06024A (60 W)
S8VS-06024B (60 W)

S8VS-09024 (90 W)/S8VS-09024S (90 W)/S8VS-12024 (120 W) S8VS-09024A[] (90 W)/S8VS-09024A[]S (90 W)/S8VS-12024A[] (120 W) S8VS-09024B[] (90 W)/S8VS-09024B[]S (90 W)/S8VS-12024B[] (120 W) S8VS-09024BE (90 W)/S8VS-09024BES (90 W)/S8VS-12024BE (120 W)

S8VS-18024 (180 W) S8VS-18024A[] (180 W) S8VS-18024B[] (180 W) S8VS-18024BE (180 W)

S8VS-24024 (240 W) S8VS-24024A[] (240 W) S8VS-24024B[] (240 W) S8VS-24024BE (240 W)

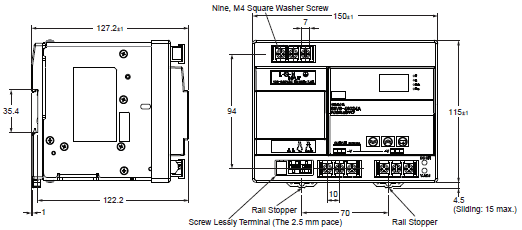

S8VS-48024 (480 W) S8VS-48024A (480 W) S8VS-48024B (480 W)

Power Supplies with Screwless Terminal Blocks

S8VS-06024-F (60 W) S8VS-06024A-F (60 W) S8VS-06024B-F (60 W)

S8VS-09024-F (90 W)/S8VS-09024S-F (90 W)/S8VS-12024-F (120 W) S8VS-09024A[]-F (90 W)/S8VS-09024A[]S-F (90 W )/S8VS-12024A[]-F (120 W) S8VS-09024B[]-F (90 W)/S8VS-09024B[]S-F (90 W)/S8VS-12024B[]-F (120 W) S8VS-09024BE-F (90 W)/S8VS-09024BES-F (90 W)/S8VS-12024BE-F (120 W)

S8VS-18024-F (180 W) S8VS-18024A[]-F (180 W) S8VS-18024B[]-F (180 W) S8VS-18024BE-F (180 W)

S8VS-24024-F (240 W) S8VS-24024A[]-F (240 W) S8VS-24024B[]-F (240 W) S8VS-24024BE-F (240 W)

S8VS-48024-F (480 W) S8VS-48024A-F (480 W) S8VS-48024B-F (480 W)

DIN Rail (Order Separately)

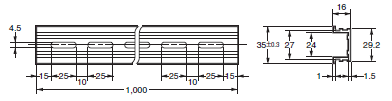

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.

Mounting Brackets

Features | Power Supplies - S8VS

Status displayed on 3-digit, 7-segment display. *
Signal output notifications at 90 W or more. *
Conformity to various safety standards for global usability.
Varied coverage with 3-year warranty.
DIN rail mounting supported.

* Models with indication monitor

Properties | Power Supplies - S8VS

Power Supplies			S8VS
Power rating			15 - 480 W
Output			24 V
Input			100 - 240 VDC
Frequency			50 - 50 Hz
Power factor			0.9
Rated output current			N/A
Dimensions (W x L x D) mm	Power Supplies with Screw Terminal Blocks	15 - 30 W	22.5 x 85 x 96.4
		60 W	40 x 95 x 103.3
		120 W	50 x 115 x 116.2
		180 W	75 x 115 x 120.3
		240 W	100 x 115 x 120.2
		480 W	115 x 150 x 127.2
	Power Supplies with Screwless Terminal Blocks	60 W	40 x 95 x 102.3
		120 W	50 x 115 x 115.3
		180 W	75 x 115 x 119.3
		240 W	100 x 115 x 119.3
		480 W	115 x 150 x 122.2
Weight			160g - 1,700g

Power Supplies - S8VS

ดาวน์โหลดไฟล์ PDF

คุณสมบัติ | Power Supplies - S8VS

แหล่งจ่ายไฟเพื่อเพิ่มความน่าเชื่อถือของระบบ ขนาดเล็ก คุ้มค่าและติดตั้งง่ายเหมาะสำหรับงานระบบสำรอง

ข้อมูลจำเพาะ | Power Supplies - S8VS

Power Supplies			S8VS
พิกัดกำลัง			15 - 480 W
เอาต์พุต			24 V
อินพุต			100 - 240 VDC
ความถี่			50 - 50 Hz
ตัวประกอบกำลัง			0.9
กระแสพิกัดด้านขาออก			N/A
ขนาด (W x L x D) mm	แบบใช้สกรูติดตั้ง	15 - 30 W	22.5 x 85 x 96.4
		60 W	40 x 95 x 103.3
		120 W	50 x 115 x 116.2
		180 W	75 x 115 x 120.3
		240 W	100 x 115 x 120.2
		480 W	115 x 150 x 127.2
	แบบไม่ใช้สกรูติดตั้ง	60 W	40 x 95 x 102.3
		120 W	50 x 115 x 115.3
		180 W	75 x 115 x 119.3
		240 W	100 x 115 x 119.3
		480 W	115 x 150 x 122.2
น้ำหนัก (กรัม)			160 - 1,700
