Power Supplies - S8FS-G

DOWNLOAD PDF
Power Supplies - S8FS-G
OMRON Power Supplies - S8FS-G
Model Numbers
Specifications

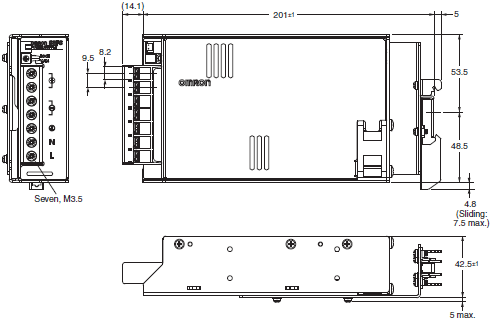

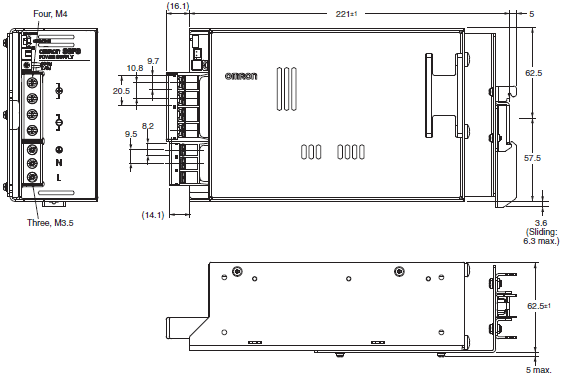

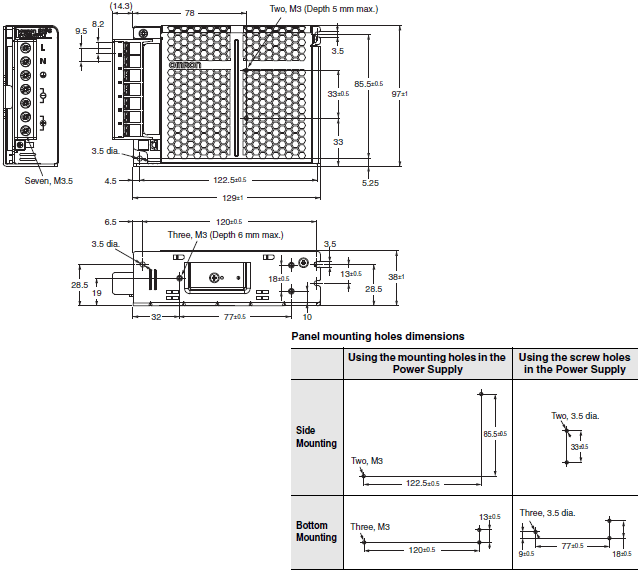

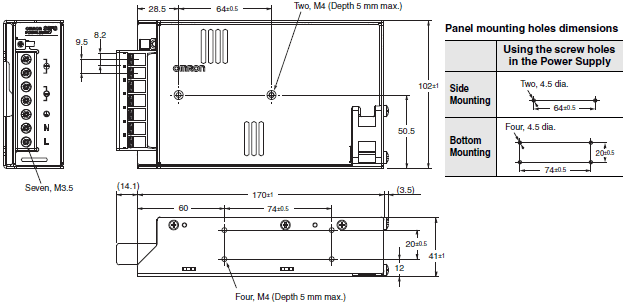

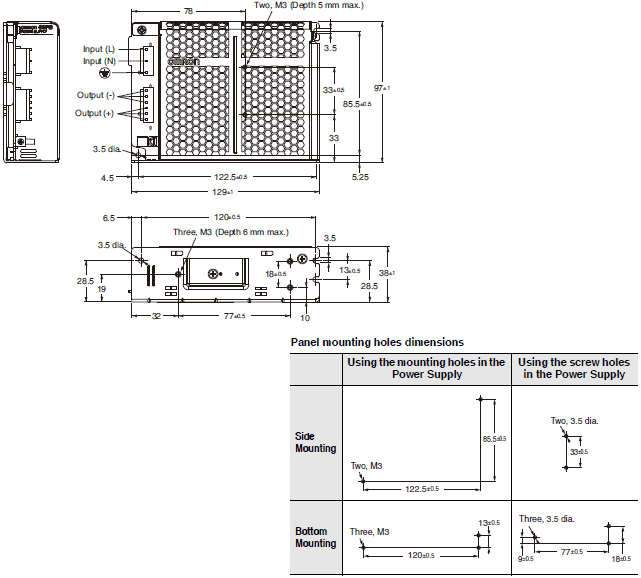

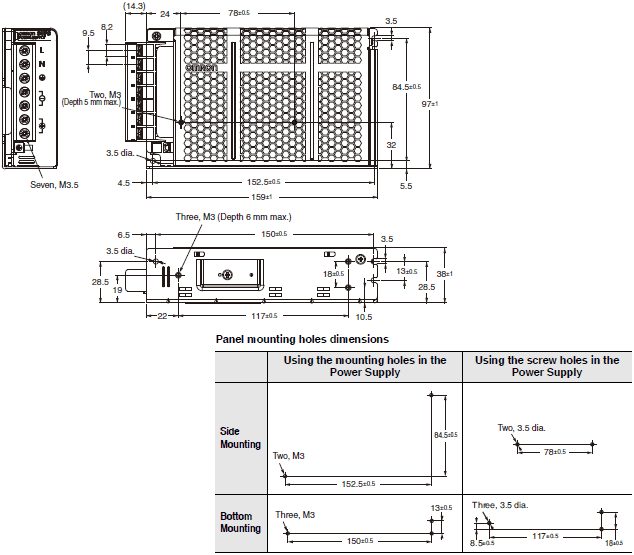

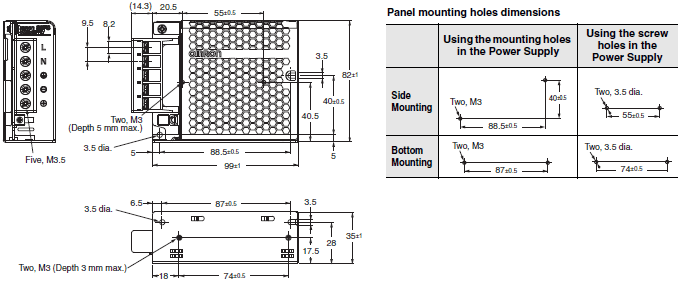

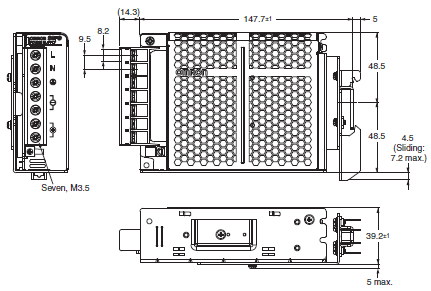

Dimensions
Features

Model Numbers | Power Supplies - S8FS-G

Lineup

Output voltage (VDC)Power rating
15 W30 W50 W100 W150 W300 W600 W
5 V Yes Yes Yes Yes Yes --- ---
12 V Yes Yes Yes Yes Yes Yes Yes
15 V Yes Yes Yes Yes Yes Yes Yes
24 V Yes Yes Yes Yes Yes Yes Yes
48 V --- --- --- --- Yes Yes Yes

Model Number Structure

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

S8FS-G Lineup 3

Ordering Information

List of Models

Note: For details on normal stock models, contact your nearest OMRON representative.

With Cover/DIN Rail Mounting

Power ratingsInput voltageOutput voltage (VDC)Output currentBuilt-in fanModel
15 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
80 to 370 VDC)
*4
5 V 3 A None S8FS-G01505CD
12 V 1.3 A S8FS-G01512CD
15 V 1 A S8FS-G01515CD
24 V 0.65 A S8FS-G01524CD
30 W 5 V 6 A S8FS-G03005CD
12 V 3 A S8FS-G03012CD
15 V 2.4 A S8FS-G03015CD
24 V 1.5 A S8FS-G03024CD
50 W 5 V 8 A *1 S8FS-G05005CD
12 V 4.3 A S8FS-G05012CD
15 V 3.5 A S8FS-G05015CD
24 V 2.2 A S8FS-G05024CD
100 W 5 V 16 A *2 S8FS-G10005CD
12 V 8.5 A S8FS-G10012CD
15 V 7 A S8FS-G10015CD
24 V 4.5 A S8FS-G10024CD
150 W 5 V 21 A *3 S8FS-G15005CD
12 V 13 A S8FS-G15012CD
15 V 10 A S8FS-G15015CD
24 V 6.5 A S8FS-G15024CD
48 V 3.3 A S8FS-G15048CD
300 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 370 VDC)
12 V 25 A Yes S8FS-G30012CD
15 V 20 A S8FS-G30015CD
24 V 14 A S8FS-G30024CD
48 V 7 A S8FS-G30048CD
600 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 350 VDC)
12 V 50 A S8FS-G60012CD
15 V 40 A S8FS-G60015CD
24 V 27 A S8FS-G60024CD
48 V 13 A S8FS-G60048CD

Note: Ask your OMRON representative for pricing information on optional models.
*1. The output electric power is 40 W.
*2. The output electric power is 80 W.
*3. The output electric power is 105 W.
*4. Applicable to products produced from May 2018.

With Cover/DIN Rail Mounting (Extended hold time type)

Power ratingsInput voltageOutput voltage (VDC)Output currentBuilt-in fanModel
300 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 370 VDC)
24 V 14 A Yes S8FS-G30024CD-H
600 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 350 VDC)
27 A S8FS-G60024CD-H

With Cover/Direct Mounting

Power ratingsInput voltageOutput voltage (VDC)Output currentBuilt-in fanModel
15 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
80 to 370 VDC)
*4
5 V 3 A None S8FS-G01505C
12 V 1.3 A S8FS-G01512C
15 V 1 A S8FS-G01515C
24 V 0.65 A S8FS-G01524C
30 W 5 V 6 A S8FS-G03005C
12 V 3 A S8FS-G03012C
15 V 2.4 A S8FS-G03015C
24 V 1.5 A S8FS-G03024C
50 W 5 V 8 A *1 S8FS-G05005C
12 V 4.3 A S8FS-G05012C
15 V 3.5 A S8FS-G05015C
24 V 2.2 A S8FS-G05024C
100 W 5 V 16 A *2 S8FS-G10005C
12 V 8.5 A S8FS-G10012C
15 V 7 A S8FS-G10015C
24 V 4.5 A S8FS-G10024C
150 W 5 V 21 A *3 S8FS-G15005C
12 V 13 A S8FS-G15012C
15 V 10 A S8FS-G15015C
24 V 6.5 A S8FS-G15024C
48 V 3.3 A S8FS-G15048C
300 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 370 VDC)
12 V 25 A Yes S8FS-G30012C
15 V 20 A S8FS-G30015C
24 V 14 A S8FS-G30024C
48 V 7 A S8FS-G30048C
600 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 350 VDC)
12 V 50 A S8FS-G60012C
15 V 40 A S8FS-G60015C
24 V 27 A S8FS-G60024C
48 V 13 A S8FS-G60048C

Note: 1. Ask your OMRON representative for pricing information on optional models.
         2. Front-mounting is not possible.
             To mount a Power Supply from the front, purchase a DIN Rail-mounting Power Supply and a Front-mounting
             Bracket (sold separately). Refer to Data Sheet.

With Cover/Direct Mounting (Extended hold time type)

Power ratingsInput voltageOutput voltage (VDC)Output currentBuilt-in fanModel
300 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 370 VDC)
24 V 14 A Yes S8FS-G30024C-H
600 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
120 to 350 VDC)
27 A S8FS-G60024C-H

With Cover/Direct Mounting (Connector type)

Power ratingsInput voltageOutput voltage (VDC)Output currentBuilt-in fanModel
15 W 100 to 240 VAC
(Permissible range
85 to 264 VAC,
80 to 370 VDC)
*4
24 V 0.65 A None S8FS-G01524CE
30 W 1.5 A S8FS-G03024CE
50 W 2.2 A S8FS-G05024CE
100 W 4.5 A S8FS-G10024CE
150 W 6.5 A S8FS-G15024CE

*1. The output electric power is 40 W.
*2. The output electric power is 80 W.
*3. The output electric power is 105 W.
*4. Applicable to products produced from May 2018.

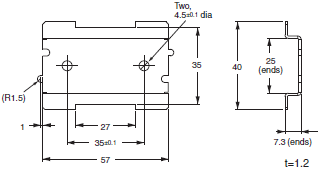

Mounting Brackets (Order Separately)

Use the Front-mounting Brackets together with DIN Rail-mounting Power Supplies (S8FS-G[][][][][]CD).

Power ratingMounting directionModel
15 W, 30 W, 50 W, 100 W, 150 W and 300 W Front-mounting S82Y-FSG-30F
600 W Front-mounting S82Y-FSG-60F

Terminal cover (Order Separately)

Power ratingApplicable modelsTerminal Cover model number
15 W S8FS-G015[][][] S82Y-FSG-C5P
30 W S8FS-G030[][][]
50 W S8FS-G050[][][]
100 W S8FS-G100[][][] S82Y-FSG-C7P
150 W S8FS-G150[][][]
300 W S8FS-G300[][][]
600 W S8FS-G600[][][] S82Y-FSG-C7P-L (Input Output)

Note: A Terminal Block Cover is provided with the Power Supply as a standard accessory. You can purchase another one
if your Cover is damaged or lost.

Specifications | Power Supplies - S8FS-G

Specifications

Power rating15 W
Output voltage (VDC)5 V12 V15 V24 V
Efficiency *100 VAC input 80% typ. 84% typ. 84% typ. 85% typ.
200 VAC input 80% typ. 84% typ. 84% typ. 86% typ.
230 VAC input 80% typ. 84% typ. 84% typ. 86% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency * 50/60 Hz (47 to 450 Hz)
Current *100 VAC input 0.32 A typ.
200 VAC input 0.2 A typ.
Power factor ---
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 3 A 1.3 A 1 A 0.65 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
40 mVp-p max. 40 mVp-p max. 40 mVp-p max. 60 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.

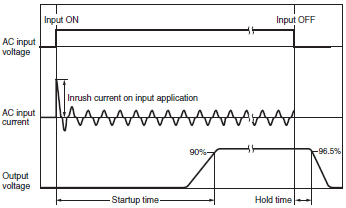

Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 15 ms typ. 14 ms typ. 15 ms typ. 15 ms typ.
200 VAC input 75 ms typ. 70 ms typ. 75 ms typ. 70 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.)
(with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 250 g
Cooling fan No
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating30 W
Output voltage (VDC)5 V12 V15 V24 V
Efficiency *100 VAC input 81% typ. 84% typ. 86% typ. 86% typ.
200 VAC input 81% typ. 86% typ. 88% typ. 88% typ.
230 VAC input 81% typ. 86% typ. 88% typ. 89% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency * 50/60 Hz (47 to 450 Hz)
Current *100 VAC input 0.72 A typ.
200 VAC input 0.43 A typ.
Power factor ---
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 6 A 3 A 2.4 A 1.5 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
50 mVp-p max. 60 mVp-p max. 50 mVp-p max. 60 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 11 ms typ. 10 ms typ. 11 ms typ. 10 ms typ.
200 VAC input 60 ms typ. 50 ms typ. 50 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 250 g
Cooling fan No
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating50 W
Output voltage (VDC)5 V12 V15 V24 V
Efficiency *100 VAC input 81% typ. 84% typ. 86% typ. 86% typ.
200 VAC input 82% typ. 86% typ. 88% typ. 89% typ.
230 VAC input 82% typ. 86% typ. 88% typ. 89% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency * 50/60 Hz (47 to 450 Hz)
Current *100 VAC input 1.1 A typ.
200 VAC input 0.62 A typ.
Power factor ---
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 8 A 4.3 A 3.5 A 2.2A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
40 mVp-p max. 40 mVp-p max. 40 mVp-p max. 60 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 14 ms typ. 11 ms typ. 10 ms typ. 10 ms typ.
200 VAC input 75 ms typ. 60 ms typ. 60 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control No
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
ConstructionDimensions (W×H×D) Refer to Dimensions.
Weight 300 g
Cooling fan No
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with connector option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option)
CSA C22.2 No.62368-1 (excluding models with connector option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating100 W
Output voltage (VDC)5 V12 V15 V24 V
Efficiency *100 VAC input 79% typ. 84% typ. 85% typ. 87% typ.
200 VAC input 81% typ. 86% typ. 87% typ. 89% typ.
230 VAC input 81% typ. 86% typ. 87% typ. 89% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency * 50/60 Hz (47 to 450 Hz)
Current *100 VAC input 2.1 A typ.
200 VAC input 1.2 A typ.
Power factor ---
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 16 A 8.5 A 7 A 4.5 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
70 mVp-p max. 90 mVp-p max. 100 mVp-p max. 80 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 12 ms typ. 11 ms typ. 11 ms typ. 10 ms typ.
200 VAC input 70 ms typ. 55 ms typ. 55 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature. Refer
to Engineering Data) (with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 400 g
Cooling fan No
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with connector option or remote
control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.62368-1 (excluding models with connector option or
remote control option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating150 W
Output voltage (VDC)5 V12 V15 V24 V48 V
Efficiency *100 VAC input 78% typ. 84% typ. 85% typ. 87% typ. 85% typ.
200 VAC input 81% typ. 87% typ. 88% typ. 89% typ. 88% typ.
230 VAC input 81% typ. 87% typ. 88% typ. 90% typ. 88% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 80 to 370 VDC
Frequency * 50 /60 Hz (47 to 450 Hz)
Current *100 VAC input 3 A typ.
200 VAC input 1.8 A typ.
Power factor ---
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 21 A 13 A 10 A 6.5 A 3.3 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
100 mVp-p
max.
110 mVp-p
max.
80 mVp-p
max.
110 mVp-p
max.
120 mVp-p
max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 14 ms typ. 10 ms typ. 10 ms typ. 10 ms typ. 11 ms typ.
200 VAC input 80 ms typ. 55 ms typ. 55 ms typ. 55 ms typ. 55 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection No
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min.(between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min.(between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min.(between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min.(between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min.(between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature. Refer
to Engineering Data) (with no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions on page 22.
Weight 500 g
Cooling fan No
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2 (Applicable at 80% or less of the rated load.)
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with connector option or remote
control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote
control option)
CSA C22.2 No.62368-1 (excluding models with connector option or
remote control option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating300 W
Output voltage (VDC)12 V15 V24 V48 V
Efficiency *100 VAC input 81% typ. 81% typ. 82% typ. 82% typ.
200 VAC input 85% typ. 85% typ. 87% typ. 87% typ.
230 VAC input 85% typ. 86% typ. 87% typ. 87% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 120 to 370 VDC
Frequency * 50/60 Hz (47 to 63 Hz)
Current *100 VAC input 4.2 A typ.
200 VAC input 2.1 A typ.
Power factor 0.9 min.
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 25 A 20 A 14 A 7 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
140 mVp-p max. 270 mVp-p max. 150 mVp-p max. 330 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 30 ms typ. 30 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
200 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection Yes, power shut off (shut off the input voltage and turn on the input
again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation No (However, backup operation is possible, external diodes are required.)
Remote sensing No
Remote control Yes (Only for models with remote control option)
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
Con-
struction
Dimensions (W×H×D) Refer to Dimensions.
Weight 700 g
Cooling fan Yes
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with remote control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with remote control option)
CSA C22.2 No.62368-1 (excluding models with remote control option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Power rating600 W
Output voltage (VDC)12 V15 V24 V48 V
Efficiency *100 VAC input 84% typ. 84% typ. 85% typ. 88% typ.
200 VAC input 88% typ. 88% typ. 89% typ. 92% typ.
230 VAC input 88% typ. 88% typ. 90% typ. 92% typ.
InputVoltage range * Single phase, 85 to 264 VAC, 120 to 350 VDC
Frequency * 50/60 Hz (47 to 63 Hz)
Current *100 VAC input 7.7 A typ.
200 VAC input 3.8 A typ.
Power factor 0.9 min.
Leakage
current *
100 VAC input 0.5 mA max.
200 VAC input 1 mA max.
Inrush
current * (for
a cold start at
25°C)
100 VAC input 14 A typ.
200 VAC input 28 A typ.
OutputRated Output Current 50 A 40 A 27 A 13 A
Voltage adjustment range * -10% to 15% (with V.ADJ)
Ripple & Noise
voltage *
100 to 240
VAC input
170 mVp-p max. 170 mVp-p max. 280 mVp-p max. 340 mVp-p max.
Input variation influence * 0.5% max.
Load variation influence * 1.0% max.
Temperature
variation
influence
100 to 240
VAC input
0.05%/°C max.
Startup time *100 VAC input 1,000 ms max.
200 VAC input 1,000 ms max.
Hold time *100 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
200 VAC input 30 ms typ. 25 ms typ. 30 ms typ.
40 ms typ.
(Extended hold
time type)
30 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection * Yes, 120% or higher of rated output voltage, power shut off (shut off the
input voltage and turn on the input again)
Overheat protection Yes, power shut off (shut off the input voltage and turn on the input again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation Yes (up to five Power Supplies, S8FS-G60024 (models with parallel
operation option) only).
Remote sensing No
Remote control Yes (Only Remote control)
Output indicator Yes (LED: Green)
InsulationWithstand voltage 3 kVAC for 1 min. (between all input terminals and output terminals)
current cutoff 20 mA
2 kVAC for 1 min. (between all input terminals and PE terminals) current
cutoff 20 mA
1 kVAC for 1 min. (between all output terminals and PE terminals)
current cutoff 20 mA
Only Remote control
500 VAC for 1 min. (between all output terminals and RC terminals)
current cutoff 20 mA
Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
terminals) at 500 VDC
EnvironmentAmbient operating
temperature
-20 to 70°C (Derating is required according to the temperature.) (with
no condensation or icing)
Storage temperature -25 to 75°C (with no condensation or icing)
Ambient operating humidity 90% max. (Storage humidity: 90% max.)
Vibration resistance 10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y,
and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF 135,000 hrs min.
Life expectancy * 10 years min.
ConstructionDimensions (W×H×D) Refer to Dimensions.
Weight 1,050 g
Cooling fan Yes
Degree of protection ---
StandardsHarmonic current emissions Conforms to EN 61000-3-2
EMI *Conducted
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated
Emissions
Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Safety Standards UL 508 (Listing, excluding models with remote control option)
UL 508 (Recognition, models with remote control option)
UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2)
CSA C22.2 No.107.1 (excluding models with remote control option)
CSA C22.2 No.62368-1 (excluding models with remote control option)
EN 50178 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2)
EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
EAC (TR CU 004/2011, TR CU 020/2011)
RCM (EN61000-6-4)
Marine Standards No
SEMI Conforms to F47-0706 (200 VAC input)

* Refer to Ratings, Characteristics, and Functions below.

Ratings, Characteristics, and Functions

Efficiency The value is when both rated output voltage and rated output current are
satisfied.
InputVoltage range Do not use an inverter output for the Power Supply. Inverters with an
output frequency of 50/60 Hz are available, but the rise in the internal
temperature of the Power Supply may result in ignition or burning.
Frequency
Current The value is when both rated output voltage and rated output current are
satisfied.
Leakage current The values are determined according to the Act on Power Supply Safety of
Electrical Appliances and Materials.
Inrush current
(for a cold start at 25°C)
For a cold start at 25°C. Refer to the following figure.
OutputVoltage adjustment range If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by
more than +15% of the voltage adjustment range. When adjusting the output
voltage, confirm the actual output voltage from the Power Supply and be
sure that the load is not damaged.
Ripple & Noise voltage The value is when both rated output voltage and rated output current are
satisfied.
A characteristic when the ambient operating temperature is 25°C.
Input variation influence This is the maximum variation in the output voltage when the input voltage
is gradually changed within the allowable input voltage range at the rated
output voltage and rated output current.
Load variation influence This is the value when the output current is changed from 0 A to the rated
output current while the input voltage is within the allowable input voltage.
Startup time The value is when both rated output voltage and rated output current are
satisfied.
For a cold start at 25°C. Refer to the following figure.
Hold time The value is when both rated output voltage and rated output current are
satisfied.
At 25°C. Refer to the following figure.
Additional
functions
Overvoltage protection Refer to Overvoltage Protection on Data Sheet for the time when input
voltage shuts off and input turns on again.
ReliabilityLife expectancy Refer to Recommended Replacement Periods and Periodic Replacement for
Preventive Maintenance on Data Sheet for details.
StandardsEMIConducted Emissions The 150-W and higher models conform to Class B when an aluminum plate
is set under the Power Supply.
Radiated Emissions

Standard Compliance

• The input voltage range for compliance with EC Directives and other safety standards (UL, EN, etc.) is 90 to 264 VAC.
• EN/IEC 61558-2-16
To comply with EN/IEC 60204-1 (Machine Safety), a transformer is required in the control circuit. If, however, a Power Supply that has a built-in transformer that complies with EN/IEC 6155-8-2-16 is used, an external transformer is not required.
• Safety standard targets during a DC input *
During a DC input, UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN 50178, EN/IEC 61558-2-16, and EN/IEC 60204-1 are safety standard targets. (However, the input voltage range is 120 to 320 VDC. The safety standards during DC input are not acquired for the S8FS-G60048[].)
It is possible to comply with the safety standards by connecting a UL-authenticated fuse. Select a UL-authenticated fuse that satisfies the following conditions:
     S8FS-G015[][]/030[][] (320 VDC or above, 3 A)
     S8FS-G050[][] (320 VDC or above, 4 A)
     S8FS-G100[][] (320 VDC or above, 8 A)
     S8FS-G150[][] (320 VDC or above, 10 A)
     S8FS-G300[][] (320 VDC or above, 12 A)
     S8FS-G600[][] (320 VDC or above, 20 A)
• To comply with the PELV output of the EN/IEC 60204-1, ground the output negative side (-V) to PE. *
* Applicable to products produced from May 2018

Inrush Current, Startup Time, Output Hold Time

S8FS-G Specifications 17

Note:
The total inrush current of all of the Power Supplies will flow for parallel operation or backup operation.
Sufficiently check the fusing characteristics of fuses and the operating characteristics of breakers and select fuses and breakers so that external fuses will not burn out or breakers will not operate due to inrush current.

Ripple Noise Voltage

The specified standard for the ripple voltage noise was measured with a measurement circuit that is based on JEITA standard RC-9131A.

S8FS-G Specifications 18

Dimensions | Power Supplies - S8FS-G

(Unit: mm)

Power Supplies

15 W and 30 W

S8FS-G015[][]C
S8FS-G030[][]C

S8FS-G Dimensions 3

S8FS-G015[][]CD
S8FS-G030[][]CD

S8FS-G Dimensions 4

S8FS-G015[][]E
S8FS-G030[][]E

S8FS-G Dimensions 5

50 W

S8FS-G050[][]C

S8FS-G Dimensions 7

S8FS-G050[][]CD

S8FS-G Dimensions 8

S8FS-G050[][]E

S8FS-G Dimensions 9

100 W

S8FS-G100[][]C

S8FS-G Dimensions 11

S8FS-G100[][]CD

S8FS-G Dimensions 12

S8FS-G100[][]E

S8FS-G Dimensions 13

150 W

S8FS-G150[][]C

S8FS-G Dimensions 15

S8FS-G150[][]CD

S8FS-G Dimensions 16

S8FS-G150[][]E

S8FS-G Dimensions 17

300 W

S8FS-G300[][]C

S8FS-G Dimensions 19

S8FS-G300[][]CD

S8FS-G Dimensions 20 Note: Use a Front-mounting Bracket (S82Y-FSG-30F) when the DIN Rail is not strong enough for your usage environment.

600 W

S8FS-G600[][]C

S8FS-G Dimensions 22

S8FS-G600[][]CD

S8FS-G Dimensions 23

Note: Use a Front-mounting Bracket (S82Y-FSG-60F) when the DIN Rail is not strong enough for your usage environment.

Mounting Brackets (Order Separately)

Use the Front-mounting Brackets together with DIN Rail-mounting Power Supplies (S8FS-G[][][][][]CD).

S82Y-FSG-30F

S8FS-G Dimensions 25

S82Y-FSG-60F

S8FS-G Dimensions 26 Note: Replacement brackets from the S8JX-N, S8JX-P, and S8VM series are available. Use these brackets for a front
         mounting configuration using direct mounting models.
         Refer to the data sheet (Cat. No.: T216-E1, T217-E1, and T218-E1) for more information.

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

S8FS-G Dimensions 30 <h4">PFP-100N2 S8FS-G Dimensions 31

End Plate

PFP-M

S8FS-G Dimensions 33 Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
filings may result from aluminum abrasion.

Features | Power Supplies - S8FS-G

Superior Basic Performance That Ensures Reliability. Wide Range of Standards Certification and Greater Usability.


Properties | Power Supplies - S8FS-G

Power SuppliesS8FS-G
Output 5 - 48 VDC
Input 1-phase 85 - 264 VAC, 80 - 370 VDC (15, 30, 50, 100, 150 W)
1-phase 85 - 264 VAC, 120 - 370 VDC (300W)
1-phase 90 - 132 VAC, 120 - 350 VDC (600 W)
Rated voltage 15 - 600 W
Current 0.65 - 50 A
Weight (g) 250 - 1050
Size
(W x L x H)
mm
15 - 30 W S8FS-G015[][]C
S8FS-G030[][]C
35 x 99 x 82
S8FS-G015[][]CD
S8FS-G030[][]CD
36.2 x 117.7 x 82
S8FS-G015[][]E
S8FS-G030[][]E
35 x 99 x 82
50 W S8FS-G050[][]C 36 x 99 x 97
S8FS-G050[][]CD 37.2 x 117.7 x 97
S8FS-G050[][]E 36 x 99 x 97
100 W S8FS-G100[][]C 38 x 129 x 97
S8FS-G100[][]CD 39.2 x 147.7 x 97
S8FS-G100[][]E 38 x 129 x 97
150 W S8FS-G150[][]C 38 x 159 x 97
S8FS-G150[][]CD 39.2 x 177.7 x 97
S8FS-G150[][]E 38 x 159 x 97
300 W S8FS-G300[][]C 41 x 170 x 102
S8FS-G300[][]CD 42.5 x 201 x 99
600 W S8FS-G600[][]C 61 x 190 x 120
S8FS-G600[][]CD 62.5 x 221 x 120

Power Supplies - S8FS-G

ดาวน์โหลดไฟล์ PDF
Power Supplies - S8FS-G
OMRON Power Supplies - S8FS-G

คุณสมบัติ | Power Supplies - S8FS-G

F8FS-G ของแหล่งจ่ายไฟโหมดสวิตซ์ (Switch Mode Power Supply) มีประสิทธิภาพมาตรฐานที่ยอดเยี่ยม และน่าเชื่อถือ ซึ่งไม่ต้องใช้หม้อแปลงสำหรับวงจรควบคุม รวมทั้งมีหม้อแปลงที่สอดคล้องกับ IEC 61558-2-16 ในตัว ดังนั้นจึงไม่จำเป็นต้องใช้หม้อแปลงที่มีขดลวดผสม โดยสามารถลดต้นทุนและพื้นที่ได้ S8FS-G นี้มีคุณสมบัติมากมายรวมถึงสามารถทำงานในสภาพแวดล้อมที่มีการสั่นสะเทือนรุนแรง มีอุณหภูมิสูง มีแรงดันสูง มีแรงดันไฟฟ้าขาเข้าที่ไม่เสถียรและพื้นที่มีระดับความสูงถึง 3000 ม. ได้อีกด้วย


ข้อมูลจำเพาะ | Power Supplies - S8FS-G

Power SuppliesS8FS-G
เอาต์พุต 5 - 48 VDC
อินพุต 1 เฟส 85 - 264 VAC, 80 - 370 VDC (15, 30, 50, 100, 150 W)
1 เฟส 85 - 264 VAC, 120 - 370 VDC (300W)
1 เฟส 90 - 132 VAC, 120 - 350 VDC (600 W)
พิกัดกำลังไฟ 15 - 600 W
พิกัดกระแอเอาต์พุต 0.65 - 50 A
น้ำหนัก 250 - 1050 g
ขนาด
(W x L x H)
mm
15 - 30 W S8FS-G015[][]C
S8FS-G030[][]C
35 x 99 x 82
S8FS-G015[][]CD
S8FS-G030[][]CD
36.2 x 117.7 x 82
S8FS-G015[][]E
S8FS-G030[][]E
35 x 99 x 82
50 W S8FS-G050[][]C 36 x 99 x 97
S8FS-G050[][]CD 37.2 x 117.7 x 97
S8FS-G050[][]E 36 x 99 x 97
100 W S8FS-G100[][]C 38 x 129 x 97
S8FS-G100[][]CD 39.2 x 147.7 x 97
S8FS-G100[][]E 38 x 129 x 97
150 W S8FS-G150[][]C 38 x 159 x 97
S8FS-G150[][]CD 39.2 x 177.7 x 97
S8FS-G150[][]E 38 x 159 x 97
300 W S8FS-G300[][]C 41 x 170 x 102
S8FS-G300[][]CD 42.5 x 201 x 99
600 W S8FS-G600[][]C 61 x 190 x 120
S8FS-G600[][]CD 62.5 x 221 x 120

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
