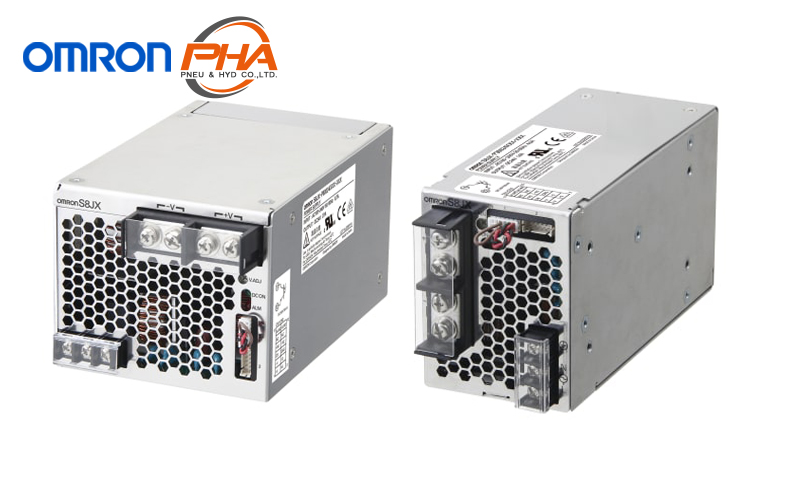

OMRON Power Supplies - S8JX-P

Model Numbers | Power Supplies - S8JX-P

Model Number Structure

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information below.

Note: Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON
representative for details.

Ordering Information

List of Models

Note: For details on normal stock models, contact your nearest OMRON representative.

DIN Rail-mounting

Configuration	Input voltage	Power ratings	Output voltage (VDC)	Output current	Built-in fan	Model
Covered Power Supplies	100 to 240 VAC (free) (80 to 370 VDC *)	300 W	5 V	60 A	Yes	S8JX-P30005CD
			12 V	27 A		S8JX-P30012CD
			24 V	14 A peak current 16.5 A (200 VAC)		S8JX-P30024CD
			48 V	7 A		S8JX-P30048CD
		600 W	5 V	120 A		S8JX-P60005CD
			12 V	53 A		S8JX-P60012CD
			24 V	27 A peak current 31 A (200 VAC)		S8JX-P60024CD
			48 V	13 A		S8JX-P60048CD

* The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

Front-mounting

Configuration	Input voltage	Power ratings	Output voltage (VDC)	Output current	Built-in fan	Front- mounting bracket	Model
Covered Power Supplies	100 to 240 VAC (free) (80 to 370 VDC *)	300 W	5 V	60 A	Yes	Provided	S8JX-P30005C
			12 V	27 A			S8JX-P30012C
			24 V	14 A peak current 16.5 A (200 VAC)			S8JX-P30024C
			48 V	7 A			S8JX-P30048C
		600 W	5 V	120 A			S8JX-P60005C
			12 V	53 A			S8JX-P60012C
			24 V	27 A peak current 31 A (200 VAC)			S8JX-P60024C
			48 V	13 A			S8JX-P60048C
		300 W	5 V	60 A		No	S8JX-P30005N
			12 V	27 A			S8JX-P30012N
			24 V	14 A peak current 16.5 A (200 VAC)			S8JX-P30024N
			48 V	7 A			S8JX-P30048N
		600 W	5 V	120 A			S8JX-P60005N
			12 V	53 A			S8JX-P60012N
			24 V	27 A peak current 31 A (200 VAC)			S8JX-P60024N
			48 V	13 A			S8JX-P60048N

* The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

DIN Rail (Order Separately)

End Plate

Model
PFP-M

Note: 1. Use a metal DIN Rail when mounting the S8JX-P to a DIN Rail.
2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.

Terminal Cover (Order Separately)

Terminal Cover model	Applicable Power Supply and applicable location
S82Y-JX-C4P1	S8JX-P 300 W/600 W output side
S82Y-JX-C5P1	S8JX-P 300 W/600 W input side

Replacement Fan (sold separately)

Product	Model
Replacement fan unit for 300-W models	S82Y-JXP30FAN
Replacement fan unit for 600-W models	S82Y-JXP60FAN

Specificaitons | Power Supplies - S8JX-P

Ratings, Characteristics, and Functions

Input specification			100 to 240 V input
Power ratings *1			300 W	600 W
Efficiency		5 V Models	75% min.	76% min.
		12 V Models	77% min.	76% min.
		24 V Models	79% min.	78% min.
		48 V Models	78% min.	79% min.
Input	Voltage *2		100 to 240 VAC (allowable range: 85 to 264 VAC, 80 to 370 VDC *8)
	Frequency *2		50/60 Hz (47 to 63 Hz)
	Current *3	100 V input	4.5 A max.	8.7 A max.
		200 V input	2.2 A max.	4.3 A max.
	Power factor		0.9 min.
	Harmonic current emissions		Conforms to EN61000-3-2
	Leakage current *3	100 V input	0.5 mA max.
		200 V input	1 mA max.
	Inrush current (for a cold start at 25 °C) *3	100 V input	17.5 A max.
		200 V input	35 A max.
Output *4	Voltage adjustment range *5		-10% to 15% (with V. ADJ) (5 V, 48 V models: ±10%)
	Ripple *3		3% (p-p) max. (5 V) *12 2% (p-p) max. (12 V) *12 2% (p-p) max. (24 V or 48 V types)
	Input variation influence		0.4% max.
	Load variation influence		0.8% max. (0 to 100% load, rated input voltage)
	Temperature variation influence		0.05%/ °C max.
	Startup time		1,000 ms max.
	Hold time *3		20 ms min.
Addi- tional func- tions	Overload protection *6		105% to 160% of rated load current, voltage drop, intermittent, automatic reset.
	Overvoltage protection *7		Yes
	Overheat protection		Yes
	Parallel operation		Yes (up to 5 Power Supplies)
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Remote sensing		Supported
	Remote control		Supported
	Alarm detection indication		Yes (color: red)
	Alarm output		Provided, open-collector output, 30 VDC max, 50 mA max.
Other	Ambient operating temperature		Refer to the derating curve in Engineering Data on Catalog. (with no icing or condensation).
	Storage temperature		- 25 to 75 °C (with no icing or condensation)
	Ambient operating humidity		25% to 85% (Storage humidity: 25% to 90%)
	Dielectric strength		3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 100 mA) 100 VAC for 1 min. (between all outputs and RC terminals; detection current: 100 mA) 500 VAC for 1 min. (between all outputs and ALM terminals; detection current: 20 mA)
	Insulation resistance		100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
	Vibration resistance		10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s2, 3 times each in ±X, ±Y, ±Z directions *10
	Output indicator		Yes (Color: Green)
	EMI	Conducted Emissions *3	Conforms to EN 55011 Group 1 Class B and based on FCC Class B *11
		Radiated Emissions	Conforms to EN 55011 Group 1 Class B *11
	EMS	Electrostatic Discharge	Conforms to EN61000-4-2
		Radiated Electromagnetic Field	Conforms to EN61000-4-3
		Electrical Fast Transient/Burst	Conforms to EN61000-4-4
		Surge	Conforms to EN61000-4-5
		Conducted Disturbance	Conforms to EN61000-4-6
		Voltage Dips/Short Interruptions	Conforms to EN61000-4-11
	Approved standards *8		UL UR: UL 508 (Recognition) *13 UL Listed: UL508 (Listing) *14 UL UR: UL 62368-1 (Recognition)
			cUR: CSA C22.2 No.107.1, CSA C22.2 No. 62368-1
			EN/VDE: EN50178 (= VDE 0160) Over voltage category III, EN 62368-1 (Terminal block: Based on DIN 50274 (VDE 0660-514))
	SEMI		SEMI F47-0706 (200-VAC input)
	Weight		1,200 g max. *9	1,800 g max. *9

*1. When a load is connected that has a built-in DC-DC converter, the overload protection may operate at startup and the Power Supply may notstart. Refer to Overload Protection on Catalog.
*2. Do not use an Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internaltemperature of the Power Supply may result in ignition or burning. *3. Rated input voltage: 100 or 200 VAC at 100% load.
*4. Output characteristics: Specified at power supply output terminals.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the allowable voltage range. When adjusting the outputvoltage, confirm the actual output voltage from the Power Supply and be sure that load is not damaged.
*6. For details, refer to Overload Protection on Catalog.
*7. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*8. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*9. The weight is of the type without a mounting bracket.
*10.S8JX-P600[][]CD: 100 m/s²
*11.The noise value will vary depending on wiring methods and other characteristics. 300-W/600-W models conform to Class B with an aluminum plate set under the product. For the 300-W 5V and 600-W 5V and 12V models, insert a noise filter (TDK-Lambda RSEN-2016) in the input line.
*12.Measurement method conform to RC-9131A of the JEITA standards. For details, refer to "Ripple Noise Voltage" on Catalog.
*13.Applicable to the 300-W/600-W 5V and 12V models
*14.Applicable to the 300-W/600-W 24V and 48V models

Dimensions | Power Supplies - S8JX-P

(Unit: mm)

Front-mounting Models

S8JX-P300[][]C (300 W)

S8JX-P300[][]N (300 W)

S8JX-P600[][]C (600 W)

S8JX-P600[][]N (600 W)

DIN Rail-mounting Models

S8JX-P300[][]CD (300 W)

Note: Use a metal DIN Rail when mounting a 300-W model to a DIN Rail.

S8JX-P600[][]CD (600 W)

Note: Use a metal DIN Rail when mounting a 600-W model to a DIN Rail.

DIN Rail (Order Separately)

End Plate

Note: 1. Use a metal DIN Rail when mounting the S8JX-P to a DIN Rail.
2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.

Features | Power Supplies - S8JX-P

• Limits for harmonic current emissions (conforms to EN61000-3-2)
• Conforms to EMI EN55011 Class B
• Applicable to input free voltage: 100 to 240 VAC
• Extended DC input voltage range: 80 to 370 VDC
  • * DC input is not subject to EC directives and safety standards.
• Easy mounting: Front-mounting bracket type and DIN-Rail mounting type are included as standard with the product.
• Safety standards
  • UL508/62368-1, cUL CSA C22.2 No.107.1, cUR CSA C22.2 No.62368-1
  • EN50178 (=VDE0160) Over voltage category III EN62368-1
• High capacity application-covered functions are included as standard with the product.
• Alarm detection function, Remote control function, Remote sensing function

---

Properties | Power Supplies - S8JX-P

Power Supplies		S8FS-G
Output		24 VDC
Input		100 - 240 VAC
Rated voltage		300 W
current		7 - 60 A
Size	Front-mounting (W x L x D) (mm)	77.6 x 217.3 x 124.3 (S8JX-P300[][]C (300 W))
		71 x 165 x 92 (S8JX-P300[][]N (300 W))
		116.6 x 217.3 x 113.5 (S8JX-P600[][]C (600 W))
		110 x 164.8 x 92 (S8JX-P600[][]N (600 W))
	DIN-rail	110 x 164.8 x 92 (S8JX-P600[][]N (600 W))
		116.6 x 222.8 x 110.8 (S8JX-P600[][]CD (600 W))
Weight (g)		1200 - 1800
