OMRON Power Supplies - S8VK-WA

English
ไทย

Power Supplies - S8VK-WA

DOWNLOAD PDF
Power Supplies - S8VK-WA
OMRON Power Supplies - S8VK-WA
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Power Supplies - S8VK-WA

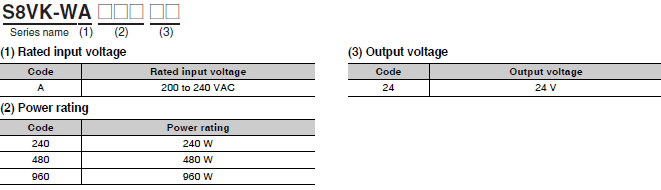

Model Number Structure


Model Number Legend

Not all combinations are possible. Refer to List of Models in Ordering Information, below.

S8VK-WA Lineup 2

Ordering Information


List of Models

Power
rating
Rated input voltageRated
output
voltage
(VDC)
Rated
output
current
Maximum
boost
current
Model
240 W Three-phase/single-phase 200 to 240 VAC
(Allowable range:
Three-phase/single-phase 170 to 264 VAC,
240 to 350 VDC)
24 V 10 A 15 A S8VK-WA24024
480 W 24 V 20 A 30 A S8VK-WA48024
960 W 24 V 40 A 60 A S8VK-WA96024

Mounting Brackets (Order Separately)

Product nameModel
Front Mounting Bracket (for 240 W) S82Y-VKW20F
Front Mounting Bracket (for 480 W) S82Y-VKW40F
Front Mounting Bracket (for 960 W) S82Y-VKW90F

DIN Rail Mounting Parts (Order Separately)

Part nameModel
Support Rail (Aluminum) PFP-100N
PFP-50N
PFP-100N2
End Plate PFP-M

Specifications | Power Supplies - S8VK-WA

Ratings, Characteristics, and Functions

Power rating240 W480 W960 W
Output voltage (VDC)24 V24 V24 V
Efficiency *1Three-phase
200 VAC input
93% typ. 94% typ. 95% typ.
Single-phase
200 VAC input
92% typ. 93% typ. 94% typ.
Three-phase
230 VAC input
93% typ. 94% typ. 95% typ.
Single-phase
230 VAC input
93% typ. 94% typ. 95% typ.
Input con-
ditions
Input voltage range *2 Three-phase/single-phase 170 to 264 VAC, 265 to 300 VAC (1 second)
240 to 350 VDC
Frequency *2 50/60 Hz (47 to 63 Hz)
Input current
*1
Three-phase
200 VAC input
0.80 A typ. 1.6 A typ. 3.1 A typ.
Single-phase
200 VAC input
1.4 A typ. 2.6 A typ. 5.2 A typ.
Three-phase
230 VAC input
0.70 A typ. 1.4 A typ. 2.7 A typ.
Single-phase
230 VAC input
1.2 A typ. 2.3 A typ. 4.5 A typ.
Power factor *1 0.9 min.
Leakage
current *3
Three-phase
200 VAC input
1 mA max.
Three-phase
230 VAC input
1 mA max.
Inrush
current *4
(for a cold
start at
25°C)
Three-phase
200 VAC input
13 A typ. 13 A typ. 14 A typ.
Three-phase
230 VAC input
15 A typ. 15 A typ. 16 A typ.
Output
character-
istics
Rated output current 10 A 20 A 40 A
Power Boost Function 15 A 30 A 60 A
Voltage adjustment range *5 24 to 29.5 V (with V.ADJ) 24 to 28 V (with V.ADJ)
Ripple noise
voltage *6
Three-phase
200 to 240
VAC input
50 mVp-p max.
at 20 MHz of
bandwidth
120 mVp-p max.
at 20 MHz of
bandwidth
60 mVp-p max.
at 20 MHz of
bandwidth
Input variation influence *7 0.5% max.
Load variation influence *8 1.5% max.
Temperature
variation
influence
200 to 240
VAC input
0.05%/°C max.
Startup
time *9
Three-phase
200 VAC input
1,000 ms max.
Three-phase
230 VAC input
1,000 ms max.
Output hold
time *9
Three-phase
200 VAC input
35 ms typ. 30 ms typ. 25 ms typ.
Three-phase
230 VAC input
35 ms typ. 30 ms typ. 25 ms typ.
Additional
functions
Overload protection Yes, automatic reset, intermittent operation type
Refer to Overload Protection below.
Overvoltage protection Yes, 130% or higher of rated output voltage, power shut off (shut off
the input voltage and turn on the input again),
Refer to Overvoltage Protection below.
Series operation Yes (For up to two Power Supplies; external diodes required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on
Data sheet.
INPUT OK Indicator Yes (LED: Green)
DC OK Indicator Yes (LED: Green)
Iout > 100% Indicator Yes (LED: Yellow)
DC OK Signal Output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Iout > 100% signal output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
InsulationWithstand voltage 3.0 kVAC for 1 min. (between all input terminals and all output terminals,
signal output terminals), cutoff current 20 mA
2.0 kVAC for 1 min. (between all input terminals and PE terminals),
cutoff current 20 mA
1.0 kVAC for 1 min. (between all output terminals, signal output
terminals and PE terminals), cutoff current 25 mA
0.5 kVAC for 1 min. (between all output terminals and all signal output
terminals), cutoff current 10 mA
Insulation resistance 100 MΩ min. (between all output terminals, signal output terminals
and all input terminals / PE terminals) at 500 VDC
Environ-
ment
Ambient operating
temperature *10
-40 to 70°C (Derating is required according to the temperature.
Refer to Engineering Data on Data sheet.) (with no condensation or
icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% max. (Storage humidity: 95% max.)
Vibration resistance 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in
X, Y, and Z directions
Shock resistance 294 m/s2, 3 times each in ±X, ±Y, ±Z directions
ReliabilityMTBF *11 290,000 hrs typ. 230,000 hrs typ. 170,000 hrs typ
Expected life *12 10 years min.
Construc-
tion
Weight 800 g max. 1,050 g max. 1,750 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529
StandardsHarmonic current emissions Conforms to EN 61000-3-2 (single-phase *13)
Complies with JIS C 61000-3-2 (three-phase, single-phase)
EMIConducted
emissions
Conforms to EN 61204-3 Class B,
EN 55011 Class B (three-phase)
Conforms to EN 61204-3 Class A,
EN 55011 Class A (single-phase)
Conforms to EN 61204-3
Class B, EN 55011 Class B
(three-phase)
Conforms to EN 61204-3
Class B, EN 55011 Class B
(single-phase *14)
Conforms to EN 61204-3
Class A, EN 55011 Class A
(single-phase)
Radiated
emissions
EMS Conforms to EN 61204-3 high severity levels
Safety standards UL 508 (Listing)
CSA C22.2 No.107.1 (cUL)
UL 62368-1 (Recognition) OVC II (≤ 3000 m) Pol2
CSA C22.2 No.62368-1 (cUR) OVC II (≤ 3000 m) Pol2
EN/IEC 62477-1 OVC III (≤ 2000 m) OVC II (2000 m < and ≤ 3000 m) Pol2
EN/IEC 62368-1 OVC II (≤ 3000 m) Pol2
EAC (TR CU 004 / 2011, TR CU 020 / 2011)
RCM (EN61000-6-4)
Complies with PELV (EN/IEC 60204-1)
Complies with EN/IEC 61558-2-16
SEMI Complies with SEMI F47-0706 (three-phase / single-phase 200 to 240
VAC input)
  1. The value is when both rated output voltage and rated output current are satisfied.
  2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise
  3. in the internal temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
  4. The value is determined according to the Electrical Appliances and Material Safety Act.
  5. Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on below.
  6. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.
  7. The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient operating temperature is 25°C.
  8. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
  9. 200 to 240 VAC input, in the range of 0 A to the rated output current.
  10. This is the value when both rated output voltage and rated output current are satisfied and at room temperature (25°C). Refer to Inrush Current, Startup Time, and Output Hold Time on below for details.
  11. At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
  12. MTBF is calculated according to JEITA RCR-9102.
  13. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Data Sheet for details.
  14. EN61000-3-2 does not applied to three-phase 200 to 240 VAC input models.

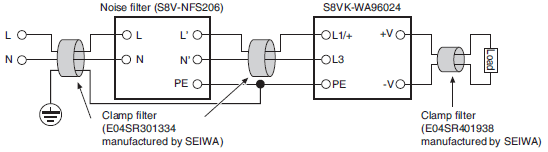

  15. Class B compliance was met with the following configuration.
S8VK-WA Specifications 2

Standard Compliance

  • To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).
  • EN/IEC 61558-2-16
    The S8VK-WA was designed based on EN/IEC 61558-2-16. Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16. When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for product that use a transformer that complies with EN/IEC 61558-2-16.
  • Safety Standards for a DC Input
    The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN/IEC62477-1, EN/IEC 61558-2-16. Safety standard compliance is achievable by connecting a UL-certified fuse as specified below to the (L1/+) side. For a DC power input, connect (L1/+) side to (+), and (L3/-) side to (-). To select a UL certified fuse, refer to Recommended circuit breakers and fuses on Data Sheet

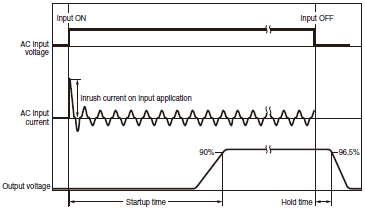

Inrush Current, Startup Time, and Output Hold Time

S8VK-WA Specifications 2

Note: Twice the normal inrush current will flow during parallel operation or for backup operation. Therefore, check the fusing characteristics of fuses and operating characteristics of breakers making sure that the external fuses will not burn out and the circuit breakers will not be activated by the inrush current.

Overload Protection

The product is automatically protected from short-circuit current and overcurrent damages when the load current is in the range of 151 to 175% of the rated current.
When the output current falls within the rated range, the overload protection function is automatically cleared.

S8VK-WA Specifications 2

Note:
1. Internal parts may occasionally deteriorate or be damaged if a short-circuited or overcurrent state continues during operation. Be sure to check that the Iout > 100% indicator is not lit or the Iout > 100% signal output is turned OFF before using.
2. Internal parts may possibly deteriorate or be damaged if the Power Supply is used for applications with inrush current or overloading at the load end. Do not use the Power Supply for such applications.

Overvoltage Protection

Overvoltage will be detected to prevent the load from being subjected to excessive voltage when the feedback circuit in the Power Supply fails, etc. When an excessive voltage that is approximately 130% of the rated output voltage or more is output, the output voltage is cut OFF, preventing damage to the load due to overvoltage. Reset the input power by turning it OFF for at least three minutes and then turning it back ON again. Note: Do not turn ON the power again until the cause of the overvoltage has been removed.

INPUT OK Indicator

The INPUT OK indicator will light when the input voltage exceeds the lower limit value of the permissible range.
Note: The voltage may be applied even if the indicator does not light.
Be sure to check the input voltage when performing wiring.

DC OK Indicator/Signal Output

The DC OK indicator will light when the output voltage is more than 90% of the rated output voltage, and the internal MOS FET relay is conducted (turned ON).
Note:
1. The output voltage may be generated even if the indicator does not light. Be sure to check the output voltage when connecting to the load.
2. This function monitors the voltage at the power output terminals.
To check the voltage accurately, measure the voltage at the load end.
3. If the output voltage is set to less than 90% of the rated output voltage, the indicator may go off and the signal output may be turned OFF.

Iout > 100% Indicator/Signal Output

The Iout > 100% indicator lights up when the output current exceeds the rated output current, and the internal MOS FET relay is conducted (turned ON).
Note:
1. The Iout > 100% Indicator may light up, and the Iout > 100% Signal Output may turn ON during peak current operation, however, the Power Supply can be used as long as the operating conditions specified in Peak current (Data Sheet) are satisfied.
2. Even when the operating conditions for parallel operation are satisfied, the Iout>100% Indicator / Signal Output may operate, so do not use the Iout>100% Indicator / Signal Output.
3. During a short-circuit, the indicator will operate intermittently due to the overload protection function. When this happens, the indicator will blink in accordance with the intermittent operation, and the Iout > 100% signal output will repeated turn ON and OFF.
The shortest ON time of the Iout > 100% signal output during intermittent operation is 5 ms.

Specifications of the Signal Output Terminals (between DC OK Signal Output Terminal and COM Terminal, and between Iout > 100% Signal Output Terminal and COM Terminal)

Since the Signal Output is composed of the MOS FET relay, it does not have any polarity.
30 VDC max., 50 mA max.
Residual voltage when the function is ON: 2 V max.
Leakage current when the function is OFF: 0.1 mA max.
Note:
1. Internal current control circuits are not provided internally for output signals. Do not allow the output current to exceed 50 mA.
2. After completing wiring, confirm that the circuits operate correctly.

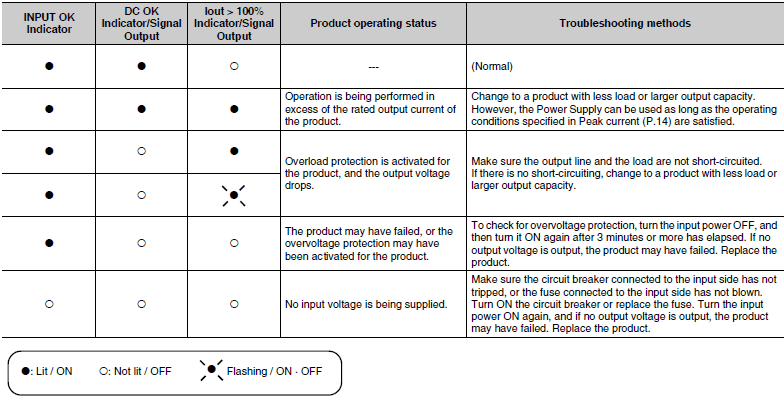

Identification of error locations at the input, product, and load side by the Indicator or Signal Output, and troubleshooting for the same (Maintenance point indicator)

Error locations at the input, product, and load side can be identified by the INPUT OK, DC OK, Iout > 100% Indicator / Signal Output.

S8VK-WA Specifications 2

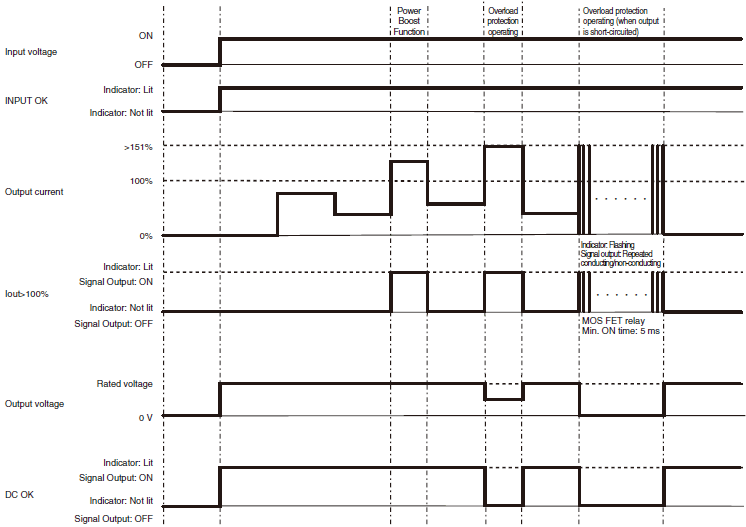

Time chart (Operation of the Indicator/Signal Output according to the product status)

S8VK-WA Specifications 2

Dimensions | Power Supplies - S8VK-WA

(Unit: mm)

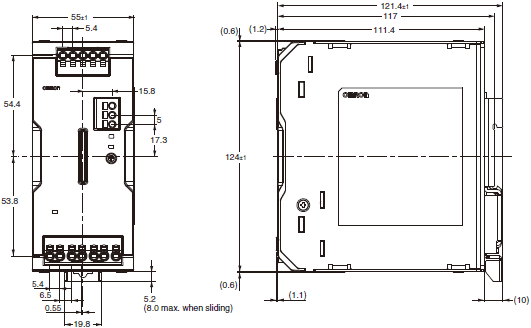

S8VK-WA24024

Dimensions - S8VK-WA

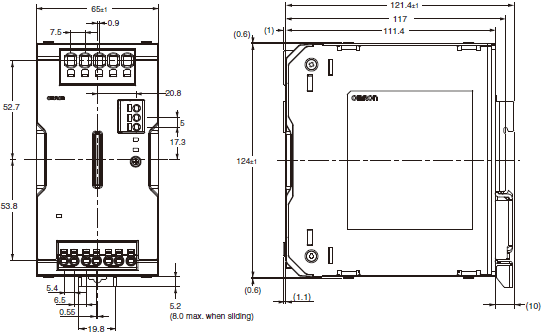

S8VK-WA48024

Dimensions - S8VK-WA

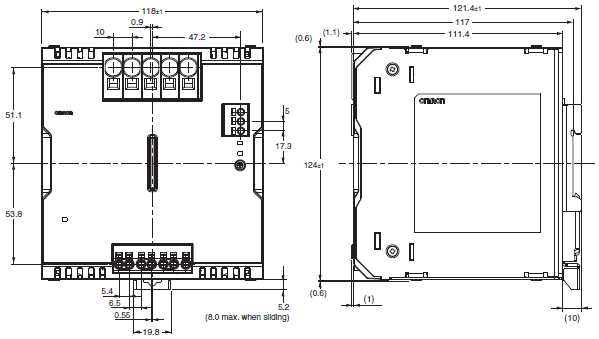

S8VK-WA96024

Dimensions - S8VK-WA

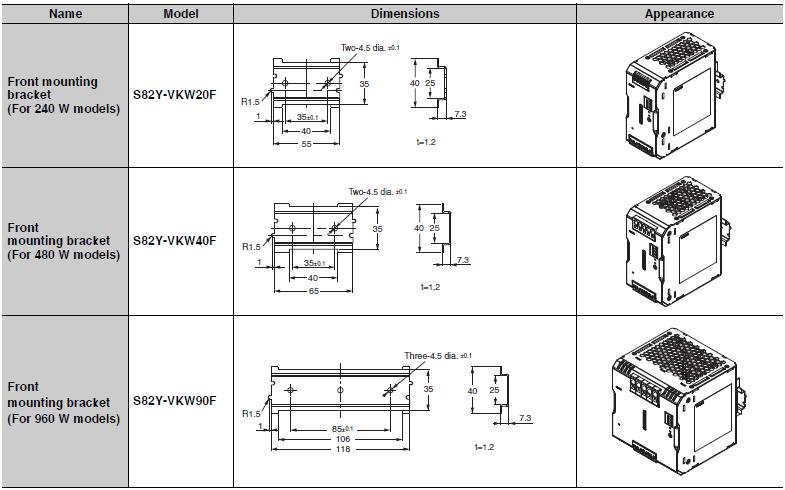

Mounting Brackets (Order Separately)

Dimensions - S8VK-WA

Note: The front mounting bracket can be used for front, side-by-side mounting as well.


DIN Rail Mounting (Order Separately)

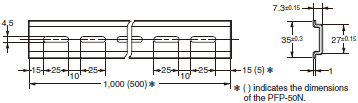

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Dimensions - S8VK-WA

PFP-100N2

Dimensions - S8VK-WA

End Plate

PFP-M

Dimensions - S8VK-WA

Note: 1. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.
2. If the Unit may be subjected to sliding to either side, attach an End Plate (PFP-M) on each side of the Unit.

Features | Power Supplies - S8VK-WA

Can be operated with three-phase/single-phase/DC input Equipped with signal output for monitoring output voltage/current (MOSFET relay)


Properties | Power Supplies - S8VK-WA

Power SuppliesS8VK-WA
Power rating 240 W, 480 W, 960 W
Output 24 V
Input 3-Phase/1-Phase (170 – 264 Vac, 265 – 300Vac, 240 – 350Vdc)
Frequency 50 – 60 Hz
Power factor 0.9
Rated output current 15 A, 20 A, 40 A
Dimensions
(W x L x D)
mm
S8VK-WA24024 55 x 124 x 121.4
S8VK-WA48024 65 x 124 x 121.4
S8VK-WA96024 118 x 124 x 121.4
Weight S8VK-WA24024 800 g
S8VK-WA48024 1,050 g
S8VK-WA96024 1,750 g

Power Supplies - S8VK-WA

ดาวน์โหลดไฟล์ PDF
Power Supplies - S8VK-WA
OMRON Power Supplies - S8VK-WA

คุณสมบัติ | Power Supplies - S8VK-WA

  • แหล่งจ่ายไฟ
  • สามารถใช้งานได้ด้วยอินพุตสามเฟส / หนึ่งเฟส / DC
  • พร้อมกับเอาต์พุตสัญญาณสำหรับตรวจสอบแรงดัน / กระแสเอาต์พุต

ข้อมูลจำเพาะ | Power Supplies - S8VK-WA

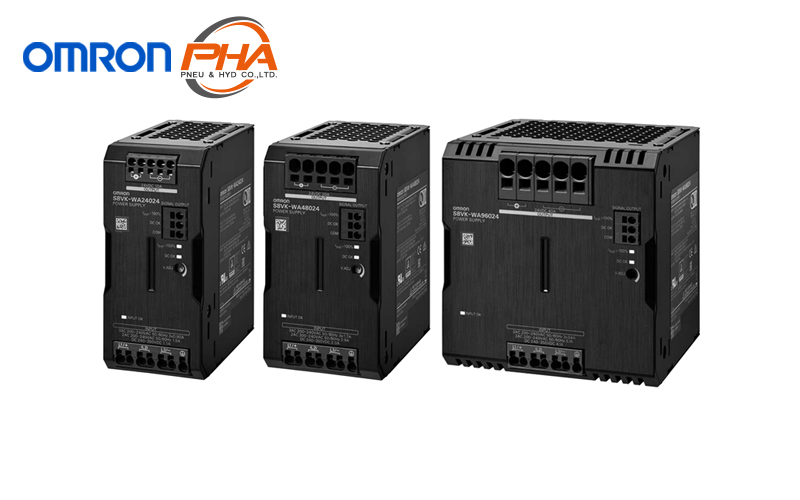

Power SuppliesS8VK-WA
พิกัดกำลัง 240 W, 480 W, 960 W
เอาต์พุต 24 V
อินพุต 3 เฟส / 1 เฟส (170 – 264 Vac, 265 – 300 Vac, 240 – 350 Vdc)
ความถี่ 50 – 60 Hz
ตัวประกอบกำลัง 0.9
กระแสพิกัดด้านขาออก 15 A, 20 A, 40 A
ขนาด
(W x L x D)
mm
S8VK-WA24024 55 x 124 x 121.4
S8VK-WA48024 65 x 124 x 121.4
S8VK-WA96024 118 x 124 x 121.4
น้ำหนัก
(กรัม)
S8VK-WA24024 800
S8VK-WA48024 1,050
S8VK-WA96024 1,750

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
