SMC - Positioners
SMC - Positioners
มีทั้งหมด 6 รุ่น คือ

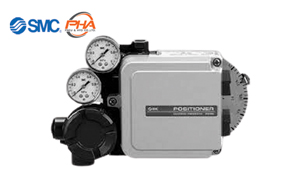

1) Electro-Pneumatic Positioner/Smart Positioner IP800/IP801
Features | Electro-Pneumatic Positioner/Smart Positioner IP800/IP801
- Enclosure: JISF8007 IP65 (Compliant with IEC 60529)
- Monitoring function
- Explosion-proof construction
- Electro-pneumatic positioner: TIIS explosion-proof construction (Exd II BT5) ATEX intrinsically safe explosion-proof construction (II 2G Ex ib II CT5/T6 Gb)
- Smart positioner : ATEX intrinsically safe explosion-proof construction(II 1G Ex ia II CT4/T5/T6 Ga)
- HART transmission function (Smart positioner)
Specifications | Electro-Pneumatic Positioner/Smart Positioner IP800/IP801
| Description | Series | Type | Port size (Rc, NPT, G) | Supply air pressure (MPa) | Input cur |
|---|---|---|---|---|---|
| Electro-pneumatic positioner | IP8000 | Lever type | 1/4 | 0.14 to 0.7 | 4 to 20 mA DC |
| Electro-pneumatic positioner | IP8100 | Rotary type | 1/4 | 0.14 to 0.7 | 4 to 20 mA DC |
| Smart positioner | IP8001 | Lever type | 1/4 | 0.14 to 0.7 | 4 to 20 mA DC |
| Smart positioner | IP8001 | Rotary type | 1/4 | 0.3 to 0.7 | 4 to 20 mA DC |
2) Smart Positioner/External Input Signal (Remote) Type IP8101-X419-☐
Features | Smart Positioner/External Input Signal (Remote) Type IP8101-X419-☐
- Allows for the remote control of cylinders Controls the cylinder by feedback signal
Specifications | Smart Positioner/External Input Signal (Remote) Type IP8101-X419-☐
| Description | Series | Type | Port size (Rc, NPT, G) | Supply air pressure (MPa) | Input cur |
|---|---|---|---|---|---|
| Smart positione | IP8101-X419-☐ | External input signal (remote) type | 1/4 | 0.3 to 0.7 | 4 to 20 mA DC |

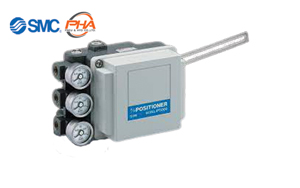

3) Pneumatic-Pneumatic Positioner IP5000/5100
Specifications | Pneumatic-Pneumatic Positioner IP5000/5100
| Series | Port size | Supply air pressure (MPa) | Input pressure (MPa) |
|---|---|---|---|
| IP5000/5100 | Rc1/4 | 0.14 to 0.7 | 0.02 to 0.1 |

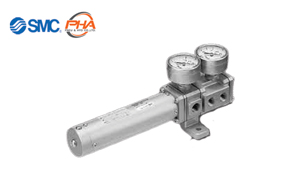

4) Cylinder Positioner IP200
Features | Cylinder Positioner IP200
- Servo-mechanism allows for precise and stable position control of cylinders
- Can be used as a cylinder position control unit for general industrial machines
Specifications | Cylinder Positioner IP200
| Series | Port size | Supply air pressure (MPa) | Input pressure (MPa) |
|---|---|---|---|
| IP200 | Rc1/4 | 00.3 to 0.7 | 0.02 to 0.1 |

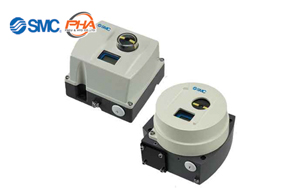

5) Digital Valve Controller ND7000
Features | Digital Valve Controller ND7000
- Can be used for rotary and linear actuators
- SIL 2 certified by TÜV (Acc. to IEC 61508)
- Equipped with self-diagnostics
- Equipped with fail safe function (fully closed/fully open)
- Compatible with HART communication
- Enclosure: IP66, NEMA 4X
Specifications | Digital Valve Controller ND7000
| Description | Enclosure material | Air connection port | Supply air pressure (MPa) | Input current |
|---|---|---|---|---|
| ND7100 | Anodised aluminum alloy and polymer composite |
G1/4 | 0.14 to 0.8 | 4 to 20 mA |
| ND7200 | Anodised aluminum alloy and tempered glass |
NPT1/4 | 0.14 to 0.8 | 4 to 20 mA |

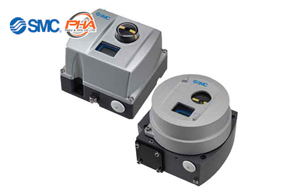

6) Intelligent Valve Controller ND9000
Features | Intelligent Valve Controller ND9000
- Can be used for rotary and linear actuators
- SIL 2 certified by TÜV (Acc. to IEC 61508)
- Equipped with self-diagnostics
- Equipped with fail safe function (fully closed/fully open)
- Compatible with HART communication
- Enclosure: IP66, NEMA 4X
Specifications | Intelligent Valve Controller ND9000
| Description | Enclosure material | Air connection port | Supply air pressure (MPa) | Input current |
|---|---|---|---|---|
| ND9100 | Anodised aluminum alloy and polymer composite |
G1/4 | 0.14 to 0.8 | 4 to 20 mA |
| ND9200 | Anodised aluminum alloy and tempered glass |
NPT1/4 | 0.14 to 0.8 | 4 to 20 mA |
| ND9300 | Stainless steel | NPT1/4 | 0.14 to 0.8 | 4 to 20 mA |
| ND9400 | Stainless steel and polymer composite |
NPT1/4 | 0.14 to 0.8 | 4 to 20 mA |
