SMC - Actuators
SMC - Actuators
มีทั้งหมด 2 รุ่น คือ

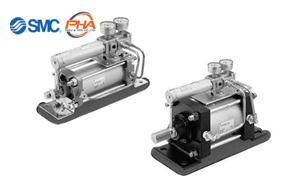

1) P Cylinder (Cylinder with Positional) CPA2/CPS1
Features | P Cylinder (Cylinder with Positioner) CPA2/CPS1
- Cylinder positioning in proportion to the input signal (air pressure) is possible.
- Correction operation function: Returns to the initial setting position even when the position deviates due to load variations
Specifications | P Cylinder (Cylinder with Positioner) CPA2/CPS1
| Series | Bore size | Stroke (mm) | Air connection port | Supply pressure (MPa) | Input pressure (MPa) |
|---|---|---|---|---|---|
| CPA2 | φ50 to 100 | 25 to 300 | Rc1/4 female thread | 0.3 to 0.7 | 0.02 to 0.1 |
| CPS1 | φ125 to 300 | 25 to 300 | Rc1/4 female thread | 0.3 to 0.7 | 0.02 to 0.1 |

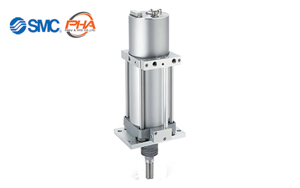

2) Air Servo Cylinder IN-777
Features | Air Servo Cylinder IN-777
- Capable of air cylinder multipoint positioning and control
- Fast response and high positioning repeatability Positioning repeatability: ±0.5 mm
- Easier maintenance due to unitization
- Built-in self-diagnosis function (LED lamp and signal output)
- Emergency stop of the piston when the air or power supply is cut
Specifications | Air Servo Cylinder IN-777
| Type | Series | Action | Bore size (mm) | Max. speed |
|---|---|---|---|---|
| Air servo cylinder | IN-777 | Double acting, Single rod | 125, 160, 200, 250, 320 | ø125 to ø250：155 mm/sec ø320：80 mm/sec |
