SMC - Electro-Pneumatic Regulators
Electro-Pneumatic Regulators
มีทั้งหมด 5 รุ่น คือ

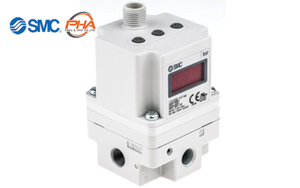

1) Electro-Pneumatic Regulator ITV
Features | Electro-Pneumatic Regulator ITV
- Stepless control of air pressure in proportion to electrical signals
- Sensitivity: 0.2 kPa (100 kPa specification)
- Linearity: ±1% or less (F.S.)
- Hysteresis: 0.5% or less (F.S.)
- Communication: CC-Link, DeviceNetTM, PROFIBUS DP, RS-232C
Specifications | Electro-Pneumatic Regulator ITV
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITV0000 | Built-in One-touch fitting φ4, φ5/32 |
0.001 to 0.1 0.001 to 0.5 0.001 to 0.9 |
| ITV1000 | 1/8, 1/4 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |
| ITV2000 | 1/4, 3/8 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |
| ITV3000 | 1/4, 3/8, 1/2 | 0.005 to 0.1 0.005 to 0.5 0.005 to 0.9 |

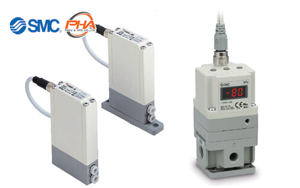

2) Electronic Vacuum Regulator ITV
Features | Electronic Vacuum Regulator ITV
- Stepless control of vacuum pressure in proportion to electrical signals
- Communication: CC-Link, DeviceNetTM, PROFIBUS DP, RS-232C
Specifications | Electronic Vacuum Regulator ITV
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITV009□ | Built-in one-touch fitting φ4, φ5/32 |
-1 to -100 |
| ITV209□ | 1/4 | -1.3 to -80 |

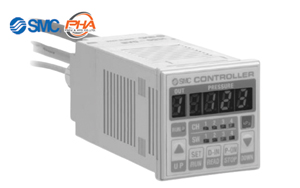

3) Controller for Electro-Pneumatic Regulator IC
Features | Controller for Electro-Pneumatic Regulator IC
- Is mainly used integrated with the ITV0000 series which is not equipped with a display function
- Converts digital input signals into analog output signals
- 10 bit parallel input signal (maximum) Possible pressure setting of 210= 1024 points
- 4-point preset output Applicable to programming functions with up to 20 steps

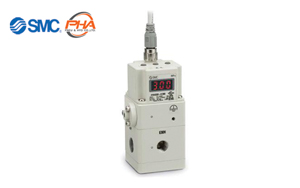

4) 5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
Features | 5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
- Stepless control of air pressure proportional to electrical signals
- Maximum supply pressure: 5.0 MPa
- Set pressure range: 0.01 to 3.0 MPa
- Maximum flow rate: 3000 L/min (ANR)
- Fluid: Air, N2, O2, Ar
- Wetted parts: Fluorine grease
Specifications | 5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITVX | 3/8 | 0.01 to 3.0 |

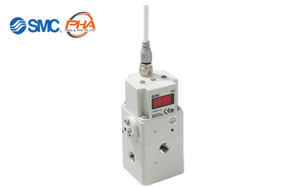

5) 3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVH
Features | 3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVH
- Maximum supply pressure: 3.0 MPa
- Set pressure range: 0.2 to 2.0 MPa Stepless control of air pressure up to 2.0 MPa
- Stability: ±1% F.S. or less
- Power consumption: 3 W or less
- Maximum flow rate: 3,000 L/min (ANR)
- Wetted parts: Fluorine grease
Specifications | 3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVH
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITVH | 1/4, 3/8 | 0.2 to 2.0 |
