SMC - Booster Regulators

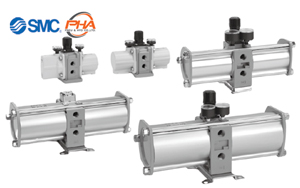

Features | Booster Regulator VBA

Can increase factory air by a maximum of 200%, Power supply not required It is possible to get a maximum of double the existing pressure by connecting the air to a factory line. (VBA11A: maximum 4 times) Space-saving type that directly connects air tanks and booster regulators

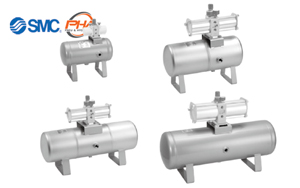

Features | Air Tank VBAT

• Compact air tank that can be directly connected to a regulator
• Can be used as an independent tank
• With a safety valve port (Option)
• Overseas standards compliant products:
  • CE certified product (-Q) ASME Standards compliant product (-X105)
  • Product not applicable to ASME Standards (-X11)
  • Chinese pressure vessel regulations compliant product (-X104)
  • Industrial Safety and Health Act KCs Certification compliant product (-X101)

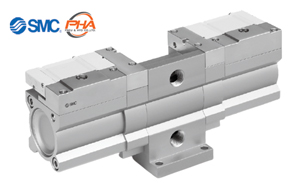

Features | Booster Regulator VBA-X3145

• Air consumption 40% reduction
• Operation noise: 65 dB(A) 15 dB (A) reduction compared with the existing model (VBA series)
• Charging time: 32% shorter
• Simple, compact shape Built-in silencer No longer any need for a pressure regulator knob due to the fixed pressure increase ratio
• Mounting compatibility with the existing model
