SMC - Fittings for Special Environments (Clean / Fluoropolymer)
Fittings for Special Environments (Clean / Fluoropolymer)
มีทั้งหมด 5 รุ่น คือ
1) Clean One-touch Fittings for Blowing KP
Features | Clean One-touch Fittings for Blowing KP
- One-touch fittings for clean room blowing systems
- Completely oil-free (Fluoro-coated rubber portions)
- Wetted parts are non-metallic.
- Parts washed and assembled in a clean room, Packed in double packaging.
- Can be used in a vacuum (−100 kPa)
Specifications | Clean One-touch Fittings for Blowing KP
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KP | φ4, φ6, φ8, φ10, φ12 | 1/8, 1/4, 3/8, 1/2 |
2) Clean One-touch Fittings for Driving Air Piping KPQ / KPG
Features | Clean One-touch Fittings for Driving Air Piping KPQ / KPG
- One-touch fittings suitable for driveline air systems in clean room environments
- Resin parts: Polypropylene
- All metal portions
- Brass (Electroless nickel-plated) KPQ
- Stainless steel (Stainless steel 304) KPG
Specifications | Clean One-touch Fittings for Driving Air Piping KPQ / KPG
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KPQ | φ4, φ6, φ8, φ10, φ12 | M5, 1/8, 1/4, 3/8, 1/2 |
| KPG | φ4, φ6, φ8, φ10, φ12 | M5, 1/8, 1/4, 3/8, 1/2 |

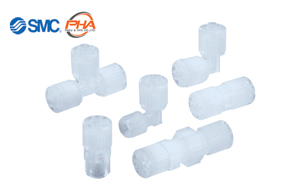

3) Fluoropolymer Fittings Hyper Fittings LQ1
Features | Fluoropolymer Fittings Hyper Fittings LQ1
- Material: New PFA
- Quadruple-seal construction
- The reducer method allows for tubing size changes without replacing the body
Specifications | Fluoropolymer Fittings Hyper Fittings LQ1
| Series | Max. operating pressure | Operating temperature |
|---|---|---|
| LQ1 | 1.0 MPa | 0 to 200℃ |
4) Fluoropolymer Fittings Hyper Fittings LQ3
Features | Fluoropolymer Fittings Hyper Fittings LQ3
- Material: New PFA
- Triple-seal construction
- Easy installation
Specifications | Fluoropolymer Fittings Hyper Fittings LQ3
| Series | Max. operating pressure | Operating temperature |
|---|---|---|
| LQ3 | 1.0 MPa | Nut material PVDF：0 to 150℃ Nut material PFA：0 to 200℃ |
5) Fluoropolymer Bore Through Connector LQHB
Features | Fluoropolymer Bore Through Connector LQHB
- It is possible to freely choose the tube’s positioning. As the tube runs through the fitting itself, a setting is available for any optional position.
- Can be used in the pressure feeding of chemical liquids, etc., during the production process of semiconductors
- Applicable to chemical liquids such as acid, alkali, and deionized water
- Materials: New PFA (Body, nut), PTFE (Collet)
Specifications | Fluoropolymer Bore Through Connector LQHB
| Series | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size | Operating temperature |
|---|---|---|---|
| LQHB | φ3 to φ25 | φ1/8" to φ1" | 0 to 200 ℃ |
