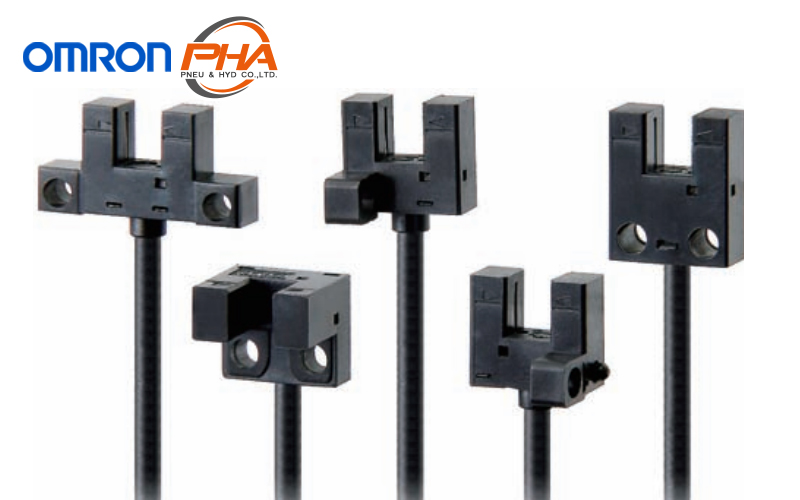

OMRON Photomicro Sensor - EE-SX95

Model Numbers | Photomicro Sensor - EE-SX95

Sensors

Appearance	Sensing method	Sensing distance	Output configuration	Connection method (Cable length)	Output type	Model
Standard	Throughbeam (with slot)	5 mm (slot width) (Infrared light)	Light-ON Dark-ON (2 outputs)	Pre-wired model with standard cable (1 m)	NPN	EE-SX950-W 1M *1
					PNP	EE-SX950P-W 1M *2
				Pre-wired model with robot cable (1 m)	NPN	EE-SX950-R 1M *1
				Pre-wired connector model with robot cable (0.3 m)	NPN	EE-SX950-C1J-R 0.3M
L-shaped				Pre-wired model with standard cable (1 m)	NPN	EE-SX951-W 1M *1
					PNP	EE-SX951P-W 1M *2
				Pre-wired model with robot cable (1 m)	NPN	EE-SX951-R 1M *1
				Pre-wired connector model with robot cable (0.3 m)	NPN	EE-SX951-C1J-R 0.3M
F-shaped				Pre-wired model with standard cable (1 m)	NPN	EE-SX952-W 1M *1
					PNP	EE-SX952P-W 1M *2
				Pre-wired model with robot cable (1 m)	NPN	EE-SX952-R 1M *1
				Pre-wired connector model with robot cable (0.3 m)	NPN	EE-SX952-C1J-R 0.3M
R-shaped				Pre-wired model with standard cable (1 m)	NPN	EE-SX953-W 1M *1
					PNP	EE-SX953P-W 1M *2
				Pre-wired model with robot cable (1 m)	NPN	EE-SX953-R 1M *1
				Pre-wired connector model with robot cable (0.3 m)	NPN	EE-SX953-C1J-R 0.3M
U-shaped				Pre-wired model with standard cable (1 m)	NPN	EE-SX954-W 1M *1
					PNP	EE-SX954P-W 1M *2
				Pre-wired model with robot cable (1 m)	NPN	EE-SX954-R 1M *1
				Pre-wired connector model with robot cable (0.3 m)	NPN	EE-SX954-C1J-R 0.3M

*1. A model is available with a 3-m cable. The model number is EE-SX95[]-[]3M. (Example: EE-SX950-W 3M)
*2. A pre-wired model with a PNP output and 1-m robot cable is available. The model number is EE-SX95[]P-R 1M.
(Example: EE-SX950P-R 1M)

Accessories (Order Separately)

Specifications | Photomicro Sensor - EE-SX95

*1. The differential travel is the value when a sensing object is moved in a lateral direction to the slot.
*2. The response frequency was measured by detecting the following rotating disk.

Product		Connector with Robot Cable
Model		EE-1016-R
Appearance
Contact resistance		25 mΩ max. (at 10 mA DC and 20 mV max.)
Insertion strength		20 N max.
Surplus strength (housing holding strength)		15 N min.
Cable length		2 m
Ambient temperature range		-25 to 85°C
Materials	Housing	Nylon
	Contact	Phosphor bronze

Dimensions | Photomicro Sensor - EE-SX95

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

EE-SX950-[]
EE-SX950P-[]
EE-SX950-C1J-R

EE-SX951-[]
EE-SX951P-[]
EE-SX951-C1J-R

EE-SX952-[]
EE-SX952P-[]
EE-SX952-C1J-R

EE-SX953-[]
EE-SX953P-[]
EE-SX953-C1J-R

EE-SX954-[]
EE-SX954P-[]
EE-SX954-C1J-R

Accessories (Order Separately)

Connector with Robot Cable
EE-1016-R

Features | Photomicro Sensor - EE-SX95

• Mount using M3 or M2 screws.
• Reliable sensing slot depth of 6.5 mm.
• Indication of sensing window for easy confirmation ofinsertion depth.
• Bright indicator for confirmation from many directions.
• Both light-ON and dark-ON outputs provided.
• All models available with either standard cable orflexible robot cable.
• Load short-circuit protection circuit provided.

Properties | Photomicro Sensor - EE-SX95
