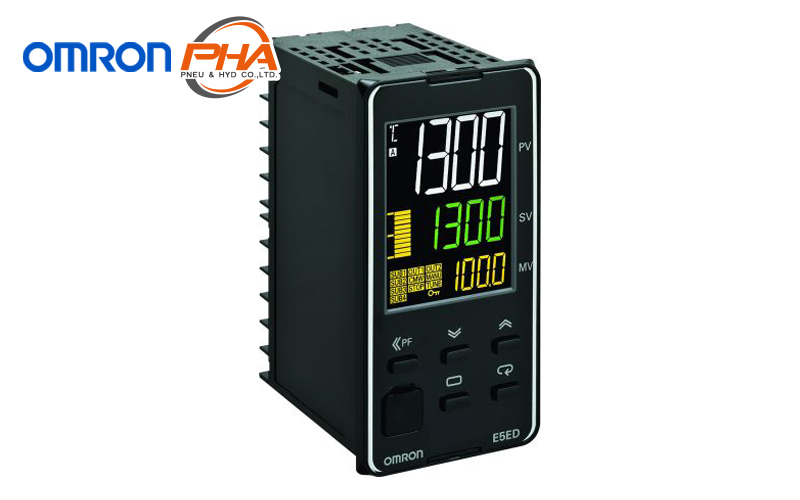

OMRON Temperature Controller - E5ED-800

English
ไทย

Temperature Controller - E5ED-800

Download PDF

Temperature Controller - E5ED-800
OMRON Temperature Controller - E5ED-800
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Temperature Controller - E5ED-800

Model Number Legend

Models with Screw Terminals

E5EC-800 48 × 96 mm

Control output 1Control
output 2
Auxiliary
output
CommunicationsHeater burnoutEvent
inputs
Power
supply
voltage
Model
Relay output - Two - - - 100 to
240 VAC
E5EC-RX2ASM-800
Voltage output - E5EC-QX2ASM-800
Linear current output - E5EC-CX2ASM-800
Relay output Relay output E5EC-RR2ASM-800
Voltage output Relay output E5EC-QR2ASM-800
Linear current output Relay output E5EC-CR2ASM-800
Relay output - 24 VAC/
VDC
E5EC-RX2DSM-800
Voltage output - E5EC-QX2DSM-800
Linear current output - E5EC-CX2DSM-800
Relay output Relay output E5EC-RR2DSM-800
Voltage output Relay output E5EC-QR2DSM-800
Linear current output Relay output E5EC-CR2DSM-800
Relay output Relay output RS-485 One Two 100 to
240 VAC
E5EC-RR2ASM-808
Voltage output Relay output E5EC-QR2ASM-808
Relay output Relay output 24 VAC/
VDC
E5EC-RR2DSM-808
Voltage output Relay output E5EC-QR2DSM-808
Relay output Relay output - Four 100 to
240 VAC
E5EC-RR2ASM-810
Voltage output Relay output E5EC-QR2ASM-810
Relay output Relay output 24 VAC/
VDC
E5EC-RR2DSM-810
Voltage output Relay output E5EC-QR2DSM-810
Linear current output Relay output RS-485 - Two 100 to
240 VAC
E5EC-CR2ASM-804
Linear current output Relay output 24 VAC/
VDC
E5EC-CR2DSM-804
Relay output (Open) * Relay output
(Close) *
- - - - 100 to
240 VAC
E5EC-PR0ASM-800
Relay output (Open) * Relay output
(Close) *
Two E5EC-PR2ASM-800
Relay output (Open) * Relay output
(Close) *
RS-485 Two E5EC-PR2ASM-804

* Position proportional control model.
Note: Draw-out-type models of the E5EC-800 are available. Ask your OMRON representative for details.

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

Terminal Covers

Model
E53-COV24

Waterproof Packing

Model
Y92S-P9

Note: This Waterproof Packing is provided with the Digital Temperature Controller.

Waterproof Cover

Model
Y92A-49N

Front Port Cover

Model
Y92S-P7

Note: This Front Port Cover is provided with the Digital Temperature Controller.

Mounting Adapter

Model
Y92F-51
(Two Adapters are included.)

Note: This Mounting Adapter is provided with the Digital Temperature Controller.

Current Transformers (CTs)

Hole diameterModel
5.8 mm E54-CT1
5.8 mm E54-CT1L *
12.0 mm E54-CT3
12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is required, use these CTs.

Specifications | Temperature Controller - E5ED-800

Ratings

Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power consumption 6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to
260°C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Control
output
Relay output SPST-NO, 250 VAC, 5 A (resistive load), electrical life: 100,000 operations,
minimum applicable load: 5 V, 10 mA
Voltage output
(for driving SSR)
Output voltage: 12 VDC ± 20% (PNP), max. load current: 40 mA, with short-circuit
protection circuit (The maximum load current is 21 mA for models with two control
outputs.)
Linear current
output
4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Auxiliary
output
Number of outputs 1, 2, or 3 (depends on model)
Output
specifications
SPST-NO relay outputs, 250 VAC, Models with 2 outputs: 3 A (resistive load),
Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V
Event
input
Number of inputs 2 or 4 (depends on model)
External contact
input
specifications
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Potentiometer input 100 Ω to 10 kΩ
Setting method Digital setting using front panel keys
Indication method 11-segment digital display and individual indicators
Character height: PV: 18.0 mm, SV: 11.0 mm
Multi SP Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key
operations, or serial communications.
Bank switching None
Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm
functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT,
100% AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection
functions, temperature status display, moving average of input value, FB moving
average
Ambient operating
temperature
-10 to 55°C (with no condensation or icing),
for 3-year warranty: -10 to 50°C (with no condensation or icing)
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65°C (with no condensation or icing)
Altitude 2,000 m max.
Recommended fuse T2A, 250 VAC, time lag, low shut-off capacity
Installation environment Installation Category II, Pollution Class 2 (IEC 61010-1 compliant)

Input Ranges (Universal inputs)

Thermocouple/Platinum Resistance Thermometer

E5EC-800 Specifications 3

Analog input

Input typeCurrentVoltage
Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V
Setting range Usable in the following ranges by scaling:
-1999 to 9999, -199.9 to 999.9,
-19.99 to 99.99 or -1.999 to 9.999
Set value 25 26 27 28 29

Alarm type

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.)
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Set
value
Alarm typeAlarm output operationDescription of function
When alarm
value X is
positive
When alarm
value X is
negative
0 Alarm function
OFF
Output OFF No alarm
1 Upper- and
lower-limit *1
e5_c_sp_4_1 *2 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in the
set point for the alarm lower limit (L). The alarm is
ON when the PV is outside this deviation range.
2
(default)
Upper-limit e5_c_sp_4_2 e5_c_sp_4_13 Set the upward deviation in the set point by setting
the alarm value (X). The alarm is ON when the PV
is higher than the SP by the deviation or more.
3 Lower-limit e5_c_sp_4_3 e5_c_sp_4_14 Set the downward deviation in the set point by
setting the alarm value (X). The alarm is ON when
the PV is lower than the SP by the deviation or more.
4 Upper- and
lower-limit
range *1
e5_c_sp_4_4 *3 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in the
set point for the alarm lower limit (L). The alarm is
ON when the PV is inside this deviation range.
5 Upper- and
lower-limit with
standby
sequence *1
e5_c_sp_4_1 *5 *4 A standby sequence is added to the upper- and
lower-limit alarm (1). *6
6 Upper-limit
with standby
sequence
e5_c_sp_4_2 e5_c_sp_4_13 A standby sequence is added to the upper-limit
alarm (2). *6
7 Lower-limit
with tandby
sequence
e5_c_sp_4_3 e5_c_sp_4_14 A standby sequence is added to the lower-limit
alarm (3). *6
8 Absolute-value
upper-limit
e5_c_sp_4_5 e5_c_sp_4_15 The alarm will turn ON if the process value is larger
than the alarm value (X) regardless of the set point.
9 Absolute-value
lower-limit
e5_c_sp_4_6 e5_c_sp_4_16 The alarm will turn ON if the process value is smaller
than the alarm value (X) regardless of the set point.
10 Absolute-value
upper-limit
with standby
sequence
e5_c_sp_4_5 e5_c_sp_4_15 A standby sequence is added to the absolute-value
upper-limit alarm (8). *6
11 Absolute-value
lower-limit with
standby
sequence
e5_c_sp_4_6 e5_c_sp_4_16 A standby sequence is added to the absolute-value
lower-limit alarm (9). *6
12 LBA (alarm 1
type only)
- *7
13 PV change
rate alarm
- *8
14 SP absolute
value upper
limit alarm
e5_c_sp_4_7 e5_c_sp_4_17 This alarm type turns ON the alarm when the set
point (SP) is higher than the alarm value (X).
15 SP absolute
value lower
limit alarm
e5_c_sp_4_8 e5_c_sp_4_18 This alarm type turns ON the alarm when the set
point (SP) is lower than the alarm value (X).
16 MV absolute
value upper
limit alarm *9
Standard Control e5_c_sp_4_9 Standard Control e5_c_sp_4_19 This alarm type turns ON the alarm when the
manipulated variable (MV) is higher than the alarm
value (X).
Heating/Cooling
Control (Heating
MV) e5_c_sp_4_9
Heating/Cooling
Control (Heating
MV)
Always ON
17 MV absolute
value lower
limit alarm *9
Standard Control e5_c_sp_4_10 Standard Control e5_c_sp_4_20 This alarm type turns ON the alarm when the
manipulated variable (MV) is lower than the alarm
value (X).
Heating/Cooling
Control (Cooling
MV) e5_c_sp_4_9
Heating/Cooling
Control (Cooling
MV)
Always ON
*1 With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are
expressed as "L" and "H."
*2. Set value: 1, Upper- and lower-limit alarm
e5_c_sp_4_31
*3. Set value: 4, Upper- and lower-limit range
e5_c_sp_4_32
*4. Set value: 5, Upper- and lower-limit with standby sequence
For Upper- and Lower-Limit Alarm Described Above *2
• Case 1 and 2
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
• Case 3: Always OFF
*5. Set value: 5, Upper- and lower-limit with standby sequence
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
*6. Refer to the E5[]C Digital Temperature Controllers User's Manual (Cat. No. H174) for information on the operation
of the standby sequence.
*7. Refer to the E5[]C Digital Temperature Controllers User's Manual (Cat. No. H174) for information on the PV change
rate alarm. This setting cannot be used with a position-proportional model.
*8. Refer to the E5[]C Digital Temperature Controllers User's Manual (Cat. No. H174) for information on the PV change
rate alarm.
*9. When heating/cooling control is performed, the MV absolute upper limit alarm functions only for the heating operation
and the MV absolute lower limit alarm functions only for the cooling operation.

Characteristics

Indication accuracy
(at the ambient
temperature of 23°C)
Thermocouple: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of PV or ±0.8°C, whichever is greater) ±1 digit
Analog input: ±0.2% FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
Potentiometer input: ±5% FS ±1 digit max.
Influence of
temperature *2
Thermocouple input (R, S, B, C/W, PL II): (±1% of PV or ±10°C, whichever is greater) ±1
digit max.
Other thermocouple input: (±1% of PV or ±4°C, whichever is greater) ±1 digit max. *3
Platinum resistance thermometer: (±1% of PV or ±2°C, whichever is greater) ±1 digit max.
Analog input: ±1%FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
Influence of voltage *2
Influence of EMS.
(at EN 61326-1)
Input sampling period 50ms
Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)
Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)
Integral time (I) Standard, heating/cooling, or Position-proportional (Close)
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)
Position-proportional (Floating)
1 to 9999 s (in units of 1 s), 0.1 to 999.9 s (in units of 0.1 s)
Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Proportional band (P)
for cooling
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)
Integral time (I) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Derivative time (D) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range -1999 to 9999 (decimal point position depends on input type)
Affect of signal source
resistance
Thermocouple: 0.1°C/Ω max. (100 Ω max.)
Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 2,300 VAC, 50/60 Hz for 1 min between terminals of different charge
VibrationMalfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
ShockMalfunction 100 m/s2, 3 times each in X, Y, and Z directions
Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Weight Controller: Approx. 210 g, Mounting Brackets: Approx. 4 g × 2
Degree of protection Front panel: IP66, Rear case: IP20, Terminals: IP00
Memory protection Non-volatile memory (number of writes: 1,000,000 times)
StandardsApproved
standards
cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean wireless regulations (Radio law: KC Mark) (Some models only.) *5, Lloyd's standards *6, EAC
Conformed
standards
EN 61010-1 (IEC 61010-1), RCM
EMC EMI EN 61326-1 *7
Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A
Noise Terminal Voltage: EN 55011 Group 1, class A
EMS: EN 61326-1 *7
ESD Immunity: EN 61000-4-2
Electromagnetic Field Immunity: EN 61000-4-3
Burst Noise Immunity: EN 61000-4-4
Conducted Disturbance Immunity: EN 61000-4-6
Surge Immunity: EN 61000-4-5
Voltage Dip/Interrupting Immunity: EN 61000-4-11

*1. The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of
-100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the
B thermocouple at atemperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a
temperature of 400 to 800°C is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature
of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3 of PV or ±3°C, whichever
is greater) ±1 digit max. The indication accuracy of PL II thermocouples is (±0.3% of PV or ±2°C, whichever is
greater) ±1 digit max.
*2. Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage
*3. K thermocouple at -100°C max.: ±10°C max.
*4. The unit is determined by the setting of the Integral/Derivative Time Unit parameter.
*5. Refer to your OMRON website for the most recent information on applicable models.
*6. Refer to information on maritime standards in Shipping Standards on Catalog for compliance with Lloyd's Standards.
*7. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Communications Specifications

Transmission line connection method RS-485: Multidrop
Communications RS-485 (two-wire, half duplex)
Synchronization method Start-stop synchronization
Protocol CompoWay/F, or Modbus
Baud rate 9600, 19200, 38400, or 57600 bps
Transmission code ASCII
Data bit length* 7 or 8 bits
Stop bit length* 1 or 2 bits
Error detection Vertical parity (none, even, odd)
Block check character (BCC) with CompoWay/F or CRC-16 Modbus
Flow control None
Interface RS-485
Retry function None
Communications buffer 217 bytes
Communications response wait time 0 to 99 ms
Default: 20 ms
* The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications
Setting Level.

Communications Functions

Programless
communications *1
You can use the memory in the PLC to read and write E5[]C parameters, start and stop
operation, etc. The E5[]C automatically performs communications with PLCs. No
communications programming is required.
Number of connected Temperature Controllers: 32 max. (Up to 16 for the FX Series)
Applicable PLCs
OMRON PLCs
CS Series, CJ Series, CP Series, NJ Series, or NX1P
Mitsubishi Electric PLCs
MELSEC Q Series, L Series, FX3 Series, or iQ-R Series
KEYENCE PLCs
KEYENCE KV Series
Component
Communications *1
When Digital Temperature Controllers are connected, set points and RUN/STOP commands can
be sent from the Digital Temperature Controller that is set as the master to the Digital
Temperature Controllers that are set as slaves.
Slope and offsets can be set for the set point.
Number of connected Digital Temperature Controllers: 32 max. (including master)
Copying *2 When Digital Temperature Controllers are connected, the parameters can be copied from the
Digital Temperature Controller that is set as the master to the Digital Temperature Controllers
that are set as slaves.
MELSEC is a registered trademark of Mitsubishi Electric Corporation.
KEYENCE is a registered trademark of Keyence Corporation.
*1 A Temperature Controller with version 1.1 or higher is required.
A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.
*2 Both the programless communications and the component communications support the copying.

Current Transformer (Order Separately) Ratings

 E54-CT1
E54-CT3
E54-CT1L
E54-CT3L
Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min
Vibration resistance 50 Hz, 98 m/s2
Weight E54-CT1: Approx. 11.5 g,
E54-CT3: Approx. 50 g
E54-CT1: Approx. 14 g,
E54-CT3: Approx. 57 g
Accessories E54-CT3 Only
Armatures (2)
Plugs (2)
None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection) Models with detection for single-phase heaters: One input
Models with detection for single-phase or three-phase heaters: Two
inputs
Maximum heater current 50 A AC
Input current indication accuracy ± 5% FS ± 1 digit max.
Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms *3
SSR failure alarm setting range *2 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection OFF time: 100 ms *4
*1. For heater burnout alarms, the heater current will be measured when the control output is ON, and the output will
turn ON if the heater current is lower than the set value (i.e., heater burnout detection current value).
*2. For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output will turn
ON if the heater current is higher than the set value (i.e., SSR failure detection current value).
*3. The value is 30 ms for a control period of 0.1 s or 0.2 s.
*4. The value is 35 ms for a control period of 0.1 s or 0.2 s.

Dimensions | Temperature Controller - E5ED-800

(Unit: mm)

Controllers

E5ED-800

E5ED-800 Dimensions 1

• Recommended panel thickness is 1 to 8 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

Accessories (Order Separately)

Terminal Covers

E53-COV24 (Three Covers provided.)

E5ED-800 Dimensions 4

Waterproof Packing

Y92S-P9 (for DIN 48 × 96)

E5ED-800 Dimensions 6

The Waterproof Packing is provided with the Digital Temperature Controller. Order the Waterproof Packing separately if it becomes lost or damaged. The Waterproof Packing can be used to achieve an IP66 degree of protection. (Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider three years as a rough standard.)

Mounting Adapter

Y92F-51 (Two Adapters provided.)

E5ED-800 Dimensions 8

One pair is provided with the Controller.
Order this Adapter separately if it becomes lost or damaged.

Waterproof Cover

Y92A-49N (for DIN 48 × 96)

E5ED-800 Dimensions 9

Draw-out Jig

Y92F-59

Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without removing the terminal wiring.

E5ED-800 Dimensions 11

Current Transformers

E54-CT1

E5ED-800 Dimensions 12

E54-CT1L

E5ED-800 Dimensions 13

Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT1 or E54-CT1L

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E5ED-800 Dimensions 15

E54-CT3

E5ED-800 Dimensions 16

E54-CT3 Accessories

E5ED-800 Dimensions 17

E54-CT3L

E5ED-800 Dimensions 18

Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT3 or E54-CT3L

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

E5ED-800 Dimensions 20

Features | Temperature Controller - E5ED-800

  • Automatic optimization of control for changes in systems (Adaptive Control).
  • Functions specialized for packaging machines
  • Function specialized for water-cooled extruders
  • Draw-out structure for easy maintenance

Properties | Temperature Controller - E5ED-800

Temperature ControllerE5ED-800
Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 Vac, 50/60 Hz; 24 Vdc
Sensor Input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Event input 2
Control method ON/OFF control
2-PID control (with auto-tuning)
Output 12 Vdc (PNP)
4 – 20 mA / 0 – 20 mA
Relay (NO 250Vac, 5A)
Auxiliary output 2 slot
size (W x L x D) (mm) 48 x 96 x 64
Weight (g) 210

Temperature Controller - E5ED-800

ดาวน์โหลดไฟล์ PDF
Temperature Controller - E5ED-800
OMRON Temperature Controller - E5ED-800

คุณสมบัติ | Temperature Controller - E5ED-800

  • มาตรฐานการป้องกัน IP 66 (ด้านหน้า)
  • เชื่อมต่อกับ PLC ได้ง่ายโดยไม่ต้องเขียนโปรแกรมเยอะ
  • สามารถตั้งค่าได้โดยไม่ต้องใช้แหล่งจ่ายจากภายนอก
  • มีการติดต่อสื่อสารผ่านทาง RS-485
  • หน้าจอขนาดใหญ่ทำให้ง่ายต่อการอ่าน

ข้อมูลจำเพาะ | Temperature Controller - E5ED-800

Temperature ControllerE5ED-800
แหล่งจ่ายไฟ ถ้ามีตัว A ในโมเดล จะใช้ 100 – 240 Vac (50 – 60 Hz)
ถ้ามีตัว D ในโมเดล จะใช้ 24 Vac (50 – 60 Hz) / 24Vdc
เซนเซอร์อินพุต อุณหภูมิ แบบเทอร์โมคอบเปิล: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
กระแส 4 – 20 mA/ 0 – 20 mA
แรงดัน 1 – 5V, 0 – 5V, 0 - 10V
อินพุตเงื่อนไข 2, 4 และ 6 ช่อง (ขึ้นอยู่กับโมเดล)
รูปแบบการควบคุม ควบคุมแบบเปิด/ปิด
ควบคุมแบบ 2 – PID (ด้วยการปรับอัตโนมัติ)
เอาต์พุต แรงดัน 12 Vdc (PNP)
กระแส 4 – 20mA/ 0 – 20mA
รีเลย์ (NO 250Vac, 5A)
เอาต์พุตถ่ายโอน 1 ช่อง
ช่องเอาต์พุตเสริม 4 ช่อง
ขนาด กว้าง 96 mm / ยาว 96 mm / ลึก 64 mm
น้ำหนัก 250 กรัม

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
