Temperature Controller - E5CC-800 / E5CC-U-800

Download PDF
Temperature Controller - E5CC-800 / E5CC-U-800
OMRON Temperature Controller - E5CC-800 / E5CC-U-800
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Temperature Controller - E5CC-800 / E5CC-U-800

Model Number Legend

Models with Screw Terminals

E5CC-800 48 × 48 mm

Control output 1Auxiliary
output
CommunicationsHeater
burnout
Event inputsPower supply voltageModel
Relay output Two - - - 100 to 240 VAC E5CC-RX2ASM-800
Voltage output E5CC-QX2ASM-800
Linear current output E5CC-CX2ASM-800
Relay output 24 VAC/VDC E5CC-RX2DSM-800
Voltage output E5CC-QX2DSM-800
Linear current output E5CC-CX2DSM-800
Relay output One Two 100 to 240 VAC E5CC-RX2ASM-801
Voltage output E5CC-QX2ASM-801
Relay output 24 VAC/VDC E5CC-RX2DSM-801
Voltage output E5CC-QX2DSM-801
Relay output RS-485 - 100 to 240 VAC E5CC-RX2ASM-802
Voltage output E5CC-QX2ASM-802
Relay output 24 VAC/VDC E5CC-RX2DSM-802
Voltage output E5CC-QX2DSM-802
Linear current output - Two 100 to 240 VAC E5CC-CX2ASM-804
Linear current output 24 VAC/VDC E5CC-CX2DSM-804

Note: Draw-out-type models of the E5CC-800 are available. Ask your OMRON representative for details.

Plug-in Models

E5CC-U-800 48 × 48 mm

Control output 1Auxiliary
output
Commu-
nications
Heater
burnout
Event
inputs
Power supply voltageModel
Relay output Two - - - 100 to 240 VAC E5CC-RW2AUM-800
Voltage output E5CC-QX2AUM-800
Relay output 24 VAC/VDC E5CC-RW2DUM-800
Voltage output E5CC-QX2DUM-800

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

Terminal Covers

Model
E53-COV17
E53-COV23

Note: The E53-COV10 cannot be used.
Refer to Data Sheet for the mounted dimensions.

Waterproof Packing

Model
Y92S-P8

Note: This Waterproof Packing is provided with the Digital Temperature Controller.
The E5CC-U-800 cannot be waterproofed even if the Waterproof Packing is attached/p.

Current Transformers (CTs)

Hole diameterModel
5.8 mm E54-CT1
5.8 mm E54-CT1L *
12.0 mm E54-CT3
12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is required, use these CTs.

Adapter

Model
Y92F-45

Note: Use this Adapter when the panel has already been prepared for an E5B[] Controller.

DIN Track Mounting Adapter

Model
Y92F-52

Sockets (for E5CC-U-800)

TypeModel
Front-connecting Socket P2CF-11
Front-connecting Socket with Finger Protection P2CF-11-E
Back-connecting Socket P3GA-11
Terminal Cover for Back-connecting socket with Finger Protection Y92A-48G

Waterproof Cover

Model
Y92A-48N

Mounting Adapter

Model
Y92F-49

Note: This Mounting Adapter is provided with the Digital Temperature Controller.

Front Covers

Model Number Legend

Models with Screw Terminals

E5CC-800 48 × 48 mm

TypeModel
Hard Front Cover Y92A-48H
Control output 1Auxiliary
output
CommunicationsHeater
burnout
Event inputsPower supply voltageModel
Relay output Two - - - 100 to 240 VAC E5CC-RX2ASM-800
Voltage output E5CC-QX2ASM-800
Linear current output E5CC-CX2ASM-800
Relay output 24 VAC/VDC E5CC-RX2DSM-800
Voltage output E5CC-QX2DSM-800
Linear current output E5CC-CX2DSM-800
Relay output One Two 100 to 240 VAC E5CC-RX2ASM-801
Voltage output E5CC-QX2ASM-801
Relay output 24 VAC/VDC E5CC-RX2DSM-801
Voltage output E5CC-QX2DSM-801
Relay output RS-485 - 100 to 240 VAC E5CC-RX2ASM-802
Voltage output E5CC-QX2ASM-802
Relay output 24 VAC/VDC E5CC-RX2DSM-802
Voltage output E5CC-QX2DSM-802
Linear current output - Two 100 to 240 VAC E5CC-CX2ASM-804
Linear current output 24 VAC/VDC E5CC-CX2DSM-804

Note: Draw-out-type models of the E5CC-800 are available. Ask your OMRON representative for details.

Plug-in Models

E5CC-U-800 48 × 48 mm

Control output 1Auxiliary
output
Commu-
nications
Heater
burnout
Event
inputs
Power supply voltageModel
Relay output Two - - - 100 to 240 VAC E5CC-RW2AUM-800
Voltage output E5CC-QX2AUM-800
Relay output 24 VAC/VDC E5CC-RW2DUM-800
Voltage output E5CC-QX2DUM-800

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

Terminal Covers

Model
E53-COV17
E53-COV23

Note: The E53-COV10 cannot be used.
Refer to Data Sheet for the mounted dimensions.

Waterproof Packing

Model
Y92S-P8

Note: This Waterproof Packing is provided with the Digital Temperature Controller.
The E5CC-U-800 cannot be waterproofed even if the Waterproof Packing is attached.

Current Transformers (CTs)

Hole diameterModel
5.8 mm E54-CT1
5.8 mm E54-CT1L *
12.0 mm E54-CT3
12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is required, use these CTs.

Adapter

Model
Y92F-45

Note: Use this Adapter when the panel has already been prepared for an E5B[] Controller.

DIN Track Mounting Adapter

Model
Y92F-52

Sockets (for E5CC-U-800)

TypeModel
Front-connecting Socket P2CF-11
Front-connecting Socket with Finger Protection P2CF-11-E
Back-connecting Socket P3GA-11
Terminal Cover for Back-connecting socket with Finger Protection Y92A-48G

Waterproof Cover

Model
Y92A-48N

Mounting Adapter

Model
Y92F-49

Note: This Mounting Adapter is provided with the Digital Temperature Controller.

Front Covers

TypeModel
Hard Front Cover Y92A-48H
Soft Front Cover Y92A-48D
Soft Front CoverY92A-48D

Specifications | Temperature Controller - E5CC-800 / E5CC-U-800

Ratings

Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at
24 VAC or 1.6 W max. at 24 VDC
All other models: 6.5 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W
max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or
140 to 260°C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Control
output
Relay output E5CC-800:
SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA
E5CC-U-800:
SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA
Voltage output
(for driving SSR)
Output voltage: 12 VDC ± 20% (PNP), max. load current: 21 mA, with short-circuit
protection circuit
Linear current
output
4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Auxiliary
output
Number of outputs 2
Output
specifications
SPST-NO relay outputs, 250 VAC, Models with 2 outputs: 3 A (resistive load), Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V
Event
input
Number of inputs 2 or 4 (depends on model)
External contact input specifications Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Setting method Digital setting using front panel keys
Indication method 11-segment digital display and individual indicators
Character height: PV: 15.2 mm, SV: 7.1 mm
Multi SP Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key
operations, or serial communications.
Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm
functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100%
AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection
functions, temperature status display, moving average of input value
Ambient operating
temperature
-10 to 55°C (with no condensation or icing),
for 3-year warranty: -10 to 50°C (with no condensation or icing)
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65°C (with no condensation or icing)
Altitude 2,000 m max.
Recommended fuse T2A, 250 VAC, time lag, low shut-off capacity
Installation environment Installation Category II, Pollution Class 2 (IEC 61010-1 compliant)

Note: There are no optional functions for the E5CC-U-800. Refer to Model Number Legend on Lineup.

Input Ranges (Universal inputs)

Thermocouple/Platinum Resistance Thermometer

E5CC-800, E5CC-U-800 Specifications 4

Analog input

Input typeCurrentVoltage
Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V
Setting range Usable in the following ranges by scaling:
-1999 to 9999, -199.9 to 999.9,
-19.99 to 99.99 or -1.999 to 9.999
Set value 25 26 27 28 29

Alarm Outputs

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.)
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Set
value
Alarm typeAlarm output operationDescription of function
When alarm
value X is
positive
When alarm
value X is
negative
0 Alarm function
OFF
Output OFF No alarm
1 Upper- and
lower-limit *1
e5_c_sp_4_1 *2 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in the
set point for the alarm lower limit (L). The alarm is
ON when the PV is outside this deviation range.
2
(default)
Upper-limit e5_c_sp_4_2 e5_c_sp_4_13 Set the upward deviation in the set point by setting
the alarm value (X). The alarm is ON when the PV
is higher than the SP by the deviation or more.
3 Lower-limit e5_c_sp_4_3 e5_c_sp_4_14 Set the downward deviation in the set point by
setting the alarm value (X). The alarm is ON when
the PV is lower than the SP by the deviation or more.
4 Upper- and
lower-limit
range *1
e5_c_sp_4_4 *3 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in the
set point for the alarm lower limit (L). The alarm is
ON when the PV is inside this deviation range.
5 Upper- and
lower-limit with
standby
sequence *1
e5_c_sp_4_1 *5 *4 A standby sequence is added to the upper- and
lower-limit alarm (1). *6
6 Upper-limit
with standby
sequence
e5_c_sp_4_2 e5_c_sp_4_13 A standby sequence is added to the upper-limit
alarm (2). *6
7 Lower-limit
with tandby
sequence
e5_c_sp_4_3 e5_c_sp_4_14 A standby sequence is added to the lower-limit
alarm (3). *6
8 Absolute-value
upper-limit
e5_c_sp_4_5 e5_c_sp_4_15 The alarm will turn ON if the process value is larger
than the alarm value (X) regardless of the set point.
9 Absolute-value
lower-limit
e5_c_sp_4_6 e5_c_sp_4_16 The alarm will turn ON if the process value is smaller
than the alarm value (X) regardless of the set point.
10 Absolute-value
upper-limit
with standby
sequence
e5_c_sp_4_5 e5_c_sp_4_15 A standby sequence is added to the absolute-value
upper-limit alarm (8). *6
11 Absolute-value
lower-limit with
standby
sequence
e5_c_sp_4_6 e5_c_sp_4_16 A standby sequence is added to the absolute-value
lower-limit alarm (9). *6
12 LBA (alarm 1
type only)
- *7
13 PV change
rate alarm
- *8
14 SP absolute
value upper
limit alarm
e5_c_sp_4_7 e5_c_sp_4_17 This alarm type turns ON the alarm when the set
point (SP) is higher than the alarm value (X).
15 SP absolute
value lower
limit alarm
e5_c_sp_4_8 e5_c_sp_4_18 This alarm type turns ON the alarm when the set
point (SP) is lower than the alarm value (X).
16 MV absolute
value upper
limit alarm *9
Standard Control e5_c_sp_4_9 Standard Control e5_c_sp_4_19 This alarm type turns ON the alarm when the
manipulated variable (MV) is higher than the alarm
value (X).
Heating/Cooling
Control (Heating
MV) e5_c_sp_4_9
Heating/Cooling
Control (Heating
MV)
Always ON
17 MV absolute
value lower
limit alarm *9
Standard Control e5_c_sp_4_10 Standard Control e5_c_sp_4_20 This alarm type turns ON the alarm when the
manipulated variable (MV) is lower than the alarm
value (X).
Heating/Cooling
Control (Cooling
MV) e5_c_sp_4_9
Heating/Cooling
Control (Cooling
MV)
Always ON

*1 With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are
expressed as "L" and "H."
*2 Set value: 1, Upper- and lower-limit alarm
e5_c_sp_4_31
*3 Set value: 4, Upper- and lower-limit range
e5_c_sp_4_32
*4 Set value: 5, Upper- and lower-limit with standby sequence
For Upper- and Lower-Limit Alarm Described Above *2
• Case 1 and 2
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
• Case 3: Always OFF
*5. Set value: 5, Upper- and lower-limit with standby sequence
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
*6 Refer to the E5[]C Digital Controllers User's Manual (Cat. No. H174) for information on the operation of the standby
sequence.
*7 Refer to the E5[]C Digital Controllers User's Manual (Cat. No.H174) for information on the loop burnout alarm (LBA).
*8 Refer to the E5[]C Digital Controllers User's Manual (Cat. No. H174) for information on the PV change rate alarm.
*9 When heating/cooling control is performed, the MV absolute upper limit alarm functions only for the heating operation
and the MV absolute lower limit alarm functions only for the cooling operation.

Characteristics

Indication accuracy
(at the ambient
temperature of 23°C)
E5CC-800
Thermocouple: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of PV or ±0.8°C, whichever is greater) ±1 digit
Analog input: ±0.2% FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
E5CC-U-800
Thermocouple: (±1% of PV or ±2°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of PV or ±0.8°C, whichever is greater) ±1 digit
Analog input: ±0.2% FS ±1 digit max.
Simple transfer output
accuracy
±0.3% FS max.*2
Influence of
temperature *3
Thermocouple input (R, S, B, C/W, PL II): (±1% of PV or ±10°C, whichever is greater) ±1
digit max.
Other thermocouple input: (±1% of PV or ±4°C, whichever is greater) ±1 digit max. *4
Platinum resistance thermometer: (±1% of PV or ±2°C, whichever is greater) ±1 digit max.
Analog input: ±1%FS ±1 digit max.
CT input: ±5%FS ±1 digit max.
Influence of voltage *3
Influence of EMS.
(at EN 61326-1)
Input sampling period 50 ms
Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)
Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Proportional band (P)
for cooling
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Derivative time (D) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range -1999 to 9999 (decimal point position depends on input type)
Affect of signal source
resistance
Thermocouple: 0.1°C/Ω max. (100 Ωmax.)
Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
VibrationMalfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
ShockMalfunction 100 m/s2, 3 times each in X, Y, and Z directions
Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Weight E5CC-800: Controller: Approx. 120 g, Mounting Bracket: Approx. 10 g
E5CC-U-800: Controller: Approx. 100 g, Mounting Bracket: Approx. 10 g
Degree of protection E5CC-800: Front panel: IP66, Rear case: IP20, Terminals: IP00
E5CC-U-800: Front panel: IP50, Rear case: IP20, Terminals: IP00
Memory protection Non-volatile memory (number of writes: 1,000,000 times)
StandardsApproved
standards
cULus: UL 61010-1/CSA C22.2 No.61010-1 *6,
Korean wireless regulations (Radio law: KC Mark) (Some models only.) *7,
Lloyd's standards *8, EAC
Conformed
standards
EN 61010-1 (IEC 61010-1), RCM
EMC EMI: EN 61326-1 *8
Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A
Noise Terminal Voltage: EN 55011 Group 1, class A
EMS: EN 61326-1 *8
ESD Immunity: EN 61000-4-2
Electromagnetic Field Immunity: EN 61000-4-3
Burst Noise Immunity: EN 61000-4-4
Conducted Disturbance Immunity: EN 61000-4-6
Surge Immunity: EN 61000-4-5
Voltage Dip/Interrupting Immunity: EN 61000-4-11

*1 The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of
-100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the
B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a
temperature of 400 to 800° is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of
200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3% of PV or ±3°C, whichever
is greater) ±1 digit max. The indication accuracy of PL II thermocouples is ±0.3% of PV or ±2°C, whichever is
greater, ±1 digit max.
*2 However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max.
*3 Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage
*4 K thermocouple at -100°C max.: ±10°C max.
*5 The unit is determined by the setting of the Integral/Derivative Time Unit parameter.
*6 The E5CC-U-800 plug-in model is certified for UL listing only when used together with the OMRON P2CF-11 or
P2CF-11-E socket.
The P3GA-11 is not certified for UL listing.
*7 Access the following website for information on certified models.
*8 Refer to information on maritime standards in Shipping Standards on catalog for compliance with Lloyd's Standards.
*9 Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Communications Specifications

Transmission line connection method RS-485: Multidrop
Communications RS-485 (two-wire, half duplex)
Synchronization method Start-stop synchronization
Protocol CompoWay/F, or Modbus
Baud rate * 9600, 19200, 38400, or 57600 bps
Transmission code ASCII
Data bit length * 7 or 8 bits
Stop bit length * 1 or 2 bits
Error detection Vertical parity (none, even, odd)
Block check character (BCC) with CompoWay/F or CRC-16 Modbus
Flow control None
Interface RS-485
Retry function None
Communications buffer 217 bytes
Communications response wait time 0 to 99 ms
Default: 20 ms

* The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications Setting Level.

Communications Functions

Programless
communications *1
You can use the memory in the PLC to read and write E5[]C parameters, start and stop
operation, etc. The E5[]C automatically performs communications with PLCs. No communications
programming is required.
Number of connected Temperature Controllers: 32 max. (Up to 16 for the FX Series)
Applicable PLCs
OMRON PLCs
CS Series, CJ Series, CP Series, NJ Series, or NX1P
Mitsubishi Electric PLCs
MELSEC Q Series, L Series, FX3 Series, or iQ-R Series
KEYENCE PLCs
KEYENCE KV Series
Component
Communications *1
When Digital Temperature Controllers are connected, set points and RUN/STOP commands can
be sent from the Digital Temperature Controller that is set as the master to the Digital
Temperature Controllers that are set as slaves.
Slope and offsets can be set for the set point.
Number of connected Digital Temperature Controllers: 32 max. (including master)
Copying *2 When Digital Temperature Controllers are connected, the parameters can be copied from the
Digital Temperature Controller that is set as the master to the Digital Temperature Controllers
that are set as slaves.

MELSEC is a registered trademark of Mitsubishi Electric Corporation.
KEYENCE is a registered trademark of Keyence Corporation.
*1 A Temperature Controller with version 1.1 or higher is required.
A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.
*2 Both the programless communications and the component communications support the copying.

Current Transformer (Order Separately) Ratings

 E54-CT1
E54-CT3
E54-CT1L
E54-CT3L
Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min
Vibration resistance 50 Hz, 98 m/s2
Weight E54-CT1: Approx. 11.5 g,
E54-CT3: Approx. 50 g
E54-CT1: Approx. 14 g,
E54-CT3: Approx. 57 g
Accessories E54-CT3 Only
Armatures (2)
Plugs (2)
None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection) Models with detection for single-phase heaters: One input
Models with detection for single-phase or three-phase heaters: Two
inputs
Maximum heater current 50 A AC
Input current indication accuracy ± 5% FS ± 1 digit max.
Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms *3
SSR failure alarm setting range *2 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection OFF time: 100 ms *4

*1 For heater burnout alarms, the heater current will be measured when the control output is ON, and the output will turn
ON if the heater current is lower than the set value (i.e., heater burnout detection current value).
*2 For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output will turn ON
if the heater current is higher than the set value (i.e., SSR failure detection current value).
*3 The value is 30 ms for a control period of 0.1 s or 0.2 s.
*4 The value is 35 ms for a control period of 0.1 s or 0.2 s.

Dimensions | Temperature Controller - E5CC-800 / E5CC-U-800

(Unit: mm)

Controllers

E5CC-800

E5CC-800, E5CC-U-800 Dimensions 2

E5CC-U-800

E5CC-800, E5CC-U-800 Dimensions 3

Accessories (Order Separately)

Terminal Covers
E53-COV17

E5CC-800, E5CC-U-800 Dimensions 5

Terminal Covers
E53-COV23 (Three Covers provided.)

E5CC-800, E5CC-U-800 Dimensions 6

Terminal Cover (for the P3GA-11 Back-connecting Socket)
Y92A-48G

E5CC-800, E5CC-U-800 Dimensions 7

Waterproof Packing
Y92S-P8 (for DIN 48 × 48)
(Provided with the Controller.)

E5CC-800, E5CC-U-800 Dimensions 8

The waterproof packing is provided only with the E5CC-800.
It is not included with the E5CC-U-800.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site.
Consider three years a rough standard.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

Adapter

Y92F-45

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B[].
2. Only black is available.;

E5CC-800, E5CC-U-800 Dimensions 10

Mounted to E5CC-800

E5CC-800, E5CC-U-800 Dimensions 11

DIN Track Mounting Adapter

Y92F-52

E5CC-800, E5CC-U-800 Dimensions 13

Note: 1. This Adapter cannot be used together with the Terminal Cover.
2. This Adapter cannot be used with the E5CC-B-800.
This Adapter is used to mount the E5CC-800 to a DIN Track.
If you use the Adapter, there is no need for a plate to mount in the panel or to drill mounting holes in the panel.

Mounted to E5CC-800

E5CC-800, E5CC-U-800 Dimensions 14

Watertight Cover
Y92A-48N

E5CC-800, E5CC-U-800 Dimensions 15

Mounting Adapter
Y92F-49
(Provided with the Controller.)

E5CC-800, E5CC-U-800 Dimensions 16

The Mounting Adapter is provided with the Temperature Controller.
Order this Adapter separately if it becomes lost or damaged.

Protective Cover
Y92A-48D

E5CC-800, E5CC-U-800 Dimensions 17

Note: This Protective Cover cannot be used if the Waterproof Packing is installed.

This Protective Cover is soft type.
It is able to operate the controller with using this cover.

Protective Cover
Y92A-48H

E5CC-800, E5CC-U-800 Dimensions 18

This Protective Cover is hard type.
Please use it for the mis-operation prevention etc.

E5CC-U Wiring Socket

Front-connecting Socket
P2CF-11

E5CC-800, E5CC-U-800 Dimensions 20

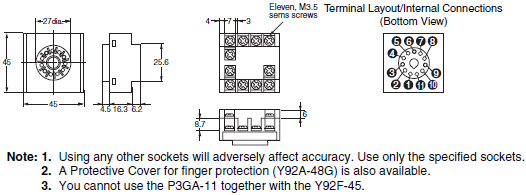

Back-connecting Socket
P3GA-11

E5CC-800, E5CC-U-800 Dimensions 21

Current Transformers

E54-CT1

E5CC-800, E5CC-U-800 Dimensions 23

E54-CT1L

E5CC-800, E5CC-U-800 Dimensions 24

E54-CT3

E5CC-800, E5CC-U-800 Dimensions 25

E54-CT3 Accessories

E5CC-800, E5CC-U-800 Dimensions 26

E54-CT3L

E5CC-800, E5CC-U-800 Dimensions 27

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT1 or E54-CT1L

E5CC-800, E5CC-U-800 Dimensions 28

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)
E54-CT3 or E54-CT3L

E5CC-800, E5CC-U-800 Dimensions 29

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

Features | Temperature Controller - E5CC-800 / E5CC-U-800

  • The front panel is rated IP66
  • Easy connections to a PLC with program less communications
  • Set up the controller without the need for a power supply
  • Available RS-485 Communications
  • Built-in ramp/soak features make it ideal for controlling glass and ceramic process
  • Available push-in plus terminals for easier wiring
  • Available FM (Factory Mutual) Models

Properties| Temperature Controller - E5CC-800 / E5CC-U-800

Temperature ControllerE5CC-800 / E5CC-U-800
Power supply A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 Vac, 50/60 Hz; 24 Vdc
Sensor input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Event input 2 or 4 (depends on model)
Control method ON/OFF control
2-PID control (with auto-tuning)
Output Output voltage: 12 Vdc (PNP)
Linear current output 4 – 20mA/ 0 – 20mA
Relay (SPST-NO 250Vac, 3A)
Relay (SPDT 250Vac, 3A)
Tranfer output 1 slot
Auxiliary output 2 slot
Size (W x L x D) (mm) 96 x 96 x 64
Weight (g) 120 (E5CC-800)
100 (E5CC-U-800)

Temperature Controller - E5CC-800 / E5CC-U-800

ดาวน์โหลดไฟล์ PDF
Temperature Controller - E5CC-800 / E5CC-U-800
OMRON Temperature Controller - E5CC-800 / E5CC-U-800

คุณสมบัติ | Temperature Controller - E5CC-800 / E5CC-U-800

  • มาตรฐานการป้องกัน IP 66 (ด้านหน้า)
  • เชื่อมต่อกับ PLC ได้ง่ายโดยไม่ต้องเขียนโปรแกรมเยอะ
  • สามารถตั้งค่าได้โดยไม่ต้องใช้แหล่งจ่ายจากภายนอก
  • มีการติดต่อสื่อสารผ่านทาง RS-485
  • มีการต่อเทอร์มินอลเพื่อง่ายต่อการเดินสาย
  • มีโมเดลแบบใช้งานร่วมกับโรงงาน

ข้อมูลจำเพาะ | Temperature Controller - E5CC-800 / E5CC-U-800

Temperature ControllerE5CC-800 / E5CC-U-800
แหล่งจ่ายไฟ ถ้ามีตัว A ในโมเดล จะใช้ 100 – 240 Vac (50 – 60 Hz)
ถ้ามีตัว D ในโมเดล จะใช้ 24 Vac (50 – 60 Hz) / 24Vdc
เซนเซอร์อินพุต อุณหภูมิ แบบเทอร์โมคอบเปิล: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
กระแส 4 – 20 mA/ 0 – 20 mA
แรงดัน 1 – 5V, 0 – 5V, 0 - 10V
อินพุตเงื่อนไข 2, 4 (ขึ้นอยู่กับโมเดล)
รูปแบบการควบคุม ควบคุมแบบเปิด/ปิด
ควบคุมแบบ 2 – PID (ด้วยการปรับอัตโนมัติ)
เอาต์พุต แรงดัน 12 Vdc (PNP)
กระแส 4 – 20mA/ 0 – 20mA
รีเลย์ (E5CC-800 NO 250Vac, 3A)
รีเลย์ (E5CC-U-800 NO 250Vac, 3A)
เอาต์พุตถ่ายโอน 1 ช่อง
ช่องเอาต์พุตเสริม 2 ช่อง
ขนาด กว้าง 96 mm / ยาว 96 mm / ลึก 64 mm
น้ำหนัก 120 กรัม (E5CC-800)
100 กรัม (E5CC-U-800)

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
