Model Numbers
Specifications

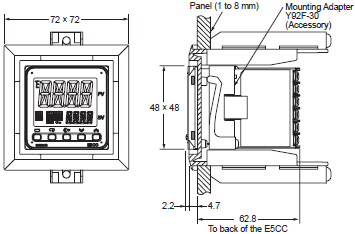

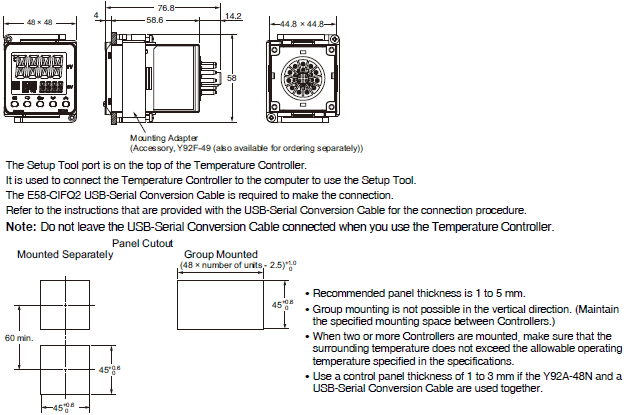

Dimensions
Features

Model Numbers | Temperature Controller - E5CC / E5CC-B / E5CC-U

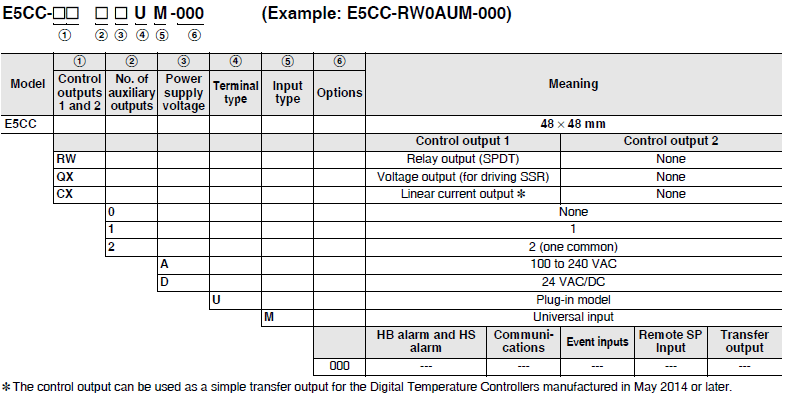

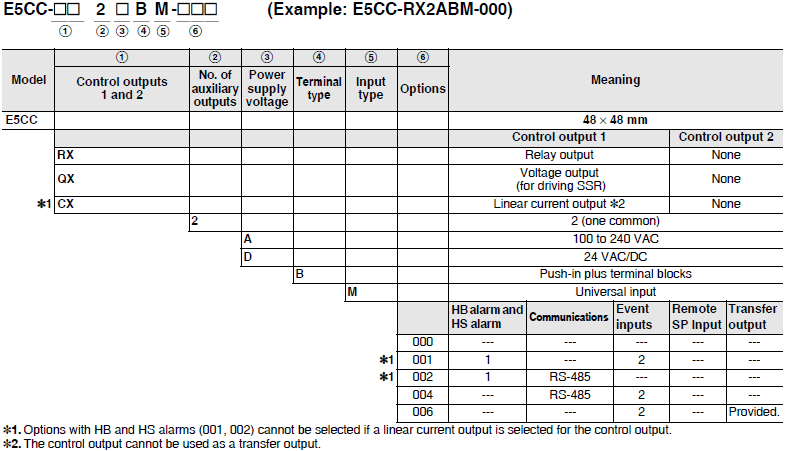

Model Number Legend

Models with Screw Terminal Blocks

E5CC, E5CC-B, E5CC-U Lineup 2

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output. If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control If PID control is used, you can set PID control separately for heating and cooling. This allows you to handle control systems with different heating and cooling response characteristics.

Models with Push-In Plus Terminal Blocks

E5CC, E5CC-B, E5CC-U Lineup 5

Heating and Cooling Control

Using Heating and Cooling Control

(1)Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

Plug-in Models

E5CC, E5CC-B, E5CC-U Lineup 8
Control
output
No. of
auxiliary
outputs
OptionsModelModel
HB alarm
and
HS alarm
No. of
event
inputs
Communica-
tions
Power supply voltagePower supply voltage
100 to 240 VAC24 VAC/DC
Relay output --- --- --- --- E5CC-RW0AUM-000 E5CC-RW0DUM-000
1 E5CC-RW1AUM-000 E5CC-RW1DUM-000
2 E5CC-RW2AUM-000 E5CC-RW2DUM-000
Voltage output
(for driving SSR)
--- --- --- --- E5CC-QX0AUM-000 E5CC-QX0DUM-000
1 E5CC-QX1AUM-000 E5CC-QX1DUM-000
2 E5CC-QX2AUM-000 E5CC-QX2DUM-000
Linear current
output
--- --- --- --- E5CC-CX0AUM-000 E5CC-CX0DUM-000
1 E5CC-CX1AUM-000 E5CC-CX1DUM-000
2 E5CC-CX2AUM-000 E5CC-CX2DUM-000

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

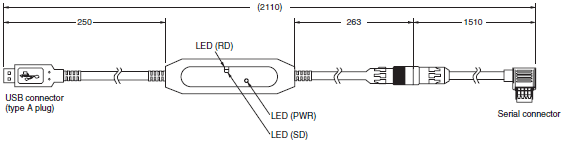

USB-Serial Conversion Cable

Model
E58-CIFQ2

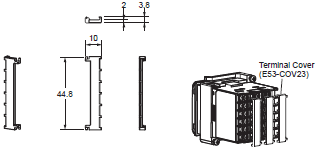

Terminal Covers (for E5CC)

Model
E53-COV17
E53-COV23 (3pcs)

Note: The E53-COV10 cannot be used.
Refer to Data Sheet for the mounted dimensions.

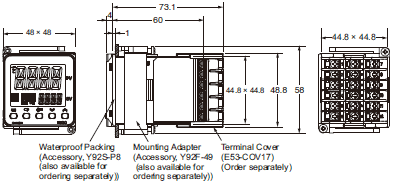

Waterproof Packing

Model
Y92S-P8

Note: The Waterproof Packing is provided only with E5CC/E5CC-B Controllers.
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

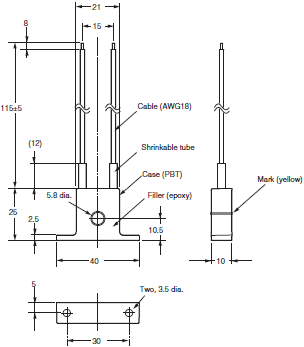

Current Transformers (CTs)

Hole diameterModel
5.8 mm E54-CT1
5.8 mm E54-CT1L *
12.0 mm E54-CT3
12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is required, use these CTs.

Adapter

Model
Y92F-45

Note: Use this Adapter when the panel has already been prepared for an E5B[] Controller.

Waterproof Cover

Model
Y92A-48N

Mounting Adapter

Model
Y92F-49

Note: This Mounting Adapter is provided with the Digital Temperature Controller.

DIN Track Mounting Adapter (for E5CC)

Model
Y92F-52

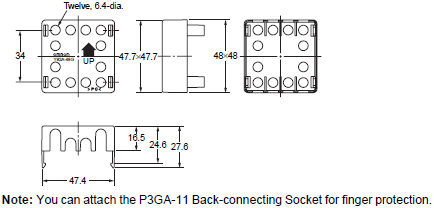

Sockets (for E5CC-U)

TypeModel
Front-connecting Socket P2CF-11
Front-connecting Socket with Finger Protection P2CF-11-E
Back-connecting Socket P3GA-11
Terminal Cover for Back-connecting socket with Finger Protection Y92A-48G

Front Covers

TypeModel
Hard Front Cover Y92A-48H
Soft Front Cover Y92A-48D

CX-Thermo Support Software

Model
EST2-2C-MV4

Note: CX-Thermo version 4.5 or higher is required for the E5CC.
CX-Thermo version 4.61 or higher is required for the E5CC-U.
CX-Thermo version 4.65 or higher is required for the E5CC-B.
CX-Thermo version 4.67 or higher is required for the E5CC-B linear current output type.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4.

Specifications | Temperature Controller - E5CC / E5CC-B / E5CC-U

Ratings

Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at
24 VAC or 1.6 W max. at 24 VDC
All other models: 6.5 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W
max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to
260°C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V,or 0 to 50 mV (The 0 to 50 mV range applies to
the E5CC-U only for those manufactured in May 2014 or later.)
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Control
output
Relay output E5CC/E5CC-B:
SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA (reference value)
E5CC-U:
SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA (reference value)
Voltage output
(for driving SSR)
Output voltage: 12 VDC ± 20% (PNP), max. load current: 21 mA, with short-circuit
protection circuit
Linear current
output
4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Auxiliary
output
Number of
outputs
E5CC: 3
E5CC-B: 2
E5CC-U: 1 or 2 (depends on model)
Output
specifications
SPST-NO relay outputs, 250 VAC, Models with 1 output: 3 A (resistive load), E5CC-U
models with 2
outputs: 3 A (resistive load), E5CC-B models with 2 outputs: 2 A (resistive load), Models
with 3
outputs: 2 A (resistive load), Electrical life: 100,000 operations, Minimum applicable load:
10 mA at 5 V (reference value)
Event
input *1
Number of inputs E5CC: 2 or 4 (depends on model)
E5CC-B: 2 (depends on model)
External contact
input
specifications
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Transfer
output *1
Number of
outputs
1 (only on models with a transfer output)
Output
specifications
Current output: 4 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Linear voltage output: 1 to 5 VDC, load: 1 kΩ min., resolution: Approx. 10,000
Setting method Digital setting using front panel keys
Remote SP input *1 *2 Current input: 4 to 20 mA DC or 0 to 20 mA DC (input impedance: 150 Ω max.)
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V (input impedance: 1 MΩ min.)
Indication method 11-segment digital display and individual indicators
Character height: PV: 15.2 mm, SV: 7.1 mm
Multi SP *3 Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key
operations, or serial communications.
Bank switching None
Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm
functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100%
AT, MV limiter, input digital filter, self tuning, robust tuning, PV input shift, run/stop,
protection functions, extraction of square root, MV change rate limit, logic operations,
temperature status display, simple programming, moving average of input value, and
display brightness setting
Ambient operating
temperature
-10 to 55°C (with no condensation or icing), For 3-year warranty: -10 to 50°C with
standard mounting (with no condensation or icing)
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65°C (with no condensation or icing)
Altitude 2,000 m max.
Recommended fuse T2A, 250 VAC, time-lag, low-breaking capacity
Installation environment Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

*1. There are no optional functions for the E5CC-U. Refer to Model Number Legend and List of Models on Data Sheet.
*2. This function is not supported by the E5CC-B. Refer to Model Number Legend on Data Sheet.
*3. With the E5CC-B, there can be up to four set points if event inputs are used to select them.

Input Ranges

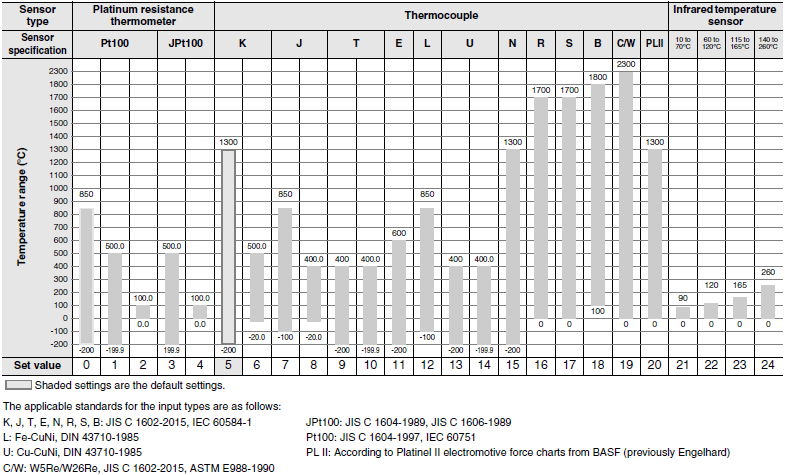

Thermocouple/Platinum Resistance Thermometer (Universal inputs)

E5CC, E5CC-B, E5CC-U Specifications 4

Analog input

Input typeCurrentVoltage
Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V 0 to 50 mV *
Setting range Usable in the following ranges by scaling:
-1999 to 9999, -199.9 to 999.9,
-19.99 to 99.99 or -1.999 to 9.999
Set value 25 26 27 28 29 30

* The range applies to the E5CC-U only for those manufactured in May 2014 or later.

Alarm Types

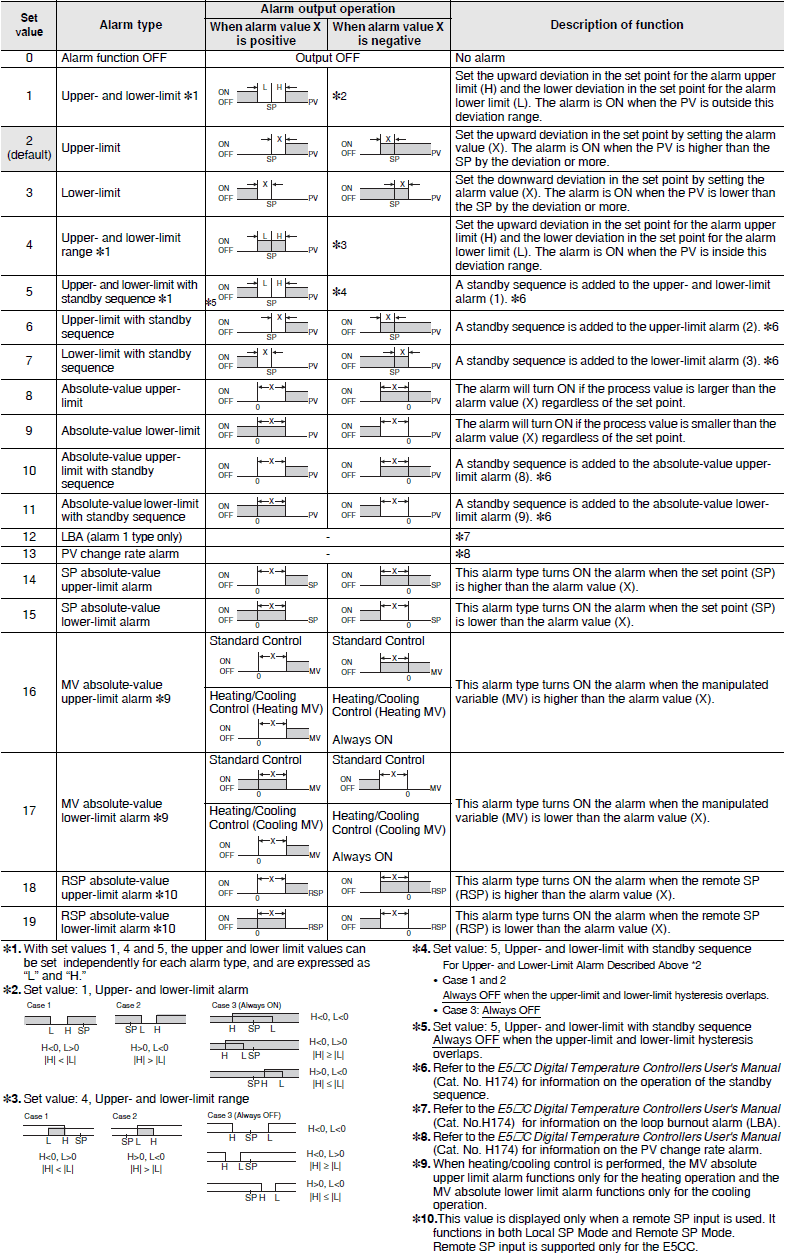

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.)
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.
Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1
parameter is not displayed.
To use alarm 1, set the output assignment to alarm 1.

E5CC, E5CC-B, E5CC-U Specifications 7

Characteristics

Indication accuracy (at the ambient temperature of 23°C) E5CC/E5CC-B
Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater)
±1 digit Analog input: ±0.2% FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
E5CC-U
Thermocouple: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater)
±1 digit
Analog input: ±0.2% FS ±1 digit max.
Transfer output
accuracy
± 0.3% FS max.
Simple transfer output
accuracy
±0.3% FS max.*2
Remote SP Input Type ± 0.2% FS ± 1 digit max.
Influence of
temperature *3
Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is
greater) ±1 digit max.
Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1 digit
max. *4
Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater) ±1
digit max.
Analog input: ±1%FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
Remote SP input: ±1% FS ±1 digit max.
Influence of voltage *3
Influence of EMS.
(at EN 61326-1)
Input sampling period 50 ms
Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)
Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Proportional band (P)
for cooling
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Derivative time (D) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5
Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range -1999 to 9999 (decimal point position depends on input type)
Influence of signal
source resistance
Thermocouple: 0.1°C/Ω max. (100 Ωmax.)
Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
VibrationMalfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
ShockMalfunction 100 m/s2, 3 times each in X, Y, and Z directions
Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Weight E5CC/E5CC-B: Controller: Approx. 120 g, Mounting Adapter: Approx. 10 g
E5CC-U: Controller: Approx. 100 g, Mounting Adapter: Approx. 10 g
Degree of protection E5CC/E5CC-B: Front panel: IP66, Rear case: IP20, Terminals: IP00
E5CC-U: Front panel: IP50, Rear case: IP20, Terminals: IP00
Memory protection Non-volatile memory (number of writes: 1,000,000 times)
Setup Tool E5CC: CX-Thermo version 4.5 or higher
E5CC-B: CX-Thermo version 4.65 or higher *7
E5CC-U: CX-Thermo version 4.61 or higher
Setup Tool port E5CC/E5CC-B/E5CC-U top panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to
connect to a USB port on the computer. *6
StandardsApproved
standards
cULus: UL 61010-1/CSA C22.2 No.61010-1 *8, KOSHA (S Mark) certification (Some models
only.) *9, Korean wireless regulations (Radio law: KC Mark) (Some models only.) *9, Lloyd's
standards *10, EAC
Conformed
standards
EN 61010-1 (IEC 61010-1), RCM
EMC EMI: EN 61326-1 *11
Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A
Noise Terminal Voltage: EN 55011 Group 1, class A
EMS: EN 61326-1 *11
ESD Immunity: EN 61000-4-2
Electromagnetic Field Immunity: EN 61000-4-3
Burst Noise Immunity: EN 61000-4-4
Conducted Disturbance Immunity: EN 61000-4-6
Surge Immunity: EN 61000-4-5
Voltage Dip/Interrupting Immunity: EN 61000-4-11

*1. The indication accuracy of K thermocouples in the -200 to 1,300°C range, T and N thermocouples at a temperature of
-100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the
B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a
temperature of 400 to 800°C is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature
of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3% of PV or ±3°C,
whichever is greater) ±1 digit max. The indication accuracy of PL II thermocouples is (±0.3% of PV or ±2°C,
whichever is greater) ±1 digit max.
*2. However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max.
*3. Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage
*4. K thermocouple at -100°C max.: ±10°C max.
*5. The unit is determined by the setting of the Integral/Derivative Time Unit parameter.
*6. External communications (RS-485) and USB-serial conversion cable communications can be used at the same time.
*7. CX-Thermo version 4.67 or higher is required for the E5CC-B linear current output type.
*8. The E5CC-U plug-in model is certified for UL listing only when used together with the OMRON P2CF-11 or P2CF-11-E
Socket. The P3GA-11 is not certified for UL listing.
*9. Access the following website for information on certified models. http://www.ia.omron.com/support/models/index.html
*10. Refer to information on maritime standards in Shipping Standards on Data Sheet for compliance with Lloyd's
Standards.
*11. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

USB-Serial Conversion Cable

Applicable OS Windows XP/Vista/7/8/10 *1
Applicable software CX-Thermo version 4.5 or higher
(Version 4.61 or higher is required for the E5CC-U, Version 4.65 or higher is required for
the E5CC-B *3.)
Applicable models E5[]C-T Series, E5[]C Series, and E5CB Series
USB interface standard Conforms to USB Specification 2.0.
DTE speed 38400 bps
Connector specifications Computer: USB (type A plug)
Digital Temperature Controller: Special serial connector
Power supply Bus power (Supplied from USB host controller.)*2
Power supply voltage 5 VDC
Current consumption 450 mA max.
Output voltage 4.7 ± 0.2 VDC (Supplied from USB-Serial Conversion Cable to the Digital
Temperature Controller.)
Output current 250 mA max. (Supplied from USB-Serial Conversion Cable to the Digital
Temperature Controller.)
Ambient operating
temperature
0 to 55°C (with no condensation or icing)
Ambient operating humidity 10% to 80%
Storage temperature -20 to 60°C (with no condensation or icing)
Storage humidity 10% to 80%
Altitude 2,000 m max.
Weight Approx. 120 g

Windows is a registered trademark of Microsoft Corporation in the United States and or other countries.
*1. CX-Thermo version 4.65 or higher runs on Windows 10.
*2. Use a high-power port for the USB port.
*3. CX-Thermo version 4.67 or higher is required for the E5CC-B linear current output type.
Note: A driver must be installed on the computer. Refer to the Instruction Manual included with the Cable for the
installation procedure.

Communications Specifications

Transmission line connection method RS-485: Multidrop
Communications RS-485 (two-wire, half duplex)
Synchronization method Start-stop synchronization
Protocol CompoWay/F, or Modbus
Baud rate * 9600, 19200, 38400, or 57600 bps
Transmission code ASCII
Data bit length * 7 or 8 bits
Stop bit length * 1 or 2 bits
Error detection Vertical parity (none, even, odd)
Block check character (BCC) with CompoWay/F or CRC-16 Modbus
Flow control None
Interface RS-485
Retry function None
Communications buffer 217 bytes
Communications response wait time 0 to 99 ms
Default: 20 ms

* The baud rate, data bit length, stop bit length, and vertical parity canbe individually set using theCommunications Setting Level.

Communications Functions

Programless communications
*1
You can use the memory in the PLC to read and write E5[]C parameters, start and stop operation, etc.
The E5[]C automatically performs communications with PLCs. No communications programming is
required.
Number of connected Digital Temperature Controllers: 32 max. (Up to 16 for the FX Series)
Applicable PLCs
OMRON PLCs CS Series, CJ Series, CP Series, NJ Series, or NX1P
Mitsubishi Electric PLCs MELSEC Q Series, L Series, FX3 Series, or iQ-R Series
KEYENCE PLCs KEYENCE KV Series
Component
Communications
*1
When Digital Temperature Controllers are connected, set points and RUN/STOP commands can be
sent from the Digital Temperature Controller that is set as the master to the Digital Temperature
Controllers that are set as slaves.
Slope and offsets can be set for the set point.
Number of connected Digital Temperature Controllers: 32 max. (including master)
Copying *2 When Digital Temperature Controllers are connected, the parameters can be copied from the Digital
Temperature Controller that is set as the master to the Digital Temperature Controllers that are set
as slaves.

MELSEC is a registered trademark of Mitsubishi Electric Corporation.
KEYENCE is a registered trademark of Keyence Corporation.
*1 A Temperature Controller with version 1.1 or higher is required.
A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.
*2 Both the programless communications and the component communications support the copying.

Current Transformer (Order Separately) Ratings

 E54-CT1
E54-CT3
E54-CT1L
E54-CT3L
Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min
Vibration resistance 50 Hz, 98 m/s2
Weight E54-CT1: Approx. 11.5 g
E54-CT3: Approx. 50 g
E54-CT1L: Approx. 14 g
E54-CT3L: Approx. 57 g
Accessories E54-CT3 Only
Armatures (2)
Plugs (2)
None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection) Models with detection for single-phase heaters: One input
Models with detection for singlephase or three-phase heaters: Two inputs
Maximum heater current 50 A AC
Input current indication accuracy ± 5% FS ± 1 digit max.
Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms *3
SSR failure alarm setting range *2 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection OFF time: 100 ms *4

*1 For heater burnout alarms, the heater current will be measured when the control output is ON, and the output will turn
ON if the heater current is lower than the set value (i.e., heater burnout detection current value).
*2 For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output will turn ON
if the heater current is higher than the set value (i.e., SSR failure detectioncurrent value).
*3 The value is 30 ms for a control period of 0.1 s or 0.2 s.
*4 The value is 35 ms for a control period of 0.1 s or 0.2 s.

Dimensions | Temperature Controller - E5CC / E5CC-B / E5CC-U

(Unit: mm)

Controllers

E5CC

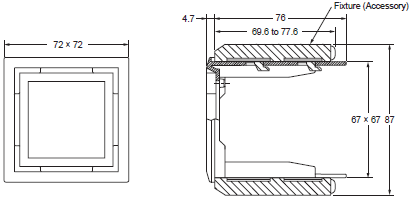

E5CC, E5CC-B, E5CC-U Dimensions 2

E5CC-B

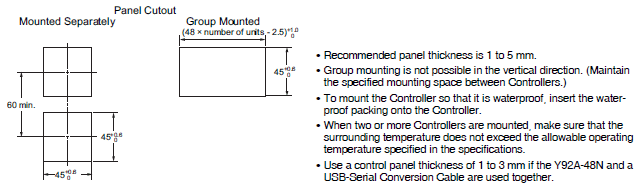

E5CC, E5CC-B, E5CC-U Dimensions 3

The Setup Tool port is on the top of the Temperature Controller.
It is used to connect the Temperature Controller to the computer to use the Setup Tool.
The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.
Refer to the instructions that are provided with the USB-Serial Conversion Cable for the connection procedure.
Note: Do not leave the USB-Serial Conversion Cable connected when you use the Temperature Controller.

E5CC, E5CC-B, E5CC-U Dimensions 5

E5CC-U

E5CC, E5CC-B, E5CC-U Dimensions 6

Accessories (Order Separately)

USB-Serial Conversion Cable

E58-CIFQ2

E5CC, E5CC-B, E5CC-U Dimensions 8

Terminal Covers

E53-COV17

E5CC, E5CC-B, E5CC-U Dimensions 9

Terminal Covers

E53-COV23 (Three Covers provided.)

E5CC, E5CC-B, E5CC-U Dimensions 10

Terminal Cover (for the P3GA-11 Back-connecting Socket)

Y92A-48G

E5CC, E5CC-B, E5CC-U Dimensions 11

Waterproof Packing

Y92S-P8 (for DIN 48 × 48)

E5CC, E5CC-B, E5CC-U Dimensions 13

The Waterproof Packing is provided only with the E5CC/E5CC-B.
It is not included with the E5CC-U.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site.
Consider three years a rough standard.)
The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

Current Transformers

E54-CT1

E5CC, E5CC-B, E5CC-U Dimensions 15

E54-CT1L

E5CC, E5CC-B, E5CC-U Dimensions 16

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E54-CT1 or E54-CT1L

E5CC, E5CC-B, E5CC-U Dimensions 18

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E54-CT3

E5CC, E5CC-B, E5CC-U Dimensions 19

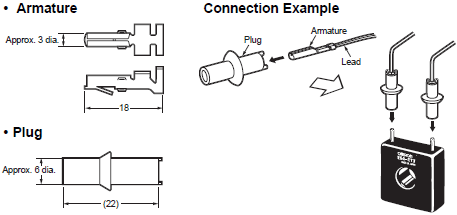

E54-CT3 Accessories

E5CC, E5CC-B, E5CC-U Dimensions 20

E54-CT3L

E5CC, E5CC-B, E5CC-U Dimensions 21

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E54-CT3 or E54-CT3L

E5CC, E5CC-B, E5CC-U Dimensions 23

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

Adapter

Y92F-45

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B[].
2. Only black is available.
3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-
SerialConversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.
4. You cannot use it together with the Y92F-49 Adapter that is enclosed with the Controller.

E5CC, E5CC-B, E5CC-U Dimensions 25

Mounted to E5CC

E5CC, E5CC-B, E5CC-U Dimensions 26

DIN Track Mounting Adapter

Y92F-52

E5CC, E5CC-B, E5CC-U Dimensions 28

Note: This Adapter cannot be used together with the Terminal Cover.
Remove the Terminal Cover to use the Adapter.

This Adapter is used to mount the E5CC to a DIN Track.
If you use the Adapter, there is no need for a plate to mount in the panel or to drill mounting holes in the panel.

Mounted to E5CC

E5CC, E5CC-B, E5CC-U Dimensions 29

Watertight Cover

Y92A-48N

E5CC, E5CC-B, E5CC-U Dimensions 30

Mounting Adapter

Y92F-49

E5CC, E5CC-B, E5CC-U Dimensions 32

The Mounting Adapter is provided with the Temperature Controller.
Order the Mounting Adapter separately if it becomes lost or damaged.

Protective Cover

Y92A-48D

E5CC, E5CC-B, E5CC-U Dimensions 34

Note: This Protective Cover cannot be used if the Waterproof Packing is installed.

This Protective Cover is soft type.
It is able to operate the controller with using this cover.

Protective Cover

Y92A-48H

E5CC, E5CC-B, E5CC-U Dimensions 36

This Protective Cover is hard type.
Please use it for the mis-operation prevention etc.

E5CC-U Wiring Socket

Front-connecting Socket

P2CF-11

E5CC, E5CC-B, E5CC-U Dimensions 38

Note: 1. A model with finger protection (P2CF-11-E) is also available.
2. You cannot use the P2CF-11 or P2CF-11-E together with the Y92F-45.

Back-connecting Socket

P3GA-11

E5CC, E5CC-B, E5CC-U Dimensions 40

Note: 1. Using any other sockets will adversely affect accuracy. Use only the specified sockets.
2. A Protective Cover for finger protection (Y92A-48G) is also available.
3. You cannot use the P3GA-11 together with the Y92F-45.
4. You cannot use this Adapter together with the Y92F-49 Adapter that is provided with the E5CC Temperature Controller.

Features | Temperature Controller - E5CC / E5CC-B / E5CC-U

  • The front panel is rated IP66
  • Short body with a depth of 60mm
  • Easy connections to a PLC with program less communications
  • Set up the controller without the need for a power supply
  • Available push-in plus terminals for easier wiring
  • Available RS-485 Communication

Properties | Temperature Controller - E5CC / E5CC-B / E5CC-U

Temperature ControllerE5CC / E5CC-B / E5CC-U
Power supply A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 Vac, 50/60 Hz; 24 Vdc
Sensor input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
current 4 – 20 mA/ 0 – 20 mA
voltage 1 – 5V, 0 – 5V, 0 -10V
Event input 2,4 (E5CC)
2 (E5CC-B)
Control method ON/OFF control
2-PID control (with auto-tuning)
Output voltage 12 Vdc (PNP)
current 4 – 20mA/ 0 – 20mA
Relay (NO 250Vac, 2A) (E5CC/E5CC-B)
Relay (SPDT-250Vac, 2A) (E5CC-U)
Tranfer output 1
Auxiliary output 3 (E5CC-U)
2 (E5CC-B)
1 (E5CC-U)
Size
(W x L x D)
48 x 48 x (71.4, 73.1, 76.8)
Weight (g) 120

Temperature Controller - E5CC / E5CC-B / E5CC-U

ดาวน์โหลดไฟล์ PDF
Temperature Controller - E5CC / E5CC-B / E5CC-U
OMRON Temperature Controller - E5CC / E5CC-B / E5CC-U

คุณสมบัติ | Temperature Controller - E5CC / E5CC-B / E5CC-U

  • มาตรฐานการป้องกัน IP 66 (ด้านหน้า)
  • เชื่อมต่อกับ PLC ได้ง่ายโดยไม่ต้องเขียนโปรแกรมเยอะ
  • สามารถตั้งค่าได้โดยไม่ต้องใช้แหล่งจ่ายจากภายนอก
  • มีการติดต่อสื่อสารผ่านทาง RS-485

ข้อมูลจำเพาะ | Temperature Controller - E5CC / E5CC-B / E5CC-U

Temperature ControllerE5CC / E5CC-B / E5CC-U
แหล่งจ่ายไฟ ถ้ามีตัว A ในโมเดล จะใช้ 100 – 240 Vac (50 – 60 Hz)
ถ้ามีตัว D ในโมเดล จะใช้ 24 Vac (50 – 60 Hz) / 24Vdc
เซนเซอร์อินพุต อุณหภูมิ แบบเทอร์โมคอบเปิล: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
กระแส 4 – 20 mA/ 0 – 20 mA
แรงดัน 1 – 5V, 0 – 5V, 0 -10V
อินพุตเงื่อนไข 2,4 ช่อง (E5CC)
2 ช่อง (E5CC-B)
รูปแบบการควบคุม ควบคุมแบบเปิด/ปิด
ควบคุมแบบ 2 – PID (ด้วยการปรับอัตโนมัติ)
เอาต์พุต แรงดัน 12 Vdc (PNP)
กระแส 4 – 20mA/ 0 – 20mA
รีเลย์ (NO 250Vac, 2A) (E5CC/E5CC-B)
รีเลย์ (SPDT-250Vac, 2A) (E5CC-U)
เอาต์พุตถ่ายโอน 1 ช่อง
ช่องเอาต์พุตเสริม 3 ช่อง (E5CC-U)
2 ช่อง (E5CC-B)
1 ช่อง (E5CC-U)
ขนาด กว้าง 48 mm / ยาว 48 mm / ลึก (71.4, 73.1, 76.8 mm)
น้ำหนัก 120 กรัม

นิวแอนด์ไฮด์ จำหน่าย Omron Temperature Controller, Omron E5CC เราเลือกสรรค์เฉพาะสินค้าที่ประสิทธิภาพสูง ทนทาน สินค้าทุกชิ้นเป็นของแท้ พร้อมส่ง เรามีสต๊อกสินค้าที่ใหญ่ที่สุด พร้อมบริการอย่างรวดเร็ว รวมถึงการซัพพอร์ตการใช้งานที่ทันท่วงที โดยทีมวิศวกรผู้เชี่ยวชาญสินค้า omron ปรึกษาเรา โทร.02-743-8911 หรือ This email address is being protected from spambots. You need JavaScript enabled to view it.

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
