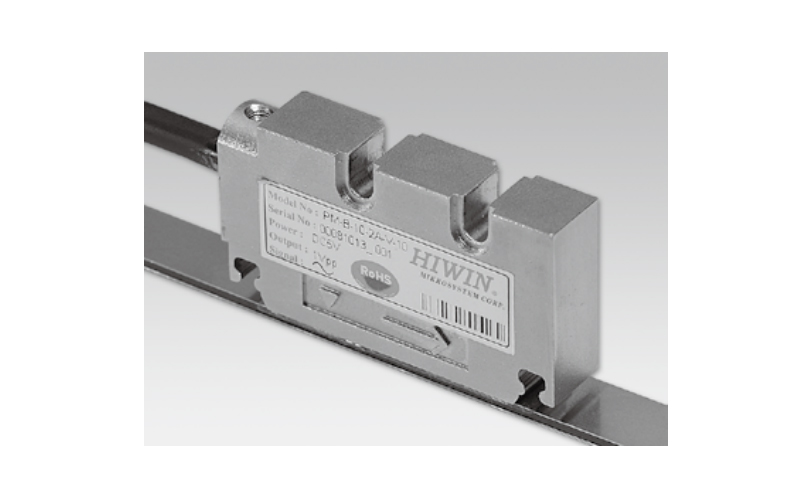

Hiwin Positioning Measurement - Vertical Type

  • Didital or analog signal output availble / Avaliable gap up to 4 mm
  • Vertical shape, optimal for space-saving applications
  • Optional metal protection tube
  • Resolution up to 1 µm / Repeatability up to ±2 µm

Positioning Measurement - Vertical Type

ดาวน์โหลดไฟล์ PDF
Hiwin Positioning Measurement - Vertical Type
Hiwin Positioning Measurement - Vertical Type

Code| Positioning Measurement - Vertical Type

Hiwin Positioning Measurement - Vertical Type


Specifications | Positioning Measurement - Vertical Type

Pole pitch1mm5mm
Available gap(1) 0.4mm 4mm
Signal format Analogue Digital Digital
Output signal SIN/COS 1Vp-p 5V TTL/RS422 5V TTL/RS422 24V/PP
Resolution(3) 1mm 1µm 5µm 5µm
Repeatability(2) ±3µm ±2µm ±10µm ±10µm
Reference signal 2mm/pulse 1mm/pulse 5 mm/pulse
Maximum travel speed 10 m/sec 5 m/sec 5 m/sec 8 m/sec
Input voltage 5VDC±5% 24VDC±10%
Operating temperature 0 ~ 50 °C
Storage temperature -5 ~ 70 °C
Protectopm class IP67
  • Note
    1. Please refer Chap 5.7 for Gap-Repeatability relationship.
    2. The data were measured while gap is 0.1 mm.
    3. If you have ohter request on resolution, please do not hesitate to contact us.

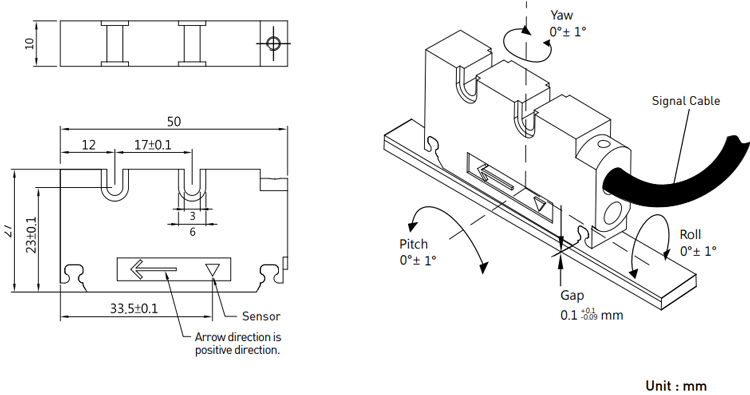

Dimensions | Positioning Measurement - Vertical Type

Hiwin Positioning Measurement - Vertical Type
