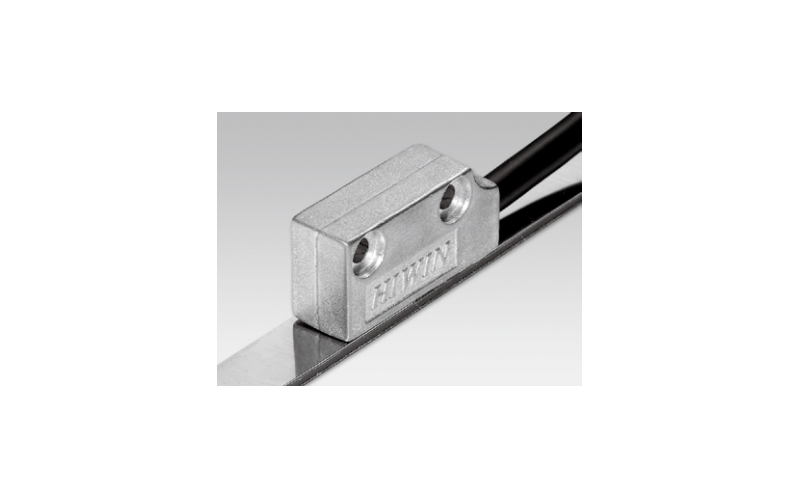

Hiwin Positioning Measurement - E Type

• Analog signal output / Avaliable gap up to 4 mm
• Optimal for space-saving applications
• Dustproof and waterprood, up to IP67 protection class
• Resolution is up to 5 µm while integrating with ST-A / Repeatability up to ±10 µm

Positioning Measurement - E Type

ดาวน์โหลดไฟล์ PDF

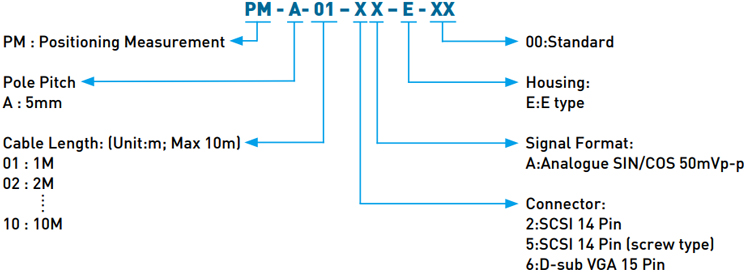

Code| Positioning Measurement - E Type

---

Specifications | Positioning Measurement - E Type

Pole pitch	5mm
Available gap(1)	4mm
Signal format	Analogue
Output signal	SIN/COS 50mVp-p
Resolution	5mm
Repeatability(2)	±10µm
Maximum travel speed	10m/sec
Input voltage	5VDC±5%
Operating temperature	0 ~ 50 °C
Strorage temperature	-5 ~ 50 °C
Protectopm class	IP67

• Note
  1. Please refer Chap 6.5 for Gap-Repeatability relationship.
  2. The data were measured while gap is 1mm.

---

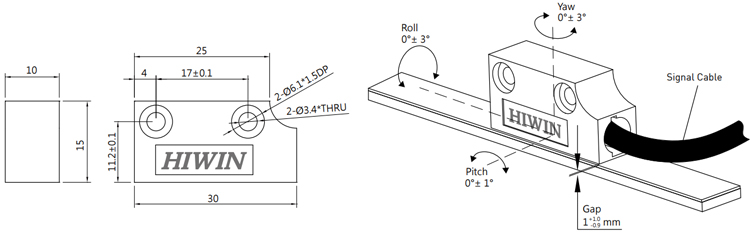

Dimensions | Positioning Measurement - E Type
