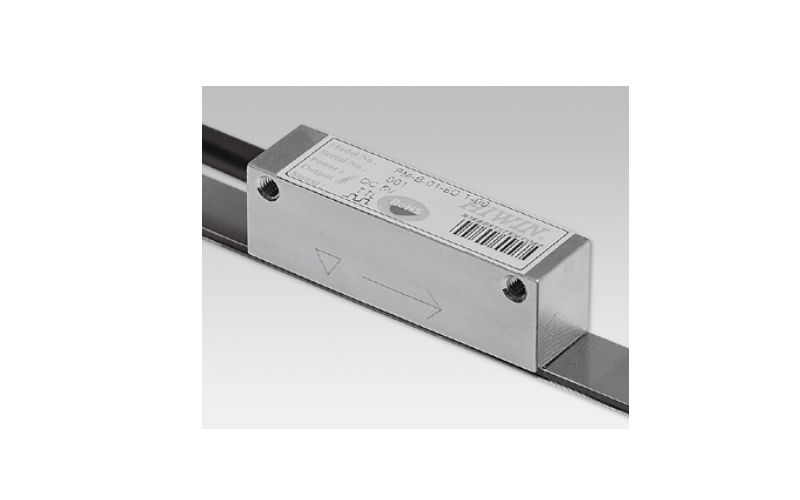

Hiwin Positioning Measurement - Tiny Type

• Tiny shape. Avaliable gap up to 0.4 mm
• Didital or analog output availble. Simple design and easy-mounting
• Same installation holes as other as other optical encoder, easy to switch and replace
• Resolution up to 1 µm / Repeatability up to ±2 µm

Positioning Measurement - Tiny Type

ดาวน์โหลดไฟล์ PDF

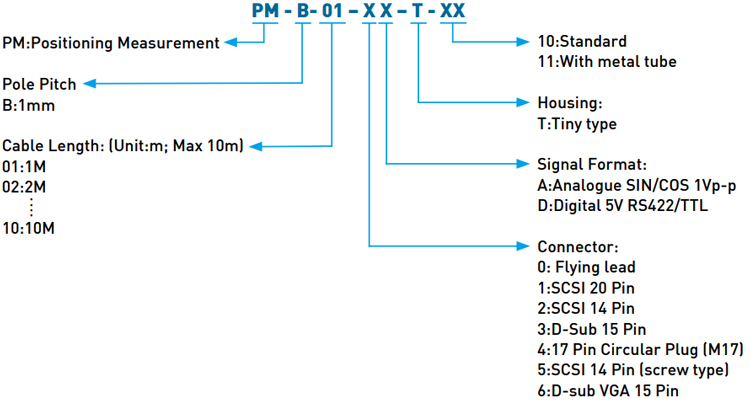

Code| Positioning Measurement - Tiny Type

---

Specifications | Positioning Measurement - Tiny Type

Pole pitch	1mm
Available gap(1)	1mm
Signal format	Analogue	Digital
Output signal	SIN/COS 1Vp-p	5V TTL/RS422
Resolution	1mm	1µm
Repeatability(2)	±3µm	±2µm
Reference signal	1 mm/pulse
Maximum travel speed	10 m/sec	5 m/sec
Input voltage	5VDC±5%
Operating temperature	0 ~ 50 °C
Storage temperature	-5 ~ 70 °C
Protectopm class	IP67

• Note
  1. Please refer Chap 2.7 for Gap-Repeatability relationship.
  2. The data were measured while gap is 0.1 mm.

---

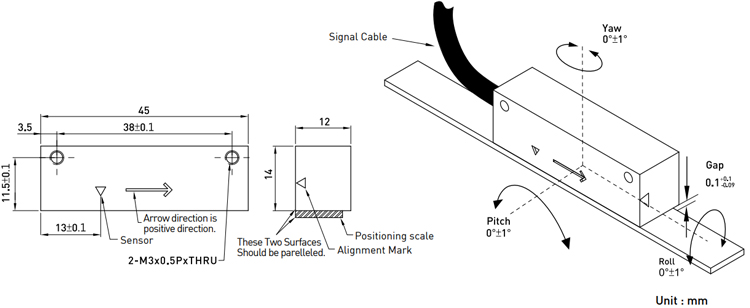

Dimensions | Positioning Measurement - Tiny Type
