AirTAC - Solenoid Valve วาล์วควบคุมทิศทางโซลินอยด์วาล์ว 4M Series (Namur valve)

วาล์วควบคุมทิศทาง รุ่น 4M Series / โซลินอยด์วาล์ว รุ่น 4M Series

Download PDF: 4M Series
AirTAC Solenoid Valve โซลินอยด์วาล์ว 4M Series
AirTAC Solenoid Valve โซลินอยด์วาล์ว 4M Series

Features | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 4M Series แบบ ใช้กับหัวขับลม

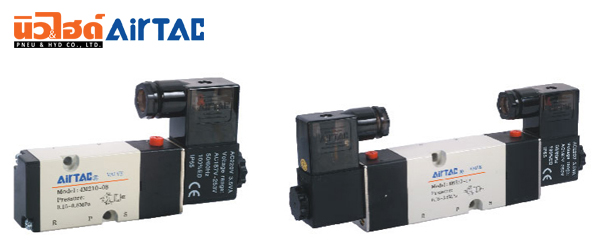

วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 4M แบบ นามัวร์ ชนิด 5/2 ทาง Namur Solenoid Valve (5/2 Way) ใช้สำหรับติดกับหัวขับลม

  1. Internally piloted structure
  2. Structure in sliding column mode: good tightness and sensitive reaction
  3. Double control solenoid valves have memory function
  4. Internal hole adopts special processing techology which has little attrition friction, low start pressure and long service life
  5. No need to add oil for lubrication
  6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators
  7. Affiliated manual devices are quipped to facilitate installation and debugging
  8. Several standard voltage grades are optional
airtac

สัญลักษณ์ (Symbol) วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 4M Series

Symbol AirTAC Solenoid Valve โซลินอยด์วาล์ว 4M Series

Specifications | AirTAC Solenoid Valve วาล์วควบคุมทิศทางโซลินอยด์วาล์ว 4M Series (Namur valve)

Model4M110-M5
4M120-M5
4M110-06
4M120-06
4M210-06
4M220-06
4M210-08
4M220-08
4M310-08
4M320-08
4M310-10
4M320-10
Fluid Air (to be filtered by 40µm filter element)
Acting Internal piloted
Port Size (1) In = Exhaust = M5 In = Exhaust = 1/8" In = Exhaust = 1/8" In = 1/4"
Exhaust = 1/8"
In = Exhaust = 1/4" In = 3/8"
Exhaust = 1/4"
Orifice Size 5.5 mm2
(Cv = 0.31)
12.0 mm2
(Cv = 0.67)
14.0 mm2
(Cv = 0.78)
16.0 mm2
(Cv = 0.89)
25.0 mm2
(Cv = 1.40)
30.0 mm2
(Cv = 1.68)
Valve type 5 port 2 position
Operating pressure 0.15~0.8 MPa (21~114 psi)
Proof pressure 1.5 MPa (215 psi)
Temperature -20~70°C
Material of body Aluminum alloy
Lubrication (2) Not required
Max. frequency (3) 5 cycle/sec 4 cycle/sec
Weight 4M110:120; 4M120:175 4M210:220; 4M220:320 4M310:310; 4M320:400
  1. PT thread, NPT thread and G thread are available
  2. It can not stop in the midway of lubricating. Lubricants like ISO VG32 or equivalent are recommended
  3. The maximum actuation frequency is in the no-load state

Ordering code | AirTAC Solenoid Valve วาล์วควบคุมทิศทางโซลินอยด์วาล์ว 4M Series (Namur valve)

Example : 4M110-M5 / 4M120-M5 / 4M110-10

How to Select: 4M(1) 3(2) 10(3) 104) A(5) [ ](6) P(7)

(1) Model(2) Code(3) Valve type(4) Port size(5) Voltage(6) Electrical entry(7) Thread type
4V : solenoid valve (5/2 5/3 way NAMUR type) 1 : 100 series
2 : 200 series
3 : series
10 : single solenoid 5/2 way
20 : Double solenoid 5/2 way
M5 : M5
06 : 1/8"
08 : 1/4"
10 : 3/8"
A : AC220V Blank : Terminal
I : grommet
P : PT
T : NPT
G : G
B: DC24V
C: AC110V
E: AC24B
F: DC12V

Inner structure | AirTAC Solenoid Valve วาล์วควบคุมทิศทางโซลินอยด์วาล์ว 4M Series (Namur valve)

Inner structure AirTAC Solenoid Valve 4M Series
Inner structure AirTAC Solenoid Valve 4M Series
No.ItemNo.Item
1 Connector 9 Wear ring
2 Coil nut 10 Bottom cover
3 Coil 11 Fixed screw
4 Armature 12 Spool spring
5 Fixed plate 13 Bottom cover gasket
6 Piston 14 Spool O-ring
7 Pilot kit 15 Spool
8 Body 16 Piston O-ring
17 Override 18 Manual override

Dimensions | AirTAC Solenoid Valve วาล์วควบคุมทิศทางโซลินอยด์วาล์ว 4M Series (Namur valve)

4M110 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M110 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series

4M120 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M120 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series

4M210 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M210 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series

4M220 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M220 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series

4M310 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M310 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series

4M320 (Termianle)

Dimensions AirTAC Solenoid Valve 4M Series

4M320 (Grommet)

Dimensions AirTAC Solenoid Valve 4M Series
