AirTAC - Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Download PDF: Solenoid valve 7V Series

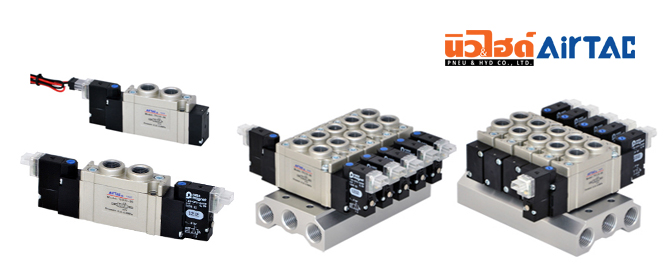

AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series
AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Features | AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Solenoid Valve วาล์วควบตุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 7V (7V Series) ชนิด Directly Plug ชนิด 5/2, 5/3 ทาง (Directly Plug Solenoid Valve 5/2, 5/3 Way)

  1. It is available to integrate the direction control valves of the same series to form value group to save space and cost.
  2. It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.
  3. Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.
  4. airtac

Specifications | AirTAC solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Item7V05107V05207V05307V1107V1207V1307V2107V2207V230
Port Size [Note 1] Thread type In = Out = Exhaust = M5 In = Out = Exhaust = 1/8" In = Out 1/4"
Exhaust = 1/8"
Tube type Port A = Port B = ϕ4 Port A = Port B = ϕ4 (or ϕ6 or ϕ8) Port A = Port B = ϕ8 (or ϕ10)
Orifice size (Cv value) 5.0 mm2 (0.28) 4.5 mm2 (0.25) 9.5 mm2 (0.55) 8.0 mm2 (0.48) 14.0 mm2 (0.83) 11.0 mm2 (0.61)
Weight (g) 30 45 50 80 90 100 120 135 145
Fluid Air (to be filtered by 40µm filter element)
Acting Pilot
Operating pressure 7V0530 / 7V130 / 7V230 0.2~0.8 MPa (29~114 psi)
Others 0.15~0.8 MPa (21~114 psi)
Proof pressure 1.2 MPa (175 psi)
Temperature -20~70 °C
Material of body Aluminum alloy
Lubrication [Note 2] Not required
Exhaust type of pilot valve Main valve and pilot valve is centralized exhaust
Max. frequency [Note 3] 5 Cycle/sec 3 Cycle/sec 5 Cycle/sec 3 Cycle/sec 5 Cycle/sec 3 Cycle/sec
  1. PT, NPT thread and G thread are available.
  2. Once lubreicated air is used, continue with same medium to optimize valve life span.
    Lubricants like ISO VG32 or equivalent are recommended.
  3. The maximum actuation frequency is in the no-load state.

Ordering code | AirTAC solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Example: 7V210J08B050

How to Select: 7V(1) 2(2) 10(3) J(4) 08(5) B(6) 050(7) [ ](8)

(1) Model(2) Code(3) Valve type(4) Port type(5) Port size(6) Voltage(7) Line's length(8) Thread type
Thread typeTube type
7V : 5 port 2(3) position solenoid valve 05 : 0500 Series 10 : single solenoid(5/2way) 30 E : double solenoid (5/3way Exhaust center) Blank : Thread type
J : tube type
M5 : M5 04 : Ø4mm A : AC220V
B : DC24V
C : AC110V
F : DC12V
050 : 0.5m
200 : 2.0m
No this code
1 : 100 Series 20 : double solenoid (5/2way) 30P : double solenoid (5/3way pressure center) 06 : 1/8" 04 : Ømm/06: Ø6mm/08 : Ø8mm Blank : PT thread
G : G Thread
T : NPT Thread
2 : 200 Series 30C : double solenoid (5/3way closed center) 08 : 1/4" 08 : Ø8mm/10 : Ø10mm

[note 1] : The bottom porst of solenoid valve with tube type are oval, without tread type options and can only install with a manifold


Flow Chart | AirTAC solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Flow Chart AirTAC solenoid valve 7V Series
Flow Chart AirTAC solenoid valve 7V Series
Flow Chart AirTAC solenoid valve 7V Series

Dimensions | AirTAC solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

7v0510
7v110
7v210

Dimensions AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Model\ItemABBABBBCCPPAPBQQAQB
7V0510M5 73 30.5 18.5 23 23.5 10 M5X0.8 22.5 1 M5X0.8 19 13
7V0510J04 32.5 Oval Oval
7V11006 92.5 32 23 29 32.5 15 1/8" 32.5 1.6 1/8" 27.2 18.5
7V110J04 38.2 Oval Oval
7V110J06 40
7V110J08 41.5
7V21008 106 33.5 28 34 40.5 18 1/4" 39 3 1/8" 36 21
7V210J08 46.5 Oval Oval
7V210J10 49
Model\ItemTTATBRRARBRCSSASBSC
7V0510M5 M5X0.8 17.5 10.5 2.1 21.4 12 8.6 M3X0.5dp3 9.5 17.8 4
7V0510J04 Ø4(tube) - - - -
7V11006 1/8" 24 16.2 3.2 36 14.5 11.6 M3X0.5dp3 23.5 20.5 16.5
7V110J04 Ø4(tube) - - - -
7V110J06 Ø6(tube)
7V110J08 Ø8(tube)
7V21008 1/4" 29 20 4.3 42 18 13.6 M4X0.7dp5 20 29 7
7V210J08 Ø8(tube) - - - -
7V210J10 Ø10(tube)

7V0520
7V120
7V220

Dimensions AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Model\ItemABBABBBCCPPAPBQQAQB
7V0520M5 101.5 30.5 18.5 23 23.5 10 M5X0.8 50.5 1 M5X0.8 19 41
7V0520J04 32.5 Oval Oval
7V12006 120.5 32 23 29 32.5 15 1/8" 60.5 1.6 1/8" 27.2 46.5
7V120J04 38.2 Oval Oval
7V120J06 40
7V120J08 41.5
7V22008 134 33.5 28 34 40.5 18 1/4" 67 3 1/8" 36 49
7V220J08 46.5 Oval Oval
7V220J10 49
Model\ItemTTATBRRARBRCSSASBSC
7V0520M5 M5X0.8 45.5 10.5 2.1 21.4 12 8.6 M3X0.5dp3 9.5 17.8 4
7V0520J04 Ø4(tube) - - - -
7V12006 1/8" 52 16.2 3.2 36 14.5 11.6 M3X0.5dp3 23.5 48.5 16.5
7V120J04 Ø4(tube) - - - -
7V120J06 Ø6(tube)
7V120J08 Ø8(tube)
7V22008 1/4" 57 20 4.3 42 18 13.6 M4X0.7dp5 20 57 7
7V220J08 Ø8(tube) - - - -
7V220J10 Ø10(tube)

7V0530
7V130
7V230

Dimensions AirTAC Solenoid valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 7V Series

Model\ItemABBABBBCCPPAPBQQAQB
7V0530M5 110 30.5 18.5 23 23.5 10 M5X0.8 50.5 1 M5X0.8 19 41
7V0530J04 32.5 Oval Oval
7V13006 132 32 23 29 32.5 15 1/8" 60.5 1.6 1/8" 27.2 46.5
7V130J04 38.2 Oval Oval
7V130J06 40
7V130J08 41.5
7V23008 147 33.5 28 34 40.5 18 1/4" 67 3 1/8" 36 49
7V230J08 46.5 Oval Oval
7V230J10 49
Model\ItemTTATBRRARBRCSSASBSC
7V0530M5 M5X0.8 45.5 10.5 2.1 21.4 12 8.6 M3X0.5dp3 9.5 17.8 4
7V0530J04 Ø4(tube) - - - -
7V13006 1/8" 52 16.2 3.2 36 14.5 11.6 M3X0.5dp3 23.5 48.5 16.5
7V130J04 Ø4(tube) - - - -
7V130J06 Ø6(tube)
7V130J08 Ø8(tube)
7V23008 1/4" 57 20 4.3 42 18 13.6 M4X0.7dp5 20 57 7
7V230J08 Ø8(tube) - - - -
7V230J10 Ø10(tube)
