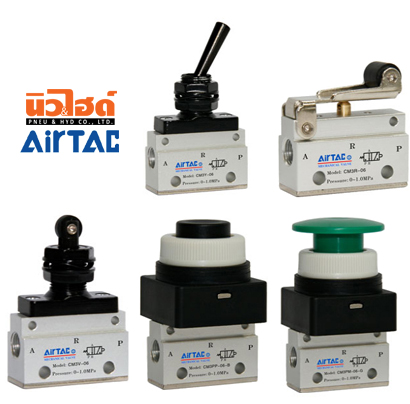

แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series
Download PDF: Pneumatic Mechanical Valve CM3 seriesFeatures | AirTAC แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series
วาล์วเท้าเหยียบ ชนิด 3/2 ทาง Foot Valve (3/2 Way) อุปกรณ์นิวเมติกส์ Pneumatics สินค้าแบรน AirTAC ของแท้จากประเทศไต้หวัน
- Direct acting and normally closed type
- The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure
- If the duration of direction-change is long, the valves with lock may be selected
- The clamping framework is stready and reliable that it is easy and quick to unlock. However
สัญลักษณ์ (Symbol) แมคคานิควาล์ว Mechanical Valve รุ่น CM3 Series
Specifications | AirTAC แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series
Model | CM3[ ]-05 | CM3[ ]-06 | CM3[ ]-08 |
---|---|---|---|
Operating | External Control | ||
Fluid | Air (to be filled by 40µm filter element) | ||
Pressure range | 0~10.0 bar) | ||
Proof pressure | 1.5 MPa (215 psi) (15.0 bar) | ||
Temperature | -20~70 °C | ||
Valve type | 3 port 2 position | ||
Orifice size | 2.0 mm2 | 2.5 mm2 | 15.0 mm2 |
Cv value | 0.11 | 0.14 | 0.84 |
Port size (1) | M5x0.8 | 1/8" | 1/4" |
Material of body | Aluminium |
- PT thread, NPT thread and G thread are availble.
Ordering code | AirTAC แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series
Example: CM3PP06BP
How to select: CM3(1) PP(2) 06(3) B(4) P(5)
(1) Valve's type | (2) Model | (3) Port size | (4) Button color | (5) Thread type |
---|---|---|---|---|
CM3: CM type 3/2 way | B: Basic type | 05: M5 06: 1/8" 08: 1/4" |
No option for bottom color | P: PT T: NPT G: G |
R: Roller type | ||||
L: Roller with free return type | ||||
V: vertical roller type | ||||
Y: Lever type | ||||
PL: Latching type (only red) | R: Red | |||
PP: Protruding type | R: Red G: Green B: Black Y: Yellow |
|||
PF: Flat type | ||||
PM: Mushroom type | ||||
HS: Selector type | ||||
HD: Double-selector type |
(1) When the thread is M5 type, the code is blank.
Inner structure | AirTAC แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series
NO | Item | NO | Item |
---|---|---|---|
1 | Fixing plate | 12 | Shaft |
2 | Screw | 13 | Look pin |
3 | Spacer | 14 | Roller bracket |
4 | Body | 15 | Spring |
5 | Spring | 16 | O-ring |
6 | Spool | 17 | Screw |
7 | Connectiong gasket | 18 | O-ring |
8 | Connectiong holder | 19 | Bottom cover gasket |
9 | Clamping nut | 20 | Spring |
10 | Spring gasket | 21 | O-ring |
11 | Roller | - | - |
