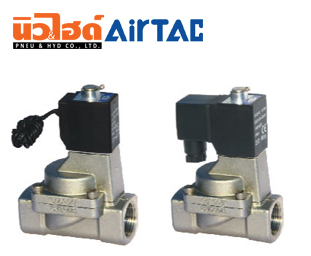

Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KS Series
Download PDF: Solenoid valve 2KS SeriesFeatures | AirTAC Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
อุปกรณ์นิวเมติกส์ Pneumatics สินค้าแบรน AirTAC ของแท้จากประเทศไต้หวัน
- โซลินอยด์วาล์วชนิด 2/2 ทาง แบบ Direct-Acting ปรกติเปิด (NO) – สแตนเลส SUS304 Fluid Control Valve (2/2 Way) Direct-Acting and Normally Opened- SUS304 Body
- โซลินอยด์วาล์วชนิด 2/2 ทาง แบบ Internally Piloted ปรกติเปิด (NO) – สแตนเลส SUS304 Fluid Control Valve (2/2 Way) Internally Piloted and Normally Opened - SUS304 Body
- วัสดุ : สแตนเลส
- สภาวะ : ปรกติเปิด
สัญลักษณ์ (Symbol)| AirTAC Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
Specifications | AirTAC Solenoid Valve โซลินอยด์วาล์ว สแตนเลส 2KS Series
Model / Item | Port Size [Note 1] | Orifice Size (ϕ mm) | Cv | Valid area or section (mm2) | Weight (g) [Note 2] | Max.Operating pressure differentia | Proof pressure | |||
---|---|---|---|---|---|---|---|---|---|---|
MPa | psi | MPa | psi | |||||||
2KSX030 | 06 | 1/8" | 1.5 | 0.10 | 1.8 | 305 | 2.0 | 300 | 3.0 | 450 |
08 | 1/4" | 295 | ||||||||
2KSH030 | 06 | 1/8" | 2.0 | 0.18 | 3.0 | 305 | 1.5 | 220 | ||
08 | 1/4" | 295 | ||||||||
2KS030 | 06 | 1/8" | 3.0 | 0.33 | 6.0 | 305 | 0.7 | 100 | ||
08 | 1/4" | 295 | ||||||||
2KSL030 | 06 | 1/8" | 4.0 | 0.55 | 10.0 | 305 | 0.4 | 60 | ||
08 | 1/4" | 295 | ||||||||
2KSX050 | 10 | 3/8" | 3.0 | 0.34 | 6.1 | 610 | 2.0 | 300 | ||
15 | 1/2" | 600 | ||||||||
2KSH050 | 10 | 3/8" | 4.0 | 0.55 | 10.0 | 610 | 1.5 | 220 | ||
15 | 1/2" | 600 | ||||||||
2KS050 | 10 | 3/8" | 5.0 | 0.83 | 15.0 | 610 | 0.7 | 100 | ||
15 | 1/2" | 600 | ||||||||
2KSL050 | 10 | 3/8" | 7.0 | 1.40 | 25.0 | 610 | 0.4 | 60 | ||
15 | 1/2" | 600 |
- G thread is available.
- The weight in the table is the terminal valve's weight, 2KS030 series grommet valve's weight is 10g less than terminal's. 2KS050 series grommet valve's weight is 20g less than terminal's.
Ordering code | AirTAC Solenoid Valve โซลินอยด์วาล์ว สแตนเลส 2KS Series
Ordering code for valves
Example: 2KSH03008AG
How to Select: 2KS(1) H(2) 030(3) 08(4) A(5) [ ](6) G(7)
(1) Model | (2) Pressure condition | (3) Size series | (4) Port size | (5) Voltage | (6) Electrical entry | (7) Thread type |
---|---|---|---|---|---|---|
2KS: 2/2 way direct-acting and normally volume | X: Extra high pressure H: High pressure blank: Standard L: Large volume |
030: 030 series | 06: 1/8" 08: 1/4" |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
Blank: Terianl I: Grommet |
G: G |
050: 050 series | 10: 3/8" 15: 1/2" |
Flow chart | AirTAC Solenoid Valve โซลินอยด์วาล์ว สแตนเลส 2KS Series
Dimensions | AirTAC Solenoid Valve โซลินอยด์วาล์ว สแตนเลส 2KS Series
2KS[ ]030 (Terminal)
2KS[ ]050 (Terminal)
Model\Item | A | AB | B | C | D | E | F | G | K | KA | P | PA | Q | QA |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2KS[ ]030-06 | 72.5 | 40 | 29.5 | 76 | 20 | 49 | 43.5 | 10 | 5.3 | 40 | 1/8" | 10 | M5 | 16 |
2KS[ ]030-08 | 72.5 | 40 | 29.5 | 76 | 20 | 49 | 43.5 | 10 | 5.3 | 40 | 1/4" | 10 | M5 | 16 |
2KS[ ]050-10 | 89.5 | 52 | 39 | 92 | 26 | 56 | 51 | 10 | 5.3 | 48 | 3/8" | 13 | M5 | 23 |
2KS[ ]050-15 | 89.5 | 52 | 39 | 92 | 26 | 56 | 51 | 10 | 5.3 | 48 | 1/2" | 13 | MS | 23 |
2KS[ ]030 (Grommet)
2KS[ ]050 (Grommet)
Model\Item | A | AB | B | C | D | E | G | K | KA | P | PA | Q | QA |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2KS[ ]030-06 | 41 | 40 | 29.5 | 76 | 20 | 49 | 10 | 5.3 | 40 | 1/8" | 10 | M5 | 16 |
2KS[ ]030-08 | 41 | 40 | 29.5 | 76 | 20 | 49 | 10 | 5.3 | 40 | 1/4" | 10 | M5 | 16 |
2KS[ ]050-10 | 60 | 52 | 39 | 92 | 26 | 56 | 10 | 5.3 | 48 | 3/8" | 13 | M5 | 23 |
2KS[ ]050-15 | 60 | 52 | 39 | 92 | 26 | 56 | 10 | 5.3 | 48 | 1/2" | 13 | M5 | 23 |
