AirTAC - ตัวแยกทางลม GA Series

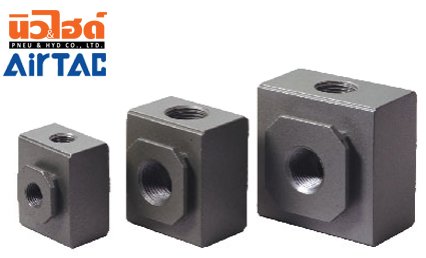

ตัวแยกทางลม GA Series
Download PDF: GA Series![AirTAC ตัวแยกทางลม GA Series AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA.jpg)
Features | AirTAC ตัวแยกทางลม GA Series
- It is installed between GA series regulator (or filter & regulator) and G series lubricator. the air flow is divided by the device that one enters lubricator to supply oil for lubrication and the other (the second way) directly enters the equipment.
- Several kinds of brackets can be selected to connect regulator and lubricator. Optional brackets are type T, type L and type U.
![airtac](/images/Products/Brand/airtac.jpg)
Specifications | AirTac ตัวแยกทางลม GA Series
Model | GA200-06 | GA200-08 | GA300-08 | GA300-10 | GA400-10 | GA400-15 | GA600-20 | GA600-25 |
---|---|---|---|---|---|---|---|---|
Fluid | Air | |||||||
Port size [Note 1] | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" |
Way number | Four | |||||||
Pressure range | 0~1.0 MPa (0~145 psi) | |||||||
Proof pressure | 1.5 MPa (215 psi) | |||||||
Temperature range | -20~70 °C |
[Note 1] PT thread, G thread and NPT thread are available.
Ordering code | AirTAC ตัวแยกทางลม GA Series
Example: GA200-10 / GA200-10 / GA300-10 / GA300-10
How to Select: GA200(1) 08(2) G(3)
(1) Model | (2) Port size | (3) Thread type |
---|---|---|
GA200: 200 series gas-distribution block | 06: 1/8" 08: 1/4" |
Blank: PT G: G T: NPT |
GA300: GA300 series gas-distribution block | 08: 1/4" 10: 3/8" |
|
GA400: GA400/500 series gas-distribution block | 10: 3/8" 15: 1/2" |
|
GA600: GA600 series gas-distribution block | 20: 3/4" 25: 1" |
Note: When it is used with F.R.L. combination, extra mounting braket needed. Please to P205 for order detail.
Inner structure | AirTAC ตัวแยกทางลม GA Series
How to use the bracket | AirTAC ตัวแยกทางลม GA Series
Use to joint GV and GAC series
![AirTAC ตัวแยกทางลม GA Series AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-bracket-1.jpg)
Use to joint GZ and GAC series
![AirTAC ตัวแยกทางลม GA Series AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-bracket-2.jpg)
Use to joint GA and GAC series
![AirTAC ตัวแยกทางลม GA Series AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-bracket-3.jpg)
Use to joint GZ, GV and GAC series
![AirTAC ตัวแยกทางลม GA Series AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-bracket-4.jpg)
Dimensions | AirTAC ตัวแยกทางลม GA Series
![Dimensions AirTAC ตัวแยกทางลม GA Series Dimensions AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-dimensions-1.jpg)
![Dimensions AirTAC ตัวแยกทางลม GA Series Dimensions AirTAC ตัวแยกทางลม GA Series](/images/Products/AirTAC/AirTAC-FRL/Other-Series/ga/GA-dimensions-2.jpg)
Model\Item | A | B | C | P | |
---|---|---|---|---|---|
GA200 | 06 | 28.5 | 36 | 30 | 1/8" |
08 | 28.5 | 36 | 30 | 1/4" | |
GA300 | 08 | 35 | 44 | 38 | 1/4" |
10 | 35 | 44 | 38 | 3/8" | |
GA400 | 10 | 42 | 52 | 52 | 3/8" |
15 | 42 | 52 | 52 | 1/2" | |
GA600 | 20 | 60 | 76 | 68 | 3/4" |
25 | 60 | 76 | 68 | 1" |
