SMC - Mechanical Pressure Switches
Mechanical Pressure Switches
มีทั้งหมด 5 รุ่น คือ
Pressure Switch / Reed Switch Type IS10
Features | Pressure Switch / Reed Switch Type IS10
- 16% lighter, 11% smaller (Compared with the IS1000)
- Service life: 5 million cycles
- Can be connected to modular type F.R.L. units
Specifications | Pressure Switch / Reed Switch Type IS10
| Series | Type | Set pressure range |
|---|---|---|
| IS10 | Positive pressure | 0.1 to 0.4 MPa 0.1 to 0.6 MPa |
Pressure Switch / Micro Switch Type IS3000
Features | Pressure Switch / Micro Switch Type IS3000
- Can be used for micro load, around 10 mA e.g.
- With neon light.
Specifications | Pressure Switch / Micro Switch Type IS3000
| Series | Type | Set pressure range |
|---|---|---|
| IS3000 | Positive pressure | 0.1 to 0.7 MPa |
General Purpose Pressure Switch / Snap Switch Type ISG
Features | General Purpose Pressure Switch / Snap Switch Type ISG
- For general fluids
- Equivalent to IP44
- With neon light
Specifications | General Purpose Pressure Switch / Snap Switch Type ISG
| Series | Type | Set pressure range |
|---|---|---|
| ISG11□, 21□ | Positive pressure | 0.02 to 0.3 MPa |
| ISG12□, 22□ | Positive pressure | 0.05 to 0.7 MPa |
| ISG13□, 23□ | Positive pressure | 0.1 to 1.0 MPa |
| IS2761 | Positive pressure | 0.1 to 1.0 MPa |
| ISG19□, 29□ | Vacuum pressure | -10 to -100 kPa |
Vacuum Switch / Reed Switch Type ZSM1
Features | Vacuum Switch / Reed Switch Type ZSM1
Can be integrated with a ZM ejector system
ดาวน์โหลดไฟล์ PDFSpecifications | Vacuum Switch / Reed Switch Type ZSM1
| Series | Type | Set pressure range |
|---|---|---|
| ZSM1 | Vacuum pressure | -27 to -80 MPa |

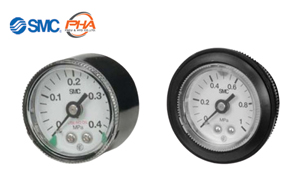

Pressure Gauge with Switch GP46
Features | Pressure Gauge with Switch GP46
A pressure switch function has been added to the gauge.
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Gauge with Switch GP46
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| GP46 | φ42.5 | R1/8, 1/4 |
