SMC - Air Dryers

Air Dryers

มีทั้งหมด 13 รุ่น คือ

  1. Refrigerated Air Dryer IDF
  2. Refrigerated Air Dryer IDF □E / F / D
  3. Refrigerated Air Dryer IDU □E
  4. Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS / 125FS / 150FS
  5. Refrigerated Air Dryer/For Use in Southeast Asia IDFC□
  6. Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA
  7. Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F
  1. Refrigerated Air Dryer/For Use in North, Central and South America IDFB
  2. Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E
  3. Thermo-dryer with Air Temperature Adjustment Function IDH□
  4. Heatless Air Dryer ID
  5. Membrane Air Dryer IDG□A / IDG
  6. Moisture Control Tube IDK

1) Refrigerated Air Dryer IDF

SMC - Refrigerated Air Dryer IDF
SMC - Refrigerated Air Dryer IDF

Features | Refrigerated Air Dryer IDF

  • Applicable for the high-temperature environments
    • Ambient temperature : Max. 45℃
    • Inlet air temperature : Max. 65℃
  • Increased air flow capacity
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer IDF

SeriesRated inlet conditionAir flow capacity
(m3/min[ANR])
50 Hz		Air flow capacity
(m3/min[ANR])
60 Hz		RefrigerantPort size
IDF60 35℃
0.7 MPa		 5.6 6.5 R410A (HFC)
GWP: 2088		 R1
IDF70 35℃
0.7 MPa		 8 9.1 R410A (HFC)
GWP: 2088		 R1 1/2
IDF80 40℃
0.7 MPa		 11.6 13.6 R410A (HFC)
GWP: 2088		 R2
IDF90 40℃
0.7 MPa		 14.3 16.4 R410A (HFC)
GWP: 2088		 R2

2) Refrigerated Air Dryer IDF □E / F / D

SMC - Refrigerated Air Dryer IDF
SMC - Refrigerated Air Dryer IDF

Features | Refrigerated Air Dryer IDF

  • Large size series
  • Tolerant of high temperature environment!
  • Top of its class in the industry for the large air-cooled type
  • Ambient temperature 45°C/Inlet
  • Air temperature 60°C (IDF100F to 150F)
  • Energy saving design
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer IDF

SeriesRated inlet conditionAir flow capacity
(m3/min[ANR])
50 Hz		Air flow capacity
(m3/min[ANR])
60 Hz		Applicable air compressor
(kW)		RefrigerantPort size
IDF1E 35℃
0.7 MPa		 0.1 0.12 0.75 R134a
(HFC)		 Rc3/8
IDF2E 35℃
0.7 MPa		 0.2 0.235 1.5 R134a
(HFC)		 Rc3/8
IDF3E 35℃
0.7 MPa		 0.32 0.37 2.2 R134a
(HFC)		 Rc3/8
IDF4E 35℃
0.7 MPa		 0.52 0.57 3.7 R134a
(HFC)		 Rc1/2
IDF6E 35℃
0.7 MPa		 0.75 0.82 5.5 R134a
(HFC)		 Rc3/4
IDF8E 35℃
0.7 MPa		 1.22 1.32 7.5 R134a
(HFC)		 Rc3/4
IDF11E 35℃
0.7 MPa		 1.65 1.82 11 R134a
(HFC)		 Rc3/4
IDF15E1 35℃
0.7 MPa		 2.8 3.1 15 R134a
(HFC)		 Rc1
IDF22E 35℃
0.7 MPa		 3.9 4.3 22 R407C
(HFC)		 R1
IDF37E 35℃
0.7 MPa		 5.7 6.1 37 R407C
(HFC)		 R1 1/2
IDF55E 40℃
0.7 MPa		 8.4 9.8 55 R407C
(HFC)		 R2
IDF75E 40℃
0.7 MPa		 11.0 12.4 75 R407C
(HFC)		 R2
IDF100F 40℃
0.7 MPa		 16.0 18.8 100 R407C
(HFC)		 R2
IDF125F 40℃
0.7 MPa		 20.1 23.7 125 R407C
(HFC)		 65 (2 1/2B)
flange
IDF150F 40℃
0.7 MPa		 25.0 30.0 150 R407C
(HFC)		 80 (3B)
flange
IDF190D 40℃
0.7 MPa		 32.0 38.0 190 R407C
(HFC)		 80 (3B)
flange
IDF240D 40℃
0.7 MPa		 43.0 50.0 240 R407C
(HFC)		 100 (4B)
flange
IDF370D 35℃
0.7 MPa		 54.0 65.0 370 R407C
(HFC)		 150 (6B)
flange

3) Refrigerated Air Dryer IDU □E

SMC - Refrigerated Air Dryer IDU □E
SMC - Refrigerated Air Dryer IDU □E

Features | Refrigerated Air Dryer IDU □E

  • Air flow capacity: Increased by up to 40% (SMC comparison)
  • Power consumption: Reduced by up to 40% (SMC comparison)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer IDU □E

SeriesRated inlet conditionAir flow capacity
(m3/min[ANR])
50 Hz		Air flow capacity
(m3/min[ANR])
60 Hz		Applicable air compressor
(kW)		RefrigerantPort size
IDU3E 55℃
0.7 MPa		 0.32 0.37 2.2 R134a
(HFC)		 Rc3/8
IDU4E 55℃
0.7 MPa		 0.52 0.57 3.7 R134a
(HFC)		 Rc1/2
IDU6E 55℃
0.7 MPa		 0.75 0.82 5.5 R134a
(HFC)		 Rc3/4
IDU8E 55℃
0.7 MPa		 1.1 1.2 7.5 R134a
(HFC)		 Rc3/4
IDU11E 55℃
0.7 MPa		 1.5 1.7 11 R134a
(HFC)		 Rc3/4
IDU15E1 55℃
0.7 MPa		 2.6 2.8 15 R134a
(HFC)		 Rc1
IDU22E 55℃
0.7 MPa		 3.9 4.3 22 R407C
(HFC)		 R1
IDU37E 55℃
0.7 MPa		 5.7 6.1 37 R407C
(HFC)		 R1 1/2
IDU55E 55℃
0.7 MPa		 8.4 9.8 55 R407C
(HFC)		 R2
IDU75E 55℃
0.7 MPa		 11.0 12.5 75 R407C
(HFC)		 R2

4) Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS / 125FS / 150FS

SMC - Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS /125FS / 150FS
SMC - Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS / 125FS / 150FS

Features | Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS / 125FS / 150FS

  • Energy-saving design (Second re-heater + Digital scroll compressor)
  • Power consumption: Reduced by up to 76%
  • Exhaust heat: Reduced by up to 25%
  • Tolerant of high temperature environments!
  • Ambient temperature: Up to 45ºC, Inlet air temperature: Up to 60ºC
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/Double Energy Saving Function Series IDF 100FS / 125FS / 150FS

SeriesApplicable
compressor (kW)		Air flow capacity
(m3/min[ANR])
50 Hz		Air flow capacity
(m3/min[ANR])
60 Hz
IDF100FS 100 16 18.8
IDF125FS 125 20.1 23.7
IDF150FS 150 25 27

5) Refrigerated Air Dryer/For Use in Southeast Asia IDFC□

SMC - Refrigerated Air Dryer/For Use in Southeast Asia IDFC□
SMC - Refrigerated Air Dryer/For Use in Southeast Asia IDFC□

Features | Refrigerated Air Dryer/For Use in Southeast Asia IDFC□

  • Applicable for the high-temperature environments of tropical regions
  • Can be used in high-temperature environments
    • Ambient temperature : Max. 45℃
    • Inlet air temperature : Max. 65℃
    • Dew point range : 3℃ to 20℃
  • Air flow capacity : 9.2 m3 / min (52% increase compared to the current model)
  • Power supply voltage : Single-phase 230 VAC (50 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/For Use in Southeast Asia IDFC□

SeriesRated inlet conditionAir flow capacity
(m3/min [ANR])
Outlet air pressure dew point
3℃		Air flow capacity
(m3/min [ANR])
Outlet air pressure dew point
10℃		Air flow capacity
(m3/min [ANR])
Outlet air pressure dew point
20℃		RefrigerantPort size
IDFC60 50℃
0.7 MPa		 0.9 2.8 4.7 R410A(HFC)
GWP: 2088		 R1
IDFC70 50℃
0.7 MPa		 1.6 4.7 7.8 R410A(HFC)
GWP: 2088		 R1 1/2
IDFC80 50℃
0.7 MPa		 2.2 6.5 10.9 R410A(HFC)
GWP: 2088		 R2
IDFC90 50℃
0.7 MPa		 3.1 9.2 15.4 R410A(HFC)
GWP: 2088		 R2

6) Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA

SMC - Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA
SMC - Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA

Features | Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA

  • Applicable for the high-temperature environments
  • Ambient temperature : Max. 45℃
  • Inlet air temperature : Max. 65℃
  • Increased air flow capacity
  • Power supply voltage: Single-phase 230 VAC (50 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/For Use in Europe, Asia and Oceania IDFA

SeriesRated inlet
condition		Air flow capacity
(m3/h [ANR] )
Dew point 3℃		Air flow capacity
(m3/h [ANR] )
Dew point 7℃		Air flow capacity
(m3/h [ANR] )
Dew point 10℃		RefrigerantPort size
IDFA60 35℃
0.7 MPa		 204 300 360 R410A(HFC)
GWP:2088		 R1
IDFA70 35℃
0.7 MPa		 312 408 480 R410A(HFC)
GWP:2088		 R1 1/2
IDFA80 35℃
0.7 MPa		 552 654 720 R410A(HFC)
GWP:2088		 R2
IDFA90 35℃
0.7 MPa		 810 900 960 R410A(HFC)
GWP:2088		 R2

7) Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F

SMC - Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F
SMC - Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F

Features | Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F

  • EC Directive compliant product (With CE mark)
  • Power supply voltage: Single-phase 230 VAC (50 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F

SeriesRated inlet conditionAir flow capacity
(m3/h [ANR])
Outlet air pressure dew point
3℃		Air flow capacity
(m3/h [ANR])
Outlet air pressure dew point
7℃		Air flow capacity
(m3/h [ANR])
Outlet air pressure dew point
10℃		RefrigerantPort size
IDFA3E 35℃
0.7 MPa		 12 15 17 R134a
(HFC)		 Rc3/8
IDFA4E 35℃
0.7 MPa		 24 31 34 R134a
(HFC)		 Rc1/2
IDFA6E 35℃
0.7 MPa		 36 46 50 R134a
(HFC)		 Rc3/4
IDFA8E 35℃
0.7 MPa		 65 83 91 R134a
(HFC)		 Rc3/4
IDFA11E 35℃
0.7 MPa		 80 101 112 R134a
(HFC)		 Rc3/4
IDFA15E 35℃
0.7 MPa		 120 152 168 R134a
(HFC)		 Rc1
IDFA22E 35℃
0.7 MPa		 182 231 254 R407C
(HFC)		 R1
IDFA37E 35℃
0.7 MPa		 273 347 382 R407C
(HFC)		 R1 1/2
IDFA55E 35℃
0.7 MPa		 390 432 510 R407C
(HFC)		 R2
IDFA75E 35℃
0.7 MPa		 660 720 822 R407C
(HFC)		 R2
IDFA100F-38 40℃
0.7 MPa		 - - 960 R407C
(HFC)		 R2
IDFA125F-38 40℃
0.7 MPa		 - - 1210 R407C
(HFC)		 R2 1/2
IDFA150F-38 40℃
0.7 MPa		 - - 1500 R407C
(HFC)		 DIN flange 80
IDFA100F-40 35℃
0.7 MPa		 860 - - R407C
(HFC)		 R2
IDFA125F-40 35℃
0.7 MPa		 1100 - - R407C
(HFC)		 R2 1/2
IDFA150F-40 35℃
0.7 MPa		 1340 - - R407C
(HFC)		 DIN flange 80

8) Refrigerated Air Dryer/For Use in North, Central and South America IDFB

SMC - Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA□E/F
SMC - Refrigerated Air Dryer/For Use in North, Central and South America IDFB

Features | Refrigerated Air Dryer/For Use in North, Central and South America IDFB

  • Applicable for the high-temperature environments
    • Ambient temperature : Max. 113ºF (45ºC)
    • Inlet air temperature : Max. 149ºF (65ºC)
  • Increased air flow capacity
  • Power supply voltage: Single-phase 230 VAC (60 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/For Use in North, Central and South America IDFB

SeriesRated inlet
condition		Air flow capacity
(m3/h [ANR] )
Dew point 37ºF (2.8℃)		Air flow capacity
(m3/h [ANR])
Dew point 45ºF (7.2℃)		Air flow capacity
(m3/h [ANR])
Dew point 50ºF (10℃)		RefrigerantPort size
IDFB60 100ºF
(37.8℃)
100 psi
(0.7 MPa)		 113
(192)		 155
(264)		 177
(300)		 R410A (HFC)
GWP: 2088		 R1, NPT1
IDFB70 100ºF
(37.8℃)
100 psi
(0.7 MPa)		 166
(282)		 215
(366)		 251
(426)		 R410A (HFC)
GWP: 2088		 R1 1/2, NPT1 1/2
IDFB80 100ºF
(37.8℃)
100 psi
(0.7 MPa)		 247
(420)		 314
(534)		 353
(600)		 R410A (HFC)
GWP: 2088		 R2, NPT2
IDFB90 100ºF
(37.8℃)
100 psi
(0.7 MPa)		 335
(570)		 406
(690)		 459
(780)		 R410A (HFC)
GWP: 2088		 R2, NPT2

9) Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E

SMC - Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E
SMC - Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E

Features | Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E

  • UL, CSA certified product
  • Power supply voltage: Single-phase 115 VAC (60 Hz), 230 VAC (60 Hz) 3-phase 460 VAC (60 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Refrigerated Air Dryer/For Use in North, Central, and South America IDFB□E

SeriesRated inlet conditionAir flow capacity SCFM (m3/h [ANR] )
Outlet air pressure dew point Note)
37ºF (2.8℃)		Air flow capacity SCFM (m3/h [ANR] )
Outlet air pressure dew point Note)
45ºF (7.2℃)		Air flow capacity SCFM (m3/h [ANR] )
Outlet air pressure dew point Note)
50ºF (10℃)		RefrigerantPort size
IDFB3E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 10(17): 11(19): 12(20): R134a
(HFC):		 NPT3/8:
IDFB4E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 15(25): 16(27): 17(28): R134a
(HFC):		 NPT1/2:
IDFB6E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 25(43): 26(45): 28(47): R134a
(HFC):		 NPT3/4:
IDFB8E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 41(70): 43(74): 45(77): R134a
(HFC):		 NPT3/4:
IDFB11E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 59(100): 62(106): 65(110): R134a
(HFC):		 NPT3/4:
IDFB15E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 71(120): 80(136): 86(147): R134a
(HFC):		 NPT1:
IDFB22E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 107(182): 120(205): 130(221): R134a
(HFC):		 NPT1:
IDFB37E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 161(273): 173(294): 181(308): R134a
(HFC):		 NPT1 1/2:
IDFB55E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 226(384): 258(438): 297(504): R407C
(HFC):		 NPT2:
IDFB75E: 100ºF
(37.8℃)
100 psi
(0.7 MPa):		 300(510): 353(600): 406(690): R407C
(HFC):		 NPT2:

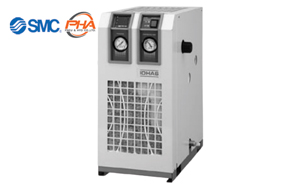

10) Thermo-dryer with Air Temperature Adjustment Function IDH□

SMC - Thermo-dryer with Air Temperature Adjustment Function IDH□
SMC - Thermo-dryer with Air Temperature Adjustment Function IDH□

Features | Thermo-dryer with Air Temperature Adjustment Function IDH□

  • Stable supply of temperature and pressure controlled dry clean air Can supply compressed air with same conditions and quality regradless of the season
  • Application example: Supplying compressed air with constant conditions to air bearings mounted on a tool
  • Built-in filter Nominal filtration: 0.01 μm (99.9% filtration efficiency) Outlet oil mist concentration: Max. 0.01 mg/m3 (ANR) Outlet cleanliness: Particles of 0.3 μm or more: 3.5 particles/L (ANR) or less
  • Compatible with power supplies from around the world Single phase 100, 200, 230 VAC (50/60 Hz)
ดาวน์โหลดไฟล์ PDF

Specifications | Thermo-dryer with Air Temperature Adjustment Function IDH□

SeriesAir flow capacity
L/min(ANR)		Outlet air
temperature
adjustment range		Outlet air set
pressure range		Outlet air
temperature
stability		Cooling
method
IDH□4 100 to 500 15 to 30℃ 0.15 to 0.85 MPa ±0.1 Heater
operation
PID control
IDH□6 200 to 800 15 to 30℃ 0.15 to 0.85 MPa ±0.1 Heater
operation
PID control

11) Heatless Air Dryer ID

SMC - Heatless Air Dryer ID
SMC - Heatless Air Dryer ID

Features | Heatless Air Dryer ID

  • Can supply dry air with a low dew point below –30ºC
  • Compact and lightweight without a heater or an electric control board
  • It is possible to check the outlet dew point with the indicator. (Self-regenerative type allows for easy maintenance)
ดาวน์โหลดไฟล์ PDF

Specifications | Heatless Air Dryer ID

SeriesOutlet flow L/min (ANR)Inlet flow L/min (ANR)
ID 80 to 780 100 to 975

12) Membrane Air Dryer IDG□A / IDG

SMC - Heatless Air Dryer ID
SMC - Heatless Air Dryer ID

Features | Heatless Air Dryer ID

  • It is possible to easily supply dry air using the hollow fiber membrane.
  • Non-fluorocarbon
  • Power supply not required
  • Compatible with low dew points (–60ºC)
  • No vibration or heat discharge
  • With a dew point indicator
ดาวน์โหลดไฟล์ PDF

Specifications | Heatless Air Dryer ID

SeriesOutlet flow L/min (ANR)Inlet flow L/min (ANR)
IDG□A/IDG 10 to 1000 -15, -20, -40, -60

13) Moisture Control Tube IDK

SMC - Moisture Control Tube IDK
SMC - Moisture Control Tube IDK

Features | Moisture Control Tube IDK

  • Prevents condensation in piping for small cylinders / air grippers
  • Diffuses water vapor in the piping to the outside
  • All you have to do is install the moisture control tube. Additional power supplies and works are not necessary.
ดาวน์โหลดไฟล์ PDF

Specifications | Moisture Control Tube IDK

SeriesO.D./I.D. (mm)Effective length (mm)Applicable fittings
IDK02
Linear shape		 2/1.2 100
200		 KQ2
IDK04
Linear shape		 4/2.5 100
200		 KQ2
IDK06
Linear shape		 6/4 100
200		 KQ2
IDK04-100-C1
Coil shape		 4/2.5 100 KQ2

ติดต่อ Pneumatic Festo, SMC

Festo นิวเมติกส์ 1
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
