OMRON Photoelectric Sensor - ZX-T series

Model Numbers | Photoelectric Displacement Sensor - ZX-T series

Sensors

Sensor Heads

Size	Type	Sensing distance	Resolution *	Model
6 dia.	Short type	1 mm	0.1 μm	ZX-TDS01T
	Standard type	4 mm		ZX-TDS04T
	Low measurement type			ZX-TDS04T-L
8 dia.	Standard type	10 mm	0.4 μm	ZX-TDS10T
	Ultra-low-load Type			ZX-TDS10T-L
	Air Lift Type			ZX-TDS10T-V
	Air Lift/Air Push Type			ZX-TDS10T-VL

Note: The resolution refers to the minimum value that can be read when a ZX-TDA[]1 Amplifier Unit is connected.

Amplifier Units

Appearance	Power supply	Output type	Model
	DC	NPN	ZX-TDA11 2M
		PNP	ZX-TDA41 2M

Accessories (Order Separately)

Calculating Unit

Appearance	Model
	ZX-CAL2

ZX-series Communications Interface Unit

Appearance	Model
	ZX-SF11

SmartMonitor Sensor Setup Tool for Personal Computer Connection

Appearance	Output type	Model
	ZX-series Communications Interface Unit	ZX-SF11
	ZX-series Communications Interface Unit + ZX-series Sensor Setup Software Basic	ZX-SFW11EV3 *1 *2
CD-ROM	ZX-series Sensor Setup Software	ZX-SW11EV3 *1

1. When using the ZX-TDA11/41 with the SmartMonitor, either the ZX-SFW11EV3 or the ZX-SW11EV3 SmartMonitor must be used. Earlier versions cannot be used.
2. The ZX-SFW11EV3 SmartMonitor can be used only to set functions and monitor waveforms.

Cables with Connectors on Both Ends (for Extension)*

Cable length	Model	Quantity
1 m	ZX-XC1A	1
4 m	ZX-XC4A
8 m	ZX-XC8A

* Robot Cable models are also available. The model numbers are ZX-XC[]R.

Preamplifier Mounting Brackets

Appearance	Model	Remarks
	ZX-XBT1	Attached to each Sensor Head
	ZX-XBT2	For DIN track mounting

Specifications | Photoelectric Displacement Sensor - ZX-T series

Amplifier Units

Model	ZX-TDA11	ZX-TDA41
Measurement period	1 ms
Possible average count settings *1</th >	1, 16, 32, 64, 128, 256, 512, or 1,024
Linear output *2	Current output: 4 to 20 mA/F.S., Max. load resistance: 300 Ω Voltage output: ±4 V (±5 V, 1 to 5 V *3), Output impedance: 100 Ω
Judgement outputs (3 outputs: HIGH/PASS/LOW)	NPN open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 1.2 V max.	PNP open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 2 V max.
Zero reset input, timing input, reset input, judgement output hold input	ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)	ON: Supply voltage short-circuited or supply voltage of 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)
Function	Measurement value display, Present value/set value/output value display, Display reverse, ECO mode, Number of display digit changes, Sample hold, Peak hold, Bottom hold, peak-to-peak hold, Self-peak hold, Self-bottom hold, Zero reset, Initial reset, Direct threshold value setting, Position teaching, Hysteresis width setting, Timing inputs, Reset input, Judgement output hold input, (A-B) calculations *4, (A+B) calculations *4, Sensor disconnection detection, Zero reset memory, Function lock, Non-measurement setting, Clamp value setting, Scale inversion, Zero reset indicator, Span adjustment, Warming-up display, Pressing force alarm
Indicators	Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)
Power supply voltage	12 to 24 VDC ±10%, Ripple (p-p): 10% max.
Current consumption	140 mA max. (with Sensor connected), For 24-VDC power supply voltage: 140 mA max. (with Sensor connected)
Ambient temperature	Operating and storage: 0 to 50°C (with no icing or condensation)
Temperature characteristic	0.03% F.S./°C
Connection method	Prewired (standard cable length: 2 m)
Weight (packed state)	Approx. 350 g
Materials	Case: PBT (polybutylene terephthalate), Cover: Polycarbonate

1. The response speed of the linear output is calculated as the measurement period × (average count setting + 1). The response speed of the judgement outputs is calculated as the measurement period × (average count setting
2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier Unit.
3. Setting is possible via the monitor focus function.
4. A Calculating Unit (ZX-CAL2) is required.

Sensor Heads

Model		ZX-TDS01T	ZX-TDS04T	ZX-TDS04T-L
Measurement range		1 mm	4 mm
Maximum actuator travel distance		Approx. 1.5 mm	Approx. 5 mm
Resolution *1		0.1 μm
Linearity *2		0.5% F.S.
Operating force *3		Approx. 0.7 N		Approx. 0.25 N
Degree of protection (Sensor Head)		IEC60529, IP67		IEC60529, IP54
Mechanical durability		10,000,000 operations min.
Ambient temperature		Operating: 0°C to 50°C (with no icing or condensation) Storage: -15°C to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no icing or condensation)
Temperature characteristic *4	Sensor Head	0.03% F.S./°C
	Preamplifier	0.01% F.S./°C
Weight (packed state)		Approx. 100 g
Materials	Sensor Head	Stainless steel
	Preamplifier	Polycarbonate
Accessories		Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1)

1. The resolution is given as the minimum value that can be read when a ZX-TDA[]1 Amplifier Unit is connected. This value is taken 15 minutes after turning ON the power with the average number of operations set to 256.
2. The linearity is given as the error in an ideal straight line displacement output.
3. These figures are representative values that apply for the measurement mid-point, and are for when the provided actuator is used, with the actuator moving downwards. If the actuator moves horizontally or upwards, the operating force will be reduced. Also, if an actuator other than the standard one is used, the operating force will vary with the weight of the actuator itself.
4. These figures are representative values that apply for the mid-point of the measurement range.

Sensor (Long-range Type)

Model		ZX-TDS10T	ZX-TDS10T-V	ZX-TDS10T-L	ZX-TDS10T-VL
Vacuum retract (VR) and air push (AP) compatible		No	VR	No	VR/AP
Measurement range		10 mm
Maximum actuator travel distance		10.5 mm
Resolution *1 *5		0.4 μm
Linearity *2 *5		±0.5% FS
Operating force *3		Approx. 0.7 N	Approx. 0.6 N	Approx. 0.065 N	Approx. 0.09 to 1.41 N
Air pressure	Vacuum retracting	---	-0.55 to -0.70 (bar)	---	-0.22 to -0.5 (bar)
	Air push		---		0.125 to 2 (bar)
Degree of protection	Sensor Head	IP65		IP50
	Preamplifier	IP40
Mechanical durability		10,000,000 operations min.
Ambient temperature		Operating: 0 to 50°C (with no icing or condensation), Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no icing or condensation)
Temperature characteristic *4	Sensor Head	±0.01% F.S./°C
	Preamplifier	±0.01% F.S./°C
Vibration resistance		0.35-mm single amplitude at 10 to 55 Hz for 50 min each in the X, Y, and Z directions
Shock resistance		150 m/S2 3 times each in 6 directions (up/down, left/right, and forward/backward)
Connection method		Prewired connector (2 m from the Sensor Head to the Preamplifier, 0.2 m from the Preamplifier to the connector)
Weight (packed state)		Approx. 100 g
Materials	Sensor Head	Stainless steel
	Rubber sleeve	Viton		None
	Preamplifier	Polycarbonate
	Mounting Brackets	Stainless steel		Polyamide
Accessories		Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1), Right- angle Adapter *6

1. The resolution indicates the variation (±3 σ) in the linear output (voltage output) when a ZX-TDA[]1 Amplifier Unit is connected. This value is taken 30 minutes after turning ON the power with the average number of operations set to 1,024. The minimum value that can be read is 1 μm.
2. The linearity is given as the error in an ideal straight line displacement output.
3. These figures are representative values that apply for the mid-point of the measurement range when the Actuator provided is secured facing downward. - ZX-TDS10T and ZX-TDS10T-V: The operating force will be reduced if the Actuator is secured facing horizontally or upward. - ZX-TDS10T-L and ZX-TDS10T-VL: The actuator can be installed only facing downward.
4. These figures are representative values that apply for the mid-point of the measurement range.
5. These values were measured at an ambient temperature of 23°C.
6. The ZX-TDS10T comes with a Right-angle Adapter.

Dimensions | Photoelectric Displacement Sensor - ZX-T series

Sensors

ZX-TDS01T

* Measurement range: 11.2 to 12.2 (TYP)

ZX-TDS04T
ZX-TDS04T-L

* Measurement range: 14.9 to 18.9 (TYP)

ZX-TDS10[]

ZX-TDS10[]-L

ZX-TDS10[]-V

ZX-TDS10[]-VL

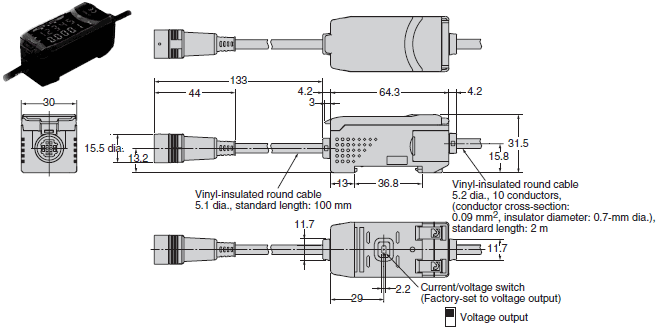

Amplifier Unit

ZX-TDA11
ZX-TDA41

Accessories (Order Separately)

Preamplifier Mounting Bracket (Supplied with Each Sensor)

ZX-XBT1
ZX-XBT2 (For DIN Track Mounting)

Features | Photoelectric Displacement Sensor - ZX-T series

• Smart Sensors High-Precision Contact Type
• The Smart Answer to High-precision Measuring Applications that Were Difficult with Non-contact Types

---

Properties | Photoelectric Displacement Sensor - ZX-T series

Photoelectric Displacement Sensor	ZX-T
Measurement range	1, 4 mm
Resolution	1 μm
Linearity	± 0.5% F.S.
Degree of protection	IP54, IP67
MaterialsSensor Head	Stainless steel

เลือกรุ่นสินค้า | Photoelectric Displacement Sensor - ZX-T series

เซนเซอร์

หัวเซนเซอร์

ขนาด	ประเภท	ระยะการตรวจจับ	ความละเอียด*	รุ่นสินค้า
6 dia.	สัน	1 มม.	0.1 ไมโครเมตร	ZX-TDS01T
	มาตราฐาน	4 มม.		ZX-TDS04T
	การวัดต่ำ			ZX-TDS04T-L
8 dia.	มาตราฐาน	10 มม.	0.4 ไมโครเมตร	ZX-TDS10T
	โหลดต่ำพิเศษ			ZX-TDS10T-L
	Air Lift Type			ZX-TDS10T-V
	Air Lift/Air Push Type			ZX-TDS10T-VL

หมายเหตุ : ความละเอียดหมายถึงค่าต่ำสุดที่สามารถอ่านได้เมื่อเชื่อมต่อหน่วยแอมพลิฟายเออร์ZX-TDA[]1

หน่วยแอมพลิฟายเออร์

ลักษณะ	แหล่งจ่ายไฟ	ประเภทเอาต์พุต	รุ่น
	DC	NPN	ZX-TDA11 2M
		PNP	ZX-TDA41 2M

อุปกรณ์เสริม (แยกจำหน่าย)

หน่วย คำนวณ

ลักษณะ	รุ่นสินค้า
	ZX-CAL2

ZX-series หน่วยเชื่อมต่อการสื่อสาร

Appearance	Model
	ZX-SF11

เซ็นเซอร์ SmartMonitor เครื่องมือติดตั้งสำหรับคอมพิวเตอร์ส่วนบุคคล

ลักษณะ	ประเภทเอาต์พุต	รุ่นสินค้า
	หน่วยเชื่อมต่อการสื่อสารZX-series	ZX-SF11
	หน่วยเชื่อมต่อการสื่อสารZX-series + เซ็นเซอร์ ZX-series Setup Software Basic	ZX-SFW11EV3 *1 *2
CD-ROM	ZX-series Sensor Setup Software	ZX-SW11EV3 *1

1. เมื่อใช้ ZX-TDA11 / 41 กับ SmartMonitorต้องใช้ ZX-SFW11EV3 หรือ ZX-SW11EV3 SmartMonitorไม่สามารถใช้เวอร์ชันก่อนหน้านี้ได้
2. สามารถใช้ ZX-SFW11EV3 SmartMonitorเพื่อตั้งค่าฟังก์ชันและตรวจสอบรูปคลื่นเท่านั้น

สายเคเบิลที่มีขั้วต่อที่ปลายทั้งสองข้าง (สำหรับส่วนต่อขยาย)*

ความยาวสาย	รุ่นสินค้า	ปริมาณ
1 m	ZX-XC1A	1
4 m	ZX-XC4A
8 m	ZX-XC8A

นอกจากนี้ยังมีรุ่นสายหุ่นยนต์ หมายเลขรุ่นคือ ZX-XC[]R

* นอกจากนี้ยังมีรุ่นสายหุ่นยนต์ หมายเลขรุ่นคือ ZX-XC[]R ขายึด พรีแอมพลิหายเออร์

ลักษณะ	รุ่น	หมายเหตุ
	ZX-XBT1	ติดอยู่กับหัวเซนเซอร์แต่ละตัว
	ZX-XBT2	สำหรับการติดตั้งราง DIN

ข้อมูลทางเทคนิค | Photoelectric Displacement Sensor - ZX-T series

Amplifier Units

Model	ZX-TDA11	ZX-TDA41
Measurement period	1 ms
Possible average count settings *1</th >	1, 16, 32, 64, 128, 256, 512, or 1,024
Linear output *2	Current output: 4 to 20 mA/F.S., Max. load resistance: 300 Ω Voltage output: ±4 V (±5 V, 1 to 5 V *3), Output impedance: 100 Ω
Judgement outputs (3 outputs: HIGH/PASS/LOW)	NPN open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 1.2 V max.	PNP open-collector outputs, 30 VDC, 30 mA max. Residual voltage: 2 V max.
Zero reset input, timing input, reset input, judgement output hold input	ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)	ON: Supply voltage short-circuited or supply voltage of 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)
Function	Measurement value display, Present value/set value/output value display, Display reverse, ECO mode, Number of display digit changes, Sample hold, Peak hold, Bottom hold, peak-to-peak hold, Self-peak hold, Self-bottom hold, Zero reset, Initial reset, Direct threshold value setting, Position teaching, Hysteresis width setting, Timing inputs, Reset input, Judgement output hold input, (A-B) calculations *4, (A+B) calculations *4, Sensor disconnection detection, Zero reset memory, Function lock, Non-measurement setting, Clamp value setting, Scale inversion, Zero reset indicator, Span adjustment, Warming-up display, Pressing force alarm
Indicators	Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)
Power supply voltage	12 to 24 VDC ±10%, Ripple (p-p): 10% max.
Current consumption	140 mA max. (with Sensor connected), For 24-VDC power supply voltage: 140 mA max. (with Sensor connected)
Ambient temperature	Operating and storage: 0 to 50°C (with no icing or condensation)
Temperature characteristic	0.03% F.S./°C
Connection method	Prewired (standard cable length: 2 m)
Weight (packed state)	Approx. 350 g
Materials	Case: PBT (polybutylene terephthalate), Cover: Polycarbonate

1. The response speed of the linear output is calculated as the measurement period × (average count setting + 1). The response speed of the judgement outputs is calculated as the measurement period × (average count setting
2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier Unit.
3. Setting is possible via the monitor focus function.
4. A Calculating Unit (ZX-CAL2) is required.

Sensor Heads

Model		ZX-TDS01T	ZX-TDS04T	ZX-TDS04T-L
Measurement range		1 mm	4 mm
Maximum actuator travel distance		Approx. 1.5 mm	Approx. 5 mm
Resolution *1		0.1 μm
Linearity *2		0.5% F.S.
Operating force *3		Approx. 0.7 N		Approx. 0.25 N
Degree of protection (Sensor Head)		IEC60529, IP67		IEC60529, IP54
Mechanical durability		10,000,000 operations min.
Ambient temperature		Operating: 0°C to 50°C (with no icing or condensation) Storage: -15°C to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no icing or condensation)
Temperature characteristic *4	Sensor Head	0.03% F.S./°C
	Preamplifier	0.01% F.S./°C
Weight (packed state)		Approx. 100 g
Materials	Sensor Head	Stainless steel
	Preamplifier	Polycarbonate
Accessories		Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1)

1. The resolution is given as the minimum value that can be read when a ZX-TDA[]1 Amplifier Unit is connected. This value is taken 15 minutes after turning ON the power with the average number of operations set to 256.
2. The linearity is given as the error in an ideal straight line displacement output.
3. These figures are representative values that apply for the measurement mid-point, and are for when the provided actuator is used, with the actuator moving downwards. If the actuator moves horizontally or upwards, the operating force will be reduced. Also, if an actuator other than the standard one is used, the operating force will vary with the weight of the actuator itself.
4. These figures are representative values that apply for the mid-point of the measurement range.

Sensor (Long-range Type)

Model		ZX-TDS10T	ZX-TDS10T-V	ZX-TDS10T-L	ZX-TDS10T-VL
Vacuum retract (VR) and air push (AP) compatible		No	VR	No	VR/AP
Measurement range		10 mm
Maximum actuator travel distance		10.5 mm
Resolution *1 *5		0.4 μm
Linearity *2 *5		±0.5% FS
Operating force *3		Approx. 0.7 N	Approx. 0.6 N	Approx. 0.065 N	Approx. 0.09 to 1.41 N
Air pressure	Vacuum retracting	---	-0.55 to -0.70 (bar)	---	-0.22 to -0.5 (bar)
	Air push		---		0.125 to 2 (bar)
Degree of protection	Sensor Head	IP65		IP50
	Preamplifier	IP40
Mechanical durability		10,000,000 operations min.
Ambient temperature		Operating: 0 to 50°C (with no icing or condensation), Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity		Operating and storage: 35% to 85% (with no icing or condensation)
Temperature characteristic *4	Sensor Head	±0.01% F.S./°C
	Preamplifier	±0.01% F.S./°C
Vibration resistance		0.35-mm single amplitude at 10 to 55 Hz for 50 min each in the X, Y, and Z directions
Shock resistance		150 m/S2 3 times each in 6 directions (up/down, left/right, and forward/backward)
Connection method		Prewired connector (2 m from the Sensor Head to the Preamplifier, 0.2 m from the Preamplifier to the connector)
Weight (packed state)		Approx. 100 g
Materials	Sensor Head	Stainless steel
	Rubber sleeve	Viton		None
	Preamplifier	Polycarbonate
	Mounting Brackets	Stainless steel		Polyamide
Accessories		Instruction manual, Preamplifier Mounting Brackets (ZX-XBT1), Right- angle Adapter *6

1. The resolution indicates the variation (±3 σ) in the linear output (voltage output) when a ZX-TDA[]1 Amplifier Unit is connected. This value is taken 30 minutes after turning ON the power with the average number of operations set to 1,024. The minimum value that can be read is 1 μm.
2. The linearity is given as the error in an ideal straight line displacement output.
3. These figures are representative values that apply for the mid-point of the measurement range when the Actuator provided is secured facing downward. - ZX-TDS10T and ZX-TDS10T-V: The operating force will be reduced if the Actuator is secured facing horizontally or upward. - ZX-TDS10T-L and ZX-TDS10T-VL: The actuator can be installed only facing downward.
4. These figures are representative values that apply for the mid-point of the measurement range.
5. These values were measured at an ambient temperature of 23°C.
6. The ZX-TDS10T comes with a Right-angle Adapter.

ขนาด | Photoelectric Displacement Sensor - ZX-T series

Sensors

ZX-TDS01T

* Measurement range: 11.2 to 12.2 (TYP)

ZX-TDS04T
ZX-TDS04T-L

* Measurement range: 14.9 to 18.9 (TYP)

ZX-TDS10[]

ZX-TDS10[]-L

ZX-TDS10[]-V

ZX-TDS10[]-VL

Amplifier Unit

ZX-TDA11
ZX-TDA41

Accessories (Order Separately)

Preamplifier Mounting Bracket (Supplied with Each Sensor)

ZX-XBT1
ZX-XBT2 (For DIN Track Mounting)

คุณสมบัติ | Photoelectric Displacement Sensor - ZX-T series

• เซนเซอร์อัจฉริยะประเภทหน้าสัมผัสความแม่นยำสูง
• ตอบโจทย์อย่างชาญฉลาดด้วยแอพพลิเคชันการวัดที่มีความแม่นยำสูงซึ่งยากกับประเภทที่ไม่สัมผัส

---

ข้อมูลจำเพาะ | Photoelectric Displacement Sensor - ZX-T series

Photoelectric Displacement Sensor	ZX-T
ช่วงการวัด	1, 4 mm
ความละเอียด	1 ไมโครเมตร
ความเที่ยงตรง	± 0.5% F.S.
ระดับการป้องกัน	IP54, IP67
วัสดุหัวเซนเซอร์	สเตนเลส
