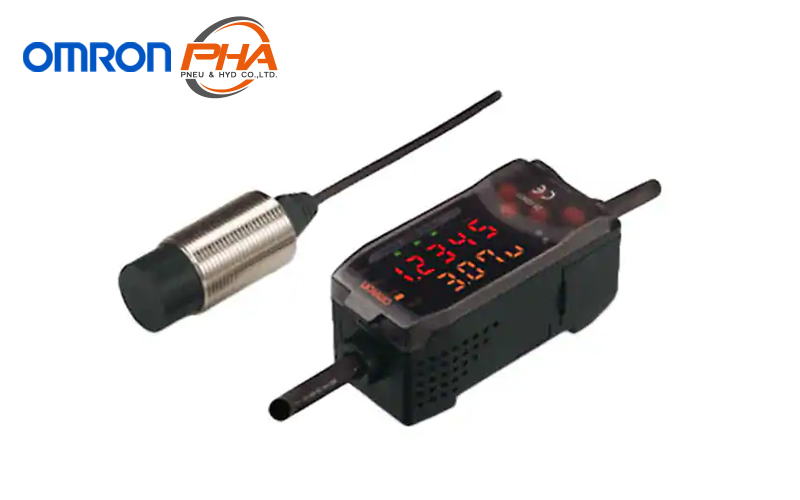

OMRON Photoelectric Sensor - ZX-E series

Model Numbers | Photoelectric Displacement Sensor - ZX-E series

Sensors

Sensor Heads

Shape	Dimensions	Sensing distance	Resolution *1	Model
Cylindrical	3 dia. x 18 mm	0.5 mm	1 μm	ZX-EDR5T
	5.4 dia. x 18 mm	1 mm		ZX-ED01T *2
	8 dia. x 22 mm	2 mm		ZX-ED02T *2
Screw-shaped	M10 x 22 mm			ZX-EM02T *2
	M18 x 46.3 mm	7 mm		ZX-EM07MT *2
Flat	30 x 14 x 4.8 mm	4 mm		ZX-EV04T *2 *3
Heat-resistant, cylindrical	M12 x 22 mm	2 mm		ZX-EM02HT *4

1. For an average count of 4,096.
2. Models with Protective Spiral Tubes are also available. Add a suffix of “-S” to the above model numbers when ordering.(Example: ZX-ED01T-S) As for ZX-EM07MT, please mention ZX-EM07M-S when ordering. For detailed dimensions of the Protective Spiral Tube, refer to the information on the E39-F32A on the OMRON website.
3. Be sure to use ZX-EDA Amplifier Unit version 1,200 or later with the ZX-EV04T.
4. Be sure to use ZX-EDA Amplifier Unit version 1,300 or later with the ZX-EM02HT.

Amplifier Units

Appearance	Power supply	Output type	Model
	DC	NPN	ZX-EDA11 2M
		PNP	ZX-EDA41 2M

Note : Compatible connection with the Sensor Head.

Accessories (Order Separately)

Calculating Unit

Appearance	Model
	ZX-CAL2

Amplifier Mounting Brackets

A ZX-XBE1 is provided with the Sensor. Order an Amplifier Mounting Bracket separately if required.

Appearance	Model	Remarks
	ZX-XBE1	Attached to each Sensor Head
	ZX-XBE2	For DIN track mounting

Logging Tool for Personal Computers

Appearance	Name	Model
	Communications Interface Unit (RS-232C)	ZX-SF11
	Smart Monitor (Logging Software + Function Setting Software)	ZX-SW11EV3 *1

Setup Tool for Personal Computer

Appearance	Name	Model
	Communications Interface Unit (RS-232C) + Smart Monitor Basic *2 (Function Setting Software)	ZX-SFW11EV3 *1

1. The ZX-SFW11EV3 or ZX-SW11EV3 is required to use the Smart Monitor with the ZX-LDA11-N/41-N. Earlier versions cannot be used.
2. The Smart Monitor Basic does not have a logging function. Other than the logging function, the Smart Monitor Basic supports the same functions as the Smart Monitor.

Cables with Connectors on Both Ends (for Extension)*

Cable length	Model	Quantity
1 m	ZX-XC1A	1
4 m	ZX-XC4A
8 m	ZX-XC8A

* Robot cable models are also available. The model numbers are ZX-XC[]R.

Bank Unit

Appearance	Model
	ZX-SB11

Specifications | Photoelectric Displacement Sensor - ZX-E series

Sensor Heads

Model			ZX-EDR5T	ZX-ED01T	ZX-ED02T / EM02T	ZX-EM07MT	ZX-EV04T	ZX-EM02HT
Measurement range			0 to 0.5 mm	0 to 1 mm	0 to 2 mm	0 to 7 mm	0 to 4 mm	0 to 2 mm
Sensing object			Magnetic metals (Measurement ranges and linearities are different for non-magnetic metals. Refer to Engineering Data on See Engineering Data (Typical).)
Standard reference object			18 × 18 × 3 mm		30 × 30 × 3 mm	60 × 60 × 3 mm		45 × 45 × 3 mm
			Material: ferrous (S50C)
Resolution *1			1 μm
Linearity *2			± 0.5% F.S.					± 1.0% F.S. *5
Linear output range			Same as measurement range.
Temperature characteristic *3 (including Amplifier Unit)			0.15 % F.S./°C	0.07% F.S./°C				0.1% F.S./°C
Ambient temper- ature	Operating *4		0 to 50°C (with no icing or con- densation)	-10 to 60°C (with no icing or condensation)				-10 to 200°C (with no icing or condensa- tion)
	Storage *4			-20 to 70°C (with no icing or condensation)
Ambient humidity			Operating and storage: 35% to 85% (with no condensation)
Insulation resistance			50 MΩ min. (at 500 DC)
Dielectric strength			1,000 VAC, 50/60 Hz for 1 min between charged parts and case
Vibration resistance (destruction)			10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance (destruction)			500 m/s2, 3 times each in X, Y, and Z directions
Degree of protection (Sensor Head)			IEC60529, IP65	IEC60529, IP67				IEC60529, IP60 *6
Connection method			Connector relay (standard cable length: 2 m)
Weight (packed state)			Approx. 120 g	Approx. 140 g		Approx. 160 g	Approx. 130 g	Approx. 160 g
Materials	Sensor Head	Case	Brass	Stainless steel	Brass		Zinc (nickel- plated)	Brass
		Sensing surface	Heat-resistant ABS					PEEK
		Tightening nut	---		Brass (nickel-plated) (except ZX-ED02T)		---	Brass (nickel-plated)
		Toothed washer	---		Iron (zinc-plated) (except ZX-ED02T)		---	Iron (zinc-plated)
	Preamplifier		PES
Accessories			Amplifier Mounting Brackets (ZX-XBE1), Instruction Manual

1. Resolution: The resolution is the deviation (±3σ) in the linear output when connected to the ZX-EDA Amplifier Unit. The above values indicate the deviations observed 30 minutes after the power is turned ON. (The resolution is measured with OMRON's standard reference object at 1/2 of the measurement range with the ZX-EDA set for the maximum average count of 4,096 per period.) The resolution is given at the repeat accuracy for a stationary workpiece, and is not an indication of the distance accuracy. The resolution may be adversely affected under strong electromagnetic fields.
2. Linearity: The linearity is given as the error in an ideal straight line displacement output when measuring the standard reference object. The linearity and measurement values vary with the object being measured.
3. Temperature characteristic: The temperature characteristic is measured with OMRON's standard reference object at 1/2 of the measurement range.
4. The ambient temperature given is only for the sensor head. It is -10 to 60°C for the preamp.
5. The value given is for an ambient temperature of 25°C.
6. Do not use in moist environments because the case is not waterproof.

Amplifier Units

Model	ZX-EDA11	ZX-EDA41
Measurement period *1	150 μs
Possible average count settings	1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096
Linear output *2	Current output: 4 to 20 mA/F.S., Max. load resistance: 300 Ω Voltage output: ± 4 V ( ± 5 V, 1 to 5 V *3), Output impedance: 100 Ω
Judgement outputs (3 outputs: HIGH/PASS/LOW)	NPN open-collector outputs, 30 VDC, 50 mA max. Residual voltage: 1.2 V max.	PNP open-collector outputs, 30 VDC, 50 mA max. Residual voltage: 2 V max.
Zero reset input, timing input, reset input, judgement output hold input	ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)	ON: Supply voltage short-circuited or supply voltage within 1.5 V OFF: Open (leakage current: 0.1 mA max.)
Function	- Number of display digit changes - Sample hold - Peak hold - Bottom hold, peak-to-peak hold - Self-peak hold - Self-bottom hold - Average hold - Delay hold - Zero reset - Initial reset - Linearity initialization - ON-delay timer - OFF-delay timer - One-shot timer - Previous value comparison - Non-measurement setting - Direct threshold value setting - Position teaching - Automatic teaching - Hysteresis width setting - Timing inputs - Reset input - Judgement output hold input - Monitor focus - Linear output correction - (A-B) calculations *4 - (A+B) calculations *4 - K-(A+B) calculation *4 - Mutual interference prevention *4 - Sensor disconnection detection - Zero reset memory - Zero reset indicator - Key lock
Indications	Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)
Voltage influence (including Sensor)	0.5% F.S. of linear output value at ±20% of power supply voltage
Power supply voltage	12 to 24 VDC ± 10%, Ripple (p-p): 10% max.
Current consumption	140 mA max. with power supply voltage of 24 VDC (with Sensor connected)
Ambient temperature	Operating and storage: 0 to 50°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 DC)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions
Shock resistance (destruction)	300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward)
Connection method	Prewired (standard cable length: 2 m)
Weight (packed state)	Approx. 350 g
Materials	Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Accessories	Instruction Manual

1. The response time for the first linear output or judgment output is calculated as follows (with fixed sensitivity): Measurement period × (Average count setting + The response time for the second and later outputs is the measurement period specified in the table.
2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier Unit.
3. Setting is possible via the monitor focus function.
4. A Calculating Unit (ZX-CAL2) is required.

Dimensions | Photoelectric Displacement Sensor - ZX-E series

Sensors

Sensor Heads

ZX-EDR5T

ZX-ED01T

ZX-ED02T

ZX-EM02T

ZX-EM07MT

ZX-EV04T

ZX-EM02HT

Amplifier Units

ZX-EDA11
ZX-EDA41

Accessories (Sold Separately)

Preamplifier Mounting Bracket

ZX-XBE1

ZX-XBE2

Calculating Unit

ZX-CAL2

ZX-series Communications Interface Unit

ZX-SF11

Cables with Connectors on Both Ends (for Extension)

ZX-XC1A (1 m)
ZX-XC4A (4 m)
ZX-XC8A (8 m)

Features | Photoelectric Displacement Sensor - ZX-E series

• Sensor Heads support a wide variety of applications.
• Linearity can be adjusted for non-ferrous metals, such as SUS and aluminum, using the material selection function.
• Simple linearity compensation (teaching).
• Easily perform calculation for two Sensors by using a Calculating Unit.
• Prevent mutual interference for up to five Units by using a Calculating Unit

---

Properties | Photoelectric Displacement Sensor - ZX-E series

Photoelectric Displacement Sensor	ZX-E
Measurement range	0 - 0.5, 0 - 1, 0 - 2, 0 - 4, 0 - 7 mm
Sensing object	Magnetic metals
Resolution	1 μm
Linearity	± 0.5% F.S.
Degree of protection	IP60, IP65, IP67
Materials Case	Brass, Stainless steel, Zinc (nickel-plated)

เลือกรุ่นสินค้า | Photoelectric Displacement Sensor - ZX-E series

เซนเซอร์

หัวเซนเซอร์

รูปร่าง	ขนาด	ระยะตรวจจับ	ความละเอียด*1	รุ่นสินค้า
ทรงกระบอก	3 dia x 18 มม.	0.5 มม.	1 ไมโครเมตร	ZX-EDR5T
	5.4 dia. x 18 มม.	1 มม.		ZX-ED01T *2
	8 dia. x 22 มม.	2 มม.		ZX-ED02T *2
ทรงสกรู	M10 x 22 มม.			ZX-EM02T *2
	M18 x 46.3 มม.	7 มม.		ZX-EM07MT *2
แบบแผ่นบาง	30 x 14 x 4.8 มม.	4 มม.		ZX-EV04T *2 *3
ทนความร้อน, ทรงกระบอก	M12 x 22 มม.	2 มม.		ZX-EM02HT *4

1. สำหรับการนับเฉลี่ย 4,096
2. นอกจากนี้ยังมีรุ่นที่มีท่อเกลียวป้องกัน เพิ่มคำต่อท้าย“ -S” ให้กับหมายเลขรุ่นด้านบนเมื่อสั่งซื้อ
   (ตัวอย่าง: ZX-ED01T-S) สำหรับ ZX-EM07MT, โปรดระบุ เมื่อสั่งซื้อ สำหรับขนาดโดยละเอียดของท่อเกลียวป้องกันโปรดดูข้อมูลบน E39-F32A บนเว็บไซต์ OMRON
3. อย่าลืมใช้ ZX-EDA หน่วยแอมพลิฟายเออร์เวอร์ชัน1,200 หรือใหม่กว่ากับ ZX-EV04T
4. อย่าลืมใช้ ZX-EDA หน่วยแอมพลิฟายเออร์เวอร์ชัน1,300 หรือใหม่กว่ากับ ZX-EM02HT

หน่วยแอมพลิฟายเออร์

ลักษณะ	แหล่งจ่ายไฟ	ประเภทเอาต์พุต	รุ่นสินค้า
	DC	NPN	ZX-EDA11 2M
		PNP	ZX-EDA41 2M

หมายเหตุ : เชื่อมต่อเข้ากันได้กับหัวเซนเซอร์

อุปกรณ์เสริม (แยกจำหน่าย)

หน่วย คำนวณ

ลักษณะ	สินค้า
	ZX-CAL2

ขายึดแอมพลิฟายเออร์

ZX-XBE1 มาพร้อมกับเซนเซอร์ สั่งซื้อขายึดแอมพลิฟายเออร์แยกต่างหากหากจำเป็น

ลักษณะ	รุ่นสินค้า	หมายเหตุ
	ZX-XBE1	ติดอยู่กับหัวเซนเซอร์แต่ละตัว
	ZX-XBE2	สำหรับการติดตั้งราง DIN

เครื่องมือบันทึกสำหรับคอมพิวเตอร์ส่วนบุคคล

ลักษณะ	รายการ	รุ่นสินค้า
	Communications Interface Unit (RS-232C)	ZX-SF11
	Smart Monitor (Logging Software + Function Setting Software)	ZX-SW11EV3 *1

เครื่องมือติดตั้งสำหรับคอมพิวเตอร์ส่วนบุคคล

ลักษณะ	รายการ	รุ่นสินค้า
	หน่วยเชื่อมต่อการสื่อสาร(RS-232C) + Smart Monitor Basic *2 (Function Setting Software)	ZX-SFW11EV3 *1

1. ต้องใช้ ZX-SFW11EV3 หรือ ZX-SW11EV3 เพื่อใช้ Smart Monitor กับZX-LDA11-N/41-N ไม่สามารถใช้เวอร์ชั่นก่อน
2. Smart Monitor Basic ไม่มีฟังก์ชันการบันทึก นอกเหนือจากฟังกชันการบันทึกแล้ว Smart Monitor Basic ยังรองรับฟังก์ชันเดียวกับ Smart Monitor

สายเคเบิลที่มีขั้วต่อที่ปลายทั้งสองข้าง (สำหรับส่วนต่อขยาย) *

ความยาวสาย	รุ่น	ปริมาณ
1 m	ZX-XC1A	1
4 m	ZX-XC4A
8 m	ZX-XC8A

*นอกจากนี้ยังมีรุ่นสายหุ่นยนต์ หมายเลขรุ่นคือ ZX-XC[]R

Bank Unit

ลักษณะ	รุ่น
	ZX-SB11

ข้อมูลทางเทคนิค | Photoelectric Displacement Sensor - ZX-E series

Sensor Heads

Model			ZX-EDR5T	ZX-ED01T	ZX-ED02T / EM02T	ZX-EM07MT	ZX-EV04T	ZX-EM02HT
Measurement range			0 to 0.5 mm	0 to 1 mm	0 to 2 mm	0 to 7 mm	0 to 4 mm	0 to 2 mm
Sensing object			Magnetic metals (Measurement ranges and linearities are different for non-magnetic metals. Refer to Engineering Data on See Engineering Data (Typical).)
Standard reference object			18 × 18 × 3 mm		30 × 30 × 3 mm	60 × 60 × 3 mm		45 × 45 × 3 mm
			Material: ferrous (S50C)
Resolution *1			1 μm
Linearity *2			± 0.5% F.S.					± 1.0% F.S. *5
Linear output range			Same as measurement range.
Temperature characteristic *3 (including Amplifier Unit)			0.15 % F.S./°C	0.07% F.S./°C				0.1% F.S./°C
Ambient temper- ature	Operating *4		0 to 50°C (with no icing or con- densation)	-10 to 60°C (with no icing or condensation)				-10 to 200°C (with no icing or condensa- tion)
	Storage *4			-20 to 70°C (with no icing or condensation)
Ambient humidity			Operating and storage: 35% to 85% (with no condensation)
Insulation resistance			50 MΩ min. (at 500 DC)
Dielectric strength			1,000 VAC, 50/60 Hz for 1 min between charged parts and case
Vibration resistance (destruction)			10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance (destruction)			500 m/s2, 3 times each in X, Y, and Z directions
Degree of protection (Sensor Head)			IEC60529, IP65	IEC60529, IP67				IEC60529, IP60 *6
Connection method			Connector relay (standard cable length: 2 m)
Weight (packed state)			Approx. 120 g	Approx. 140 g		Approx. 160 g	Approx. 130 g	Approx. 160 g
Materials	Sensor Head	Case	Brass	Stainless steel	Brass		Zinc (nickel- plated)	Brass
		Sensing surface	Heat-resistant ABS					PEEK
		Tightening nut	---		Brass (nickel-plated) (except ZX-ED02T)		---	Brass (nickel-plated)
		Toothed washer	---		Iron (zinc-plated) (except ZX-ED02T)		---	Iron (zinc-plated)
	Preamplifier		PES
Accessories			Amplifier Mounting Brackets (ZX-XBE1), Instruction Manual

1. Resolution: The resolution is the deviation (±3σ) in the linear output when connected to the ZX-EDA Amplifier Unit. The above values indicate the deviations observed 30 minutes after the power is turned ON. (The resolution is measured with OMRON's standard reference object at 1/2 of the measurement range with the ZX-EDA set for the maximum average count of 4,096 per period.) The resolution is given at the repeat accuracy for a stationary workpiece, and is not an indication of the distance accuracy. The resolution may be adversely affected under strong electromagnetic fields.
2. Linearity: The linearity is given as the error in an ideal straight line displacement output when measuring the standard reference object. The linearity and measurement values vary with the object being measured.
3. Temperature characteristic: The temperature characteristic is measured with OMRON's standard reference object at 1/2 of the measurement range.
4. The ambient temperature given is only for the sensor head. It is -10 to 60°C for the preamp.
5. The value given is for an ambient temperature of 25°C.
6. Do not use in moist environments because the case is not waterproof.

Amplifier Units

Model	ZX-EDA11	ZX-EDA41
Measurement period *1	150 μs
Possible average count settings	1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096
Linear output *2	Current output: 4 to 20 mA/F.S., Max. load resistance: 300 Ω Voltage output: ± 4 V ( ± 5 V, 1 to 5 V *3), Output impedance: 100 Ω
Judgement outputs (3 outputs: HIGH/PASS/LOW)	NPN open-collector outputs, 30 VDC, 50 mA max. Residual voltage: 1.2 V max.	PNP open-collector outputs, 30 VDC, 50 mA max. Residual voltage: 2 V max.
Zero reset input, timing input, reset input, judgement output hold input	ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.)	ON: Supply voltage short-circuited or supply voltage within 1.5 V OFF: Open (leakage current: 0.1 mA max.)
Function	- Number of display digit changes - Sample hold - Peak hold - Bottom hold, peak-to-peak hold - Self-peak hold - Self-bottom hold - Average hold - Delay hold - Zero reset - Initial reset - Linearity initialization - ON-delay timer - OFF-delay timer - One-shot timer - Previous value comparison - Non-measurement setting - Direct threshold value setting - Position teaching - Automatic teaching - Hysteresis width setting - Timing inputs - Reset input - Judgement output hold input - Monitor focus - Linear output correction - (A-B) calculations *4 - (A+B) calculations *4 - K-(A+B) calculation *4 - Mutual interference prevention *4 - Sensor disconnection detection - Zero reset memory - Zero reset indicator - Key lock
Indications	Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green)
Voltage influence (including Sensor)	0.5% F.S. of linear output value at ±20% of power supply voltage
Power supply voltage	12 to 24 VDC ± 10%, Ripple (p-p): 10% max.
Current consumption	140 mA max. with power supply voltage of 24 VDC (with Sensor connected)
Ambient temperature	Operating and storage: 0 to 50°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 DC)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions
Shock resistance (destruction)	300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward)
Connection method	Prewired (standard cable length: 2 m)
Weight (packed state)	Approx. 350 g
Materials	Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Accessories	Instruction Manual

1. The response time for the first linear output or judgment output is calculated as follows (with fixed sensitivity): Measurement period × (Average count setting + The response time for the second and later outputs is the measurement period specified in the table.
2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier Unit.
3. Setting is possible via the monitor focus function.
4. A Calculating Unit (ZX-CAL2) is required.

ขนาด | Photoelectric Displacement Sensor - ZX-E series

Sensors

Sensor Heads

ZX-EDR5T

ZX-ED01T

ZX-ED02T

ZX-EM02T

ZX-EM07MT

ZX-EV04T

ZX-EM02HT

Amplifier Units

ZX-EDA11
ZX-EDA41

Accessories (Sold Separately)

Preamplifier Mounting Bracket

ZX-XBE1

ZX-XBE2

Calculating Unit

ZX-CAL2

ZX-series Communications Interface Unit

ZX-SF11

Cables with Connectors on Both Ends (for Extension)

ZX-XC1A (1 m)
ZX-XC4A (4 m)
ZX-XC8A (8 m)

คุณสมบัติ | Photoelectric Displacement Sensor - ZX-E series

• หัวเซนเซอร์รองรับการใช้งานที่หลากหลาย
• โลหะที่ไม่ใช้เหล็กสามารถปรับความเที่ยงตรงได้เช่น SUS และอลูมิเนียม โดยใช้ฟังก์ชันการเลือกวัสดุ
• การชดชเยความเที่ยงตรงอย่างง่าย (การสอน)
• เซ็นเซอร์สองตัวทำการคำนวณสำหรับได้อย่างง่ายดายใช้หน่วยคำนวณ
• ป้องกันการรบกวณซึ่งกันและกันได้ถึงห้าหน่วยโดยใช้หน่วยคำนวณ

---

ข้อมูลจำเพาะ | Photoelectric Displacement Sensor - ZX-E series

Photoelectric Displacement Sensor	ZX-E
ช่วงการวัด	0 - 0.5, 0 - 1, 0 - 2, 0 - 4, 0 - 7 mm
การตรวจจับวัตถุ	โลหะแม่เหล็ก
ความละเอียด	1 ไมโครเมตร
ความเที่ยงตรง	± 0.5% F.S.
ระดับการป้องกัน	IP60, IP65, IP67
วัสดุตัวเรือน	ทองเหลือง, สเตนเลส, สังกะสี (ชุบนิกเกิล)
