Photoelectric Sensor Built-in Amplifier - E3Z series

Download PDF
Photoelectric Sensor Built-in Amplifier - E3Z series
OMRON Photoelectric Sensor Built-in Amplifier - E3Z series
Model Numbers
Specifications
Dimensions
Features

Model Numbers| Photoelectric Sensor Built-in Amplifier - E3Z series

Sensing
method
AppearanceConnection
method
Sensing
distance
Model
NPN outputPNP output
Through-
beam
(Emitter +
Receiver)
*3
407_lu_1_1 Pre-wired
(2 m)
15 m
(Infrared light)
E3Z-T61 2M *4 *5
Emitter E3Z-T61-L 2M
Receiver E3Z-T61-D 2M
E3Z-T81 2M *4 *5
Emitter E3Z-T81-L 2M
Receiver E3Z-T81-D 2M
Standard M8
connector
E3Z-T66
Emitter E3Z-T66-L
Receiver E3Z-T66-D
E3Z-T86
Emitter E3Z-T86-L
Receiver E3Z-T86-D
Pre-wired
(2 m)
10 m
(Red light)
E3Z-T61A 2M *4
Emitter E3Z-T61-A-L 2M
Receiver E3Z-T61-A-D 2M
E3Z-T81A 2M *4M
Emitter E3Z-T81-A-L 2M
Receiver E3Z-T81-A-D 2M
Standard M8
connector
E3Z-T66A
Emitter E3Z-T66-A-L
Receiver E3Z-T66-A-D
E3Z-T86A
Emitter E3Z-T86-A-L
Receiver E3Z-T86-A-D
Pre-wired
(2 m)
30 m
(Infrared light)
E3Z-T62 2M *4
Emitter E3Z-T62-L 2M
Receiver E3Z-T62-D 2M
E3Z-T82 2M
Emitter E3Z-T82-L 2M
Receiver E3Z-T82-D 2M
Standard M8
connector
E3Z-T67
Emitter E3Z-T67-L
Receiver E3Z-T67-D
E3Z-T87
Emitter E3Z-T87-L
Receiver E3Z-T87-D
Retro-
reflective
with MSR
function
407_lu_1_2 *1 Pre-wired
(2 m)
4 m
(100 mm) *2
(Red light)
E3Z-R61 2M *4 *5 E3Z-R81 2M *4 *5
Standard M8
connector
E3Z-R66 E3Z-R86
Diffuse-
reflective
407_lu_1_3 Pre-wired
(2 m)
5 to 100 mm
(wide view)
(Infrared light)
E3Z-D61 2M *4 E3Z-D81 2M *4 *5
Standard M8
connector
E3Z-D66 E3Z-D86
Pre-wired
(2 m)
1 m
(Infrared light)
(Red light)
E3Z-D62 2M *4 *5 E3Z-D82 2M *4 *5
Standard M8
connector
E3Z-D67 E3Z-D87
Pre-wired
(2 m)
90±30 mm
(narrow beam)
(Red light)
E3Z-L61 2M *4 *5 E3Z-L81 2M *4 *5
Standard M8
connector
E3Z-L66 E3Z-L86
Distance-
settable
407_lu_1_4 Pre-wired
(2 m)
20 to 40 mm
(BGS min setting)
(Red light)
20 to 200 mm
(BGS max setting)
(Red light)
40 min. Incident
threshold
(FGS min setting)
(Red light)
200 min. Incident
threshold
(FGS max setting)
(Red light)
E3Z-LS61 2M *4 E3Z-LS81 2M *4
Standard M8
connector
E3Z-LS66 E3Z-LS86
Pre-wired
(2 m)
2 to 20 mm
(BGS min setting)
(Red light)
2 to 80 mm
(BGS max setting)
(Red light)
E3Z-LS63 2M E3Z-LS83 2M *5
Standard M8
connector
E3Z-LS68 E3Z-LS88
Slit-type
Through-
beam
405_lu_1_4 1 axis Pre-wired
(2 m)
25 mm
(Infrared light)
E3Z-G61 2M *4 *5 E3Z-G81 2M *4 *5
2
axes
Pre-wired
(2 m)
E3Z-G62 2M *4 E3Z-G82 2M *4
1 axis Pre-wired
M8
connector
E3Z-G61-M3J E3Z-G81-M3J
2
axes
E3Z-G62-M3J E3Z-G82-M3J
Limited-
reflective
for
transparent
glasses
407_lu_1_5 Pre-wired
(2 m)
30±20 mm
(Red light)
E3Z-L63 2M E3Z-L83 2M
Standard M8
connector
E3Z-L68 E3Z-J88
Retro-
reflective
without MSR
function for
clear,
plastic
bottles
407_lu_1_6 *1 Pre-wired
(2 m)
500 mm
(80 mm) *2
(Red light)
E3Z-B61 2M E3Z-B81 2M *4
Standard M8
connector
E3Z-B66 E3Z-B86
Pre-wired
(2 m)
2 m
(500 mm) *2
(Red light)
E3Z-B62 2M *4 E3Z-B82 2M *4
Standard M8
connector
E3Z-B67 E3Z-B87
  1. *The Reflector is sold separately. Select the Reflector model most suited to the application.
  2. *The sensing distance specified is possible when the E39-R1S is used. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
  3. *Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver.
  4. * M12 Standard Pre-wired Connector Models are also availavble. When ordering, add "-M1J 0.3M" to the end of the model number (e.g., E3Z-T61-M1J 0.3M). The cable is 0.3 m long. The applicable Sensor I/O Connector is the XS2 Series. For details, refer to the XS2 information available on the OMRON website.
  5. * M12 Pre-wired Smartclick Connector Models are also availavble. When ordering, add "-M1TJ 0.3M" to the end of the model number (e.g., E3Z-T61-M1TJ 0.3M). The cable is 0.3 m long. The applicable Sensor I/O Connector is the XS5 Series. For details, refer to the XS5 information available on the OMRON website.

Oil-resistive Sensors

Sensing
method
AppearanceConnection
method
Sensing
distance
Model
NPN outputPNP output
Through-
beam
(Emitter +
Receiver)
*3
407_lu_1_1 Pre-wired
(2 m)
15 m
(Infrared
light)
E3Z-T61K 2M *4
Emitter E3Z-T61K-L 2M
Receiver E3Z-T61K-D 2M
E3Z-T81K 2M *4
Emitter E3Z-T81K-L 2M
Receiver E3Z-T81K-D 2M
Pre-wired M8
connector
E3Z-T61K-M3J 0.3M
Emitter E3Z-T61K-L-M3J 2M
Receiver E3Z-T61K-D-M3J 2M
E3Z-T81K-M3J 0.3M
Emitter E3Z-T81K-L-M3J 2M
Receiver E3Z-T81K-D-M3J 2M
Retro-
reflective
with MSR
function
407_lu_1_2 *1 Pre-wired
(2 m)
3 m
(150 mm)
(Red light)
*2
E3Z-R61K 2M *4 E3Z-R81K 2M
Pre-wired M8
connector
E3Z-R61K-M3J 0.3M E3Z-R81K-M3J 0.3M
Diffuse-
reflective
407_lu_1_3 Pre-wired
(2 m)
5 to 100 mm
(wide view)
(Infrared
light)
E3Z-D61K 2M *4 E3Z-D81K 2M
Pre-wired M8
connector
E3Z-D61K-M3J 0.3M E3Z-D81K-M3J 0.3M
Pre-wired
(2 m)
1 m
(Infrared
light)
E3Z-D62K 2M *4 E3Z-D82K 2M
Pre-wired M8
connector
E3Z-D62K-M3J 0.3M E3Z-D82K-M3J 0.3M
  1. * The Reflector is sold separately. Select the Reflector model most suited to the application.
  2. * The sensing distance specified is possible when the E39-R1S is used. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
  3. *Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver.
  4. * M12 Standard Pre-wired Connector Models are also availavble. When ordering, add "-M1J 0.3M" to the end of the model number (e.g., E3Z-T61-M1J 0.3M). The cable is 0.3 m long. The applicable Sensor I/O Connector is the XS2 Series. For details, refer to the XS2 information available on the OMRON website.

Accessories (Order Separately) | Photoelectric Sensor Built-in Amplifier - E3Z series

Slit

(A Slit is not provided with Through-beam Sensors) Order a Slit separately if required.

Slit widthSensing distanceMinimum detectable object
(Reference value)
ModelContents
E3Z-T[][]E3Z-T[][]A
0.5-mm dia. 50 mm 35 mm 0.2-mm dia. E39-S65A One set
(contains Slits for both the
Emitter and Receiver)
1-mm dia. 200 mm 150 mm 0.4-mm dia. E39-S65B
2-mm dia. 800 mm 550 mm 0.7-mm dia. E39-S65C
0.5 × 10 mm 1 m 700 mm 0.2-mm dia. E39-S65D
1 × 10 mm 2.2 m 1.5 m 0.5-mm dia. E39-S65E
2 × 10 mm 5 m 3.5 m 0.8-mm dia. E39-S65F

Reflectors

(Reflector required for Retroreflective Sensors) A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.

NameSensing distance (typical) *ModelQuantityRemarks
E3Z-RE3Z-
R[]K
E3Z-
B[]1/
-B[]6
E3Z-
B[]2/
-B[]7
Rated value
(sensing
distance
of 15 m)
Reference
value (sensing
distance
of 10 m)
Rated
value
Rated
value
Rated
value
Reflector 3 m (100 mm) --- 2 m
(100 mm)
--- --- E39-R1 1 Retro-
reflective
models are
not
provided
with
Reflectors.
The MSR
function is
enabled.
4 m (100 mm) --- 3 m
(150 mm)
500 mm
(80 mm)
2 m
(500 mm)
E39-R1S 1
--- 5 m (100 mm) --- --- --- E39-R2 1
--- 2.5 m (100 mm) --- --- --- E39-R9 1
--- 3.5 m(100 mm) --- --- --- E39-R10 1
Fog
Preventive
Coating
--- 3 m (100 mm) --- 500 mm
(80 mm)
2 m
(500 mm)
E39-R1K 1
Small
Reflector
--- 1.5 m (50 mm) --- --- --- E39-R3 1
Tape
Reflector
--- 700 mm (150 mm) --- --- --- E39-RS1 1
--- 1.1 m (150 mm) --- --- --- E39-RS2 1
--- 1.4 m (150 mm) --- --- --- E39-RS3 1
  1. If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator lights properly when you install the Sensor.
  2. For details, refer to Reflectors on the E39-L/E39-S/E39-R information available on the OMRON website.

* Values in parentheses indicates the minimum required distance between the Sensor and Reflector.

Mutual Interference Protection Filter

A Filter is not provided with the Sensor (for the through-beam E3Z-T[][]A). Order a Filter separately if required.

Sensing
distance
Appearance/
Dimensions
ModelQuantityRemarks
3 m 407_lu_1_1 E39-E11 Two sets each for
the Emitter and
Receiver (total of
four pieces)
Can be used with the E3Z-T[][]A Through-beam models.
The arrow indicates the direction of polarized light.
Mutual interference can be prevented by altering the
direction of polarized light from or to adjacent Emitters
and Receivers.

Note: The polarization directions of the Filters are offset by 90º to prevent interference. When you install the Emitter and Receiver, install them at the same angle to maintain this offset.

Mounting Brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

AppearanceModel
(material)
QuantityRemarks
407_lu_6_1 E39-L153
(SUS304) *1
1 Mounting Brackets
407_lu_6_2 E39-L104
(SUS304) *1
1
407_lu_6_3 E39-L43
(SUS304) *2
1 Horizontal Mounting Brackets
407_lu_6_4 E39-L142
(SUS304) *2
1 Horizontal Protective Cover Bracket
407_lu_6_5 E39-L44
(SUS304)
1 Rear Mounting Bracket
407_lu_6_6 E39-L98
(SUS304) *2
1 Metal Protective Cover Bracket
407_lu_6_7 E39-L150
(SUS304)
1 (Sensor adjuster)
Easily mounted to the aluminum frame rails of conveyors and
easily adjusted.
For left to right adjustment
407_lu_6_8 E39-L151
(SUS304)
1
407_lu_6_9 E39-L144
(SUS304) *2
1 Compact Protective Cover Bracket (For E3Z only)
  • Note
    1. When using Through-beam models, order one bracket for the Receiver and one for the Emitter.
    2. For details, refer to Mounting Brackets on the E39-L/E39-S/E39-R information available on the OMRON website.
  • *1. Cannot be used for Standard Connector models with mounting surface on the bottom. In that case, use Pre-wired Connector models.
  • *2. Cannot be used for Standard Connector models.

Sensor I/O Connectors (Sockets on One Cable End)

(Models for Connectors and Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

SizeCableAppearanceCable typeModel
M8 Standard Straight *2 407_lu_7_1 2 m 4-wire XS3F-M421-402-A
5 m XS3F-M421-405-A
L-shaped *2 *3 407_lu_7_2 2 m XS3F-M422-402-A
5 m XS3F-M422-405-A
PUR (Polyurethane) cable *1 Straight *2 407_lu_7_1 2 m XS3F-M421-402-L
5 m XS3F-M421-405-L
L-shaped *2 *3 407_lu_7_2 2 m XS3F-M422-402-L
5 m XS3F-M422-405-L
Vibration-proof robot cable Straight *2 407_lu_7_1 2 m XS3F-M421-402-R
5 m XS3F-M421-405-R
L-shaped *2 *3 407_lu_7_2 2 m XS3F-M422-402-R
5 m XS3F-M422-405-R
  • Note
    1. When using Through-beam models, order one connector for the Receiver and one for the Emitter.
    2. For details, refer to the XS3 information available on the OMRON website.
  • *1. The Sensor can be used in low-temperature environments (−25°C to −40°C). Do not use the Sensor in locations that are subject to oil.
  • *2. The connector will not rotate after connecting.
  • *3. The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.

Specifications | Photoelectric Sensor Built-in Amplifier - E3Z series

Sensing methodThrough-beamRetro-
reflective
with MSR
function
Diffuse-reflective(Narrow-
beam
Models)
ModelNPN
output
Pre-wiredE3Z-T61E3Z-T62E3Z-T61AE3Z-R61E3Z-D61E3Z-D62E3Z-L61
Connector
(M8)
E3Z-T66E3Z-T67E3Z-T66AE3Z-R66E3Z-D66E3Z-D67E3Z-L66
PNP
output
Pre-wiredE3Z-T81E3Z-T82E3Z-T81AE3Z-R81E3Z-D81E3Z-D82E3Z-L81
Connector
(M8)
E3Z-T86E3Z-T87E3Z-T86AE3Z-R86E3Z-D86E3Z-D87E3Z-L86
Sensing distance 15 m 30 m 10 m 4 m (100
mm) *1
(when using
E39-R1S)
3 m (100
mm) *1
(when using
E39-R1)
100 mm
(white
paper:
100 ×
100 mm)
1 m
(white
paper:
300 ×
300 mm)
90 + 30 mm
(white paper,
100 x 100
mm)
Spot diameter
(reference value)
--- (2.5 dia. And
sensing
distance
of 90 mm)
Standard sensing object Opaque: 12-mm dia. min. Opaque:
75-mm
dia. min.
---
Minimum detectable object
(reference value)
--- 0.1 mm
(copper
wire)
Differential travel --- 20% max. of setting
distance
Refer to
Engineering
data on
Catalog.
Directional angle Both emitter and receiver:
3 to 15°
2 to 10° ---
Light source (wavelength) Infrared LED
(870 nm)
Red LED
(660 nm)
Red LED
(660 nm)
Infrared LED
(860 nm)
Red LED
(650 nm)
Current consumption 35 mA max. (Emitter: 15 mA
max., Receiver: 20 mA max.)
30 mA max.
Protection circuits Reversed power supply polarity
protection, Output short-circuit
protection, and Reversed output
polarity protection
Reversed power supply polarity protection, Output
short-circuit protection, Mutual interference
prevention, and Reversed output polarity
protection
Response time Operate
or reset:
1 ms
max.
Operate
or reset:
2 ms
max.
Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired cable (standard length: 2 m and 0.5 m), Connector (M8)
Weight
(packed
state)
Pre-wired cable
(2 m)
Approx. 120 g Approx. 65 g
Connector Approx. 30 g Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate Methacrylic
resin
Modified polyarylate
Sensing methodRetro-reflective for clear, plastic bottles (without MSR function)
ModelNPN outputE3Z-B61E3Z-B66E3Z-B62E3Z-B67
PNP outputE3Z-B81E3Z-B86E3Z-B82E3Z-B87
Sensing distance 500 mm (80 mm) *1 (using E39-R1S) 2 m (500 mm) *1 *2 (using E39-R1S)
Standard sensing object Opaque materials, 75mm dia. min.
(Standard detectable object:glass Cylinder 15mm dia. thickness 1.1mm length
50mm, and the transmission factor 92% or less in wave length 660nm)
Light source (wavelength) Red LED (660 nm)
Current consumption 30 mA max.
Protection circuits Reversed power supply polarity protection, Output short-circuit protection,
Mutual interference prevention, and Reversed output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired cable
(standard length:
2 m and 0.5 m)
Connector
(M8, 4 pins)
Pre-wired cable
(standard length:
2 m and 0.5 m)
Connector
(M8, 4 pins)
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 65 g
Standard Connector Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate
Sensing methodTransparent glass Limited-reflective
(for transparent object detection )
ModelNPN outputE3Z-L63E3Z-L68
PNP outputE3Z-L83E3Z-L88
Sensing distance 30±20 mm (transparent glasses 100 × 100 mm)
Spot diameter (reference value) 2-mm dia. min. (at sensing distance of 30 mm)
Minimum detectable object
(reference value)
0.1 mm dia. (copper wire)
Light source (wavelength) Red LED (660 nm)
Current consumption 30 mA max.
Protection circuits Power supply reverse polarity protection, Output short-circuit protection,
Mutual interference prevention, Reverse output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired (standard length: 2 m) M8 connector
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 65 g
Standard Connector Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate

Oil-resistant

Sensing methodThrough-beamRetro-reflectiveDiffuse-reflective
ModelNPN
output
Pre-wired
Models
E3Z-T61KE3Z-R61KE3Z-D61KE3Z-D62K
M8 Pre-wired
connector
E3Z-T61K-M3JE3Z-R61K-M3JE3Z-D61K-
M3J
E3Z-D62K-
M3J
PNP
output
Pre-wired
Models
E3Z-T81KE3Z-R81KE3Z-D81KE3Z-D82K
M8 Pre-wired
connector
E3Z-T81K-M3JE3Z-R81K-M3JE3Z-D81K-
M3J
E3Z-D82K-
M3J
Sensing distance 15 m 3 m (150 mm) *
(when using E39-R1S)
2 m (100 mm) *
(when using E39-R1)
100 mm
(white paper:
100 × 100
mm)
1 m
(white paper:
300 × 300
mm)
Standard sensing object Opaque: 12-mm dia. min. Opaque:
75-mm dia. min.
---
Differential travel --- 20% max. of setting distance
Directional angle Both emitter and receiver:
3 to 15 °
2 to 10 ° ---
Light source (wavelength) Infrared LED (870 nm) Red LED (660 nm) Infrared LED (860 nm)
Current consumption 35 mA max. (Emitter: 15 mA
max., Receiver: 20 mA max.)
30 mA max.
Protection circuits Reversed power supply
polarity protection, Output
short-circuit protection,
and Reversed output
polarity protection
Reversed power supply polarity protection, Output
short-circuit protection, Mutual interference
prevention, and Reversed output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IP67 (IEC), Oil resistant models: IP67 (IEC) (in-house standards: oilproof),
excluding cables and connectors
Connection method Pre-wired cable (standard length: 2 m), M8 Pre-wired Connector
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 120 g Approx. 65 g
Connector (M8, 4 pins) Approx. 50 g Approx. 30 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate Methacrylic resin Modified polyarylate

* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Common

Common
Power supply voltage 12 to 24 VDC±10%, ripple (p-p): 10% max.
Control output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max.
Residual voltage: Load current of less than 10 mA: 1 V max.
Load current of 10 to 100 mA: 2 V max.
Open collector output (NPN/PNP depending on model)
Light-ON/Dark-ON selectable
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature
range
Operating: -25 to 55°C, Some connector models: -40°C to 55°C * (with no icing or
condensation)
Storage: - 40 to 70 °C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Indicator Operation indicator (orange)
Stability indicator (green)
Through-beam Emitter has power indicator (orange) only.
Accessories Instruction manual (Neither Reflectors nor Mounting Brackets are provided with any of
the above models.)

The ambient temperature range during operation for connector models depends on the model. For the E3Z-T66/T86/R66/R86, the range is −40°C to 55°C. For the E3Z-D66/D86/D67/D87, therange is −30°C to 55°C. For other connector models, the range is −25°C to −55°C. The sensing distance for Retro-reflective Models (E3Z-R66/R86) between −40°C to −25°C, however, will be as follows (not the values in the table): With E39-R1S: 3 m (100 mm), With E39-R1: 2 m (100 mm). Also, use the XS3F-M42[]-4[][]-L Sensor I/O Connector (PUR cable) for applications between −25°C to −40°C. (Referto Catalog.)

Dimensions | Photoelectric Sensor Built-in Amplifier - E3Z series

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Through-beam*

Pre-wired Models

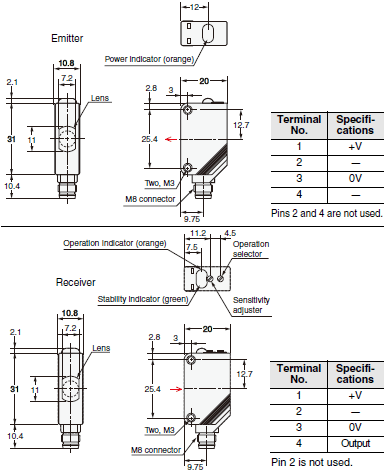

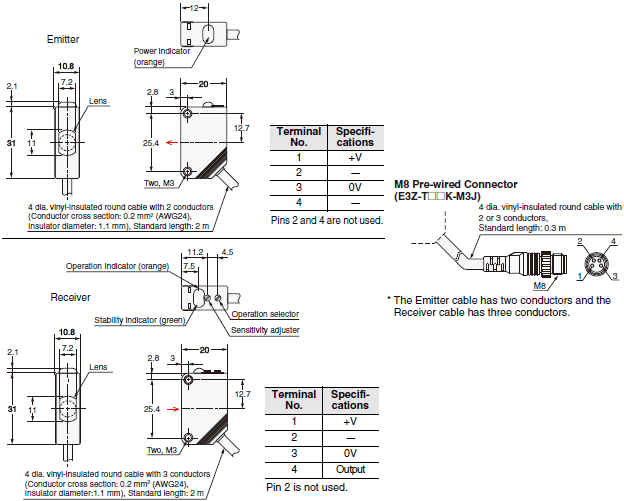

E3Z-T61(K), E3Z-T81(K)
E3Z-T61A, E3Z-T81A
E3Z-T62, E3Z-T82

E3Z Dimensions 3

Connector Models
E3Z-T66, E3Z-T86
E3Z-T66A, E3Z-T86A
E3Z-T67, E3Z-T87

E3Z Dimensions 4

* Models numbers for Through-beam Sensors (E3Z-T[][]) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-T61-L 2M), the
model number of the Receiver, by adding "-D" (example: E3Z-T61-D 2M.) Refer to Lineup to confirm model numbers
for Emitter and Receivers.


Retro-reflective Models

Pre-wired Models

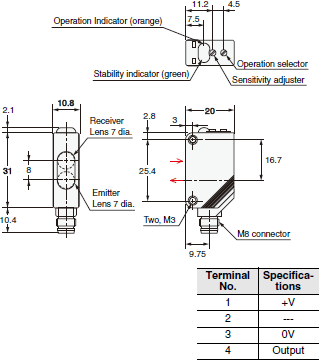

E3Z-R61(K), E3Z-B61
E3Z-R81(K), E3Z-B81
E3Z-D61(K), E3Z-B62
E3Z-D81(K), E3Z-B82
E3Z-D62(K), E3Z-L63
E3Z-D82(K), E3Z-L83
E3Z-L61, E3Z-L81

E3Z Dimensions 6

Connector Models

E3Z-R66, E3Z-B66
E3Z-R86, E3Z-B86
E3Z-D66, E3Z-B67
E3Z-D86, E3Z-B87
E3Z-D67, E3Z-L68
E3Z-D87, E3Z-L88
E3Z-L66, E3Z-L86

E3Z Dimensions 7

Note: The lens for the E3Z-D[]1/D[]6/L[][]/B[][] is red. The lens for the E3Z-D[]2/D[]7 is black.


Accessories (Order Separately)

Slits

E39-S65A, E39-S65B, E39-S65C

E3Z Dimensions 9

E39-S65D, E39-S65E, E39-S65F

E3Z Dimensions 10

E39-L44

E3Z Dimensions 11

E39-L104

E3Z Dimensions 12

Features | Photoelectric Sensor Built-in Amplifier - E3Z series

  • Long sensing distance of 30 m for Through-beam Models, 4 m for Retro-reflective Models, and 1 m for Diffuse-reflective Models.
  • Mechanical axis and optical axis offset of less than ±2.5° simplifies optical axis adjustment.
  • High stability with unique algorithm that prevents interference of external light.

Properties | Photoelectric Sensor Built-in Amplifier - E3Z series

Photoelectric Sensor Built-in Amplifier - E3Z series
Sensing distance 100 mm, 1 m, 2 m, 3 m, 4 m, 15 m, 30 m
Spot diameter 2-mm dia min
Light source (wavelength) Infrared LED (870 nm), Red LED (660 nm)
Current consumption 30 mA max, 35 mA max
Response time (max) 1 ms, 2 ms
Degree of protection  IEC, IP67
Material PBT (polybutylene terephthalate)

Photoelectric Sensor Built-in Amplifier - E3Z series

ดาวน์โหลด PDF
Photoelectric Sensor Built-in Amplifier - E3Z series
OMRON Photoelectric Sensor Built-in Amplifier - E3Z series
เลือกรุ่นสินค้า
ข้อมูลทางเทคนิค
ขนาด
คุณสมบัติ

เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3Z series

วิธีการตรวจจับลักษณะการทำงานวิธีการเชื่อมต่อระยะการตรวจจับรุ่นสินค้า
เอาต์พุต NPNเอาต์พุต PNP
Through-
beam
(ตัวส่ง +
ตัวรับ)
*3
407_lu_1_1 มีสายในตัว
(2 m)
15 m
(แสงอินฟราเรด)
E3Z-T61 2M *4 *5
ตัวส่ง: E3Z-T61-L 2M
ตัวรับ: E3Z-T61-D 2M
E3Z-T81 2M *4 *5
ตัวส่ง: E3Z-T81-L 2M
ตัวรับ: E3Z-T81-D 2M
คอนเนคเตอร์ มาตรฐาน M8 E3Z-T66
ตัวส่ง: E3Z-T66-L
ตัวรับ: E3Z-T66-D
E3Z-T86
ตัวส่ง: E3Z-T86-L
ตัวรับ: E3Z-T86-D
มีสายในตัว
(2 m)
10 m
(แสงสีแดง)
E3Z-T61A 2M *4
ตัวส่ง: E3Z-T61-A-L 2M
ตัวรับ: E3Z-T61-A-D 2M
E3Z-T81A 2M *4M
ตัวส่ง: E3Z-T81-A-L 2M
ตัวรับ: E3Z-T81-A-D 2M
คอนเนคเตอร์ มาตรฐาน M8 E3Z-T66A
ตัวส่ง: E3Z-T66-A-L
ตัวรับ: E3Z-T66-A-D
E3Z-T86A
ตัวส่ง: E3Z-T86-A-L
ตัวรับ: E3Z-T86-A-D
มีสายในตัว
(2 m)
30 m
(แสงอินฟราเรด)
E3Z-T62 2M *4
ตัวส่ง: E3Z-T62-L 2M
ตัวรับ: E3Z-T62-D 2M
E3Z-T82 2M
ตัวส่ง: E3Z-T82-L 2M
ตัวรับ: E3Z-T82-D 2M
คอนเนคเตอร์ มาตรฐาน M8 E3Z-T67
ตัวส่ง: E3Z-T67-L
ตัวรับ: E3Z-T67-D
E3Z-T87
ตัวส่ง: E3Z-T87-L
ตัวรับ: E3Z-T87-D
Retro-
reflective
ด้วยฟังก์ชัน MSR
407_lu_1_2 *1 Pre-wired
(2 m)
4 m
(100 mm) *2
(แสงสีแดง)
E3Z-R61 2M *4 *5 E3Z-R81 2M *4 *5
คอนเนคเตอร์ มาตรฐาน M8 E3Z-R66 E3Z-R86
Diffuse-
reflective
407_lu_1_3 มีสายในตัว
(2 m)
5 to 100 mm
(มุมกว้าง)
(แสงอินฟราเรด)
E3Z-D61 2M *4 E3Z-D81 2M *4 *5
คอนเนคเตอร์ มาตรฐาน M8 E3Z-D66 E3Z-D86
มีสายในตัว
(2 m)
1 m
(แสงอินฟราเรด)
(แสงสีแดง)
E3Z-D62 2M *4 *5 E3Z-D82 2M *4 *5
คอนเนคเตอร์ มาตรฐาน M8 E3Z-D67 E3Z-D87
มีสายในตัว
(2 m)
90±30 mm
(ลำแสงแคบ)
(แสงสีแดง)
E3Z-L61 2M *4 *5 E3Z-L81 2M *4 *5
คอนเนคเตอร์ มาตรฐาน M8 E3Z-L66 E3Z-L86
Diffuse-
reflective
กำหนดระยะได้
407_lu_1_4 มีสายในตัว
(2 m)
20 ถึง 40 มม.
(การตั้งค่าต่ำสุดของ BGS)
(แสงสีแดง)
20 ถึง 200 มม.
(การตั้งค่าสูงสุดของ BGS)
(แสงสีแดง)
ต่ำสุด 40 จนถึง
ระดับแสงตกกระทบ
(การตั้งค่าต่ำสุดของ FGS) (แสงสีแดง)
ต่ำสุด 200 จนถึง
ระดับแสงตกกระทบ
(การตั้งค่าสูงสุดของ FGS) (แสงสีแดง)
E3Z-LS61 2M *4 E3Z-LS81 2M *4
คอนเนคเตอร์ มาตรฐาน M8 E3Z-LS66 E3Z-LS86
มีสายในตัว
(2 m)
2 ถึง 20 มม.
(การตั้งค่าต่ำสุด
ของ BGS)
(แสงสีแดง)
2 ถึง 80 มม.
(การตั้งค่าสูงสุด
ของ BGS)
(แสงสีแดง)
E3Z-LS63 2M E3Z-LS83 2M *5
คอนเนคเตอร์ มาตรฐาน M8 E3Z-LS68 E3Z-LS88
Slit-type
Through-
beam
405_lu_1_4 1 แกน มีสายในตัว
(2 m)
25 mm
(แสงอินฟราเรด)
E3Z-G61 2M *4 *5 E3Z-G81 2M *4 *5
2
แกน
มีสายในตัว
(2 m)
E3Z-G62 2M *4 E3Z-G82 2M *4
1 แกน คอนเนคเตอร์ มีสาย M8 E3Z-G61-M3J E3Z-G81-M3J
2
แกน
E3Z-G62-M3J E3Z-G82-M3J
Limited-
reflective
สำหรับกระจกโปร่งแสง
407_lu_1_5 มีสายในตัว
(2 m)
30±20 mm
(แสงสีแดง)
E3Z-L63 2M E3Z-L83 2M
คอนเนคเตอร์ มาตรฐาน M8 E3Z-L68 E3Z-J88
Retro-
reflective
ไม่มีฟังก์ชัน MSR, ขวดพลาสติก
407_lu_1_6 *1 มีสายในตัว
(2 m)
500 mm
(80 mm) *2
(แสงสีแดง)
E3Z-B61 2M E3Z-B81 2M *4
คอนเนคเตอร์ มาตรฐาน M8 E3Z-B66 E3Z-B86
มีสายในตัว
(2 m)
2 m
(500 mm) *2
(แสงสีแดง)
E3Z-B62 2M *4 E3Z-B82 2M *4
คอนเนคเตอร์ มาตรฐาน M8 E3Z-B67 E3Z-B87
  1. * แยกจำหน่าย แผ่นสะท้อนแสง เลือกรุ่นแผ่นสะท้อนที่เหมาะกับการใช้งานมากที่สุด
  2. * ระยะตรวจจับที่ระบุเป็นไปได้เมื่อใช้ E39-R1S ค่าในวงเล็บเป็นค่าระยะห่างระหว่างเซนเซอร์และแผ่นสะท้อนแสงต่ำสุดที่ต้องการ
  3. * เซ็นเซอร์ Through-beam โดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
  4. * นอกจากนี้ยังมีรุ่นตัวเชื่อมต่อแบบมีสายมาตรฐาน M12 มาตรฐาน เมื่อสั่งซื้อให้เพิ่ม "-M1J 0.3M" ต่อท้ายหมายเลขรุ่น (เช่น E3Z-T61-M1J 0.3M) สายเคเบิลยาว 0.3 ม. คอนเนคเตอร์ I / O เซนเซอร์ที่ใช้ได้คือ XS2 ซีรี่ส์ สำหรับรายละเอียดโปรดดู XS2 ข้อมูลที่มีอยู่ในเว็บไซต์ OMRON
  5. * นอกจากนี้ยังมีคอนเนคเตอร์รุ่น Smartclick แบบมีสาย M12 เมื่อสั่งซื้อให้เพิ่ม "-M1TJ 0.3M" ต่อท้ายหมายเลขรุ่น (เช่น E3Z-T61-M1TJ 0.3M) สายเคเบิลยาว 0.3 ม. คอนเน็กเตอร์ I / O เซนเซอร์ที่ใช้ได้คือ XS5 ซีรีส์ สำหรับรายละเอียดโปรดดู XS5ข้อมูลที่มีอยู่ในเว็บไซต์ OMRON

เซนเซอร์ประเภททนต่อน้ำมัน

Sensing
method
AppearanceConnection
method
Sensing
distance
Model
NPN outputPNP output
Through-
beam
(ตัวส่ง: +
ตัวรับ:)
*3
407_lu_1_1 มีสายในตัว
(2 m)
15 m
(แสงอินฟราเรด)
E3Z-T61K 2M *4
ตัวส่ง: E3Z-T61K-L 2M
ตัวรับ: E3Z-T61K-D 2M
E3Z-T81K 2M *4
ตัวส่ง: E3Z-T81K-L 2M
ตัวรับ: E3Z-T81K-D 2M
คอนเนคเตอร์ มีสาย M8 E3Z-T61K-M3J 0.3M
ตัวส่ง: E3Z-T61K-L-M3J 2M
ตัวรับ: E3Z-T61K-D-M3J 2M
E3Z-T81K-M3J 0.3M
ตัวส่ง: E3Z-T81K-L-M3J 2M
ตัวรับ: E3Z-T81K-D-M3J 2M
Retro-
reflective
ด้วยฟังก์ชัน MSR
407_lu_1_2 *1 มีสายในตัว
(2 m)
3 m
(150 mm)
(แสงสีแดง)
*2
E3Z-R61K 2M *4 E3Z-R81K 2M
คอนเนคเตอร์ มีสาย M8 E3Z-R61K-M3J 0.3M E3Z-R81K-M3J 0.3M
Diffuse-
reflective
407_lu_1_3 มีสายในตัว
(2 m)
5 to 100 mm
(มุมกว้าง)
(แสงอินฟราเรด)
E3Z-D61K 2M *4 E3Z-D81K 2M
คอนเนคเตอร์ มีสาย M8 E3Z-D61K-M3J 0.3M E3Z-D81K-M3J 0.3M
มีสายในตัว
(2 m)
1 m
(แสงอินฟราเรด)
E3Z-D62K 2M *4 E3Z-D82K 2M
คอนเนคเตอร์ มีสาย M8 E3Z-D62K-M3J 0.3M E3Z-D82K-M3J 0.3M
  1. * แยกจำหน่าย แผ่นสะท้อนแสง เลือกรุ่นแผ่นสะท้อนแสง ที่เหมาะกับการใช้งานมากที่สุด
  2. * ระยะตรวจจับที่ระบุเป็นไปได้เมื่อใช้ E39-R1S ค่าในวงเล็บระบุระยะห่างขั้นต่ำที่ต้องการระหว่างเซนเซอร์และตัวสะท้อนแสง
  3. * เซ็นเซอร์ลำแสงผ่านตลอดโดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
  4. * นอกจากนี้ยังมีรุ่นคอนเนคเตอร์แบบมีสายมาตรฐาน M12 เมื่อสั่งซื้อให้เพิ่ม "-M1J 0.3M" ต่อท้ายหมายเลขรุ่น (เช่น E3Z-T61-M1J 0.3M) สายเคเบิลยาว 0.3 ม. คอนเนคเตอร์ I / O เซนเซอร์ที่ใช้ได้คือ XS2 ซีรี่ส์ สำหรับรายละเอียดโปรดดูข้อมูล XS2 ที่มีอยู่ในเว็บไซต์ OMRON*

อุปกรณ์เสริม (สั่งซื้อแยกต่างหาก) | Photoelectric Sensor Built-in Amplifier - E3Z series

แผ่นยึด

(ไม่ได้ให้แผ่นยึดมาพร้อมกับเซนเซอร์ Through-beam) สั่งแผ่นยึดแยกต่างหากหากจำเป็น

ความกว้างแผ่นยึดระยะการตรวจจับวัตถุเล็กที่สุดที่ตรวจจับได้ (ค่าอ้างอิง)รุ่นเนื้อหา
E3Z-T[][]E3Z-T[][]A
0.5-mm dia. 50 mm 35 mm 0.2-mm dia. E39-S65A หนึ่งชุด (มีโครงยึดสำหรับทั้งตัวส่งและตัวรับ)
1-mm dia. 200 mm 150 mm 0.4-mm dia. E39-S65B
2-mm dia. 800 mm 550 mm 0.7-mm dia. E39-S65C
0.5 × 10 mm 1 m 700 mm 0.2-mm dia. E39-S65D
1 × 10 mm 2.2 m 1.5 m 0.5-mm dia. E39-S65E
2 × 10 mm 5 m 3.5 m 0.8-mm dia. E39-S65F

แผ่นสะท้อนแสง

(ต้องใช้แผ่นสะท้อนแสงสำหรับเซนเซอร์แบบ Retroreflective) เซนเซอร์ไม่มีแผ่นสะท้อนแสง อย่าลืมสั่งซื้อแผ่นสะท้อนแยกแสงต่างหาก

รายการระยะตรวจจับ (ทั่วไป) *รุ่นปริมาณหมายเหตุ
E3Z-RE3Z-
R[]K
E3Z-
B[]1/
-B[]6
E3Z-
B[]2/
-B[]7
Rated value
(ระยะตัวจับ 15 m)
ระยะอ้างอิง
(ระยะตรวจจับของ 10 m)
ระยะทั่วไประยะทั่วไประยะทั่วไป
แผ่นสะท้อนแสง 3 m (100 mm) --- 2 m
(100 mm)
--- --- E39-R1 1 รุ่น Retro reflective ไม่มีแผ่นสะท้อนแสง เปิดใช้งานฟังก์ชัน MSR
4 m (100 mm) --- 3 m
(150 mm)
500 mm
(80 mm)
2 m
(500 mm)
E39-R1S 1
--- 5 m (100 mm) --- --- --- E39-R2 1
--- 2.5 m (100 mm) --- --- --- E39-R9 1
--- 3.5 m(100 mm) --- --- --- E39-R10 1
เคลือบสารป้องกันหมอก --- 3 m (100 mm) --- 500 mm
(80 mm)
2 m
(500 mm)
E39-R1K 1
แผ่นสะท้อนแสงขนาดเล็ก --- 1.5 m (50 mm) --- --- --- E39-R3 1
เทปสะท้อนแสง --- 700 mm (150 mm) --- --- --- E39-RS1 1
--- 1.1 m (150 mm) --- --- --- E39-RS2 1
--- 1.4 m (150 mm) --- --- --- E39-RS3 1
  1. หากคุณใช้แผ่นสะท้อนแสงในระยะอื่นๆ นอกเหนือจากระยะที่กำหนดตรวจสอบให้แน่ใจว่าไฟแสดงความเสถียรสว่างขึ้นอย่างถูกต้องเมื่อคุณติดตั้งเซนเซอร์
  2. สำหรับรายละเอียดโปรดดูตัวสะท้อนแสงบนข้อมูล E39-L / E39-S / E39-R ที่มีอยู่ในเว็บไซต์ OMRON

* ค่าในวงเล็บแสดงระยะห่างขั้นต่ำที่ต้องการระหว่างเซนเซอร์และแผ่นสะท้อนแสง

ตัวกรองการป้องกันการรบกวนระหว่างกัน

เซนเซอร์ไม่มีตัวกรองให้ (สำหรับ Through-beam E3Z-T [] [] A) สั่งซื้อตัวกรองแยกต่างหากหากจำเป็น

ระยะการตรวจจับลักษณะ / ขนาดรุ่นปริมาณหมายเหตุ
3 m 407_lu_1_1 E39-E11 สองชุดสำหรับตัวส่งและตัวรับ (รวมเป็นสี่ชิ้น) สามารถใช้ได้กับรุ่น E3Z-T [] [] A Through-beam ลูกศรแสดงทิศทางของแสงโพลาไรซ์ สามารถป้องกันการรบกวนซึ่งกันและกันได้โดยการเปลี่ยนทิศทางของแสงโพลาไรซ์จากหรือไปยังตัวส่งสัญญาณและตัวรับที่อยู่ติดกัน

หมายเหตุ: ทิศทางโพลาไรซ์ของตัวกรองจะหักล้างกัน 90º เพื่อป้องกันการรบกวน เมื่อคุณติดตั้งตัวส่งสัญญาณและตัวรับให้ติดตั้งในมุมเดียวกันเพื่อรักษาค่าชดเชยนี้

ขายึด

ขายึดไม่ได้ติดมากับเซนเซอร์ สั่งซื้อขายึดแยกต่างหากหากจำเป็น

ลักษณะรุ่น (วัสดุ)ปริมาณหมายเหตุ
407_lu_6_1 E39-L153
(SUS304) *1
1 ขายึด
407_lu_6_2 E39-L104
(SUS304) *1
1
407_lu_6_3 E39-L43
(SUS304) *2
1 ขายึดแนวนอน
407_lu_6_4 E39-L142
(SUS304) *2
1 ขายึดแบบฝาครอบป้องกันแนวนอน
407_lu_6_5 E39-L44
(SUS304)
1 ขายึดด้านหลัง
407_lu_6_6 E39-L98
(SUS304) *2
1 ตัวยึดแบบฝาครอบป้องกันโลหะ
407_lu_6_7 E39-L150
(SUS304)
1 (ตัวปรับเซนเซอร์) ติดตั้งเข้ากับรางโครงอลูมิเนียมของสายพานลำเลียงได้อย่างง่ายดายและปรับเปลี่ยนได้ง่าย สำหรับการปรับซ้ายไปขวา
407_lu_6_8 E39-L151
(SUS304)
1
407_lu_6_9 E39-L144
(SUS304) *2
1 ตัวยึดแบบฝาครอบป้องกันขนาดกะทัดรัด (สำหรับ E3Z เท่านั้น)
  • Note
    1. เมื่อใช้รุ่น Through-beam ให้สั่งขายึดหนึ่งตัวสำหรับตัวรับและอีกตัวสำหรับตัวส่ง
    2. สำหรับรายละเอียดโปรดดูข้อมูลเกี่ยวกับขายึดบน E39-L / E39-S / E39-R ที่มีอยู่ในเว็บไซต์ของ OMRON
  • *1. ไม่สามารถใช้กับคอนเนคเตอร์มาตรฐานรุ่นที่มีพื้นผิวยึดที่ด้านล่าง ในกรณีนั้นให้ใช้รุ่นคอนเนคเตอร์แบบมีสาย
  • *2. ไม่สามารถใช้กับรุ่นคอนเนคเตอร์มาตราฐาน

คอนเนคเตอร์ I/O เซ็นเซอร์ (ซ็อกเก็ตที่ปลายสายด้านหนึ่ง)

สำหรับรุ่นคอนเนคเตอร์และคอนเนคเตอร์แบบมีสายในตัว: ไม่มีคอนเนคเตอร์มากับเซนเซอร์ อย่าลืมสั่งซื้อคอนเนคเตอร์แยกต่างหาก

SizeCableAppearanceCable typeModel
M8 มาตรฐาน ตรง *2 407_lu_7_1 2 m 4-wire XS3F-M421-402-A
5 m XS3F-M421-405-A
รูปตัว L *2 *3 407_lu_7_2 2 m XS3F-M422-402-A
5 m XS3F-M422-405-A
สาย PUR (โพลียูรีเทน) *1 ตรง *2 407_lu_7_1 2 m XS3F-M421-402-L
5 m XS3F-M421-405-L
รูปตัว L *2 *3 407_lu_7_2 2 m XS3F-M422-402-L
5 m XS3F-M422-405-L
สายเคเบิลหุ่นยนต์ป้องกันการสั่นสะเทือน ตรง *2 407_lu_7_1 2 m XS3F-M421-402-R
5 m XS3F-M421-405-R
รูปตัว L *2 *3 407_lu_7_2 2 m XS3F-M422-402-R
5 m XS3F-M422-405-R
  • หมายเหตุ
    1. เมื่อใช้รุ่น Through-beam ให้สั่งขั้วต่อหนึ่งตัวสำหรับตัวรับและอีกตัวหนึ่งสำหรับตัวส่ง
    2. สำหรับรายละเอียดโปรดดูข้อมูล XS3 ที่มีอยู่บนเว็บไซต์ OMRON
  • *1. เซนเซอร์สามารถใช้ในสภาพแวดล้อมที่มีอุณหภูมิต่ำ (−25 ° C ถึง −40 ° C) อย่าใช้เซนเซอร์ในสถานที่ที่มีน้ำมัน
  • *2. คอนเนคเตอร์จะไม่หมุนหลังจากเชื่อมต่อแล้ว
  • *3. สายเคเบิลคงที่ ที่มุม180° จากพื้นผิวตัวส่ง / ตัวรับเซ็นเซอร์

ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3Z series

Sensing methodThrough-beamRetro-
reflective
with MSR
function
Diffuse-reflective(Narrow-
beam
Models)
ModelNPN
output
Pre-wiredE3Z-T61E3Z-T62E3Z-T61AE3Z-R61E3Z-D61E3Z-D62E3Z-L61
Connector
(M8)
E3Z-T66E3Z-T67E3Z-T66AE3Z-R66E3Z-D66E3Z-D67E3Z-L66
PNP
output
Pre-wiredE3Z-T81E3Z-T82E3Z-T81AE3Z-R81E3Z-D81E3Z-D82E3Z-L81
Connector
(M8)
E3Z-T86E3Z-T87E3Z-T86AE3Z-R86E3Z-D86E3Z-D87E3Z-L86
Sensing distance 15 m 30 m 10 m 4 m (100
mm) *1
(when using
E39-R1S)
3 m (100
mm) *1
(when using
E39-R1)
100 mm
(white
paper:
100 ×
100 mm)
1 m
(white
paper:
300 ×
300 mm)
90 + 30 mm
(white paper,
100 x 100
mm)
Spot diameter
(reference value)
--- (2.5 dia. And
sensing
distance
of 90 mm)
Standard sensing object Opaque: 12-mm dia. min. Opaque:
75-mm
dia. min.
---
Minimum detectable object
(reference value)
--- 0.1 mm
(copper
wire)
Differential travel --- 20% max. of setting
distance
Refer to
Engineering
data on
Catalog.
Directional angle Both emitter and receiver:
3 to 15°
2 to 10° ---
Light source (wavelength) Infrared LED
(870 nm)
Red LED
(660 nm)
Red LED
(660 nm)
Infrared LED
(860 nm)
Red LED
(650 nm)
Current consumption 35 mA max. (Emitter: 15 mA
max., Receiver: 20 mA max.)
30 mA max.
Protection circuits Reversed power supply polarity
protection, Output short-circuit
protection, and Reversed output
polarity protection
Reversed power supply polarity protection, Output
short-circuit protection, Mutual interference
prevention, and Reversed output polarity
protection
Response time Operate
or reset:
1 ms
max.
Operate
or reset:
2 ms
max.
Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired cable (standard length: 2 m and 0.5 m), Connector (M8)
Weight
(packed
state)
Pre-wired cable
(2 m)
Approx. 120 g Approx. 65 g
Connector Approx. 30 g Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate Methacrylic
resin
Modified polyarylate
Sensing methodRetro-reflective for clear, plastic bottles (without MSR function)
ModelNPN outputE3Z-B61E3Z-B66E3Z-B62E3Z-B67
PNP outputE3Z-B81E3Z-B86E3Z-B82E3Z-B87
Sensing distance 500 mm (80 mm) *1 (using E39-R1S) 2 m (500 mm) *1 *2 (using E39-R1S)
Standard sensing object Opaque materials, 75mm dia. min.
(Standard detectable object:glass Cylinder 15mm dia. thickness 1.1mm length
50mm, and the transmission factor 92% or less in wave length 660nm)
Light source (wavelength) Red LED (660 nm)
Current consumption 30 mA max.
Protection circuits Reversed power supply polarity protection, Output short-circuit protection,
Mutual interference prevention, and Reversed output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired cable
(standard length:
2 m and 0.5 m)
Connector
(M8, 4 pins)
Pre-wired cable
(standard length:
2 m and 0.5 m)
Connector
(M8, 4 pins)
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 65 g
Standard Connector Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate
Sensing methodTransparent glass Limited-reflective
(for transparent object detection )
ModelNPN outputE3Z-L63E3Z-L68
PNP outputE3Z-L83E3Z-L88
Sensing distance 30±20 mm (transparent glasses 100 × 100 mm)
Spot diameter (reference value) 2-mm dia. min. (at sensing distance of 30 mm)
Minimum detectable object
(reference value)
0.1 mm dia. (copper wire)
Light source (wavelength) Red LED (660 nm)
Current consumption 30 mA max.
Protection circuits Power supply reverse polarity protection, Output short-circuit protection,
Mutual interference prevention, Reverse output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired (standard length: 2 m) M8 connector
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 65 g
Standard Connector Approx. 20 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate

Oil-resistant

Sensing methodThrough-beamRetro-reflectiveDiffuse-reflective
ModelNPN
output
Pre-wired
Models
E3Z-T61KE3Z-R61KE3Z-D61KE3Z-D62K
M8 Pre-wired
connector
E3Z-T61K-M3JE3Z-R61K-M3JE3Z-D61K-
M3J
E3Z-D62K-
M3J
PNP
output
Pre-wired
Models
E3Z-T81KE3Z-R81KE3Z-D81KE3Z-D82K
M8 Pre-wired
connector
E3Z-T81K-M3JE3Z-R81K-M3JE3Z-D81K-
M3J
E3Z-D82K-
M3J
Sensing distance 15 m 3 m (150 mm) *
(when using E39-R1S)
2 m (100 mm) *
(when using E39-R1)
100 mm
(white paper:
100 × 100
mm)
1 m
(white paper:
300 × 300
mm)
Standard sensing object Opaque: 12-mm dia. min. Opaque:
75-mm dia. min.
---
Differential travel --- 20% max. of setting distance
Directional angle Both emitter and receiver:
3 to 15 °
2 to 10 ° ---
Light source (wavelength) Infrared LED (870 nm) Red LED (660 nm) Infrared LED (860 nm)
Current consumption 35 mA max. (Emitter: 15 mA
max., Receiver: 20 mA max.)
30 mA max.
Protection circuits Reversed power supply
polarity protection, Output
short-circuit protection,
and Reversed output
polarity protection
Reversed power supply polarity protection, Output
short-circuit protection, Mutual interference
prevention, and Reversed output polarity protection
Response time Operate or reset: 1 ms max.
Degree of protection IP67 (IEC), Oil resistant models: IP67 (IEC) (in-house standards: oilproof),
excluding cables and connectors
Connection method Pre-wired cable (standard length: 2 m), M8 Pre-wired Connector
Weight
(packed
state)
Pre-wired cable (2 m) Approx. 120 g Approx. 65 g
Connector (M8, 4 pins) Approx. 50 g Approx. 30 g
MaterialCase PBT (polybutylene terephthalate)
Lens Modified polyarylate Methacrylic resin Modified polyarylate

* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Common

Common
Power supply voltage 12 to 24 VDC±10%, ripple (p-p): 10% max.
Control output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max.
Residual voltage: Load current of less than 10 mA: 1 V max.
Load current of 10 to 100 mA: 2 V max.
Open collector output (NPN/PNP depending on model)
Light-ON/Dark-ON selectable
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature
range
Operating: -25 to 55°C, Some connector models: -40°C to 55°C * (with no icing or
condensation)
Storage: - 40 to 70 °C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Indicator Operation indicator (orange)
Stability indicator (green)
Through-beam Emitter has power indicator (orange) only.
Accessories Instruction manual (Neither Reflectors nor Mounting Brackets are provided with any of
the above models.)

The ambient temperature range during operation for connector models depends on the model. For the E3Z-T66/T86/R66/R86, the range is −40°C to 55°C. For the E3Z-D66/D86/D67/D87, therange is −30°C to 55°C. For other connector models, the range is −25°C to −55°C. The sensing distance for Retro-reflective Models (E3Z-R66/R86) between −40°C to −25°C, however, will be as follows (not the values in the table): With E39-R1S: 3 m (100 mm), With E39-R1: 2 m (100 mm). Also, use the XS3F-M42[]-4[][]-L Sensor I/O Connector (PUR cable) for applications between −25°C to −40°C. (Referto Catalog.)

ขนาด | Photoelectric Sensor Built-in Amplifier - E3Z series

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Through-beam*

Pre-wired Models
E3Z-T61(K), E3Z-T81(K)
E3Z-T61A, E3Z-T81A
E3Z-T62, E3Z-T82

E3Z Dimensions 3

Connector Models
E3Z-T66, E3Z-T86
E3Z-T66A, E3Z-T86A
E3Z-T67, E3Z-T87

E3Z Dimensions 4

* Models numbers for Through-beam Sensors (E3Z-T[][]) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3Z-T61-L 2M), the
model number of the Receiver, by adding "-D" (example: E3Z-T61-D 2M.) Refer to Lineup to confirm model numbers
for Emitter and Receivers.


Retro-reflective Models

Pre-wired Models
E3Z-R61(K), E3Z-B61
E3Z-R81(K), E3Z-B81
E3Z-D61(K), E3Z-B62
E3Z-D81(K), E3Z-B82
E3Z-D62(K), E3Z-L63
E3Z-D82(K), E3Z-L83
E3Z-L61, E3Z-L81

E3Z Dimensions 6

Connector Models

E3Z-R66, E3Z-B66
E3Z-R86, E3Z-B86
E3Z-D66, E3Z-B67
E3Z-D86, E3Z-B87
E3Z-D67, E3Z-L68
E3Z-D87, E3Z-L88
E3Z-L66, E3Z-L86

E3Z Dimensions 7

Note: The lens for the E3Z-D[]1/D[]6/L[][]/B[][] is red. The lens for the E3Z-D[]2/D[]7 is black.


Accessories (Order Separately)

Slits

E39-S65A, E39-S65B, E39-S65C

E3Z Dimensions 9

E39-S65D, E39-S65E, E39-S65F

E3Z Dimensions 10

E39-L44

E3Z Dimensions 11

E39-L104

E3Z Dimensions 12

คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3Z series

  • การตรวจจับระยะไกล 30 ม. สำหรับรุ่นลำแสงผ่านตลอด, 4 ม. สำหรับรุ่นแผ่นสะท้อนและ 1 ม. สำหรับรุ่นสะท้อนกับวัตถุ
  • แกนเครื่องกลและแกนออฟเซ็ตที่น้อยกว่า ±2.5° ช่วยให้การปรับแกนอออฟติกง่ายขึ้น
  • มีความเสถียรสูงพร้อมอัลกอริทึมเฉพาะที่ป้องกันการรบกวนของแสงภายนอก

ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3Z series

Photoelectric Sensor Built-in Amplifier - E3Z series
ระยะตรวจจับ 100 มม., 1 ม., 2 ม., 3 ม., 4 ม., 15 ม., 30 ม.
เส้นผ่านศูนย์กลางของจุด ต่ำสุด 2 มม.
แหล่งกำเนิดแสง (ความยาวคลื่น) LED อินฟราเรด (870 นาโนเมตร), LED สีแดง (660 นาโนเมตร)
การใช้กระแส สูงสุด 30 มิลลิแอมป์, สูงสุด 35 มิลลิแอมป์
เวลาตอบสนอง (สูงสุด) 1 มิลลิวินาที, 2 มิลลิวินาที
ระดับการป้องกัน IEC, IP67
วัสดุ PBT (โพลีบิวทิลีนเทเรฟทาเลต)

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
