OMRON Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

E3FA, E3RA, E3FB, E3RB Lineup 1

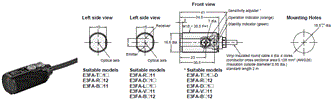

Sensors (E3FA Plastic housing)

Sensor typeSensing
distance
Connection
method
Model
NPN outputPNP output
Through-beam *1. 3130_lu_1_1 20 m
(Red light)
pre-wired set E3FA-TN11 2M
Emitter E3FA-TN11-L 2M
Receiver E3FA-TN11-D 2M
set E3FA-TP11 2M
Emitter E3FA-TP11-L 2M
Receiver E3FA-TP11-D 2M
M12 connector set E3FA-TN21
Emitter E3FA-TN21-L
Receiver E3FA-TN21-D
set E3FA-TP21
Emitter E3FA-TP21-L
Receiver E3FA-TP21-D
15 m
(Infrared light)
pre-wired set E3FA-TN12 2M
Emitter E3FA-TN12-L 2M
Receiver E3FA-TN12-D 2M
set E3FA-TP12 2M
Emitter E3FA-TP12-L 2M
Receiver E3FA-TP12-D 2M
M12 connector set E3FA-TN22
Emitter E3FA-TN22-L
Receiver E3FA-TN22-D
set E3FA-TP22
Emitter E3FA-TP22-L
Receiver E3FA-TP22-D
Retro-reflective
with MSR
function *2. 3130_lu_1_2
0.1 to 4 m
with E39-R1S
(Red light)
pre-wired E3FA-RN11 2M E3FA-RP11 2M
M12 connector E3FA-RN21 E3FA-RP21
Coaxial Retro-
reflective
with MSR
function *2. 3130_lu_1_3
0 to 500 mm
with E39-R1S
(Red light)
pre-wired E3FA-RN12 2M E3FA-RP12 2M
M12 connector E3FA-RN22 E3FA-RP22
Diffuse-reflective 3130_lu_1_4 100 mm
(Red light)
pre-wired E3FA-DN11 2M E3FA-DP11 2M
M12 connector E3FA-DN21 E3FA-DP21
300 mm
(Red light)
pre-wired E3FA-DN12 2M E3FA-DP12 2M
M12 connector E3FA-DN22 E3FA-DP22
1 m
(Red light)
pre-wired E3FA-DN13 2M E3FA-DP13 2M
M12 connector E3FA-DN23 E3FA-DP23
100 mm
(Infrared light)
pre-wired E3FA-DN14 2M E3FA-DP14 2M
M12 connector E3FA-DN24 E3FA-DP24
300 mm
(Infrared light)
pre-wired E3FA-DN15 2M E3FA-DP15 2M
M12 connector E3FA-DN25 E3FA-DP25
1 m
(Infrared light)
pre-wired E3FA-DN16 2M E3FA-DP16 2M
M12 connector E3FA-DN26 E3FA-DP26
BGS
(background
suppression) 3130_lu_1_5
100 mm
(Red light)
pre-wired E3FA-LN11 2M E3FA-LP11 2M
M12 connector E3FA-LN21 E3FA-LP21
200 mm
(Red light)
pre-wired E3FA-LN12 2M E3FA-LP12 2M
M12 connector E3FA-LN22 E3FA-LP22
Limited distance
reflective 3130_lu_1_6
10 to 50 mm
(Red light)
pre-wired E3FA-VN11 2M E3FA-VP11 2M
M12 connector E3FA-VN21 E3FA-VP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_7
100 to 500 mm
with E39-RP1
(Red light)
pre-wired E3FA-BN11 2M E3FA-BP11 2M
M12 connector E3FA-BN21 E3FA-BP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_8
0.1 to 2 m
with E39-RP1
(Red light)
pre-wired E3FA-BN12 2M E3FA-BP12 2M
M12 connector E3FA-BN22 E3FA-BP22
E3FA, E3RA, E3FB, E3RB Lineup 3

Sensors (E3RA Plastic housing)

Red light

Sensor typeSensing
distance
Connection
method
Model
NPN outputPNP output

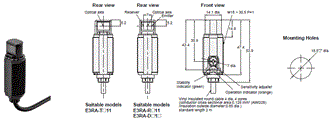

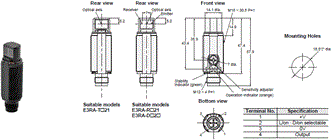

Through-beam *1. 3130_lu_6_1 15 m pre-wired set E3RA-TN11 2M
Emitter E3RA-TN11-L 2M
Receiver E3RA-TN11-D 2M
set E3RA-TP11 2M
Emitter E3RA-TP11-L 2M
Receiver E3RA-TP11-D 2M
M12 connector set E3RA-TN21
Emitter E3RA-TN21-L
Receiver E3RA-TN21-D
set E3RA-TP21
Emitter E3RA-TP21-L
Receiver E3RA-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_6_2
0.1 to 3 m
with E39-R1S
pre-wired E3RA-RN11 2M E3RA-RP11 2M
M12 connector E3RA-RN21 E3RA-RP21
Diffuse-reflective 3130_lu_6_3 100 mm pre-wired E3RA-DN11 2M E3RA-DP11 2M
M12 connector E3RA-DN21 E3RA-DP21
300 mm pre-wired E3RA-DN12 2M E3RA-DP12 2M
M12 connector E3RA-DN22 E3RA-DP22
700 mm pre-wired E3RA-DN13 2M E3RA-DP13 2M
M12 connector E3RA-DN23 E3RA-DP23

*1. The set type includes the emitter and receiver.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.

E3FA, E3RA, E3FB, E3RB Lineup 7

Sensors (E3FB/E3RB Metal housing)

Red light

Sensor typeSensing
distance
(Red light)
Connection
method
Model
NPN outputPNP output
Through-beam *1. 3130_lu_1_1 20 m pre-wired set E3FB-TN11 2M
Emitter E3FB-TN11-L 2M
Receiver E3FB-TN11-D 2M
set E3FB-TP11 2M
Emitter E3FB-TP11-L 2M
Receiver E3FB-TP11-D 2M
M12 connector set E3FB-TN21
Emitter E3FB-TN21-L
Receiver E3FB-TN21-D
set E3FB-TP21
Emitter E3FB-TP21-L
Receiver E3FB-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_1_2
0.1 to 4 m
with E39-R1S
pre-wired E3FB-RN11 2M E3FB-RP11 2M
M12 connector E3FB-RN21 E3FB-RP21
Coaxial Retro-
reflective
with MSR
function *2. 3130_lu_1_3
0 to 500 mm
with E39-R1S
pre-wired E3FB-RN12 2M E3FB-RP12 2M
M12 connector E3FB-RN22 E3FB-RP22
Diffuse-reflective 3130_lu_1_4 100 mm pre-wired E3FB-DN11 2M E3FB-DP11 2M
M12 connector E3FB-DN21 E3FB-DP21
300 mm pre-wired E3FB-DN12 2M E3FB-DP12 2M
M12 connector E3FB-DN22 E3FB-DP22
1 m pre-wired E3FB-DN13 2M E3FB-DP13 2M
M12 connector E3FB-DN23 E3FB-DP23
BGS
(background
suppression) 3130_lu_1_5
100 mm pre-wired E3FB-LN11 2M E3FB-LP11 2M
M12 connector E3FB-LN21 E3FB-LP21
200 mm pre-wired E3FB-LN12 2M E3FB-LP12 2M
M12 connector E3FB-LN22 E3FB-LP22
Limited distance
reflective 3130_lu_1_6
10 to 50 mm pre-wired E3FB-VN11 2M E3FB-VP11 2M
M12 connector E3FB-VN21 E3FB-VP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_7
100 to 500 mm
with E39-RP1
pre-wired E3FB-BN11 2M E3FB-BP11 2M
M12 connector E3FB-BN21 E3FB-BP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_8
0.1 to 2 m
with E39-RP1
pre-wired E3FB-BN12 2M E3FB-BP12 2M
M12 connector E3FB-BN22 E3FB-BP22

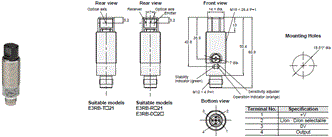

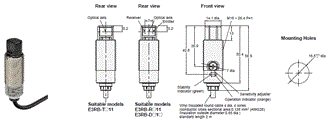

Through-beam *1. 3130_lu_1_9 15 m pre-wired set E3RB-TN11 2M
Emitter E3RB-TN11-L 2M
Receiver E3RB-TN11-D 2M
set E3RB-TP11 2M
Emitter E3RB-TP11-L 2M
Receiver E3RB-TP11-D 2M
M12 connector set E3RB-TN21
Emitter E3RB-TN21-L
Receiver E3RB-TN21-D
set E3RB-TP21
Emitter E3RB-TP21-L
Receiver E3RB-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_1_10
0.1 to 3 m
with E39-R1S
pre-wired E3RB-RN11 2M E3RB-RP11 2M
M12 connector E3RB-RN21 E3RB-RP21
Diffuse-reflective 3130_lu_1_11 100 mm pre-wired E3RB-DN11 2M E3RB-DP11 2M
M12 connector E3RB-DN21 E3RB-DP21
300 mm pre-wired E3RB-DN12 2M E3RB-DP12 2M
M12 connector E3RB-DN22 E3RB-DP22
700 mm pre-wired E3RB-DN13 2M E3RB-DP13 2M
M12 connector E3RB-DN23 E3RB-DP23

*1. The set type includes the emitter and receiver.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.

Reflectors

Reflectors required for Retro-reflective Sensors: A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.

SensorSensing distanceAppearanceModelQuantityRemarks
E3FA-R[]1
E3FB-R[]1

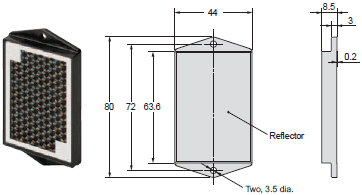

0.1 to 4 m 3130_lu_3_1 E39-R1S 1 for E3FA-R[], E3RA-R[],
E3FB-R[] and E3RB-R[]
E3FA-R[]2
E3FB-R[]2
0 to 500 mm
E3FA-B[]1
E3FB-B[]1

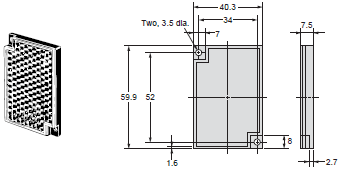

100 to 500 mm 3130_lu_3_2 E39-RP1 1 for E3FA-B[] and E3FB-B[]
E3FA-B[]2
E3FB-B[]2
0.1 to 2 m

Mounting brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

SensorAppearanceModel (Material)QuantityRemarks

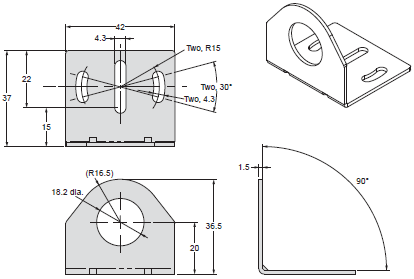

all types 3130_lu_4_1 E39-L183 (SUS304) 1 Mounting bracket
E3FA-[]
E3RA-[]
3130_lu_4_2 E39-L182 (POM) 1 Flush mounting bracket

Sensor I/O connectors

SensorSizeCableAppearanceCable typeModel
M12 connector types M12 Standard Straight 3130_lu_5_1 2 m 4-wire XS2F-M12PVC4S2M
5 m XS2F-M12PVC4S5M
Angle 3130_lu_5_2 2 m XS2F-M12PVC4A2M
5 m XS2F-M12PVC4A5M

Specifications | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Straight type (E3FA/E3FB)

Sensing methodThrough-beamRetro-reflective
with
MSR function
Coaxial Retro-
reflective with
MSR function
ModelNPN
output
Pre-wiredE3F[]-TN11 2ME3FA-TN12 2ME3F[]-RN11 2ME3F[]-RN12 2M
M12
Connector
E3F[]-TN21E3FA-TN22E3F[]-RN21E3F[]-RN22
PNP
output
Pre-wiredE3F[]-TP11 2ME3FA-TP12 2ME3F[]-RP11 2ME3F[]-RP12 2M
M12
Connector
E3F[]-TP21E3FA-TP22E3F[]-RP21E3F[]-RP22
Sensing distance 20 m 15 m 0.1 to 4 m
(with E39-R1S)
0 to 500 mm
(with E39-R1S)
Spot diameter (reference
value)
Standard sensing object Opaque: 7 mm dia.min. Opaque: 75 mm dia.min.
Differential travel
Directional angle 2° min.
Light source (wavelength) Red LED (624 nm) Infrared LED
(850 nm)
Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 40 mA max.
(Emitter 25 mA max. Receiver 15 mA max.)
25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage:
30 VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and
Output reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 110 g/Approx. 50 g,
respectively,
E3FB: Approx. 175 g/Approx. 65 g,
respectively
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 30 g/Approx. 10 g,
respectively,
E3FB: Approx. 85 g/Approx. 20 g,
respectively
E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (4 pcs)
Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 2

* IP69K Degree of Protection Specifications
IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing methodDiffuse-reflective
ModelNPN
output
Pre-wiredE3F[]-
DN11 2M
E3F[]-
DN12 2M
E3F[]-
DN13 2M
E3FA-
DN14 2M
E3FA-
DN15 2M
E3FA-
DN16 2M
M12
Connector
E3F[]-
DN21
E3F[]-
DN22
E3F[]-
DN23
E3FA-
DN24
E3FA-
DN25
E3FA-
DN26
PNP
output
Pre-wiredE3F[]-
DP11 2M
E3F[]-
DP12 2M
E3F[]-
DP13 2M
E3FA-
DP14 2M
E3FA-
DP15 2M
E3FA-
DP16 2M
M12
Connector
E3F[]-
DP21
E3F[]-
DP22
E3F[]-
DP23
E3FA-
DP24
E3FA-
DP25
E3FA-
DP26
Sensing distance 100 mm
(white paper:
300 × 300
mm)
300 mm
(white paper:
300 × 300
mm)
1 m
(white paper:
300 × 300
mm)
100 mm
white paper:
300 × 300
mm)
300 mm
(white paper:
300 × 300
mm)
1 m
(white paper:
300 × 300
mm)
Spot diameter
(reference value)
40 × 45 mm
Sensing
distance of
100 mm
40 × 50 mm
Sensing
distance of
300 mm
120 × 150
mm
Sensing
distance of
1 m
40 × 45 mm
Sensing
distance of
100 mm
40 × 50 mm
Sensing
distance of
300 mm
120 × 150
mm
Sensing
distance of
1 m
Standard sensing object --
Differential travel 20% max.
Directional angle --
Light source (wavelength) Red LED (624 nm) Infrared LED (850 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 4

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing methodBGS
(Background suppression)
Limited
distance
reflective
Transparent detected with
P-opaquing function
ModelNPN
output
Pre-wiredE3F[]-LN11
2M
E3F[]-LN12
2M
E3F[]-VN11
2M
E3F[]-BN11
2M
E3F[]-BN12
2M
M12
Connector
E3F[]-LN21E3F[]-LN22E3F[]-VN21E3F[]-BN21E3F[]-BN22
PNP
output
Pre-wiredE3F[]-LP11
2M
E3F[]-LP12
2M
E3F[]-VP11
2M
E3F[]-BP11
2M
E3F[]-BP12
2M
M12
Connector
E3F[]-LP21E3F[]-LP22E3F[]-VP21E3F[]-BP21E3F[]-BP22
Sensing distance 100 mm
(white paper:
300 × 300 mm)
200 mm
(white paper:
300 × 300 mm)
10 to 50 mm
(glass (t = 1.0
mm): 150 ×
150 mm)
100 to 500 mm
(with E39-RP1)
0.1 to 2 m
(with E39-RP1)
Spot diameter
(reference value)
10 × 10 mm
Sensing
distance of
100 mm
10 × 15 mm
Sensing
distance of
200 mm
10 × 10 mm
Sensing
distance of
50 mm
-
Standard sensing object -- glass(t = 1.0 mm): 150 × 150 mm
Differential travel 20% max. -
Directional angle -
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment Fixed One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 6

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Radial type (E3RA/E3RB)

Sensing methodThrough-
beam
Retro-
reflective
with MSR
function
Diffuse-reflective
ModelNPN
output
Pre-wiredE3R[]-TN11
2M
E3R[]-RN11
2M
E3R[]-DN11
2M
E3R[]-DN12
2M
E3R[]-DN13
2M
M12
Connector
E3R[]-TN21E3R[]-RN21E3R[]-DN21E3R[]-DN22E3R[]-DN23
PNP
output
Pre-wiredE3R[]-TP11
2M
E3R[]-RP11
2M
E3R[]-DP11
2M
E3R[]-DP12
2M
E3R[]-DP13
2M
M12
Connector
E3R[]-TP21E3R[]-RP21E3R[]-DP21E3R[]-DP22E3R[]-DP23
Sensing distance 15 m 0.1 to 3 m
(with E39-R1S)
100 mm
(white paper:
300 × 300 mm)
300 mm
(white paper:
300 × 300 mm)
700 mm
(white paper:
300 × 300 mm)
Spot diameter
(reference value)
- 35 × 40 mm
Sensing
distance of
100 mm
40 × 45 mm
Sensing
distance of
300 mm
90 × 120 mm
Sensing
distance of
700 mm
Standard sensing object Opaque:
7 mm dia. min.
Opaque:
75 mm dia. min.
-
Differential travel - 20% max.
Directional angle 2° min. -
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 40mA max.
(Emitter 25 mA
max. Receiver
15 mA max.)
25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 2 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3RA:
Approx. 110 g/
Approx. 50 g,
respectively,
E3RB:
Approx. 175 g/
Approx. 65 g,
respectively
E3RA: Approx. 60 g/Approx. 50 g,
E3RB: Approx. 95 g/Approx. 65 g
Connector E3RA:
Approx. 30 g/
Approx. 10 g,
respectively,
E3RB:
Approx. 85 g/
Approx. 20 g,
respectively
E3RA: Approx. 20 g/Approx. 10 g,
E3RB: Approx. 50 g/Approx. 20 g
MaterialCase E3RA: ABS, E3RB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3RA: POM, E3RB: Nickel-brass
Accessories Instruction
sheet
M18 nuts (4
pcs)
Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 8

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Dimensions | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors (E3FA/E3RA Plastic housing)

E3FA series
Pre-wired Models
E3FA-T[]1[]
E3FA-R[]1[]
E3FA-D[]1[]
E3FA-L[]1[]
E3FA-V[]11
E3FA-B[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 3

E3FA series
M12 Connector Models
E3FA-T[]2[]
E3FA-R[]2[]
E3FA-D[]2[]
E3FA-L[]2[]
E3FA-V[]21
E3FA-B[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 4

E3RA series
Pre-wired Models
E3RA-T[]11
E3RA-R[]11
E3RA-D[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 5

E3RA series
M12 Connector Models
E3RA-T[]21
E3RA-R[]21
E3RA-D[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 6

Sensors (E3FB/E3RB Metal housing)

E3FB series
Pre-wired Models
E3FB-T[]11
E3FB-R[]1[]
E3FB-D[]1[]
E3FB-L[]1[]
E3FB-V[]11
E3FB-B[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 8

E3FB series
M12 Connector Models
E3FB-T[]21
E3FB-R[]2[]
E3FB-D[]2[]
E3FB-L[]2[]
E3FB-V[]21
E3FB-B[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 9

E3RB series
Pre-wired Models
E3RB-T[]11
E3RB-R[]11
E3RB-D[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 10

E3RB series
M12 Connector Models
E3RB-T[]21
E3RB-R[]21
E3RB-D[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 11

Attached nut

E3FA, E3RA, E3FB, E3RB Dimensions 12

Material: POM (for E3FA/E3RA)
Nickel-brass (for E3FB/E3RB)

Accessories (Order Separately)

Reflectors
E39-R1S

E3FA, E3RA, E3FB, E3RB Dimensions 14

Reflectors
E39-RP1

E3FA, E3RA, E3FB, E3RB Dimensions 15

Material,
reflective surface: acrylic
Rear surface: ABS

Mounting brackets
E39-L183

E3FA, E3RA, E3FB, E3RB Dimensions 16

Mounting brackets
E39-L182

E3FA, E3RA, E3FB, E3RB Dimensions 17

Features | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

  • Simplicity
    • Simple selection
    • Simple installation
  • One family for all
    • All standard applications covered
    • A wide variety of models
    • Models designed for special applications
  • Non-stop detection
    • High quality and reliability
    • High EMC protection
    • High light immunity
    • Robust and waterproof housing

Properties | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series
Sensing method Through-beam, Retro-reflective, Coaxial Retro-reflective,
Diffuse-reflective, BGS, Limiteddistancereflective,Transparent detected
Sensing distance

10 to 50 mm, 0 to 500 mm, 100 to 500 mm, 100 mm, 200 mm, 300 mm,
700 mm, 0.1 to 2 m, 0.1 to 3 m, 0.1 to 4 m, 1 m, 15 m, 20 m

Power supply voltage 10 to 30 VDC
Current consumption 25 mA max, 40 mA max
Response time 0.5 ms
Degree of protection IP67, IP69K
MaterialCase ABS, Nickel-brass

Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

ดาวน์โหลดไฟล์ PDF
Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series
OMRON Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series
เลือกรุ่นสินค้า
ข้อมูลทางเทคนิค
ขนาด
คุณสมบัติ

เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

E3FA, E3RA, E3FB, E3RB Lineup 1

เซ็นเซอร์ (ตัวโครงพลาสติก E3FA)

ประเภทเซนเซอร์ระยะการตรวจจับวิธีการเชื่อต่อรุ่นสินค้า
เอาต์พุต NPNเอาต์พุต PNP
Through-beam *1. 3130_lu_1_1 20 ม.
(แสงสีแดง)
มีสายในตัว set E3FA-TN11 2M
Emitter E3FA-TN11-L 2M
Receiver E3FA-TN11-D 2M
set E3FA-TP11 2M
Emitter E3FA-TP11-L 2M
Receiver E3FA-TP11-D 2M
คอนเนคเตอร์ M12 set E3FA-TN21
Emitter E3FA-TN21-L
Receiver E3FA-TN21-D
set E3FA-TP21
Emitter E3FA-TP21-L
Receiver E3FA-TP21-D
15 m
(แสงอินฟราเรด)
มีสายในตัว set E3FA-TN12 2M
Emitter E3FA-TN12-L 2M
Receiver E3FA-TN12-D 2M
set E3FA-TP12 2M
Emitter E3FA-TP12-L 2M
Receiver E3FA-TP12-D 2M
คอนเนคเตอร์ M12 set E3FA-TN22
Emitter E3FA-TN22-L
Receiver E3FA-TN22-D
set E3FA-TP22
Emitter E3FA-TP22-L
Receiver E3FA-TP22-D
Retro-reflective
with MSR
function *2. 3130_lu_1_2
0.1 to 4 ม.
with E39-R1S
(แสงสีแดง)
มีสายในตัว E3FA-RN11 2M E3FA-RP11 2M
คอนเนคเตอร์ M12 E3FA-RN21 E3FA-RP21
Coaxial Retro-
reflective
with MSR
function *2. 3130_lu_1_3
0 to 500 มม.
with E39-R1S
(แสงสีแดง)
มีสายในตัว E3FA-RN12 2M E3FA-RP12 2M
คอนเนคเตอร์ M12 E3FA-RN22 E3FA-RP22
Diffuse-reflective 3130_lu_1_4 100 มม.
(แสงสีแดง)
มีสายในตัว E3FA-DN11 2M E3FA-DP11 2M
คอนเนคเตอร์ M12 E3FA-DN21 E3FA-DP21
300 มม.
(แสงสีแดง)
มีสายในตัว E3FA-DN12 2M E3FA-DP12 2M
คอนเนคเตอร์ M12 E3FA-DN22 E3FA-DP22
1 ม.
(แสงสีแดง)
มีสายในตัว E3FA-DN13 2M E3FA-DP13 2M
คอนเนคเตอร์ M12 E3FA-DN23 E3FA-DP23
100 mm
(แสงอินฟราเรด)
มีสายในตัว E3FA-DN14 2M E3FA-DP14 2M
คอนเนคเตอร์ M12 E3FA-DN24 E3FA-DP24
300 mm
(แสงอินฟราเรด)
มีสายในตัว E3FA-DN15 2M E3FA-DP15 2M
คอนเนคเตอร์ M12 E3FA-DN25 E3FA-DP25
1 m
(แสงอินฟราเรด)
มีสายในตัว E3FA-DN16 2M E3FA-DP16 2M
คอนเนคเตอร์ M12 E3FA-DN26 E3FA-DP26
BGS
(ลบพื้นหลัง) 3130_lu_1_5
100 มม.
(แสงสีแดง)
มีสายในตัว E3FA-LN11 2M E3FA-LP11 2M
คอนเนคเตอร์ M12 E3FA-LN21 E3FA-LP21
200 มม.
(แสงสีแดง)
มีสายในตัว E3FA-LN12 2M E3FA-LP12 2M
คอนเนคเตอร์ M12 E3FA-LN22 E3FA-LP22
Limited distance
reflective 3130_lu_1_6
10 to 50 มม.
(แสงสีแดง)
มีสายในตัว E3FA-VN11 2M E3FA-VP11 2M
คอนเนคเตอร์ M12 E3FA-VN21 E3FA-VP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_7
100 to 500 มม.
with E39-RP1
(แสงสีแดง)
มีสายในตัว E3FA-BN11 2M E3FA-BP11 2M
คอนเนคเตอร์ M12 E3FA-BN21 E3FA-BP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_8
0.1 to 2 ม.
with E39-RP1
(แสงสีแดง)
มีสายในตัว E3FA-BN12 2M E3FA-BP12 2M
คอนเนคเตอร์ M12 E3FA-BN22 E3FA-BP22
E3FA, E3RA, E3FB, E3RB Lineup 3

เซนเซอร์ (ตัวโครงพลาสติก E3RA)

สีแดง

ประเภทเซนเซอร์ระยะการตรวจจับวิธีการเชื่อมต่อรุ่นสินค้า
เอาต์พุต NPNเอาต์พุต PNP
Through-beam *1. 3130_lu_6_1 15 ม. มีสายในตัว ชุด E3RA-TN11 2M
ตัวส่ง E3RA-TN11-L 2M
ตัวรับ E3RA-TN11-D 2M
ชุด E3RA-TP11 2M
ตัวส่ง E3RA-TP11-L 2M
ตัวรับ E3RA-TP11-D 2M
คอนเนคเตอร์ M12 ชุด E3RA-TN21
ตัวส่ง E3RA-TN21-L
ตัวรับ E3RA-TN21-D
ชุด E3RA-TP21
ตัวส่ง E3RA-TP21-L
ตัวรับ E3RA-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_6_2
0.1 to 3 ม.
with E39-R1S
มีสายในตัว E3RA-RN11 2M E3RA-RP11 2M
คอนเนคเตอร์ M12 E3RA-RN21 E3RA-RP21
Diffuse-reflective 3130_lu_6_3 100 มม. มีสายในตัว E3RA-DN11 2M E3RA-DP11 2M
คอนเนคเตอร์ M12 E3RA-DN21 E3RA-DP21
300 มม. มีสายในตัว E3RA-DN12 2M E3RA-DP12 2M
คอนเนคเตอร์ M12 E3RA-DN22 E3RA-DP22
700 มม. มีสายในตัว E3RA-DN13 2M E3RA-DP13 2M
คอนเนคเตอร์ M12 E3RA-DN23 E3RA-DP23
  1. * ชุดนี้ประกอบด้วยตัวส่งและตัวรับ
  2. * แผ่นสะท้อนแสงแยกจำหน่าย เลือกรุ่นแผ่นสะท้อนให้เหมาะกับการใช้งานมากที่สุด
E3FA, E3RA, E3FB, E3RB Lineup 7

เซนเซอร์ (ตัวโครงโลหะ E3FB/E3RB)

แสงสีแดง

ประเภทเซนเซอร์ระยะการตรวจจับ
(แสงสีแดง)
วิธีการเชื่อมต่อรุ่นสินค้า
เอาต์พุต NPNเอาต์พุต PNP
Through-beam *1. 3130_lu_1_1 20 มม. มีสายในตัว ชุด E3FB-TN11 2M
ตัวส่ง E3FB-TN11-L 2M
ตัวรับ E3FB-TN11-D 2M
set E3FB-TP11 2M
ตัวส่ง E3FB-TP11-L 2M
ตัวรับ E3FB-TP11-D 2M
คอนเนคเตอร์ M12 ชุด E3FB-TN21
ตัวส่ง E3FB-TN21-L
ตัวรับ E3FB-TN21-D
ชุด E3FB-TP21
ตัวส่ง E3FB-TP21-L
ตัวรับ E3FB-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_1_2
0.1 to 4 ม.
with E39-R1S
มีสายในตัว E3FB-RN11 2M E3FB-RP11 2M
คอนเนคเตอร์ M12 E3FB-RN21 E3FB-RP21
Coaxial Retro-
reflective
with MSR
function *2. 3130_lu_1_3
0 to 500 มม.
with E39-R1S
มีสายในตัว E3FB-RN12 2M E3FB-RP12 2M
คอนเนคเตอร์ M12 E3FB-RN22 E3FB-RP22
Diffuse-reflective 3130_lu_1_4 100 mm มีสายในตัว E3FB-DN11 2M E3FB-DP11 2M
คอนเนคเตอร์ M12 E3FB-DN21 E3FB-DP21
300 มม. มีสายในตัว E3FB-DN12 2M E3FB-DP12 2M
คอนเนคเตอร์ M12 E3FB-DN22 E3FB-DP22
1 ม. มีสายในตัว E3FB-DN13 2M E3FB-DP13 2M
คอนเนคเตอร์ M12 E3FB-DN23 E3FB-DP23
BGS
(background
suppression) 3130_lu_1_5
100 มม. มีสายในตัว E3FB-LN11 2M E3FB-LP11 2M
คอนเนคเตอร์ M12 E3FB-LN21 E3FB-LP21
200 มม. มีสายในตัว E3FB-LN12 2M E3FB-LP12 2M
คอนเนคเตอร์ M12 E3FB-LN22 E3FB-LP22
Limited distance
reflective 3130_lu_1_6
10 to 50 มม. มีสายในตัว E3FB-VN11 2M E3FB-VP11 2M
คอนเนคเตอร์ M12 E3FB-VN21 E3FB-VP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_7
100 to 500 มม. with E39-RP1 มีสายในตัว E3FB-BN11 2M E3FB-BP11 2M
คอนเนคเตอร์ M12 E3FB-BN21 E3FB-BP21
Transparent detected
with P-opaquing
function *2. 3130_lu_1_8
0.1 to 2 ม.
with E39-RP1
มีสายในตัว E3FB-BN12 2M E3FB-BP12 2M
คอนเนคเตอร์ M12 E3FB-BN22 E3FB-BP22
Through-beam *1. 3130_lu_1_9 15 ม. มีสายในตัว set E3RB-TN11 2M
Emitter E3RB-TN11-L 2M
Receiver E3RB-TN11-D 2M
set E3RB-TP11 2M
Emitter E3RB-TP11-L 2M
Receiver E3RB-TP11-D 2M
คอนเนคเตอร์ M12 set E3RB-TN21
Emitter E3RB-TN21-L
Receiver E3RB-TN21-D
set E3RB-TP21
Emitter E3RB-TP21-L
Receiver E3RB-TP21-D
Retro-reflective
with MSR
function *2. 3130_lu_1_10
0.1 to 3 ม.
with E39-R1S
มีสายในตัว E3RB-RN11 2M E3RB-RP11 2M
คอนเนคเตอร์ M12 E3RB-RN21 E3RB-RP21
Diffuse-reflective 3130_lu_1_11 100 มม. มีสายในตัว E3RB-DN11 2M E3RB-DP11 2M
คอนเนคเตอร์ M12 E3RB-DN21 E3RB-DP21
300 มม. มีสายในตัว E3RB-DN12 2M E3RB-DP12 2M
คอนเนคเตอร์ M12 E3RB-DN22 E3RB-DP22
700 มม. มีสายในตัว E3RB-DN13 2M E3RB-DP13 2M
คอนเนคเตอร์ M12 E3RB-DN23 E3RB-DP23
  1. * ชุดนี้ประกอบด้วยตัวส่งและตัวรับ
  2. * แผ่นสะท้อนแสงแยกจำหน่าย เลือกรุ่นแผ่นสะท้อนให้เหมาะสมกับการใช้งานที่สุด

แผ่นสะท้อนแสง

ต้องใช้แผ่นสะท้อนแสงสำหรับเซนเซอร์แบบ Retroreflective: เซนเซอร์ไม่มีแผ่นสะท้อนแสง อย่าลืมสั่งซื้อแผ่นสะท้อนแยกแสงต่างหาก

เซนเซอร์ระยะตรวจจับลักษณะรุ่นปริมาณหมายเหตุ
E3FA-R[]1
E3FB-R[]1
0.1 to 4 ม. 3130_lu_3_1 E39-R1S 1 สำหรับ E3FA-R[], E3RA-R[],
E3FB-R[] and E3RB-R[]
E3FA-R[]2
E3FB-R[]2
0 to 500 มม.
E3FA-B[]1
E3FB-B[]1
100 to 500 มม. 3130_lu_3_2 E39-RP1 1 สำหรับ E3FA-B[] and E3FB-B[]
E3FA-B[]2
E3FB-B[]2
0.1 to 2 ม.

ขายึด

ขายึดไม่ได้ติดมากับเซนเซอร์ สั่งซื้อขายึดแยกต่างหากหากจำเป็น

เซนเซอร์ระยะตรวจจับรุ่น (วัสดุ)ปริมาณหมายเหตุ
ทุกรุ่น 3130_lu_4_1 E39-L183 (SUS304) 1 ขายึด
E3FA-[]
E3RA-[]
3130_lu_4_2 E39-L182 (POM) 1 ขายึดฟรัช

คอนเนคเตอร์ I/O เซนเซอร์

เซนเซอร์ขนาดสายเคเบิลลักษณะประเภทสายรุ่น
ประเภทคอนเนคเตอร์ M12 M12 มาตรฐาน ตรง 3130_lu_5_1 2 ม. 4 สาย XS2F-M12PVC4S2M
5 ม. XS2F-M12PVC4S5M
เหลี่ยม 3130_lu_5_2 2 ม. XS2F-M12PVC4A2M
5 ม. XS2F-M12PVC4A5M

ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Straight type (E3FA/E3FB)

Sensing methodThrough-beamRetro-reflective
with
MSR function
Coaxial Retro-
reflective with
MSR function
ModelNPN
output
Pre-wiredE3F[]-TN11 2ME3FA-TN12 2ME3F[]-RN11 2ME3F[]-RN12 2M
M12
Connector
E3F[]-TN21E3FA-TN22E3F[]-RN21E3F[]-RN22
PNP
output
Pre-wiredE3F[]-TP11 2ME3FA-TP12 2ME3F[]-RP11 2ME3F[]-RP12 2M
M12
Connector
E3F[]-TP21E3FA-TP22E3F[]-RP21E3F[]-RP22
Sensing distance 20 m 15 m 0.1 to 4 m
(with E39-R1S)
0 to 500 mm
(with E39-R1S)
Spot diameter (reference
value)
Standard sensing object Opaque: 7 mm dia.min. Opaque: 75 mm dia.min.
Differential travel
Directional angle 2° min.
Light source (wavelength) Red LED (624 nm) Infrared LED
(850 nm)
Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 40 mA max.
(Emitter 25 mA max. Receiver 15 mA max.)
25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage:
30 VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and
Output reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 110 g/Approx. 50 g,
respectively,
E3FB: Approx. 175 g/Approx. 65 g,
respectively
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 30 g/Approx. 10 g,
respectively,
E3FB: Approx. 85 g/Approx. 20 g,
respectively
E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (4 pcs)
Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 2

* IP69K Degree of Protection Specifications
IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing methodDiffuse-reflective
ModelNPN
output
Pre-wiredE3F[]-
DN11 2M
E3F[]-
DN12 2M
E3F[]-
DN13 2M
E3FA-
DN14 2M
E3FA-
DN15 2M
E3FA-
DN16 2M
M12
Connector
E3F[]-
DN21
E3F[]-
DN22
E3F[]-
DN23
E3FA-
DN24
E3FA-
DN25
E3FA-
DN26
PNP
output
Pre-wiredE3F[]-
DP11 2M
E3F[]-
DP12 2M
E3F[]-
DP13 2M
E3FA-
DP14 2M
E3FA-
DP15 2M
E3FA-
DP16 2M
M12
Connector
E3F[]-
DP21
E3F[]-
DP22
E3F[]-
DP23
E3FA-
DP24
E3FA-
DP25
E3FA-
DP26
Sensing distance 100 mm
(white paper:
300 × 300
mm)
300 mm
(white paper:
300 × 300
mm)
1 m
(white paper:
300 × 300
mm)
100 mm
white paper:
300 × 300
mm)
300 mm
(white paper:
300 × 300
mm)
1 m
(white paper:
300 × 300
mm)
Spot diameter
(reference value)
40 × 45 mm
Sensing
distance of
100 mm
40 × 50 mm
Sensing
distance of
300 mm
120 × 150
mm
Sensing
distance of
1 m
40 × 45 mm
Sensing
distance of
100 mm
40 × 50 mm
Sensing
distance of
300 mm
120 × 150
mm
Sensing
distance of
1 m
Standard sensing object --
Differential travel 20% max.
Directional angle --
Light source (wavelength) Red LED (624 nm) Infrared LED (850 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 4

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing methodBGS
(Background suppression)
Limited
distance
reflective
Transparent detected with
P-opaquing function
ModelNPN
output
Pre-wiredE3F[]-LN11
2M
E3F[]-LN12
2M
E3F[]-VN11
2M
E3F[]-BN11
2M
E3F[]-BN12
2M
M12
Connector
E3F[]-LN21E3F[]-LN22E3F[]-VN21E3F[]-BN21E3F[]-BN22
PNP
output
Pre-wiredE3F[]-LP11
2M
E3F[]-LP12
2M
E3F[]-VP11
2M
E3F[]-BP11
2M
E3F[]-BP12
2M
M12
Connector
E3F[]-LP21E3F[]-LP22E3F[]-VP21E3F[]-BP21E3F[]-BP22
Sensing distance 100 mm
(white paper:
300 × 300 mm)
200 mm
(white paper:
300 × 300 mm)
10 to 50 mm
(glass (t = 1.0
mm): 150 ×
150 mm)
100 to 500 mm
(with E39-RP1)
0.1 to 2 m
(with E39-RP1)
Spot diameter
(reference value)
10 × 10 mm
Sensing
distance of
100 mm
10 × 15 mm
Sensing
distance of
200 mm
10 × 10 mm
Sensing
distance of
50 mm
-
Standard sensing object -- glass(t = 1.0 mm): 150 × 150 mm
Differential travel 20% max. -
Directional angle -
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment Fixed One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3FA: Approx. 60 g/Approx. 50 g,
E3FB: Approx. 95 g/Approx. 65 g
Connector E3FA: Approx. 20 g/Approx. 10 g,
E3FB: Approx. 50 g/Approx. 20 g
MaterialCase E3FA: ABS, E3FB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3FA: POM, E3FB: Nickel-brass
Accessories Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 6

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Radial type (E3RA/E3RB)

Sensing methodThrough-
beam
Retro-
reflective
with MSR
function
Diffuse-reflective
ModelNPN
output
Pre-wiredE3R[]-TN11
2M
E3R[]-RN11
2M
E3R[]-DN11
2M
E3R[]-DN12
2M
E3R[]-DN13
2M
M12
Connector
E3R[]-TN21E3R[]-RN21E3R[]-DN21E3R[]-DN22E3R[]-DN23
PNP
output
Pre-wiredE3R[]-TP11
2M
E3R[]-RP11
2M
E3R[]-DP11
2M
E3R[]-DP12
2M
E3R[]-DP13
2M
M12
Connector
E3R[]-TP21E3R[]-RP21E3R[]-DP21E3R[]-DP22E3R[]-DP23
Sensing distance 15 m 0.1 to 3 m
(with E39-R1S)
100 mm
(white paper:
300 × 300 mm)
300 mm
(white paper:
300 × 300 mm)
700 mm
(white paper:
300 × 300 mm)
Spot diameter
(reference value)
- 35 × 40 mm
Sensing
distance of
100 mm
40 × 45 mm
Sensing
distance of
300 mm
90 × 120 mm
Sensing
distance of
700 mm
Standard sensing object Opaque:
7 mm dia. min.
Opaque:
75 mm dia. min.
-
Differential travel - 20% max.
Directional angle 2° min. -
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption 40mA max.
(Emitter 25 mA
max. Receiver
15 mA max.)
25 mA max.
Control output NPN/PNP (open collector)
Load current: 100 mA max. (Residual voltage: 2 V max.), Load power supply voltage: 30
VDC max.
Operation mode Light-ON/Dark-ON selectable by wiring
Indicator Operation indicator (orange)
Stability indicator (green)
Power indicator (green): only Emitter of Through-beam
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, and Output
reverse polarity protection
Response time 0.5 ms
Sensitivity adjustment One-turn adjuster
Ambient illumination
(Receiver side)
Incandescent lamp: 3,000 lx max./Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25 to 55°C/ Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range Operating: 35 to 85%/Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67, DIN 40050-9: IP69K *
Weight
(packed
state/
only
sensor)
Pre-wired cable
(2M)
E3RA:
Approx. 110 g/
Approx. 50 g,
respectively,
E3RB:
Approx. 175 g/
Approx. 65 g,
respectively
E3RA: Approx. 60 g/Approx. 50 g,
E3RB: Approx. 95 g/Approx. 65 g
Connector E3RA:
Approx. 30 g/
Approx. 10 g,
respectively,
E3RB:
Approx. 85 g/
Approx. 20 g,
respectively
E3RA: Approx. 20 g/Approx. 10 g,
E3RB: Approx. 50 g/Approx. 20 g
MaterialCase E3RA: ABS, E3RB: Nickel-brass
Lens and Display PMMA
Adjuster POM
Nut E3RA: POM, E3RB: Nickel-brass
Accessories Instruction
sheet
M18 nuts (4
pcs)
Instruction sheet
M18 nuts (2 pcs)
E3FA, E3RA, E3FB, E3RB Specifications 8

* IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

ขนาด | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors (E3FA/E3RA Plastic housing)

E3FA series
Pre-wired Models
E3FA-T[]1[]
E3FA-R[]1[]
E3FA-D[]1[]
E3FA-L[]1[]
E3FA-V[]11
E3FA-B[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 3

E3FA series
M12 Connector Models
E3FA-T[]2[]
E3FA-R[]2[]
E3FA-D[]2[]
E3FA-L[]2[]
E3FA-V[]21
E3FA-B[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 4

E3RA series
Pre-wired Models
E3RA-T[]11
E3RA-R[]11
E3RA-D[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 5

E3RA series
M12 Connector Models
E3RA-T[]21
E3RA-R[]21
E3RA-D[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 6

Sensors (E3FB/E3RB Metal housing)

E3FB series
Pre-wired Models
E3FB-T[]11
E3FB-R[]1[]
E3FB-D[]1[]
E3FB-L[]1[]
E3FB-V[]11
E3FB-B[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 8

E3FB series
M12 Connector Models
E3FB-T[]21
E3FB-R[]2[]
E3FB-D[]2[]
E3FB-L[]2[]
E3FB-V[]21
E3FB-B[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 9

E3RB series
Pre-wired Models
E3RB-T[]11
E3RB-R[]11
E3RB-D[]1[]

E3FA, E3RA, E3FB, E3RB Dimensions 10

E3RB series
M12 Connector Models
E3RB-T[]21
E3RB-R[]21
E3RB-D[]2[]

E3FA, E3RA, E3FB, E3RB Dimensions 11

Attached nut

E3FA, E3RA, E3FB, E3RB Dimensions 12

Material: POM (for E3FA/E3RA)
Nickel-brass (for E3FB/E3RB)

Accessories (Order Separately)

Reflectors
E39-R1S

E3FA, E3RA, E3FB, E3RB Dimensions 14

Reflectors
E39-RP1

E3FA, E3RA, E3FB, E3RB Dimensions 15

Material,
reflective surface: acrylic
Rear surface: ABS

Mounting brackets
E39-L183

E3FA, E3RA, E3FB, E3RB Dimensions 16

Mounting brackets
E39-L182

E3FA, E3RA, E3FB, E3RB Dimensions 17

คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

  • เรียบง่าย
    • เลือกง่าย
    • ติดตั้งง่าย
  • ครอบครัวเดียวสำหรับทั้งหมด
    • ครอบคลุมใช้งานมาตรฐานทั้งหมด
    • หลากหลายรุ่น
    • รุ่นที่ออกแบบมาสำหรับการใช้งานพิเศษ
  • การตรวจจับแบบมีไม่หยุด
    • คุณภาพและความน่าเชื่อถือสูง
    • การป้องกัน EMC สูง
    • กันแสงสูง
    • ตัวเครื่องแข็งแรงและกันน้ำ

ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, E3FB, E3RB series

Photoelectric Sensor Built-in Amplifier - E3FA, E3RA, R3FB, E3RB series
วิธีการตรวจจับ Through-beam, Retro-reflective, Coaxial Retro-reflective,
Diffuse-reflective, BGS, Limited distancere flective,Transparent detected
ระยะตรวจจับ

10 ถึง 50 มม., 0 ถึง 500 มม., 100 ถึง 500 มม., 100 มม., 200 มม., 300 มม.,
700 มม., 0.1 ถึง 2 ม., 0.1 ถึง 3 ม., 0.1 ถึง 4 ม., 1 ม., 15 ม., 20 ม.

แรงดันไฟฟ้า 10 ถึง 30 VDC
การใช้กระแส สูงสุด 25 มิลลิแอมป์, สูงสุด 40 มิลลิแอมป์
เวลาตอบสนองสูงสุด 0.5 มิลลิวินาที
ระดับการป้องกัน IP67, IP69K
วัสดุภายนอก PBT, SUS303

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
