Fiber Amplifier Sensor - E3NX-CA series

Smart Fiber Amplifier Units with White LEDs. High Color Discrimination Capability with the Same Easy Operation as Previous Fiber Amplifier Units. Existing General-purpose Fiber Units Can Be Connected

Download PDF
Fiber Amplifier Sensor -  E3NX-CA series
OMRON Fiber Amplifier Sensor - E3NX-CA series
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Fiber Amplifier Sensor - E3NX-CA series

Fiber Amplifier Units

TypeAppearanceConnecting methodInputs / outputsModel
NPN outputPNP output
Standard models 3532_lu_1_1 Pre-wired (2 m) 1 output E3NX-CA11 2M E3NX-CA41 2M
3532_lu_1_2 Wire-saving Connector 1 output E3NX-CA6 E3NX-CA8
Advanced models 3532_lu_1_3 Pre-wired (2 m) 2 outputs + 1 input E3NX-CA21 2M E3NX-CA51 2M
Model for Sensor Communications Unit * 3532_lu_1_4 Connector for Sensor Communications Unit -- E3NX-CA0

* A Sensor Communications Unit is required if you want to use the Fiber Amplifier Unit on a network.
Note: Refer to your OMRON website for details on models with wire-saving connectors.

Fiber Units

Sensing methodAppearanceSensing directionSizeModel

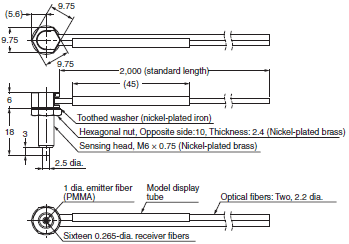

Reflective 3532_lu_2_1 Right-angle M6 E32-C91N 2M
Through-beam (Grooved type) 3532_lu_2_2 Array 10 mm E32-G16 2M

Note: Refer to Fiber Units on your OMRON website or to the Fiber Sensor Best Selection Catalog (Cat. No. E418-E1) for details on Fiber Units.

Accessories (Sold Separately)

Wire-saving Connectors (Required for models for Wire-saving Connectors.)

Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately. *Protective stickers are provided.

TypeAppearanceCable lengthNo. of conductorsModelApplicable Fiber
Amplifier Units
Master Connector 3532_lu_3_1 2 m 3 E3X-CN11 E3NX-CA6
E3NX-CA8

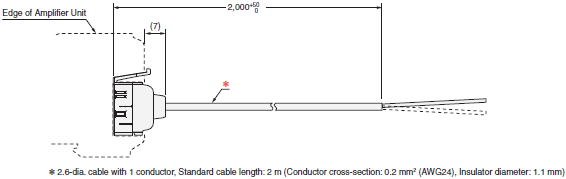

Slave Connector 3532_lu_3_2 1 E3X-CN12

Note: Models are also available with a 5-m cable. The model names have the suffix 5M. Ask your OMRON representative for delivery times.

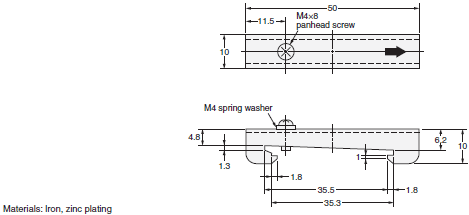

Mounting Bracket

A Mounting Bracket is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

AppearanceModelQuantity

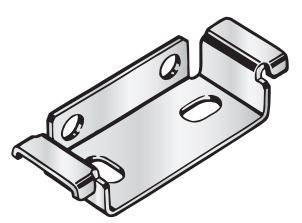

3532_lu_4_1 E39-L143 1

DIN Tracks

A DIN Track is not provided with the Fiber Amplifier Unit. It must be ordered separately as required.

Note: Refer to PFP-[] on your OMRON website for details.

End Plate

Two End Plates are provided with the Sensor Communications Unit. End Plates are not provided with the Fiber Amplifier Unit. They must be ordered separately as required.

AppearanceTypeModelQuantity
3532_lu_5_1 Shallow type, total length: 1 m PFP-100N 1
Shallow type, total length: 0.5 m PFP-50N
Deep type, total length: 1 m PFP-100N2
AppearanceModelQuantity

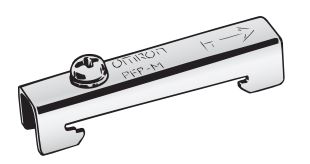

3532_lu_6_1 PFP-M 1

Note: Refer to PFP-M on your OMRON website for details.

Related Products

Sensor Communications Units

TypeAppearanceModel
Sensor Communications Unit for EtherCAT 3532_lu_7_1 E3NW-ECT
Distributed Sensor Unit 3532_lu_7_2 E3NW-DS

Note: Refer to your OMRON website for details.

EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

Specifications | Fiber Amplifier Sensor - E3NX-CA series

Ratings and Specifications

TypeStandard modelsAdvanced modelsModel for Sensor Communications Unit *1
NPN outputE3NX-CA11E3NX-CA6E3NX-CA21E3NX-CA0
PNP outputE3NX-CA41E3NX-CA8E3NX-CA51
Connecting methodPre-wiredWire-saving
Connector
Pre-wiredConnector for Sensor
Communications Unit
I/OOutputs 1 output 2 outputs --- *3
External input --- 1 input *2
Light source (wavelength) White LED (420 to 700 nm)
Supply voltage 10 to 30 VDC, including 10% ripple (p-p) Supplied from the
connector through the
Sensor Communications
Unit.
Power consumption *4 At Power Supply Voltage of 24 VDC
Normal mode: 960 mW max. (Current consumption: 40 mA max.)
Eco function ON: 720 mW max. (Current consumption: 30 mA max.)
Eco function LO: 800 mW max. (Current consumption: 33 mA max.)
Control output Load power supply voltage:
30 VDC max., open-collector output
Load current:
Groups of 1 to 3 Amplifiers: 100 mA max.,
Groups of 4 to 30 Amplifiers: 20 mA max.
(Residual voltage:
At load current of less than 10 mA: 1 V max.
At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
---
Indications 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), NO/NC indicator (orange), Smart Tuning indicator (blue),
and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection, output
short-circuit protection, and output reverse polarity
protection
Power supply reverse
polarity protection
Sensing method Contrast Mode:
Light intensity discrimination for RGB (initial state/after 2-point tuning)
(R+G+B light intensity discrimination for 1-point tuning)
Color Mode: RGB ratio discrimination
Re-
sponse
time
Super-high-speed
Mode (SHS) *5
Operate or reset: 50 μs (only in Contrast Mode)
High-speed Mode
(HS)
Operate or reset: 250 μs
Standard Mode
(Stnd)
Operate or reset: 1 ms
Giga-power Mode
(GIGA)
Operate or reset: 16 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full autotuning, or 1-point tuning (1% to 99%)) or
manual adjustment
Maximum connectable Units 30 Units 30 Units (When connected
to OMRON NJ-series Unit)
No. of
Units for
mutual
interfer-
ence
pre-
vention
*6
Super-high-speed
Mode (SHS) *5
---
High-speed Mode
(HS)
10 Units
Standard Mode
(Stnd)
10 Units
Giga-power Mode
(GIGA)
10 Units
Func-
tions
Operation mode Contrast Mode: NO (Light-ON) or NC (Dark-ON)
Color Mode: NO (ON for match: ON for same color as registered color) or NC (ON for
mismatch: ON for different color from registered color)
Timer Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-
delay timer (Counted by 0.1 s in a range of 0.1 to 0.5 ms, by 0.5 ms for 0.5 to 5 ms,
and by 1 ms for 5 to 9999 ms. Default: 10 ms, Error: 0.1 ms)
Zero reset Contrast Mode only
Negative values can be displayed. (Threshold level is shifted.)
Resetting
settings *7
Select from initial reset (factory defaults), user reset (saved settings), or bank reset.
Eco mode Select from OFF (digital display lit), Eco ON (digital display not lit), and Eco LO
(digital display dimmed).
Bank switching Select from banks 1 to 8.
Power tuning
level
Set from 100 to 9,999. (The RGB maximum incident level at Smart Tuning is
adjusted to the power tuning level.)
Output 2 --- Normal, error output,
AND output, or OR
output
---
External input --- Select from input
OFF, tuning, fullauto
tuning, emission OFF,
bank 1 and 2 switching,
bank 1 through 8
switching, or zero
reset.
---
Changing the displays Threshold level and incident level, channel number and incident level, RGB display
and incident level, or bank display and incident level
Ambient illumination
(Receiver side)
Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient temperature range Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C,
Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C,
Groups of 17 to 30 Amplifier Units: -25 to 40°C
Storage: -30 to 70°C (with no icing or condensation)
Operating:
Groups of 1 or 2 Amplifier
Units: 0 to 55°C, Groups of
3 to 10 Amplifier Units: 0 to
50°C, Groups of 11 to 16
Amplifier Units: 0 to 45°C,
Groups of 17 to 30
Amplifier Units: 0 to 40°C
Storage: -30 to 70°C (with
no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation) within the surrounding air
temperature range shown above
Installation environment Pollution degree 3 (as per IEC 60947-1)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance (destruction) 500 m/s2 for 3 times each in X, Y, and Z directions 150 m/s2 for 3 times each
in X, Y, and Z directions
Weight
(packed state/Sensor only)
Approx. 115 g/
approx. 75 g
Approx. 60g/
approx. 20g
Approx. 115 g/
approx. 75 g
Approx. 65 g/approx. 25 g
Mate-
rials
Case Polycarbonate (PC)
Cover Polycarbonate (PC)
Cable covering Polyvinyl chloride (PVC) ---
Accessories Instruction manual

*1. The E3NW-ECT Sensor Communications Unit can be used, but the E3NW-CRT/CCL, E3X-DRT21-S, and E3X-CRT/ECT
Sensor Communications Units cannot be used.
*2. The following details apply to the input.

 Contact input (relay or switch)Non-contact input (transistor)
NPN ON: Shorted to 0 V (Sourcing current: 2 mA max.).
OFF: Open or shorted to Vcc.
ON: 1.5 V max. (Sourcing current: 2 mA max.)
OFF: Vcc - 1.5 V to Vcc (Leakage current: 0.1 mA max.)
PNP ON: Shorted to Vcc (Sinking current: 3 mA max.).
OFF: Open or shorted to 0 V.
ON: Vcc - 1.5 V to Vcc (sinking current: 3 mA max.)
OFF: 1.5 V max. (Leakage current: 0.1 mA max.)

*3. Two sensor outputs are allocated in the programmable logic controller (PLC) I/O table.
PLC operation via Communications Unit enables reading detected values and changing settings.
*4. Power consumption
At Power Supply Voltage of 10 to 30 VDC
Normal mode: 1,080 mW max. (Current consumption: 36 mA max. at 30 VDC, 74 mA max. at 10 VDC)
Eco function ON: 840 mW max. (Current consumption: 28 mA max. at 30 VDC, 50mA max. at 10 VDC)
Eco function LO: 930 mW max. (Current consumption: 31 mA max. at 30 VDC, 55 mA max. at 10 VDC)
*5. The mutual interference prevention function is disabled if the detection mode is set to Super-high-speed Mode.
*6. The tuning will not change the number of units.
The least unit count among the mutual interference prevention units of E3NX and E3NC.
Check the mutual interference prevention unit count and response speed of each model.
*7. The bank is not reset by the user reset function or saved by the user save function.

Sensing Distances

Specifications

Hex-shaped Models

TypeAppearance
(mm)
Bending
radius
of
cable
(mm)
Sensing distance (mm)Model
Sensing
method
SizeAper-
ture
angle
White paper12-color
discrimination
GIGASTHSSHSGIGASTHSSHS
Reflective M6 60° 3532_sp_3_1 Flexible,
R4
90 45 30 13 18 9 6 4 E32-C91N 2M

Through-beam Models (Grooved Type)

TypeSensing
width
Appearance
(mm)
Bending radius
of cable (mm)
Sensing distance (mm)Model
Opaque objectTranslucent object
GIGASTHSSHSGIGASTHSSHS
Array 10 mm 3532_sp_4_1 R5 10 E32-G16 2M

Installation Information

ModelInstallationCableWeight
(packed
state)
Ambient
temper-
ature
Tight-
ening
torque
Mounting
hole
Bend-
ing
radius
(mm)
Unbendable
length
(mm)
Tensile
strength
Sheath
material
Core
ma-
terial
Emitter/
receiver
differen-
tiation
E32-C91N
2M
-40 to
70°C
0.98
N·m
6.2
+0.5, 0 dia.
R4 0 29.4 N Polyeth-
ylene
Plastic White line
on emitter
cable
36 g
E32-G16
2M
-40 to
70°C
0.53
N·m
-- R5 0 * 29.4 N Polyeth-
ylene
Plastic -- 51 g

* The bending radius of the protective cover (PVC, 25 mm) is 10 mm min.

Hex-shaped Models

Sensing
method
SizeAper-
ture
angle
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
M4 15° E32-LT11N 2M
(Built-in Lens)
980 510 350 140 190 100 70 44
60° E32-T11N 2M 300 150 100 45 60 31 21 13
Reflective M3 E32-C21N 2M 54 27 18 7 10 5 3.6 2.6
M4 E32-D21N 2M 90 45 30 13 18 9 6 4
M6 15° E32-LD11N 2M
(Built-in Lens)
88 44 29 13 17 8 5 4
M3 60° E32-C31N 2M 12 6 4 1.8 2.4 1.2 0.8 0.6
M6 E32-C11N 2M 90 45 30 13 18 9 6 4
Retro-
reflective for
transparent
object
detection
15° E32-LR11NP 2M
(Built-in Lens) +
E39-RP1 (Reflector,
sold separately)
370 180 120 55 75 37 25 16

*1. These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
*2. The Super-high-speed Mode for 12-color discrimination with a Reflective Sensor or for detection of translucent objects with a Through-beam Sensor can be set only in Contrast Mode. The Super-high-speed Mode can not be set in Color Mode.

Threaded Models

Sensing
method
SizeAperture
angle
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
M4 60° E32-T11R 2M 300 150 100 45 60 31 21 13
15° E32-LT11 2M
(Built-in Lens)
1,150 600 410 170 230 120 82 52
E32-LT11R 2M
(Built-in Lens)
980 510 350 140 190 100 70 44
Reflective M6 E32-LD11 2M
(Built-in Lens)
92 46 30 13 18 9 6 4
E32-LD11R 2M
(Built-in Lens)
88 44 29 13 17 8 5 4
M3 60° E32-C31 2M 37 18 12 5 7 3.8 2.5 1.8
M6 E32-D11R 2M 90 45 30 13 18 9 6 4
E32-CC200 2M 150 75 50 22 30 15 10 7

Cylindrical Models

Sensing
method
Sensing
direction
SizeModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStandardHigh-speedSuper high-speedGIGAStandardHigh-
speed
Super high-speed
*2
Through-
beam
Top-view 1.5 dia. E32-T22B 2M 110 64 37 16 22 12 7 5
3 dia. E32-T12R 2M 300 150 100 45 60 31 21 13
Side-view E32-T14LR 2M 190 100 68 29 38 20 13 8
Reflective Top-view 1.5 dia. E32-D22B 2M 17 8 6 2.4 3 2 1.2 0.7
3 dia. E32-D221B 2M 38 20 13 5 7 4 3 1.7
E32-D32L 2M 85 44 30 12 17 8 6 3.7

Flat Models

Sensing
method
Sensing
direction
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed *2
Through-
beam
Flat-view E32-LT35Z 2M
(Built-in Lens)
360 190 130 55 73 38 26 16
Top-view E32-T15XR 2M 300 150 100 45 60 31 21 13
Side-view E32-T15YR 2M 190 100 68 29 38 20 13 8
Flat-view E32-T15ZR 2M 190 100 68 29 38 20 13 8
Reflective Top-view E32-D15XR 2M 90 45 30 13 18 9 6 4
Side-view E32-D15YR 2M 21 10 7 3.1 4.2 2.1 1.4 1
Flat-view E32-D15ZR 2M 21 10 7 3.1 4.2 2.1 1.4 1

Sleeve Models

Sensing
method
Sensing
direction
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed *2
Through-
beam
Top-view E32-TC200BR 2M 300 150 100 45 60 31 21 13
Reflective E32-DC200BR 2M 90 45 30 13 18 9 6 4

*1. These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
*2. The Super-high-speed Mode for 12-color discrimination with a Reflective Sensor or for detection of translucent objects with a Through-beam Sensor can be set only in Contrast Mode. The Super-high-speed Mode can not be set in Color Mode.

Small-spot, Reflective Models

Sens-
ing
meth-
od
TypeSpot
diam-
eter
Cen-
ter
dis-
tance
(mm)
ModelSensing distance (mm)
White paper12-color discrimination
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Re-
flective
Inte-
grated
lens,
long-
distance,
small-
spot
6
dia.
50 E32-L15 2M Spot diameter of 6 mm at 50
mm.
Sensing distance of 40 to 100
mm.
Spot diameter of 6 mm
at 50 mm. Sensing
distance of 40 to 85
mm.
Spot
diam-
eter of 6
mm at 50
mm.
Sensing
distance
of 40 to
60 mm.
Parallel
light
4
dia.
0 to
20
E32-C31 2M
+ E39-F3C
Spot diameter of 4 mm at 0 to
20 mm.
Spot diameter of 4 mm
at 1 to 9 mm. *3
--
Small-
spot
0.5
dia.
7 E32-C31 2M
+ E39-F3A-5
Spot diameter of 0.5
mm at 7 mm.
-- Spot diameter
of 0.5 mm at 7
mm. *3
--
17 E32-C31 2M
+ E39-F3B
Spot diameter of 0.5
mm at 17 mm.
-- --
3
dia.
50 E32-CC200
2M + E39-
F18
Spot diameter of 3
mm at 50 mm.
-- Spot diameter
of 3 mm at 50
mm. *3
--

High-power Beam Models

Sensing
method
Sensing
direction
Aper-
ture
angle
ModelSensing distance (mm)
Opaque objectTranslucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
Top-view 10° E32-T17L 10M 8,570 200 130 59 1,710 40 27 17
Side-view 30° E32-T14 2M 1,910 990 680 290 380 190 130 87
Right-angle 12° E32-T11N 2M
+ E39-F1
1,470 760 520 220 290 150 100 66
Top-view 12° E32-T11R 2M
+ E39-F1
1,470 760 520 220 290 150 100 66
Side-view 60° E32-T11R 2M
+ E39-F2
180 98 67 28 37 19 13 8
Top-view 12° E32-T11 2M
+ E39-F1
2,430 1,260 860 360 480 250 170 110
Side-view 60° E32-T11 2M
+ E39-F2
310 160 110 47 62 32 22 14
Top-view 12° E32-T61-S 2M
+ E39-F1
1,080 560 380 160 210 110 76 49
Side-view 60° E32-T61-S 2M
+ E39-F2
130 72 49 21 27 14 9 6

Narrow View Models

Sensing
method
Sensing
direction
Aper-
ture
angle
ModelSensing distance (mm)
Opaque objectTranslucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
Side-view E32-T24S 2M 750 380 260 110 150 77 53 34
E32-T22S 2M 1,070 550 380 160 210 110 76 48

Chemical-resistant, Oil-resistant Models

Sensing
method
TypeSensing
direction
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
Chemical/
oil resistant
Top-view E32-T12F 2M 1,710 880 600 260 340 170 120 78
E32-T11F 2M 250 130 91 39 51 26 18 11
Side-view E32-T14F 2M 210 110 76 32 42 22 15 9
Chemical/
oil-resistant
at 150°C
Top-view E32-T51F 2M 770 400 270 110 150 80 54 35
Reflective Chemical/
oil resistant
Top-view E32-D12F 2M 49 24 16 7 9 5 3 2.4
Chemical-
resistant
cable
E32-D11U 2M 90 45 30 13 18 9 6 4

*1. These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
*2. The Super-high-speed Mode for 12-color discrimination with a Reflective Sensor or for detection of translucent objects
with a Through-beam Sensor can be set only in Contrast Mode. The Super-high-speed Mode can not be set in Color
Mode.
*3. The sensing distances are given for Contrast Mode. The sensing distance cannot be set in Color Mode.

Bending-resistant Models

Sensing
method
SizeModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed *2
Through-
beam
1.5 dia. E32-T22B 2M 110 64 37 16 22 12 7 5
M3 E32-T21 2M 100 57 33 14 20 11 6 4
M4 E32-T11 2M 380 200 130 58 77 40 27 17
Square E32-T25XB 2M 77 43 25 10 15 8 5 3.3
Reflective 1.5 dia. E32-D22B 2M 17 8 6 2.4 3 2 1.2 0.7
M3 E32-D21 2M 17 8 6 2.4 3.4 1.8 1.2 0.7
3 dia. E32-D221B 2M 38 20 13 5 7 4 3 1.7
M4 E32-D21B 2M 38 20 13 5 7 4 2.7 1.7
M6 E32-D11 2M 90 45 30 13 18 9 6 4
Square E32-D25XB 2M 27 14 9 3.9 5 3 2 1.2

Heat-resistant Models

Sensing
method
Heat-
resistant
temperature
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed *2
Through-
beam
150° E32-T51 2M 420 220 150 65 85 44 30 19
200° E32-T81R-S 2M 150 80 54 23 30 16 10 7
350° E32-T61-S 2M 250 130 91 39 51 26 18 11
Reflective 150° E32-D51 2M 120 60 40 17 24 12 8 5
200° E32-D81R-S 2M 42 21 14 6 8 4.3 2.9 1.9
350° E32-D61-S 2M 42 21 14 6 8 4 2.9 1.9
400° E32-D73-S 2M 28 14 9 4 5 2.9 1.9 1.3

Area Detection Models

Sensing methodTypeSensing
width
ModelSensing distance (mm)
Reflective: White paper,
Through-beam: Opaque object
Reflective:
12-color discrimination,
Through-beam:
Translucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed *2
Through-
beam
Area 11 mm E32-T16PR 2M 480 250 170 73 96 50 34 21
E32-T16JR 2M 410 210 140 63 83 43 29 19
30 mm E32-T16WR 2M 730 210 140 63 140 43 29 19
Reflective Array 11 mm E32-D36P1 2M 75 37 25 11 15 7 5 3.3

Vacuum-resistant Models

Sensing
method
TypeHeat-
resistant
tempera-
ture
ModelSensing distance (mm)
Opaque objectTranslucent object *1
GIGAStand-
ard
High-
speed
Super-
high-
speed
GIGAStand-
ard
High-
speed
Super-
high-
speed
*2
Through-
beam
Vacuum
side
120° E32-T51V 1M 110 57 39 16 22 11 7 5
E32-T51V 1M
+ E39-F1V
170 90 61 26 34 18 12 7
200° E32-T84SV 1M 270 140 97 41 54 28 19 12

*1. These sensing distances are recommended to make the most of the detection capabilities of the Sensor.
*2. The Super-high-speed Mode for 12-color discrimination with a Reflective Sensor or for detection of translucent objects
with a Through-beam Sensor can be set only in Contrast Mode. The Super-high-speed Mode can not be set in Color
Mode.

Dimensions | Fiber Amplifier Sensor - E3NX-CA series

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Fiber Amplifier Units

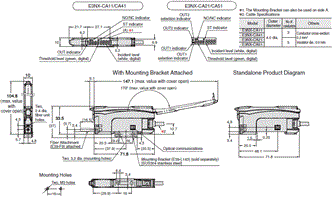

Pre-wired Amplifier Units
E3NX-CA11
E3NX-CA41
E3NX-CA21
E3NX-CA51

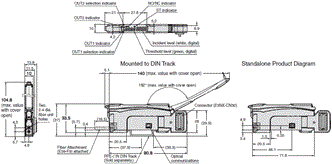

E3NX-CA Dimensions 3

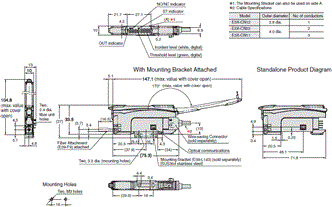

Amplifier Units with Wire-saving Connectors
E3NX-CA6
E3NX-CA8

E3NX-CA Dimensions 4

Amplifier Unit with Connector for Sensor Communications Unit
E3NX-CA0

E3NX-CA Dimensions 5

Fiber Units

Reflective Models
E32-C91N

E3NX-CA Dimensions 7

Through-beam Models (Grooved Type)
E32-G16

E3NX-CA Dimensions 8

Accessories (Sold Separately)

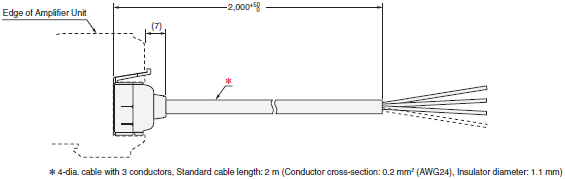

Wire-saving Connectors
Master Connector
E3X-CN11

E3NX-CA Dimensions 10

Slave Connector
E3X-CN12

E3NX-CA Dimensions 11

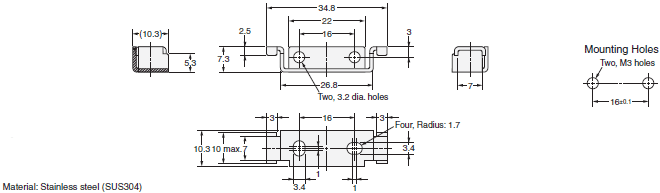

Mounting Bracket
E39-L143

E3NX-CA Dimensions 12

DIN Tracks
PFP-100N
PFP-50N

E3NX-CA Dimensions 13

PFP-100N2

E3NX-CA Dimensions 14

End Plate
PFP-M

E3NX-CA Dimensions 15

Features | Fiber Amplifier Sensor - E3NX-CA series

  • Detects subtle color differences. The new white LED optic system increases the light intensity and the low-noise circuit in the Smart Fiber Amplifier Unit provides a surprising detection capability.
  • Handles glossy workpieces. Smart Tuning lets you set the optimum sensitivity for detection with one simple operation.
  • IoT compatible. The detected RGB data can be displayed on the Amplifier Unit, and the Amplifier Unit for communications can transfer this data to the host in realtime

Properties | Fiber Amplifier Sensor - E3NX-CA series

Fiber Amplifier SensorE3NX-CA
Supply voltage 10 - 30 VDC
Outputs I/O 1 output, 2 output
External input I/O

1 input

Maximum connectable Units 30 Units
Weight
(packed state/Sensor only)
Approx. 115 g / 75 g
Approx. 60g / 20g
Approx. 65g / 25g
Materials

Polycarbonate (PC)

Fiber Sensor Amplifier - E3NX-CA series

Smart Fiber Amplifier พร้อมไฟ LED สีขาว มีความสามารถในการจำแนกสีสูงด้วยการใช้งานที่เหมือนกับ Fiber Amplifier แบบเดิม สามารถเชื่อมต่อไฟเบอร์ยูนิตทั่วไปที่มีอยู่แล้วได้

ดาวน์โหลดไฟล์ PDF
Fiber Sensor Amplifier -  E3NX-CA series
OMRON Fiber Sensor Amplifier - E3NX-CA series

คุณสมบัติ | Fiber Sensor Amplifier - E3NX-CA series

  • ตรวจจับความแตกต่างเล็กน้อยของสี ออปติก LED สีขาวระบบใหม่เพิ่มความความเข้มของแสงและวงจรสัญญาณรบกวนต่ำใน Smart Fiber Amplifier Unit ให้ความสามารถในตรวจจับที่น่าทึ่ง
  • จับชิ้นงานมันวาวได้ Smart Tuning ช่วยให้คุณคั้งค่าความไวในการตรวจจับที่เหมาะสมที่สุดด้วยการใช้งานง่ายๆ เพียงครั้งเดียว
  • รองรับ IoT ข้อมูล RGB ที่ตรวจพบสามารถแสดงบน Amplifier Unit และ Amplifer Unit สำหรับการสื่อสารสามารถ ถ่ายโอนข้อมูลนี้ไป ยังโฮลต์แบบเรียลไทม์

ข้อมูลจำเพาะ | Fiber Sensor Amplifier - E3NX-CA series

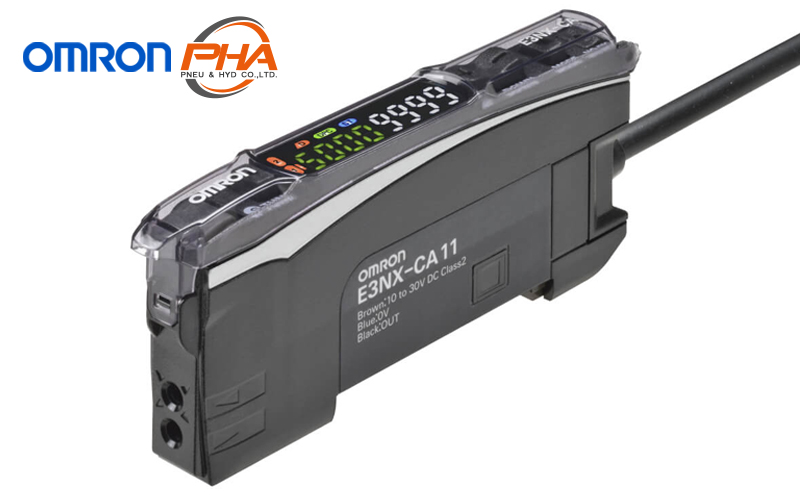

Fiber Sensor AmplifierE3NX-CA series
แรงดันไฟฟ้า 10 - 30 VDC
เอาต์พุต I/O 1 เอาต์พุต, 2 เอาต์พุต
อินพุตภายนอก I/O 1 อินพุต
ยูนิตเชื่อมต่อสูงสุด 30 ยูนิต
น้ำหนัก (สถานะบรรจุ / เฉพาะเซ็นเซอร์) (กรัม) ประมาน 115/75, 60/20, 65/25
วัสดุ โพลีคาร์บอเนต (PC)

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
