Hiwin Torque Motor Rotary Table - TMYA series

Torque Motor Rotary Table - TMYA series

The TMY series is designed with an intergrated, high resolution feedback system which is optimized to achieve high dynamic motion, high torque and high precision. The TMY series is a perfect fit for indusries that require precision.

ดาวน์โหลดไฟล์ PDF
Torque Motor Rotary Table - TMYA series
Hiwin Torque Motor Rotary Table - TMYA series

Feature | Torque Motor Rotary Table - TMYA series

  • Outer rotating structure
  • Integrated high resolution incremental/absolute feedback system
  • High dynamic, torque and precision
  • Maximum torque: 12 - 300 Nm
  • Compatible with special environments

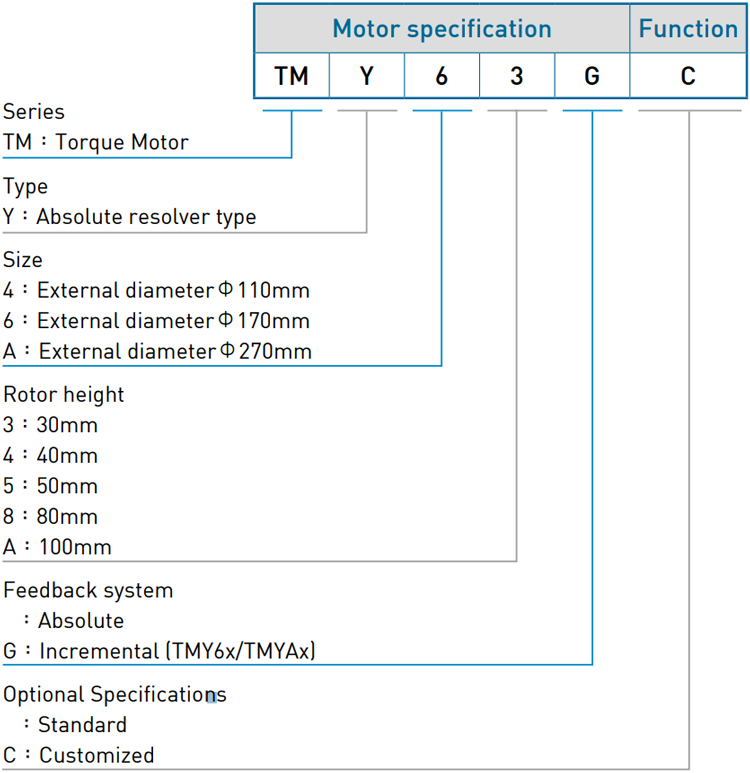

Code | Torque Motor Rotary Table - TMYA series

Torque Motor Rotary Table - TMYA series


Specifications | Torque Motor Rotary Table - TMYA series

DetailSymbolUnitTMYA5GTMYA5DTMYAAGTMYAAD
Continuous torque Tc Nm 50 100
Continuous current Ic Arms 2.2 4.4
Peak torque (Within 1s.) Tp Nm 150 300
Peak current (Within 1s.) Ip Arms 6.6 13.2
Torque constant Kt Nm/Arms 22.5 22.5
Eletrical time constant Te ms 13.2 13.3
Resistance (line to line at 25°C) R25 Ω 13.3 5.8
Inductance (line to line) L mH 170 77
Number of poles 2p - 22 22
Back emf constant (line to line) Kv Vrms/(rad/s) 13 13
Motor constant (line to line at 25°C) Km Nm/√W 5 7.6
Thermal resistance Rth K/W 0.8 0.4
Temperature sensor - - PTC SNM100
Nominal input voltage - VDC 500(6002))
Inertia of rotating parts J kgm2 0.32 0.44
Mass of motor Mm kg 54 71
Max. axial load Fa N 8000 8000
Max. moment load M Nm 240 240
Max. speed - rpm 100 100
Resolution - p/rev 4,320,000 920,000 4,320,000 920,000
Repeatability - arc-sec ±3
Accuracy - arc-sec ±30
Axial runout Ra mm 0.03(0.0052))
Radial runout Rr mm 0.03(0.0152))
Height H mm 145 200
Height Hb mm 31
  1. 1) Incremental type with sin/cos 1Vpp, absolute type should be matched with corresponding HIWIN drive.
  2. 2) Optional
  3. *All the specifications in the table are in ±10% of tolerance except dimensions.
