Hiwin Torque Motor Rotary Table - TMY4 series

Torque Motor Rotary Table - TMY4 series

The TMY series is designed with an intergrated, high resolution feedback system which is optimized to achieve high dynamic motion, high torque and high precision. The TMY series is a perfect fit for indusries that require precision.

ดาวน์โหลดไฟล์ PDF
Torque Motor Rotary Table - TMY4 series
Hiwin Torque Motor Rotary Table - TMY4 series

Feature | Torque Motor Rotary Table - TMY4 series

  • Outer rotating structure
  • Integrated high resolution incremental/absolute feedback system
  • High dynamic, torque and precision
  • Maximum torque: 12 - 300 Nm
  • Compatible with special environments

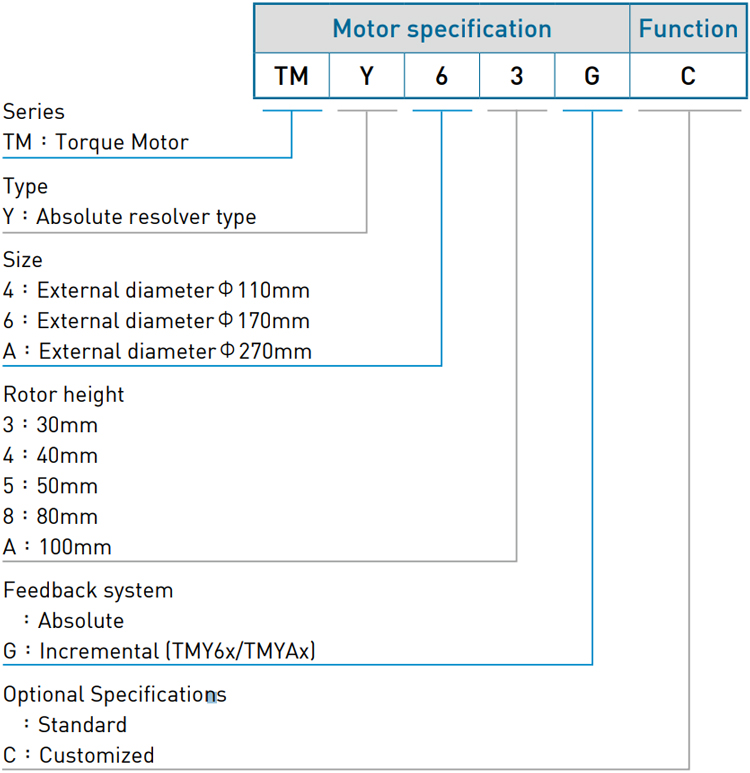

Code | Torque Motor Rotary Table - TMY4 series

Torque Motor Rotary Table - TMY4 series


Specifications | Torque Motor Rotary Table - TMY4 series

DetailSymbolUnitTMY44TMY48
Continuous torque Tc Nm 4 8
Continuous current Ic Arms 2.6 2.6
Peak torque (Within 1s.) Tp Nm 12 24
Peak current (Within 1s.) Ip Arms 7.8 7.8
Torque constant Kt Nm/Arms 1.56 3.12
Eletrical time constant Te ms 5.2 5.4
Resistance (line to line at 25°C) R25 Ω 2.57 4.5
Inductance (line to line) L mH 13.27 24.42
Number of poles 2p - 14 14
Back emf constant (line to line) Kv Vrms/(rad/s) 0.9 1.8
Motor constant (line to line at 25°C) Km Nm/√W 0.8 1.2
Thermal resistance Rth K/W 2.9 1.6
Temperature sensor - - PTC SNM100
Nominal input voltage - VDC 500(6002))
Inertia of rotating parts J kgm2 0.0065 0.0085
Mass of motor Mm kg 5 7.5
Max. axial load Fa N 1000 1000
Max. moment load M Nm 30 30
Max. speed - mm 300 300
Resolution - p/rev 920,000 (Absolute1))
Repeatability - arc-sec ±3
Accuracy - arc-sec ±30
Axial runout Ra mm 0.03(0.0052))
Radial runout Rr mm 0.03(0.0152))
Height H mm 123 163
  1. 1) The motor should be matched with corresponding HIWIN drive.
  2. 2) Optional
  3. *All thespecifications in the table are in ±10% to tolerance except dimensions.
