Hiwin Single Axis Standard - SSA

Hiwin Single Axis Standard - SSA : HIWIN single positioning stage provide fast, accurate positioning, linear direct drive motor and can reach long stroke applications ...

Stage Single Axis Standard - SSA

Hiwin Single Axis Standard - SSA : In addition to providing metal cover, dust jacket and other optional items to achieve dust protection requirements. Choose cable chain type, horizontal or vertical wiring that uses extension cords not to scatter outside, make the machine look tidy.

ดาวน์โหลดไฟล์ PDF

Feature | Stage Single Axis Standard - SSA

• Short delivery
• User friendly
• Best price-performance ratio
• Efficient drive included
• High acceleration/velocity,
• which ball screw system cannot achieve
• Long stroke supported
• Multiple forcers supported

---

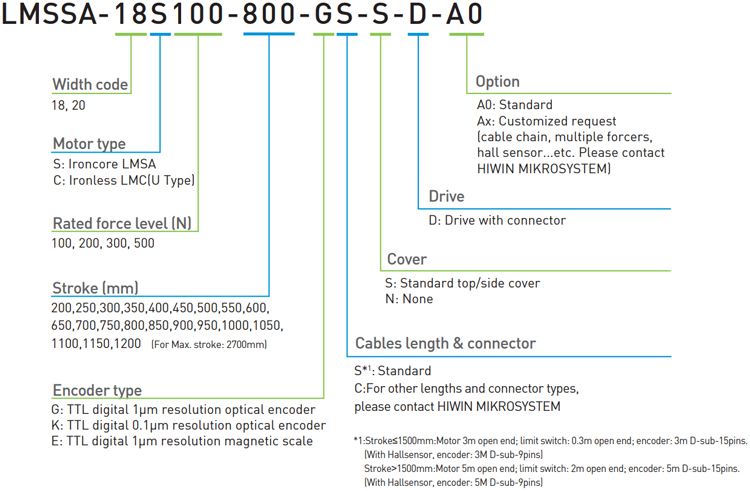

Code | Stage Single Axis Standard - SSA

---

Specifications | Stage Single Axis Standard - SSA

Model	SSA-18S100	SSA-18S200	SSA-18C100	SSA-18C200	SSA-20S300	SSA-20S500	SSA-20C100	SSA-20C200
Linear Motor Type	Ironcore LMSA		Ironless LMC		Ironcore LMSA		Ironless LMC
Length (A)	180mm	240,,	180mm	370mm	240mm	370mm	240mm	370mm
Donw Width (B)	203mm				229mm
Up Width (W)	185mm				206mm
Total Height (H)	88.7mm				91.7mm
Total Lengtth (L)	L=A+Stroke+110mm
Continuous Force	103	205	75	150	362	544	91	145
Peak Force (N)	289	579	300	600	1023	1535	364	580
Stroke(mm)	200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200 (Max stroke: 2700m)
Encoder Resolution	1µm magnetic scale / Digital 1µm optical encoder / DIgital 0.1µm optical encoder
Repeatability	±3µm/±3µm/±1µm
Horizontal Straightness	±8µm/300 mm (Stroke≤1200mm)
Vertical Straightness	±8µm/300 mm (Stroke≤1200mm)
Max. Velocity (m/s)	3.1	3.1	5.0	4.2	1.6	1.6	4.7	2.3
Max. Acceleration (G)	10*
Moving Mass (kg) Stroke≤1500mm	2.90	4.06	2.68	4.55	5.62	8.13	3.90	5.55
Moving Mass (kg)Stroke>1500mm	4.10	6.06	3.88	7.55	7.62	11.13	5.90	8.55
Mass of 0-Stroke(kg)Stroke≤1500mm	8.41	10.57	11.43	17.09	13.55	18.50	13.32	17.54
Mass of 0-Stroke>1500mm	9.61	12.57	12.63	20.09	15.55	21.50	15.32	20.54
Mass per 1m Stroke(kg/m)	16.45	16.65	20.71	20.45	19.76	20.50	27.92	28.78

• Measurement is performed on granite platform according to HIWIN Standard.
• Max. velocity varies with stroke, payload. encoder resolution and motor thrust.
• With digital 0.1µm resolution optical scale, the max velocity is 1.5m/s
• Limits NPN , DC12-24V. Wiring(Brown: +;Blue : -; Black : output)
• Please refer to each curve in the sizing diagram
